Introduction
The NVIDIA MMS4A00 is a 1600Gb/s 2xDR4, single mode optical transceiver supporting the XDR 800Gb/s InfiniBand protocol. The line rate is 200Gb/s using Pulse Amplitude Modulation at 4-channels denoted as 200G-PAM4 enabling two data bits to transfer per clock pulse.
The electrical configuration is 8-channels of 200G-PAM4. Optical configuration is based on two Datacenter Reach, 4-channel (2xDR4), 800Gb/s optical connectors.
Optical connectors are Multiple Push-On 12-fiber, Angled Polished Connector or MPO-12/APC. Two MPO-12/APC optical connectors are used per transceiver.
The 2x800G transceiver engine enables the InfiniBand Quantum-X800 QM3400, 72-cage switch to support 144-ports of 800Gb/s.
Based on 9-um, single mode fibers, the main application is linking two switches together up to 500-meters, or to two 800G links to two switches or network adapters for storage and compute servers. The 500-meter length assumes two optical patch panels or four optical connectors in the link.
NVIDIA’s transceivers guarantee optimal operation in NVIDIA end-to-end InfiniBand systems, and rigorous production testing ensures the lowest bit error rates, low-latency, and best out-of-the-box installation experience, performance, and durability.

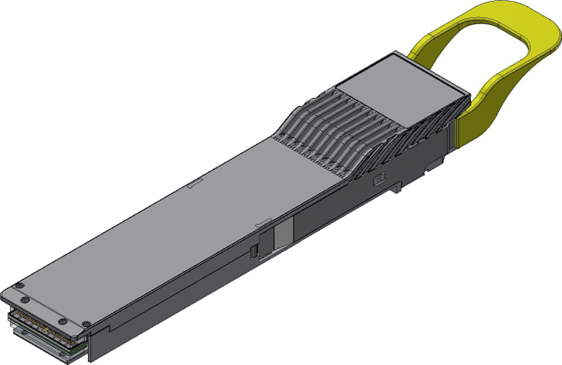

Integrated Heat Sink (IHS) Finned Top Transceiver

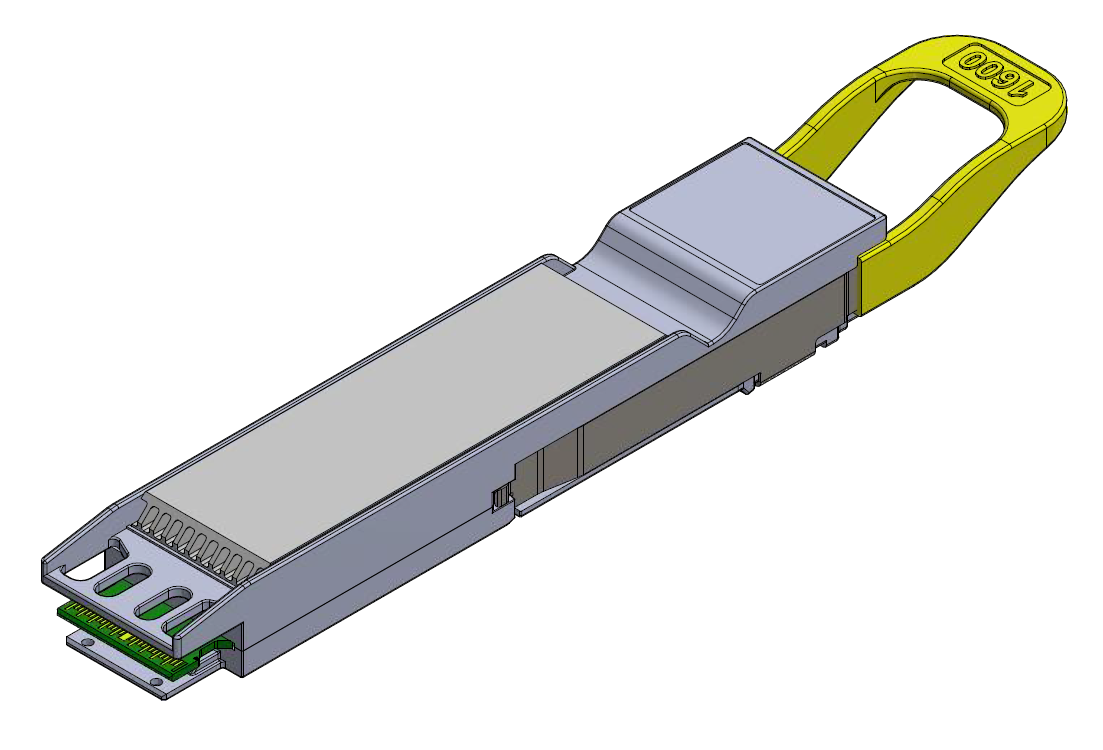

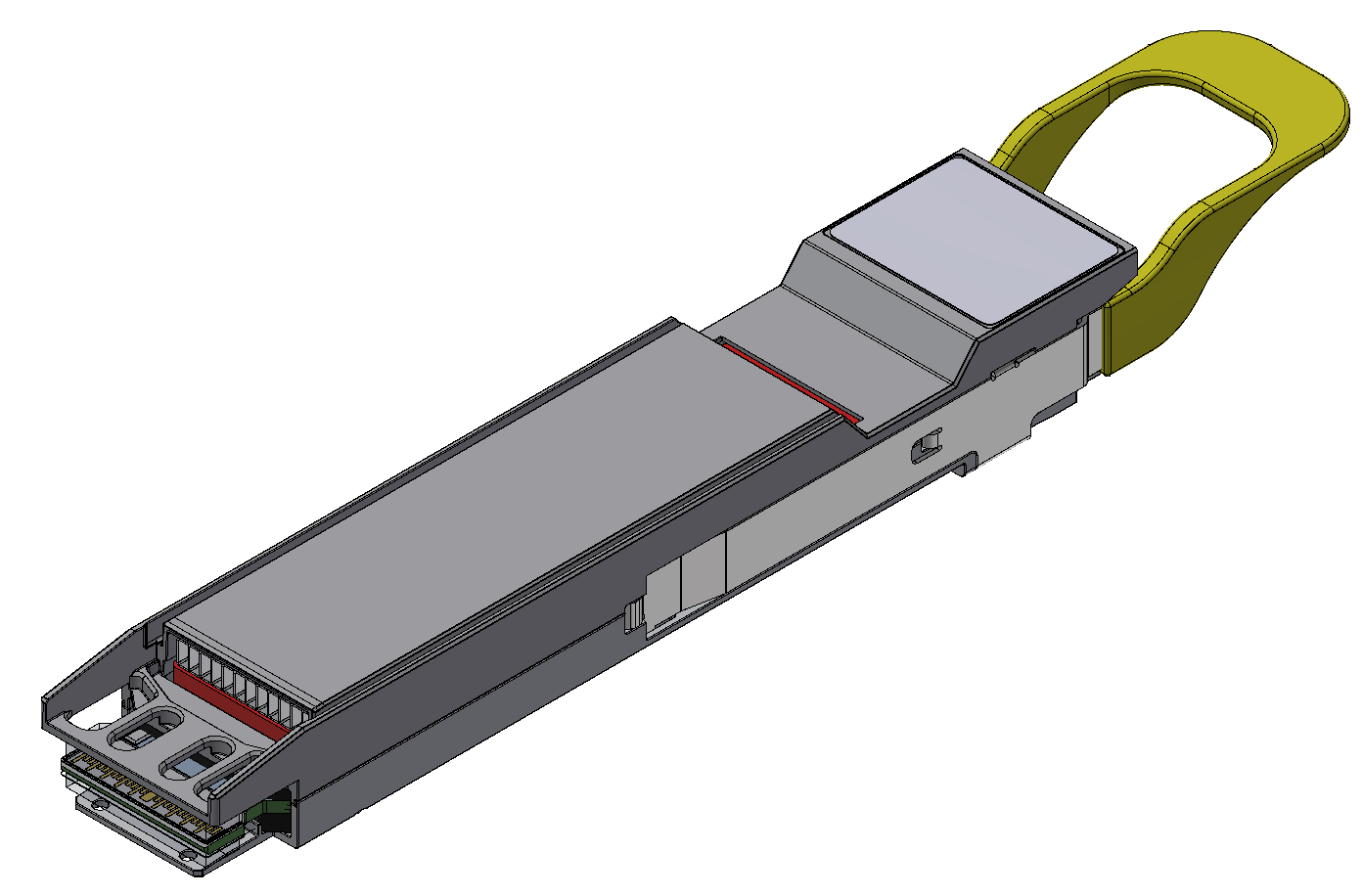

Riding Heat Sink (RHS) Flat Top Transceiver (this version is planned for future setups)
Images are for illustration purposes only. Product manufacturing sites, labels, colors, and dimensions may vary.
Key Features
-
1600Gb/s single mode transceiver
-
8-channels of 200G-PAM4 electrical modulation
-
Two ports of 4-channel 200G-PAM4 optical modulation
-
Two MPO-12/APC optical connectors
-
1310nm laser
-
Maximum reach: 500-meters
-
33.5W max power
-
Single 3V power supply
-
Class 1 laser safety
-
Hot pluggable, RoHS compliant
-
Supports CMIS 4.0
-
Case temperature range of 20°C to +70°C
-
Secure Firmware boot and update features
Applications
-
Used in Quantum-3 air-cooled and liquid-cooled switch
