DOCA Telemetry PCC

This guide provides instructions for building and developing applications that require telemetry data collection from NVIDIA® BlueField® and NVIDIA® ConnectX® families of networking platforms.

Introduction

The doca_telemetry_pcc library provides access to algorithm information and counter statistics for any Programmable Congestion Control (PCC) implementations currently installed on NVIDIA® BlueField or ConnectX® networking platforms.

DOCA Telemetry PCC is supported at alpha level.

Prerequisites

To utilize DOCA Telemetry PCC, your system must meet the following baseline requirements:

Firmware: Version >=28/32/40.43.1000 is required for ConnectX-7, BlueField-3, and ConnectX-8 devices.
Driver: The fwctl driver must be fully installed and actively loaded on the system.

Verifying the fwctl Driver

To verify that the fwctl driver is successfully loaded, check the device directories:

$ ls /sys/class/fwctl/
$ ls /dev/fwctl

The expected output for a standard 2-port device is fwctl0 fwctl1.

Manually Loading the Driver

If the directories /sys/class/fwctl or /dev/fwctl do not exist or are empty, the module may be installed but inactive.

Check for the module's presence:

$ grep fwctl -R /lib/modules/$(uname -r)/

If the output confirms the presence of fwctl.ko and mlx5_fwctl.ko, manually load the module and verify its status:

$ sudo modprobe mlx5_fwctl
$ lsmod | grep fwctl

Reinstalling the DOCA Host Package

If you cannot locate the installed fwctl module while manually loading the driver, or if the modprobe command fails to load it successfully, you must reinstall the DOCA Host package.

Download the package (DOCA 3.3.0 example):

$ wget https://www.mellanox.com/downloads/DOCA/DOCA_v3.3.0/host/doca-host_3.3.0-088000-26.01-ubuntu2204_amd64.deb

Purge existing DOCA and OFED modules:

$ sudo for f in $( dpkg --list | grep doca | awk '{print $2}' ); do echo $f ; apt remove --purge $f -y ; done
$ sudo for f in $( dpkg --list | grep mlnx | awk '{print $2}' ); do echo $f ; apt remove --purge $f -y ; done
$ sudo for f in $( dpkg --list | grep dpdk | awk '{print $2}' ); do echo $f ; apt remove --purge $f -y ; done
$ sudo for f in $( dpkg --list | grep ofed | awk '{print $2}' ); do echo $f ; apt remove --purge $f -y ; done
$ sudo /usr/sbin/ofed_uninstall.sh --force
$ sudo apt-get autoremove

Install the new package and restart services:
```
$ sudo dpkg -i doca-host_3.3.0-088000-26.01-ubuntu2204_amd64.deb
$ sudo apt-get update
$ sudo apt-get -y install doca-all
$ sudo /etc/init.d/openibd restart
```
Once the reinstallation is complete, confirm the module is successfully loaded according to section "DOCA Telemetry PCC | Verifying the fwctl Driver".

Environment

DOCA Telemetry-based applications can run on either the host machine (ConnectX-7 or BlueField-3 and newer) or the DPU target (BlueField-3 and newer).

Architecture

DOCA Telemetry PCC allows for the collection of information from any PCC images installed and actively running on a ConnectX or BlueField device.

To interact with a device, a separate doca_telemetry_pcc context must be created for each device. A device typically corresponds to a specific port on a NIC.

You can also create a context on a representor device using doca_telemetry_rep_pcc. This approach is often required in configurations like switchdev bonds, where lower-level ports are exposed as DOCA device representors rather than full DOCA devices.

The doca_telemetry_pcc context operates independently of any doca_pcc contexts. This means that changes to the configuration of a running PCC image, such as disabling an algorithm, are not automatically reflected in the telemetry context. Implementing applications must handle these changes either by directly interacting with the PCC application or by scanning all algorithm slots to determine which are currently active.

It is assumed that a new PCC image will not be installed while a doca_telemetry_pcc context is active on the device.

If a complete PCC re-image is performed, a new doca_telemetry_pcc context must be created.

Schema Retrieval

Slots/Algorithms

An active PCC image running on the DPA subsystem of a device can contain multiple Congestion Control algorithms. Each algorithm is assigned to a specific "slot," with only one slot/algorithm active on the device at any given time.

The algorithms in each slot cannot be modified without re-imaging the PCC algorithm on the DPAs. While DOCA Telemetry PCC does not provide functionality to configure slots or algorithms, it enables the calling application to retrieve information about the algorithms installed in each populated slot.

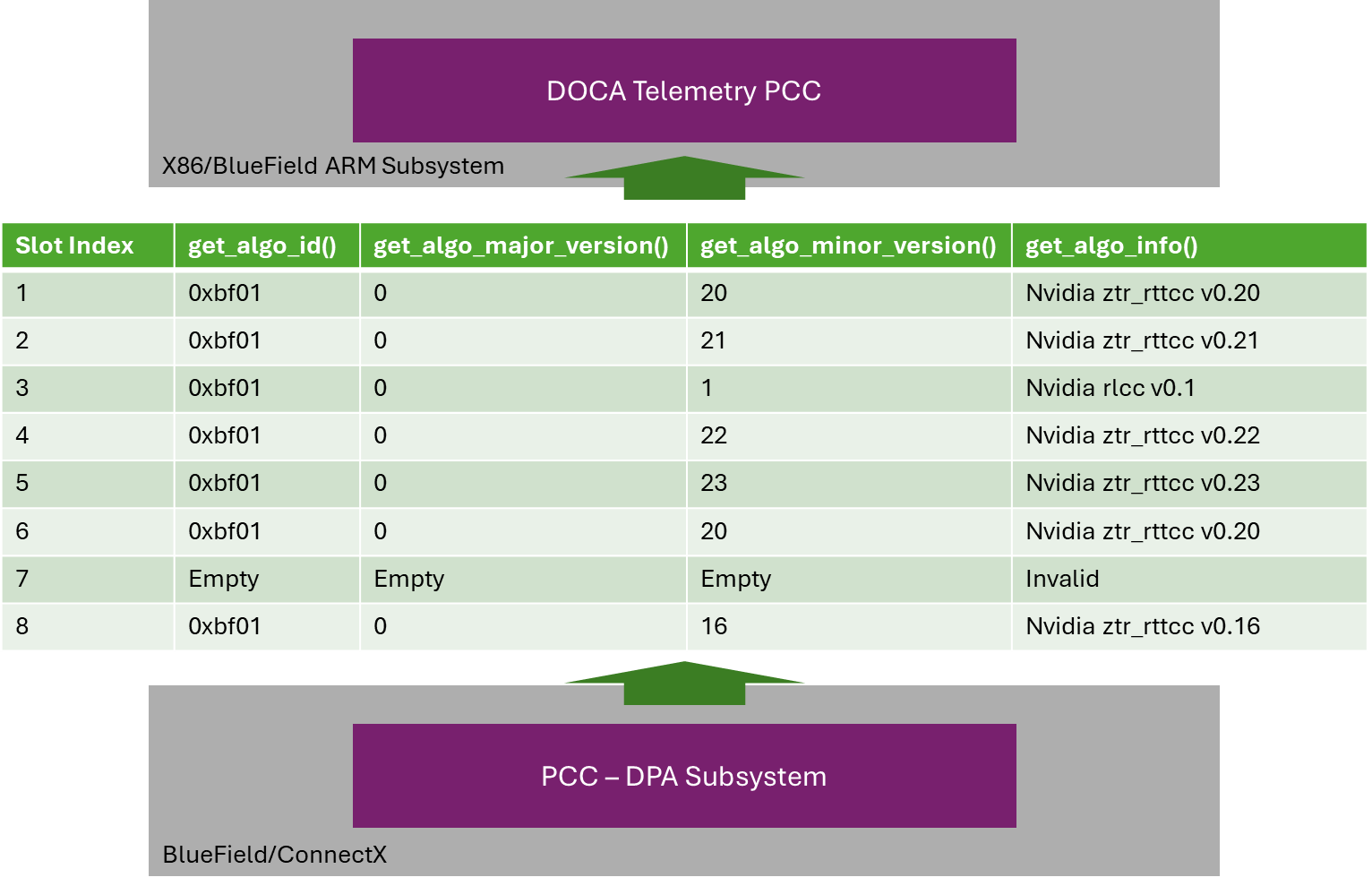

For example:

Counter Information

Similar to slots, the counter definitions for each algorithm cannot be modified without re-imaging a new PCC.

DOCA Telemetry PCC allows applications to retrieve the number of counters defined for an algorithm applied to a specific port. Each counter's definition can then be accessed using an index value, ranging from 0 to total_counters-1.

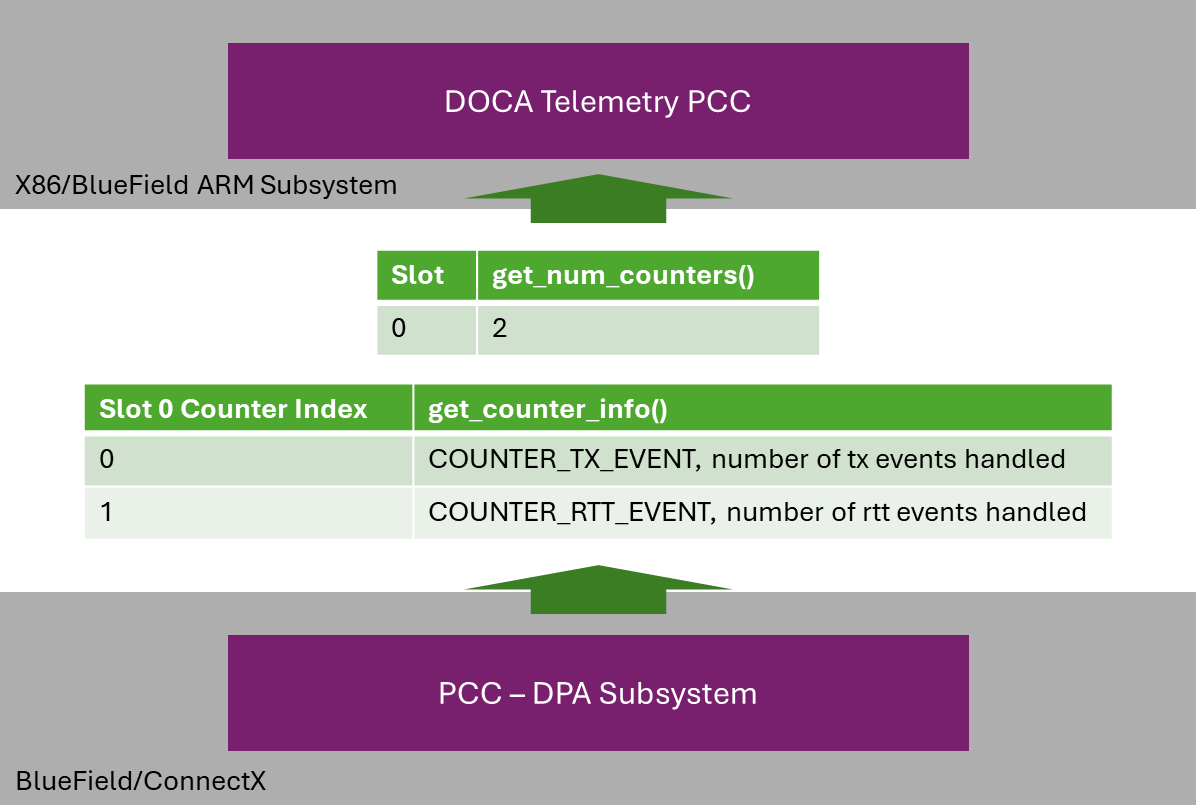

For example:

Run-time Retrieval

Status

The congestion algorithm actively running on a device at any given time is determined by the lowest enabled slot index, as multiple slots can be marked as enabled simultaneously.

The enabling or disabling of a slot can be triggered dynamically at runtime by external processes, independent of DOCA Telemetry PCC. Automatically detecting these changes falls outside the scope of a doca_telemetry_pcc context. It is the user's responsibility to either scan all slots periodically or interface directly with the external process to monitor changes.

In addition to enabling/disabling a slot, counters for a slot can also be enabled or disabled. Only one slot can have active counters at any given time. If counters are not active on an algorithm slot, any attempt to poll their values will result in a DOCA_ERROR_BAD_STATE.

The status of both the slot and its counters can be inspected using the doca_telemetry_pcc_get_algo_enable_status API.

Since PCC configuration is managed outside DOCA Telemetry PCC, there is no guarantee that system conditions remain consistent between API calls. For example, get_algo_enable_status() may indicate that counters are enabled, but subsequent polling of those counters could fail if they were disabled between the calls.

Counters

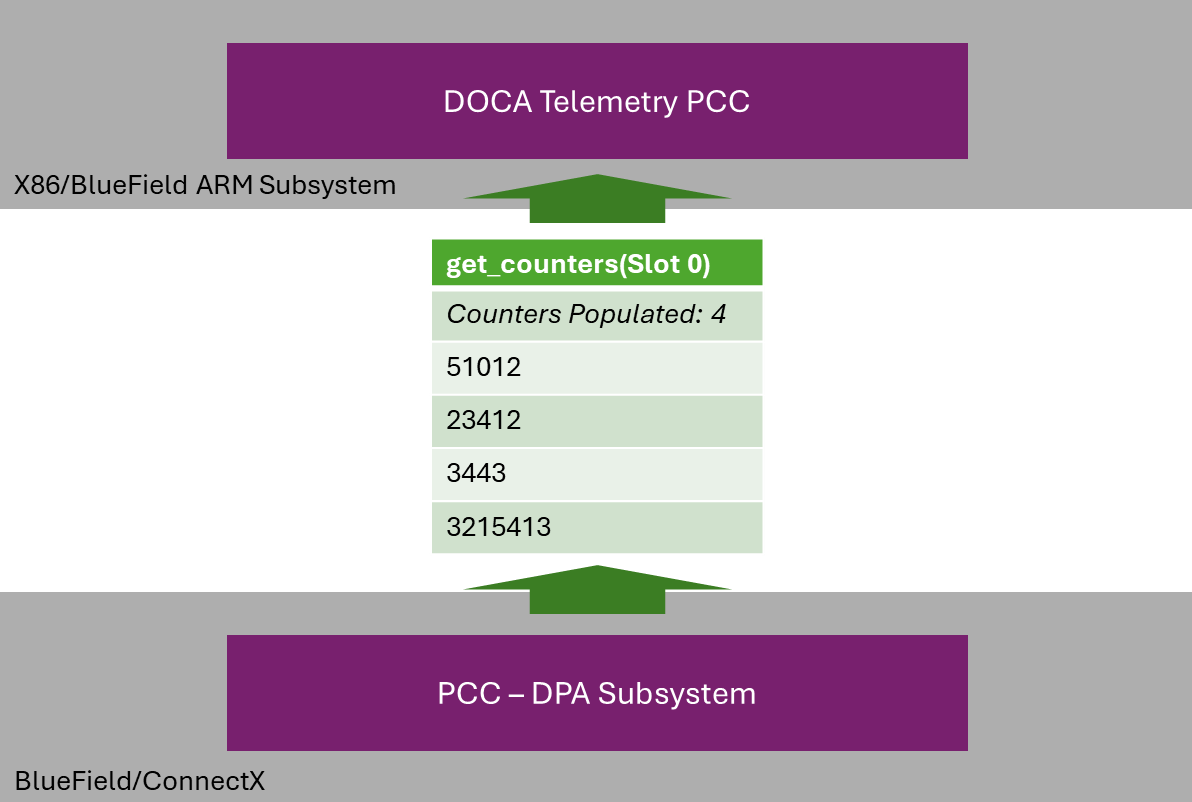

Counter values for a slot with enabled counters can be polled using a doca_telemetry_pcc context associated with a specific device.

When retrieving counter values, the API returns all available counters as a block rather than individually. The counters are provided in an array of 32-bit values, along with the total number of counters populated in the array.

It is assumed that the user is familiar with what each counter index represents (refer to the "DOCA Telemetry PCC | Counter Information" section for details).

DOCA Telemetry PCC provides another API function which enables the resetting of counters if so required.

State Machine

This section outlines the various states the doca_telemetry_pcc context transitions through, the methods for transitioning between these states, and the operations permitted in each state.

Idle

The context has been created and is Idle.

In this state, it is expected for the application to:

Destroy the context.
Start the context for processing.

Allowed operations:

Configuring the context.

It is possible to reach this state as follows:

Previous State	Transition Action
None	Create the context
Running	Call stop

Running

In this state it is expected for the application to:

Stop the context.

Allowed operations:

Calling stop, moving the application to "Idle" state

It is possible to reach this state as follows:

Previous State	Transition Action
Idle	Successfully start the context

There are currently no state restrictions on the majority of API functions.

Alternative Datapath Options

DOCA Telemetry PCC supports only CPU-based datapaths.

DOCA Telemetry PCC Sample

This section describes a telemetry PCC sample based on the doca_telemetry_pcc library. The sample illustrates the utilization of DOCA telemetry PCC APIs to initialize and configure the doca_telemetry_pcc context, as well as querying and parsing PCC schema and counters.

These samples are also available on GitHub.

Running the Sample

Refer to the following documents:
1. DOCA Installation Guide for Linux for details on how to install BlueField-related software.
2. NVIDIA BlueField Platform Software Troubleshooting Guide for any issue you may encounter with the installation, compilation, or execution of DOCA samples.
To build a given sample, run the following command. If you downloaded the sample from GitHub, update the path in the first line to reflect the location of the sample file:
```
cd /opt/mellanox/doca/samples/doca_telemetry/telemetry_pcc
meson /tmp/build
ninja -C /tmp/build
```
The binary doca_telemetry_pcc is created under/tmp/build/.

Sample usage:

Usage: doca_telemetry_pcc [DOCA Flags] [Program Flags]

DOCA Flags:
  -h, --help                        Print a help synopsis
  -v, --version                     Print program version information
  -l, --log-level                   Set the (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>
  --sdk-log-level                   Set the SDK (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>
  -j, --json <path>                 Parse command line flags from an input json file

Program Flags:
  -p, --pci-addr                    DOCA device PCI device address

The sample includes:

Locating and opening a DOCA device.
Creating a doca_telemetry_pcc instance.
Parsing all possible slots, printing each:
1. Algo ID
2. Major version
3. Minor version
4. Description
Determining and displaying the current enabled status of each slot.
Counter values and descriptions for any slot with counters enabled.
Destroying the doca_telemetry_pcc context.
