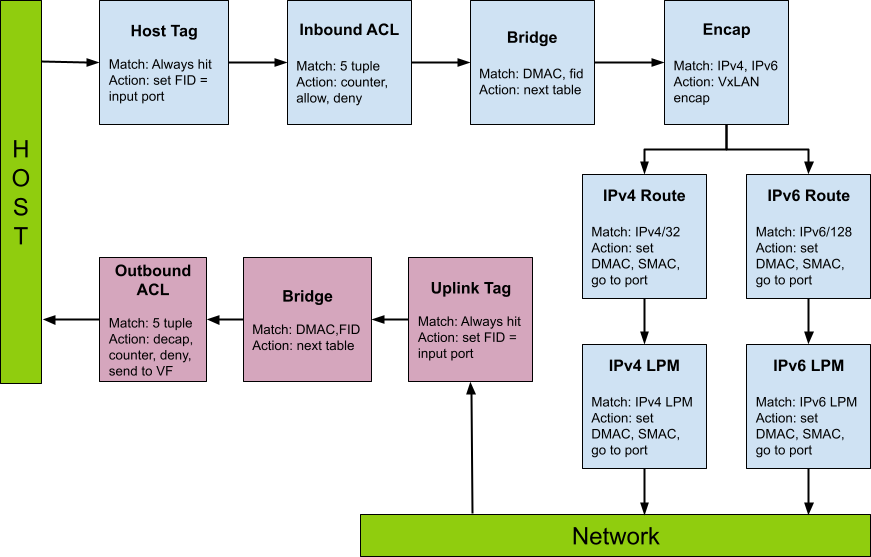

HBN is service that provides controller-less VPC networking solution for bare metal as a service (BMaaS), featuring tenant isolation with EVPN VXLAN and accelerated routing on the host. This example demonstrates how to build a DPL datapath that supports host-based networking (HBN).
Sample Code
This example uses indirect counters to monitor the number of packets that are allowed, denied and encapsulated/decapsulated. A user defined forwarding ID is used for determining how the bridge behaves.
enum bit<32> AdmissionCounter_t {
DENY = 0,
ALLOW = 1,
VXLAN_V4_ENCAP = 2,
VXLAN_V6_ENCAP = 3
}
enum bit<32> DecapFlowCounter_t {
DENY = 0,
ALLOW = 1,
}
/* The directionality is based on network to host
* The user will configure the P4 port IDs in OVS
*/
const bit<32> WIRE_PORT = 32w0;
/* fid is 32 bits
*/
typedef bit<32> fid_t;
struct metadata_t {
fid_t fid;
}
The default parser is used for this example:
struct headers_t {
NV_FIXED_HEADERS
}
parser packet_parser(packet_in packet, out headers_t headers) {
NV_FIXED_PARSER(packet, headers)
}
Finally, the main control body invokes three separate sub-controls:
-
overlay_encap– defines the logic and policies for applying VXLAN encapsulations along with ACLs -
underlay_route– applies a custom IPv4/IPv6 routing tables with exact and LPM matching. The next hop is set, TTL decremented, and the packet is routed.
/**
* This control performs the overlay policy including L2 encap with VxLAN
*/
control overlay_encap(
inout headers_t headers,
in nv_standard_metadata_t std_meta,
inout metadata_t user_meta,
inout nv_empty_metadata_t pkt_out_meta
) {
NvDirectCounter(NvCounterType.PACKETS_AND_BYTES) fid_counter;
NvCounter(4, NvCounterType.PACKETS_AND_BYTES) admission_counter;
action set_fid(fid_t fid) {
user_meta.fid = fid;
}
action deny() {
admission_counter.count(AdmissionCounter_t.DENY);
nv_drop();
}
action allow() {
admission_counter.count(AdmissionCounter_t.ALLOW);
}
action vxlan_v4_encap(nv_mac_addr_t underlay_src_mac, nv_mac_addr_t underlay_dst_mac,
nv_ipv4_addr_t underlay_sip, nv_ipv4_addr_t underlay_dip, bit<24> vni) {
nv_set_vxlan_v4_underlay(headers, underlay_dst_mac, underlay_src_mac, 0, underlay_sip, underlay_dip, vni);
admission_counter.count(AdmissionCounter_t.VXLAN_V4_ENCAP);
}
action vxlan_v6_encap(nv_mac_addr_t underlay_src_mac, nv_mac_addr_t underlay_dst_mac,
nv_ipv6_addr_t underlay_sip, nv_ipv6_addr_t underlay_dip, bit<24> vni) {
nv_set_vxlan_v6_underlay(headers, underlay_dst_mac, underlay_src_mac, 0, underlay_sip, underlay_dip, vni);
admission_counter.count(AdmissionCounter_t.VXLAN_V6_ENCAP);
}
// A FID could be as simple as ingress port to FID mapping
// e.g. ports 1 and 2 are in FID 1, ports 3 and 4 are in FID 2
table fid_table {
key = {
std_meta.ingress_port : exact;
}
actions = {
set_fid;
NoAction;
}
size = FID_TABLE_SIZE;
default_action = NoAction;
direct_counter = fid_counter;
}
table admit_v4_table {
key = {
headers.ipv4.src_addr : exact;
headers.ipv4.dst_addr : exact;
headers.ipv4.protocol : exact;
headers.tcp.src_port : exact;
headers.tcp.dst_port : exact;
}
actions = {
allow;
deny;
NoAction;
}
size = ADMIT_TABLE_SIZE;
default_action = NoAction;
}
table admit_v6_table {
key = {
headers.ipv6.src_addr : exact;
headers.ipv6.dst_addr : exact;
headers.ipv6.next_header : exact;
headers.tcp.src_port : exact;
headers.tcp.dst_port : exact;
}
actions = {
allow;
deny;
NoAction;
}
size = ADMIT_TABLE_SIZE;
default_action = NoAction;
}
table bridge {
key = {
headers.ethernet.dst_addr : exact;
user_meta.fid : exact;
}
actions = {
NoAction;
}
size = BRIDGE_TABLE_SIZE;
default_action = NoAction;
}
table encap_v4_table {
key = {
headers.ipv4.dst_addr : lpm;
}
actions = {
vxlan_v4_encap;
}
size = ENCAP_TABLE_SIZE;
default_action = vxlan_v4_encap(DEFAULT_DST_MAC, DEFAULT_SRC_MAC,
DEFAULT_SRC_IPV4, DEFAULT_DST_IPV4, DEFAULT_VNI);
}
table encap_v6_table {
key = {
headers.ipv6.dst_addr : lpm;
}
actions = {
vxlan_v6_encap;
}
size = ENCAP_TABLE_SIZE;
default_action = vxlan_v6_encap(DEFAULT_DST_MAC, DEFAULT_SRC_MAC,
DEFAULT_SRC_IPV6, DEFAULT_DST_IPV6, DEFAULT_VNI);
}
apply {
user_meta.fid = 0;
fid_table.apply();
if (headers.ipv4.isValid()) {
admit_v4_table.apply();
if (bridge.apply().hit) {
encap_v4_table.apply();
}
}
else if (headers.ipv6.isValid()) {
admit_v6_table.apply();
if (bridge.apply().hit) {
encap_v6_table.apply();
}
}
}
}
/**
* This control performs the underlay policy with routing
*/
control underlay_route(
inout headers_t headers,
in nv_standard_metadata_t std_meta,
inout metadata_t user_meta,
inout nv_empty_metadata_t pkt_out_meta
) {
action set_port_and_route(nv_logical_port_t port, nv_mac_addr_t src_mac, nv_mac_addr_t dst_mac) {
headers.ethernet.src_addr = src_mac;
headers.ethernet.dst_addr = dst_mac;
nv_dec_ip_ttl(headers, 1);
nv_send_to_port(port);
}
table exact_v4_route {
key = {
headers.ipv4.dst_addr : exact;
}
actions = {
set_port_and_route;
NoAction;
}
size = ROUTE_TABLE_SIZE;
default_action = NoAction;
}
table lpm_v4_route {
key = {
headers.ipv4.dst_addr : lpm;
}
actions = {
set_port_and_route;
NoAction;
}
size = ROUTE_TABLE_SIZE;
default_action = NoAction;
}
table exact_v6_route {
key = {
headers.ipv6.dst_addr : exact;
}
actions = {
set_port_and_route;
NoAction;
}
size = ROUTE_TABLE_SIZE;
default_action = NoAction;
}
table lpm_v6_route {
key = {
headers.ipv6.dst_addr : lpm;
}
actions = {
set_port_and_route;
NoAction;
}
size = ROUTE_TABLE_SIZE;
default_action = NoAction;
}
apply {
if (headers.ipv4.isValid()) {
if (exact_v4_route.apply().miss) {
lpm_v4_route.apply();
}
}
else if (headers.ipv6.isValid()) {
if (exact_v6_route.apply().miss) {
lpm_v6_route.apply();
}
}
}
}
-
decap_flow– defines the policies for forwarding ID, L2 bridging, decapsulation of VXLAN and VXLAN-GPE tunnels, and forwarding to the VF
/**
* This control is for packets from wire to host (RX)
* and includes policy for L2 decap
*/
control decap_flow(
inout headers_t headers,
in nv_standard_metadata_t std_meta,
inout metadata_t user_meta,
inout nv_empty_metadata_t pkt_out_meta
) {
NvDirectCounter(NvCounterType.PACKETS_AND_BYTES) fid_counter;
NvCounter(2, NvCounterType.PACKETS_AND_BYTES) decap_counter;
action deny() {
decap_counter.count(DecapFlowCounter_t.DENY);
nv_drop();
}
action set_fid(fid_t fid) {
user_meta.fid = fid;
}
action decap_l2_and_send(nv_logical_port_t port) {
decap_counter.count(DecapFlowCounter_t.ALLOW);
nv_l2_decap(headers);
nv_send_to_port(port);
}
action decap_ipv4_and_send(nv_logical_port_t port) {
decap_counter.count(DecapFlowCounter_t.ALLOW);
nv_l3_decap(headers, 0xffffffffff, 0x112233445566,NV_TYPE_IPV4,0);
nv_send_to_port(port);
}
action decap_ipv6_and_send(nv_logical_port_t port) {
decap_counter.count(DecapFlowCounter_t.ALLOW);
nv_l3_decap(headers, 0xffffffffff, 0x112233445566,NV_TYPE_IPV6,0);
nv_send_to_port(port);
}
table fid_table {
key = {
std_meta.ingress_port : exact;
}
actions = {
set_fid;
NoAction;
}
size = FID_TABLE_SIZE;
default_action = NoAction;
direct_counter = fid_counter;
}
table bridge {
key = {
headers.ethernet.dst_addr : exact;
user_meta.fid : exact;
}
actions = {
deny;
NoAction;
}
size = BRIDGE_TABLE_SIZE;
default_action = deny;
}
table decap_v4_table {
key = {
headers.ipv4.src_addr : exact;
headers.ipv4.dst_addr : exact;
headers.ipv4.protocol : exact;
headers.udp.src_port : exact;
headers.udp.dst_port : exact;
}
actions = {
decap_l2_and_send;
decap_ipv4_and_send;
deny;
}
size = DECAP_TABLE_SIZE;
default_action = deny;
}
table decap_v6_table {
key = {
headers.ipv6.src_addr : exact;
headers.ipv6.dst_addr : exact;
headers.ipv6.next_header : exact;
headers.udp.src_port : exact;
headers.udp.dst_port : exact;
}
actions = {
decap_l2_and_send;
decap_ipv6_and_send;
deny;
}
size = DECAP_TABLE_SIZE;
default_action = deny;
}
apply {
user_meta.fid = (fid_t) 0;
fid_table.apply();
if (bridge.apply().hit) {
if (headers.ipv4.isValid()) {
decap_v4_table.apply();
}
else if (headers.ipv6.isValid()) {
decap_v6_table.apply();
}
}
}
}
The main control checks which direction the packet came from.
-
if the packet is from network to host, it invokes the decap_flow control
-
if the packet is from host to network, it invokes the overlay_encap and routing controls
control host_based_networking(
inout headers_t headers,
in nv_standard_metadata_t std_meta,
inout metadata_t user_meta,
inout nv_empty_metadata_t pkt_out_meta
) {
overlay_encap() overlay;
underlay_route() route;
decap_flow() decap;
/* user should add entries that correspond to the wire ports
* A hit means this is an RX packet, miss means a TX packet
*/
table direction_table {
key = {
std_meta.ingress_port : exact;
}
actions = {
NoAction;
}
default_action = NoAction;
const entries = {
(WIRE_PORT) : NoAction();
}
}
apply {
if (direction_table.apply().miss) {
overlay.apply(headers, std_meta, user_meta, pkt_out_meta);
route.apply(headers, std_meta, user_meta, pkt_out_meta);
}
else {
decap.apply(headers, std_meta, user_meta, pkt_out_meta);
}
}
}
See below for the complete DPL example.
C
/*
* SPDX-FileCopyrightText: Copyright (c) 2024-2025 NVIDIA CORPORATION & AFFILIATES. All rights reserved.
* SPDX-License-Identifier: LicenseRef-NvidiaProprietary
*
* NVIDIA CORPORATION, its affiliates and licensors retain all intellectual
* property and proprietary rights in and to this material, related
* documentation and any modifications thereto. Any use, reproduction,
* disclosure or distribution of this material and related documentation
* without an express license agreement from NVIDIA CORPORATION or
* its affiliates is strictly prohibited.
*/
#include <doca_model.p4>
#include <doca_headers.p4>
#include <doca_externs.p4>
#include <doca_parser.p4>
/*
* Stretched L2 tenant’s network over provider routed network
* - Underlay router
* - Overlay L2 encapsulated in VxLAN header, multi tenant’s per server (FID to VF mapping)
* - Policy engine for tenant’s 5 tuple + underlay IP
* - Bridge + policy counter
*/
const nv_mac_addr_t DEFAULT_SRC_MAC = 48w0x1070fd658c88;
const nv_mac_addr_t DEFAULT_DST_MAC = 48w0x9c05911f2a00;
const nv_ipv4_addr_t DEFAULT_SRC_IPV4 = 32w0x01020304;
const nv_ipv4_addr_t DEFAULT_DST_IPV4 = 32w0x11223344;
const nv_ipv6_addr_t DEFAULT_SRC_IPV6 = 128w0x00010002000300040005000600070008;
const nv_ipv6_addr_t DEFAULT_DST_IPV6 = 128w0x11112222333344445555666677778888;
const bit<24> DEFAULT_VNI = 24w0xa;
/*
* Table sizes.
*/
const bit<32> FID_TABLE_SIZE = 1024;
const bit<32> DECAP_TABLE_SIZE = 1048576;
const bit<32> ADMIT_TABLE_SIZE = 1048576;
const bit<32> BRIDGE_TABLE_SIZE = 32768;
const bit<32> ENCAP_TABLE_SIZE = 32768;
const bit<32> ROUTE_TABLE_SIZE = 32768;
enum bit<32> AdmissionCounter_t {
DENY = 0,
ALLOW = 1,
VXLAN_V4_ENCAP = 2,
VXLAN_V6_ENCAP = 3
}
enum bit<32> DecapFlowCounter_t {
DENY = 0,
ALLOW = 1,
}
/* The directionality is based on network to host
* The user will configure the DPL port IDs in the DPL RT configuration
*/
const bit<32> WIRE_PORT = 32w0;
/* fid is 32 bits
*/
typedef bit<32> fid_t;
struct metadata_t {
fid_t fid;
}
struct headers_t {
NV_FIXED_HEADERS
}
parser packet_parser(packet_in packet, out headers_t headers) {
NV_FIXED_PARSER(packet, headers)
}
/**
* This control performs the overlay policy including L2 encap with VxLAN
*/
control overlay_encap(
inout headers_t headers,
in nv_standard_metadata_t std_meta,
inout metadata_t user_meta,
inout nv_empty_metadata_t pkt_out_meta
) {
NvDirectCounter(NvCounterType.PACKETS_AND_BYTES) fid_counter;
NvCounter(4, NvCounterType.PACKETS_AND_BYTES) admission_counter;
action deny() {
admission_counter.count(AdmissionCounter_t.DENY);
nv_drop();
}
action allow() {
admission_counter.count(AdmissionCounter_t.ALLOW);
}
action vxlan_v4_encap(nv_mac_addr_t underlay_src_mac, nv_mac_addr_t underlay_dst_mac,
nv_ipv4_addr_t underlay_sip, nv_ipv4_addr_t underlay_dip, bit<24> vni) {
nv_set_vxlan_v4_underlay(headers, underlay_dst_mac, underlay_src_mac, 0, underlay_sip, underlay_dip, vni);
admission_counter.count(AdmissionCounter_t.VXLAN_V4_ENCAP);
}
action vxlan_v6_encap(nv_mac_addr_t underlay_src_mac, nv_mac_addr_t underlay_dst_mac,
nv_ipv6_addr_t underlay_sip, nv_ipv6_addr_t underlay_dip, bit<24> vni) {
nv_set_vxlan_v6_underlay(headers, underlay_dst_mac, underlay_src_mac, 0, underlay_sip, underlay_dip, vni);
admission_counter.count(AdmissionCounter_t.VXLAN_V6_ENCAP);
}
action set_fid_fid_table(fid_t fid) {
fid_counter.count();
user_meta.fid = fid;
}
action no_action_fid_table() {
fid_counter.count();
}
// A FID could be as simple as ingress port to FID mapping
// e.g. ports 1 and 2 are in FID 1, ports 3 and 4 are in FID 2
table fid_table {
key = {
std_meta.ingress_port : exact;
}
actions = {
set_fid_fid_table;
no_action_fid_table;
}
size = FID_TABLE_SIZE;
default_action = no_action_fid_table;
direct_counter = fid_counter;
}
table admit_v4_table {
key = {
headers.ipv4.src_addr : exact;
headers.ipv4.dst_addr : exact;
headers.ipv4.protocol : exact;
headers.tcp.src_port : exact;
headers.tcp.dst_port : exact;
}
actions = {
allow;
deny;
NoAction;
}
size = ADMIT_TABLE_SIZE;
default_action = NoAction;
}
table admit_v6_table {
key = {
headers.ipv6.src_addr : exact;
headers.ipv6.dst_addr : exact;
headers.ipv6.next_header : exact;
headers.tcp.src_port : exact;
headers.tcp.dst_port : exact;
}
actions = {
allow;
deny;
NoAction;
}
size = ADMIT_TABLE_SIZE;
default_action = NoAction;
}
table bridge {
key = {
headers.ethernet.dst_addr : exact;
user_meta.fid : exact;
}
actions = {
NoAction;
}
size = BRIDGE_TABLE_SIZE;
default_action = NoAction;
}
table encap_v4_table {
key = {
headers.ipv4.dst_addr : lpm;
}
actions = {
vxlan_v4_encap;
}
size = ENCAP_TABLE_SIZE;
default_action = vxlan_v4_encap(DEFAULT_DST_MAC, DEFAULT_SRC_MAC,
DEFAULT_SRC_IPV4, DEFAULT_DST_IPV4, DEFAULT_VNI);
}
table encap_v6_table {
key = {
headers.ipv6.dst_addr : lpm;
}
actions = {
vxlan_v6_encap;
}
size = ENCAP_TABLE_SIZE;
default_action = vxlan_v6_encap(DEFAULT_DST_MAC, DEFAULT_SRC_MAC,
DEFAULT_SRC_IPV6, DEFAULT_DST_IPV6, DEFAULT_VNI);
}
apply {
user_meta.fid = 0;
fid_table.apply();
if (headers.ipv4.isValid()) {
admit_v4_table.apply();
if (bridge.apply().hit) {
encap_v4_table.apply();
}
}
else if (headers.ipv6.isValid()) {
admit_v6_table.apply();
if (bridge.apply().hit) {
encap_v6_table.apply();
}
}
}
}
/**
* This control performs the underlay policy with routing
*/
control underlay_route(
inout headers_t headers,
in nv_standard_metadata_t std_meta,
inout metadata_t user_meta,
inout nv_empty_metadata_t pkt_out_meta
) {
action set_port_and_route_v4(nv_logical_port_t port, nv_mac_addr_t src_mac, nv_mac_addr_t dst_mac) {
headers.ethernet.src_addr = src_mac;
headers.ethernet.dst_addr = dst_mac;
headers.ipv4.ttl -= 1;
nv_send_to_port(port);
}
action set_port_and_route_v6(nv_logical_port_t port, nv_mac_addr_t src_mac, nv_mac_addr_t dst_mac) {
headers.ethernet.src_addr = src_mac;
headers.ethernet.dst_addr = dst_mac;
headers.ipv6.hop_limit -= 1;
nv_send_to_port(port);
}
table exact_v4_route {
key = {
headers.ipv4.dst_addr : exact;
}
actions = {
set_port_and_route_v4;
NoAction;
}
size = ROUTE_TABLE_SIZE;
default_action = NoAction;
}
table lpm_v4_route {
key = {
headers.ipv4.dst_addr : lpm;
}
actions = {
set_port_and_route_v4;
NoAction;
}
size = ROUTE_TABLE_SIZE;
default_action = NoAction;
}
table exact_v6_route {
key = {
headers.ipv6.dst_addr : exact;
}
actions = {
set_port_and_route_v6;
NoAction;
}
size = ROUTE_TABLE_SIZE;
default_action = NoAction;
}
table lpm_v6_route {
key = {
headers.ipv6.dst_addr : lpm;
}
actions = {
set_port_and_route_v6;
NoAction;
}
size = ROUTE_TABLE_SIZE;
default_action = NoAction;
}
apply {
if (headers.ipv4.isValid()) {
if (exact_v4_route.apply().miss) {
lpm_v4_route.apply();
}
}
else if (headers.ipv6.isValid()) {
if (exact_v6_route.apply().miss) {
lpm_v6_route.apply();
}
}
}
}
/**
* This control is for packets from wire to host (RX)
* and includes policy for L2 decap
*/
control decap_flow(
inout headers_t headers,
in nv_standard_metadata_t std_meta,
inout metadata_t user_meta,
inout nv_empty_metadata_t pkt_out_meta
) {
NvDirectCounter(NvCounterType.PACKETS_AND_BYTES) fid_counter;
NvCounter(2, NvCounterType.PACKETS_AND_BYTES) decap_counter;
action deny() {
decap_counter.count(DecapFlowCounter_t.DENY);
nv_drop();
}
action decap_l2_and_send(nv_logical_port_t port) {
decap_counter.count(DecapFlowCounter_t.ALLOW);
nv_l2_decap(headers);
nv_send_to_port(port);
}
action decap_ipv4_and_send(nv_logical_port_t port) {
decap_counter.count(DecapFlowCounter_t.ALLOW);
nv_l3_decap(headers, 0xffffffffff, 0x112233445566,NV_TYPE_IPV4,0);
nv_send_to_port(port);
}
action decap_ipv6_and_send(nv_logical_port_t port) {
decap_counter.count(DecapFlowCounter_t.ALLOW);
nv_l3_decap(headers, 0xffffffffff, 0x112233445566,NV_TYPE_IPV6,0);
nv_send_to_port(port);
}
action set_fid_fid_table(fid_t fid) {
fid_counter.count();
user_meta.fid = fid;
}
action no_action_fid_table() {
fid_counter.count();
}
table fid_table {
key = {
std_meta.ingress_port : exact;
}
actions = {
set_fid_fid_table;
no_action_fid_table;
}
size = FID_TABLE_SIZE;
default_action = no_action_fid_table;
direct_counter = fid_counter;
}
table bridge {
key = {
headers.ethernet.dst_addr : exact;
user_meta.fid : exact;
}
actions = {
deny;
NoAction;
}
size = BRIDGE_TABLE_SIZE;
default_action = deny;
}
table decap_v4_table {
key = {
headers.ipv4.src_addr : exact;
headers.ipv4.dst_addr : exact;
headers.ipv4.protocol : exact;
headers.udp.src_port : exact;
headers.udp.dst_port : exact;
}
actions = {
decap_l2_and_send;
decap_ipv4_and_send;
deny;
}
size = DECAP_TABLE_SIZE;
default_action = deny;
}
table decap_v6_table {
key = {
headers.ipv6.src_addr : exact;
headers.ipv6.dst_addr : exact;
headers.ipv6.next_header : exact;
headers.udp.src_port : exact;
headers.udp.dst_port : exact;
}
actions = {
decap_l2_and_send;
decap_ipv6_and_send;
deny;
}
size = DECAP_TABLE_SIZE;
default_action = deny;
}
apply {
user_meta.fid = (fid_t) 0;
fid_table.apply();
if (bridge.apply().hit) {
if (headers.ipv4.isValid()) {
decap_v4_table.apply();
}
else if (headers.ipv6.isValid()) {
decap_v6_table.apply();
}
}
}
}
control host_based_networking(
inout headers_t headers,
in nv_standard_metadata_t std_meta,
inout metadata_t user_meta,
inout nv_empty_metadata_t pkt_out_meta
) {
overlay_encap() overlay;
underlay_route() route;
decap_flow() decap;
/* user should add entries that correspond to the wire ports
* A hit means this is an RX packet, miss means a TX packet
*/
table direction_table {
key = {
std_meta.ingress_port : exact;
}
actions = {
NoAction;
}
default_action = NoAction;
const entries = {
(WIRE_PORT) : NoAction();
}
}
apply {
if (direction_table.apply().miss) {
overlay.apply(headers, std_meta, user_meta, pkt_out_meta);
route.apply(headers, std_meta, user_meta, pkt_out_meta);
}
else {
decap.apply(headers, std_meta, user_meta, pkt_out_meta);
}
}
}
NvDocaPipeline(
packet_parser(),
host_based_networking()
) main;
Last updated:
