Introduction
NVIDIA® MCP1600-E0xxxEyy DAC (Direct Attach Copper) cables are high speed, cost-effective alternatives to fiber optics in 100Gb/s InfiniBand EDR applications.
The QSFP28 passive copper cable[1] contains four high-speed copper pairs, each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information, which can be read by the host system.
NVIDIA unique-quality cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

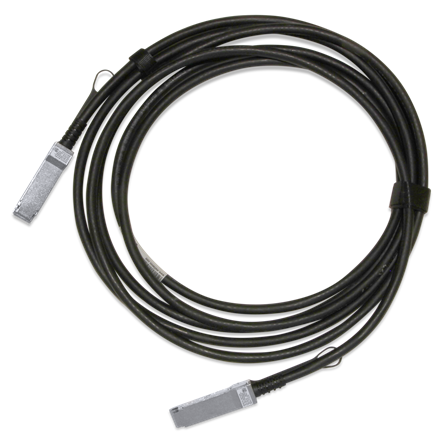

Images are for illustration purposes only. Product labels, colors, and lengths may vary.
[1] Raw cables are provided from different sources to ensure supply chain robustness.
Key Features
-
Up to 100 Gb/s data rate
-
SFF-8665 compliant QSFP28
-
Operating case temperature 0-70°C
-
Single 3.3V supply voltage
-
Hot pluggable
-
RoHS compliant
-
LSZH (Low Smoke Zero Halogen) jacket
-
LF (Lead Free) HF (Halogen Free) PCB
-
SFF-8636 compliant I2C management interface
