Introduction
The MMS4B10 is an NVIDIA Gen2 TRO (Transmit only Retimed Optics) 1600Gb/s 2xDR4, single-mode optical transceiver, supporting Ethernet protocol only. The line rate is 200Gb/s using Pulse Amplitude Modulation at 4-channels (200G-PAM4), enabling two data bits to transfer per clock pulse. The 2x800G transceiver engine enables the Ethernet SP-6 SN6600 pluggable switches. In addition, it supports the Vera Rubin-NVL72 platforms.
The electrical configuration is 8-channels of 200G-PAM4. Optical configuration is based on two Datacenter Reach, 4-channel (2xDR4), 800Gb/s optical connectors. Optical connectors are Multiple Push-On 12-fiber, Angled Polished Connector or MPO-12/APC. Two MPO-12/APC optical connectors are used per transceiver.
Based on 9-um, single mode fibers, the main application is linking two switches together up to 500-meters, or to two 800G links to two switches or network adapters for storage and compute servers. The 500-meter length assumes two optical patch panels or four optical connectors in the link.
NVIDIA’s transceivers guarantee optimal operation in NVIDIA end-to-end InfiniBand systems, and rigorous production testing ensures the lowest bit error rates, low-latency, and best out-of-the-box installation experience, performance, and durability.

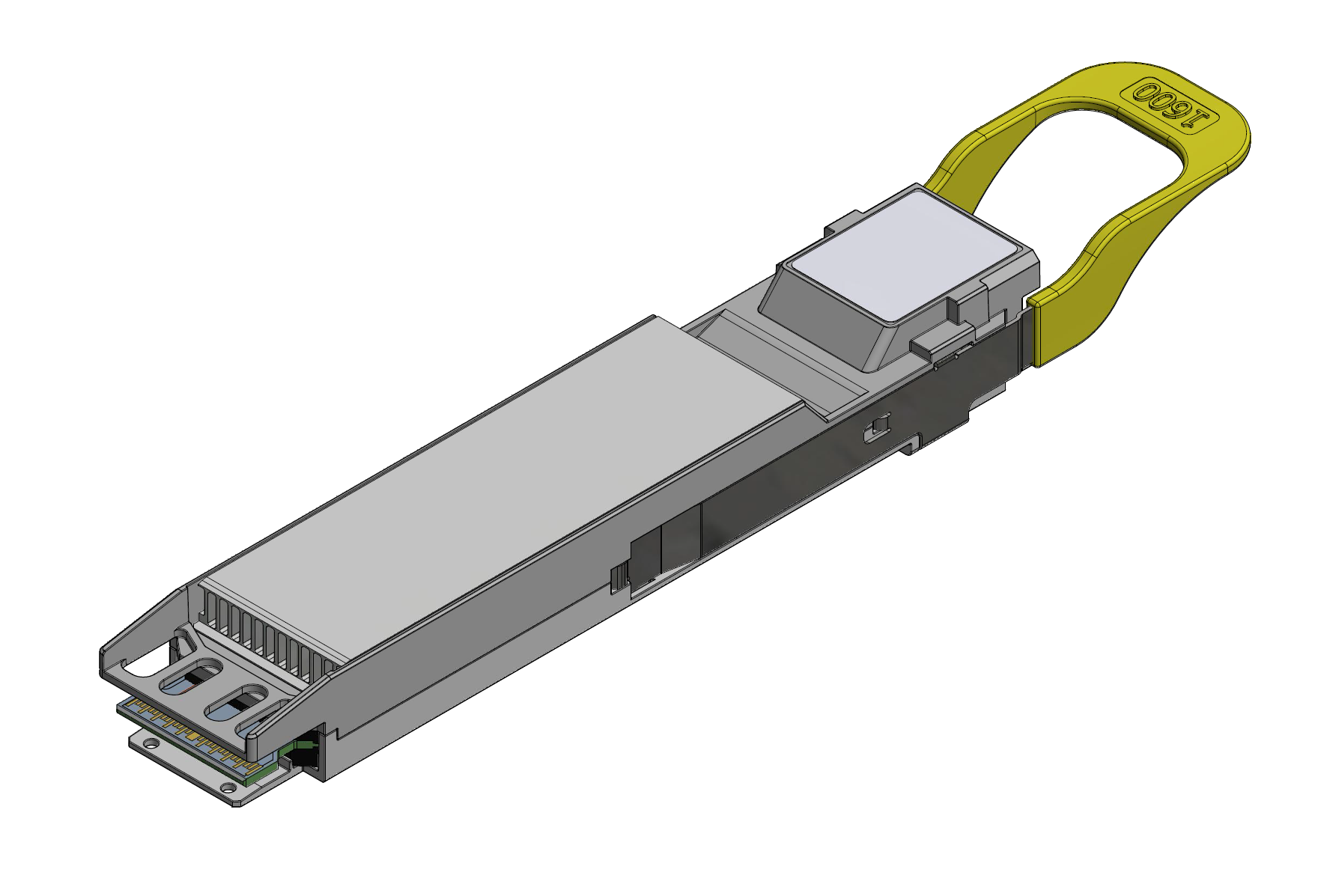

IHS Transceiver Illustration

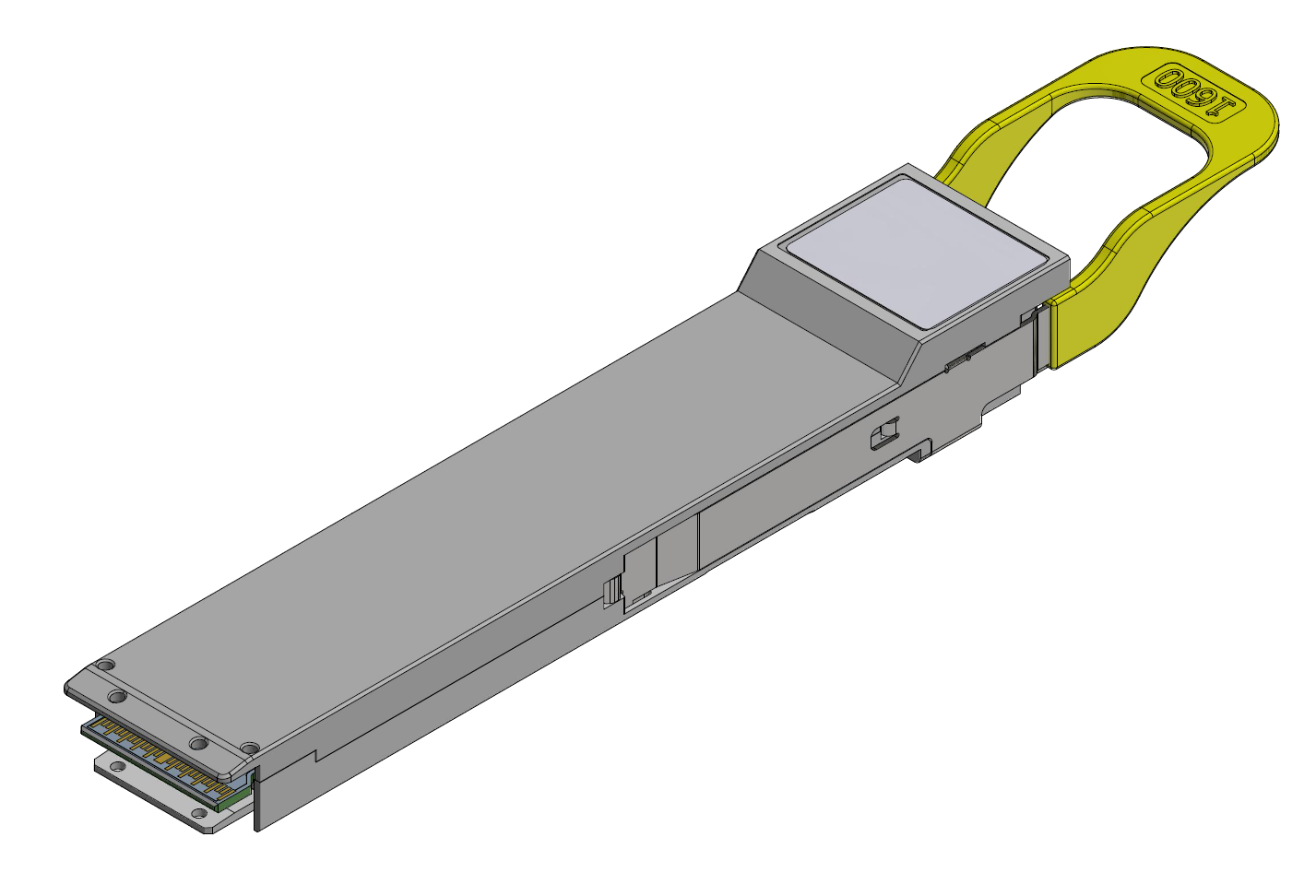

RHS Transceiver Illustration
Images are for illustration purposes only. Product manufacturing sites, labels, colors, and dimensions may vary.
Key Features
-
1600Gb/s single mode transceiver
-
8-channels of 200G-PAM4 electrical modulation
-
Two ports of 4-channel 200G-PAM4 optical modulation
-
Two MPO-12/APC optical connectors
-
1310nm laser
-
Maximum reach: 500-meters
-
19W max power
-
Single 3V power supply
-
Class 1 laser safety
-
Hot pluggable, RoHS compliant
-
Supports CMIS 5.0 and above
-
Case temperature range of 20°C to +70°C
-
Secure Firmware boot and update features
Applications
-
IHS version used in SP-6 air cooled.
-
RHS version is used in SP-6 liquid cool and Vera Rubin NVL72 systems
