Introduction
The NVIDIA MMS4X00-NM-HGX is an Ethernet 800Gb/s optical transceiver designed for Rubin NVL8 Systmes. The transceiver is a 2x400Gb/s Twin-port OSFP, 1310nm SMF (Single-Mode Fiber), 2xDR4 single mode, parallel 8-channel transceiver, using two 4-channel MPO-12/APC optical connectors at 400Gb/s each. The parallel single mode, datacenter reach 8-channel (2xDR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 500-meters using 8 single mode fibers. The 500-meter length assumes two optical patch panels in the link.
The main application for MMS4X00-NM-HGX is linking RUBIN NVL8 to Spectrum-4 and Spectrum-5 switches.
The transceiver combinations guarantee optimal operation in NVIDIA end-to-end Ethernet systems and a rigorous production tested to ensure the best out-of-the-box installation experience, performance, and durability.

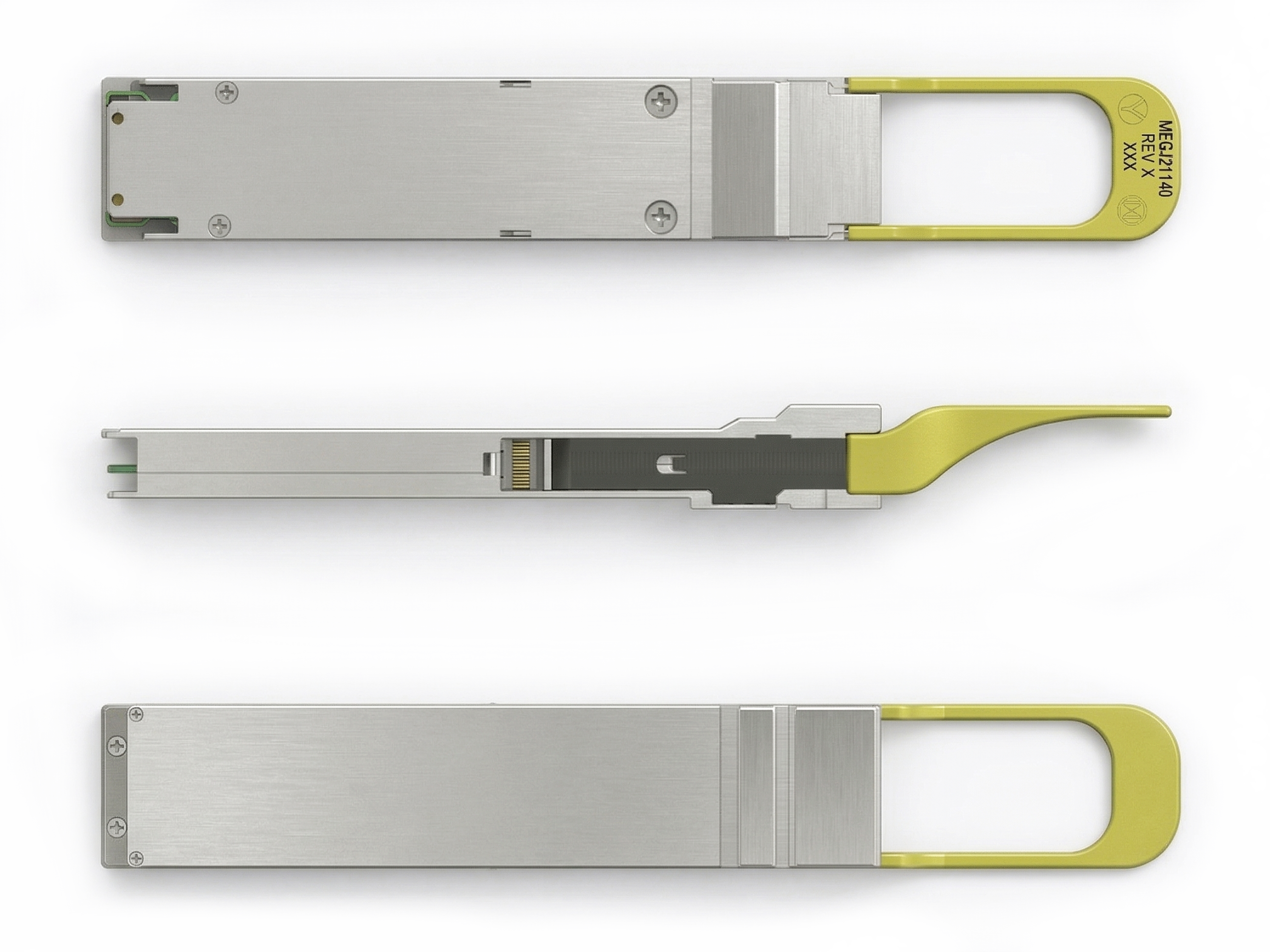

Transceiver Illustration
Images are for illustration purposes only. Product labels, colors, and lengths may vary.
Key Features
-
800G (2xDR4) single mode transceiver
-
8-channels of 100G-PAM4 electrical modulation
-
Two MPO-12/APC optical connectors
-
Two ports of 4-channel 100G-PAM4 optical modulation
-
Supports two straight 400Gb/s fiber cables for 800Gb/s
-
Finned-top OSFP for air-cooled switches
-
1310nm laser
-
500m Max reach
-
15W Max
-
1.5 Watt low-power sleep mode
-
Single 3.3V power supply
-
Class 1 laser safety
-
Hot pluggable, RoHS compliant
-
OSFPmsa.org compliant
-
CMIS 4.0 and above
-
Case temperature range of 0°C to +70°C
Applications
-
Rubin NVL8 Systmes.
