Collecting Amber Filenew

InfiniBand and Ethernet Switches

InfiniBand and Ethernet switches have one MST device for which Amber file is collected. Following command can be used to collect amber file:

1. Find the MST device by running the command:

   # sudo mst status -v


2. Run mlxlink command to collect the amber:

   # mlxlink -d <mst device name> --amber_collect <path to save the amber file>

   Example:

   mlxlink –d /dev/mst/mt54000_pciconf0 –amber_collect /tmp/amber.csv

XDR Switches

On XDR switches there are four devices - one per ASIC.

1. To get the amber for all the ASICs, create a planarized device. To do so, run the following command:

   # sudo mst start --planarized_device_pci

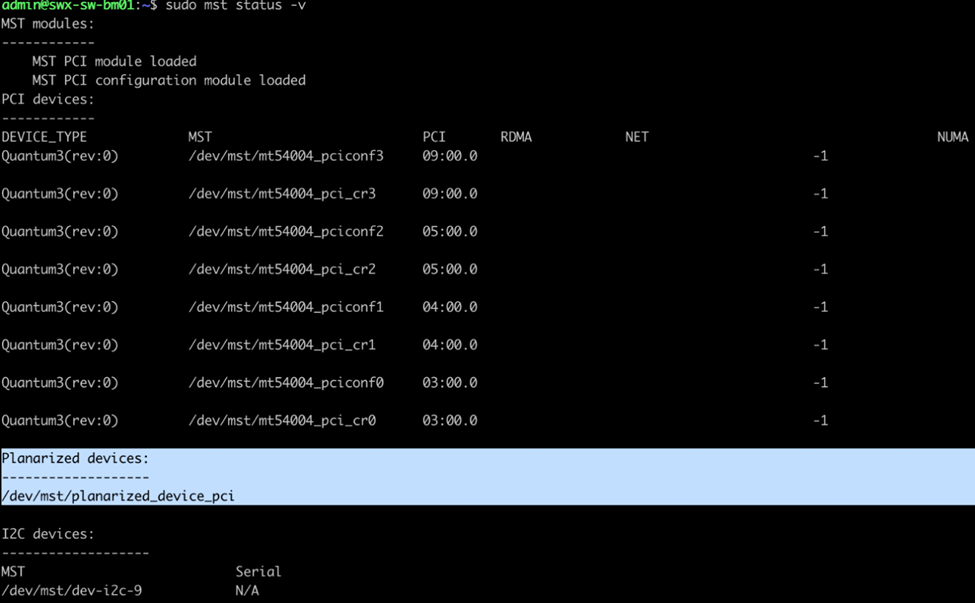

   Expected output:


2. Run mlxlink command for the planarized device:

   sudo mlxlink -d /dev/mst/planarized_device_pci --amber_collect <path to save the amber file>

   Example:

   sudo mlxlink -d /dev/mst/planarized_device_pci --amber_collect /tmp/amber.csv

   This command creates four amber files – one per ASIC and labels the file name as: amber_ASIC_0.csv, amber_ASIC_1.csv, amber_ASIC_2.csv, amber_ASIC_3.csv
   Each amber file will have information for a particular split port.
