MCX4621A-XCAB Specifications
|
Physical |
Size: 4.52in. x 2.99in. (115mm x 76mm) |
||||
|---|---|---|---|---|---|
|
Connector: Dual SFP28 Ethernet (copper and optical) |
|||||
|
Bracket: Thumbscrew Bracket |
|||||
|
Protocol Support |
Ethernet: 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII |
||||
|
Data Rate: 1/10 Gb/s Ethernet |
|||||
|
PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) |
|||||
|
Power and Airflow
|
Voltage: 3.3V_EDGE, 12V_EDGE |
||||
|
Power |
Cable Type |
Active Mode |
Standby Mode |
||
|
12V_EDGE |
3.3V_EDGE |
||||
|
Typical Power(a) |
Passive Cables |
8.47W |
25mW |
3.3W |
|
|
1.5W Active Cables |
12W |
25mW |
5W |
||
|
Maximum Power
|
Passive Cables |
10.35W |
25mW |
4.58W |
|
|
1.5W Active Cables |
13.88W |
25mW |
6.35W |
||
|
Maximum power available through SFP28 port: 1.5W |
|||||
|
|
Cable Type |
Heatsink to Port
|
Port to Heatsink
|
||
|
Passive Cables |
150LFM |
TBD |
|||
|
Active 1.5W Cable |
300LFM |
TBD |
|||
|
Passive Cables |
100LFM(b) |
TBD |
|||
|
Active 1.5W Cable |
100LFM(b) |
TBD |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
||
|
Non-operational |
-40°C to 70°C(c) |
||||
|
Humidity |
Operational |
10% to 85% relative humidity |
|||
|
Non-operational |
10% to 90% relative humidity |
||||
|
Altitude (Operational) |
3050m |
||||
|
Regulatory |
Safety |
CB / cTUVus / CE |
|||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
||||
|
RoHS |
RoHS compliant |
||||
Notes: a. Typical power for ATIS traffic load.
b. Maximum inlet temperature for standby mode is 45°C (according to OCP3 spec)
c. The non-operational storage temperature specifications apply to the product without its package.
MCX4621A-ACAB Specifications
|
Physical |
Size: 4.52in. x 2.99in. (115mm x 76mm) |
||||
|---|---|---|---|---|---|
|
Connector: Dual SFP28 Ethernet (copper and optical) |
|||||
|
Bracket: Thumbscrew Bracket |
|||||
|
Protocol Support |
Ethernet: 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII |
||||
|
Data Rate: 1/10/25 Gb/s Ethernet |
|||||
|
PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) |
|||||
|
Power and Airflow
|
Voltage: 3.3V_EDGE, 12V_EDGE |
||||
|
Power |
Cable Type |
Active Mode |
Standby Mode |
||
|
12V_EDGE |
3.3V_EDGE |
|
|||
|
Typical Power(a) |
Passive Cables |
8.82W |
25mW |
3.3W |
|
|
1.5W Active Cables |
12.36W |
25mW |
5W |
||
|
Maximum Power
|
Passive Cables |
10.82W |
25mW |
4.58W |
|
|
1.5W Active Cables |
14.35W |
25mW |
6.35W |
||
|
Maximum power available through SFP28 port: 1.5W |
|||||
|
|
Cable Type |
Heatsink to Port
|
Port to Heatsink
|
||
|
Passive Cables |
150LFM |
TBD |
|||
|
Active 1.5W Cable |
300LFM |
TBD |
|||
|
Passive Cables |
100LFM(b) |
TBD |
|||
|
Active 1.5W Cable |
100LFM(b) |
TBD |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
||
|
Non-operational |
-40°C to 70°C(c) |
||||
|
Humidity |
Operational |
10% to 85% relative humidity |
|||
|
Non-operational |
10% to 90% relative humidity |
||||
|
Altitude (Operational) |
3050m |
||||
|
Regulatory |
Safety |
CB / cTUVus / CE |
|||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
||||
|
RoHS |
RoHS compliant |
||||
Notes: a. Typical power for ATIS traffic load.
b. Maximum inlet temperature for standby mode is 45°C (according to OCP3 spec)
c. The non-operational storage temperature specifications apply to the product without its package.

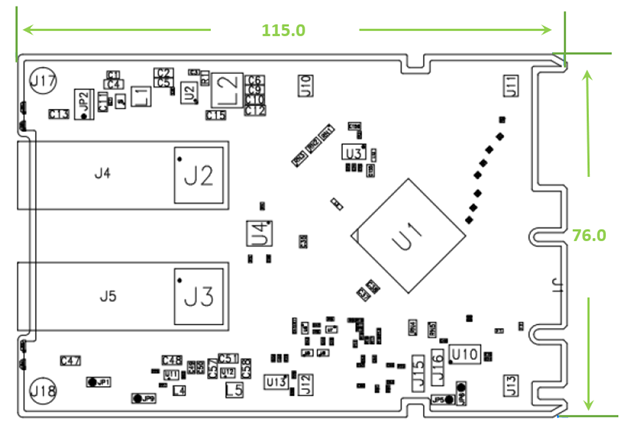

Board Mechanical Drawing and Dimensions
All dimensions are in millimeters. PCB mechanical tolerance is +/- 0.13mm.
