ConnectX-6 OCP 3.0 cards were tested for Shock & Vibe in accordance with NVIDIA test procedures, as the OCP spec 3.0 available at that time did not contain any S&V definitions.
A newer version of the OCP spec 3.0 has defined S&V specifications and NVIDIA is in the midst of retesting these cards to comply with OCP spec 3.0.
For more information on NVIDIA Shock & Vibe test procedure, please contact NVIDIA.
Please note that in STBY mode, only port0 is available.
MCX562A-ACAI / MCX562A-ACAB Specifications
|
Physical |
Size: 4.52in. x 2.99in. (115mm x 76mm) |
|||||
|---|---|---|---|---|---|---|
|
Connector: Dual SFP28 Ethernet (copper and optical) |
||||||
|
Bracket Type:
|
MCX562A-ACAI: Internal lock bracket
|
|||||
|
Protocol Support |
Ethernet: 25GBASE-CR/CR-S, 25GBASE-SR, 25GBASE-LR, 25G Ethernet Consortium, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, SGMII / 1000BASE-X |
|||||
|
Data Rate: 1/10/25 Gb/s Ethernet |
||||||
|
PCI Express Gen3: SERDES @ 8.0GT/s (respectively), 16 lanes (2.0 and 1.1 compatible) |
||||||
|
Power and Airflow
|
Voltage: 3.3V_EDGE, 12V_EDGE |
|||||
|
|
|
Active Mode |
Standby |
|||
|
Power |
Cable Type |
12V_EDGE |
3.3V_EDGE |
|||
|
Typical Power(a) |
Passive Cables |
12.9W |
0.33W |
TBD |
||
|
1.5W Active Cables |
16.35W |
0.33W |
TBD |
|||
|
Maximum Power |
Passive Cables |
15.3W |
0.33W |
TBD |
||
|
0.75W Active Cables |
18.82W |
0.33W |
TBD |
|||
|
Maximum power available through SFP28 port: 1.5W |
||||||
|
Airflow |
Cable Type |
Hot Aisle
|
Cold Aisle @35°C
|
|||
|
Active Mode @55°C |
Standby Mode @45°C |
Active Mode |
Standby Mode |
|||
|
Passive Cable |
300LFM |
100LFM |
TBD |
TBD |
||
|
Active 1.5W Cable |
400LFM |
100LFM |
TBD |
TBD |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|||
|
Non-operational |
-40°C to 70°C(b) |
|||||
|
Humidity |
Operational |
10% to 85% relative humidity |
||||
|
Non-operational |
10% to 90% relative humidity |
|||||
|
Altitude (Operational) |
3050m |
|||||
|
Regulatory |
Safety |
CB / cTUVus / CE |
||||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
|||||
|
RoHS |
RoHS compliant |
|||||
a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX566A-CCAI Specifications
|
Physical |
Size: 4.52in. x 2.99in. (115mm x 76mm) |
|||||
|---|---|---|---|---|---|---|
|
Connector: Dual QSFP28 Ethernet (copper and optical) |
||||||
|
Bracket: Internal lock bracket |
||||||
|
Protocol Support |
Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
|||||
|
Data Rate: 1/10/25/40/50/100 Gb/s Ethernet |
||||||
|
PCI Express Gen3.0: SERDES @ 8.0GT/s x16 lanes (2.0 and 1.1 compatible PCIe 3.0 x16 bus can supply a maximum bandwidth of 128Gb/s only (=16 * 8GT/s, including overhead), and therefore cannot support 200Gb/s when both network ports of MCX556A-ECAT run at 100Gb/s.
|
||||||
|
Power and Airflow
|
Voltage: 3.3V_EDGE, 12V_EDGE |
|||||
|
Power |
Cable Type |
Active Mode |
Standby Mode |
|||
|
12V_EDGE |
3.3V_EDGE |
|||||
|
Typical Power(a) |
Passive Cables |
16.5W |
0.33W |
TBD |
||
|
2.2W Active Cables |
21.7W |
0.33W |
TBD |
|||
|
Maximum Power |
Passive Cables |
19.3W |
0.33W |
TBD |
||
|
2.2W Active Cables |
24.5W |
0.33W |
TBD |
|||
|
Maximum power available through QSFP28 port: 2.2W |
||||||
|
Airflow |
Cable Type |
Hot Aisle @55C
|
Cold Aisle @35C
|
|||
|
Active Mode @55C |
Standby Mode @45C |
Active Mode |
Standby Mode |
|||
|
Passive Cable |
300LFM |
100LFM |
NA |
NA |
||
|
Active 2.2W Cable (85°C cage limit) |
300LFM |
100LFM |
NA |
NA |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|||
|
Non-operational |
-40°C to 70°C(b) |
|||||
|
Humidity |
Operational |
10% to 85% relative humidity |
||||
|
Non-operational |
10% to 90% relative humidity |
|||||
|
Altitude (Operational) |
3050m |
|||||
|
Regulatory |
Safety |
CB / cTUVus / CE |
||||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
|||||
|
RoHS |
RoHS compliant |
|||||
a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX565A-CCAB Specifications
|
Physical |
Size: 4.52in. x 2.99in. (115mm x 76mm) |
|||||
|---|---|---|---|---|---|---|
|
Connector: Single QSFP28 Ethernet (copper and optical) |
||||||
|
Bracket: Internal lock bracket |
||||||
|
Protocol Support |
Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
|||||
|
Data Rate: 1/10/25/40/50/100 Gb/s Ethernet |
||||||
|
PCI Express Gen3.0: SERDES @ 8.0GT/s x16 lanes (2.0 and 1.1 compatible |
||||||
|
Power and Airflow
|
Voltage: 3.3V_EDGE, 12V_EDGE |
|||||
|
Power |
Cable Type |
Active Mode |
Standby Mode |
|||
|
12V_EDGE |
3.3V_EDGE |
|||||
|
Typical Power(a) |
Passive Cables |
14.5W |
0.33W |
TBD |
||
|
2.2W Active Cables |
17W |
0.33W |
TBD |
|||
|
Maximum Power |
Passive Cables |
17.2W |
0.33W |
TBD |
||
|
2.2W Active Cables |
19.8W |
0.33W |
TBD |
|||
|
Maximum power available through QSFP28 port: 2.2W |
||||||
|
Airflow |
Cable Type |
Hot Aisle @55C
|
Cold Aisle @35C
|
|||
|
Active Mode @55C |
Standby Mode @45C |
Active Mode |
Standby Mode |
|||
|
Passive Cable |
250LFM |
100LFM |
200LFM |
100LFM |
||
|
Active 2.2W Cable (85°C cage limit) |
250LFM |
100LFM |
200LFM |
100LFM |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|||
|
Non-operational |
-40°C to 70°C(b) |
|||||
|
Humidity |
Operational |
10% to 85% relative humidity |
||||
|
Non-operational |
10% to 90% relative humidity |
|||||
|
Altitude (Operational) |
3050m |
|||||
|
Regulatory |
Safety |
CB / cTUVus / CE |
||||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
|||||
|
RoHS |
RoHS compliant |
|||||
a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX566A-CDAB / MCX566A-CDAI Specifications
|
Physical |
Size: 4.52in. x 2.99in. (115mm x 76mm) |
|||||
|---|---|---|---|---|---|---|
|
Connector: Dual QSFP28 Ethernet (copper and optical) |
||||||
|
Bracket type: |
MCX566A-CDAB: Thumbscrew (Pull-Tab) bracket
Internal lock bracket |
|||||
|
Protocol Support |
Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
|||||
|
Data Rate: 1/10/25/40/50/100 Gb/s Ethernet |
||||||
|
PCI Express Gen3.0/4.0: SERDES @ 8.0GT/s /16.0GT/s, x16 lanes (2.0 and 1.1 compatible PCIe 4.0 x16 bus can supply a maximum bandwidth of 256Gb/s (=16 * 16GT/s, including overhead), and therefore is able to support 200Gb/s when both network ports run at 100Gb/s
|
||||||
|
Power and Airflow
|
Voltage: 3.3V_EDGE, 12V_EDGE |
|||||
|
Power |
Cable Type |
Active Mode |
Standby Mode |
|||
|
12V_EDGE |
3.3V_EDGE |
|||||
|
Typical Power(a) |
Passive Cables |
19.65W |
0.33W |
TBD |
||
|
2.2W Active Cables |
24.8W |
0.33W |
TBD |
|||
|
Maximum Power |
Passive Cables |
23.9W |
0.33W |
TBD |
||
|
2.2W Active Cables |
29.0W |
0.33W |
TBD |
|||
|
Maximum power available through QSFP28 port: 2.2W |
||||||
|
Airflow |
Cable Type |
Hot Aisle @55C
|
Cold Aisle @35C
|
|||
|
Active Mode @55C |
Standby Mode @45C |
Active Mode |
Standby Mode |
|||
|
Passive Cable |
500LFM |
100LFM |
NA |
NA |
||
|
Active 2.2W Cable (85°C cage limit) |
500LFM |
100LFM |
NA |
NA |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|||
|
Non-operational |
-40°C to 70°C(b) |
|||||
|
Humidity |
Operational |
10% to 85% relative humidity |
||||
|
Non-operational |
10% to 90% relative humidity |
|||||
|
Altitude (Operational) |
3050m |
|||||
|
Regulatory |
Safety |
CB / cTUVus / CE |
||||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
|||||
|
RoHS |
RoHS compliant |
|||||
a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX565M-CDAI / MCX565M-CDAB Specifications
|
Physical |
Size: 4.52in. x 2.99in. (115mm x 76mm) |
|||||
|---|---|---|---|---|---|---|
|
Connector: Single QSFP28 Ethernet (copper and optical) |
||||||
|
Bracket type: |
MCX565M-CDAB: Thumbscrew (Pull-Tab) bracket
|
|||||
|
Protocol Support |
Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
|||||
|
Data Rate: 1/10/25/40/50/100 Gb/s Ethernet |
||||||
|
PCI Express Gen3.0/4.0: SERDES @ 8.0GT/s /16.0GT/s, x16 lanes (2.0 and 1.1 compatible |
||||||
|
Power and AIrflow
|
Voltage: 3.3V_EDGE, 12V_EDGE |
|||||
|
|
|
Active Mode |
Standby Mode |
|||
|
12V_EDGE |
3.3V_EDGE |
|||||
|
Typical Power(a) |
Passive Cables |
19W |
0.33W |
TBD |
||
|
2.2W Active Cables |
21.5W |
0.33W |
TBD |
|||
|
Maximum Power |
Passive Cables |
23W |
0.33W |
TBD |
||
|
2.2W Active Cables |
25.6W |
0.33W |
TBD |
|||
|
Maximum power available through QSFP28 port: 2.2W |
||||||
|
Airflow |
Cable Type |
Hot Aisle @55C
|
Cold Aisle @35C
|
|||
|
Active Mode @55C |
Standby Mode @45C |
Active Mode |
Standby Mode |
|||
|
Passive Cable |
500LFM |
100LFM |
300LFM |
100LFM |
||
|
Active 2.2W Cable (85°C cage limit) |
500LFM |
100LFM |
300LFM |
100LFM |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|||
|
Non-operational |
-40°C to 70°C(b) |
|||||
|
Humidity |
Operational |
10% to 85% relative humidity |
||||
|
Non-operational |
10% to 90% relative humidity |
|||||
|
Altitude (Operational) |
3050m |
|||||
|
Regulatory |
Safety |
CB / cTUVus / CE |
||||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
|||||
|
RoHS |
RoHS compliant |
|||||
a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.

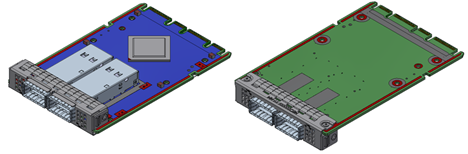

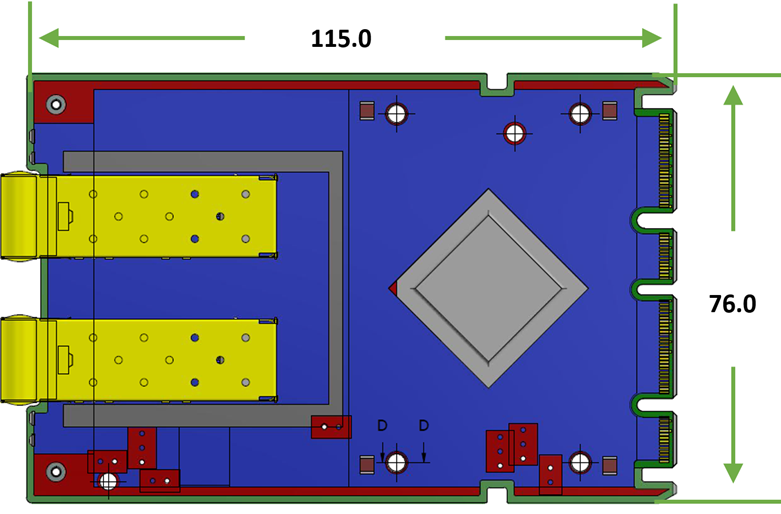

Board Mechanical Drawing and Dimensions
All dimensions are in millimeters. All the mechanical tolerances are +/- 0.1mm.
|

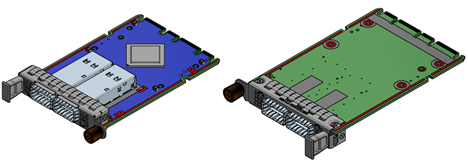

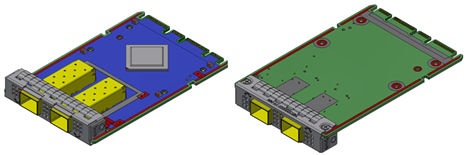

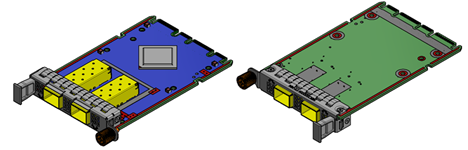

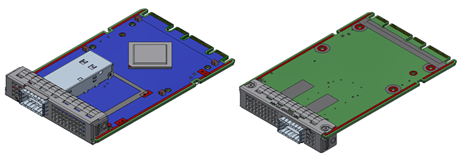

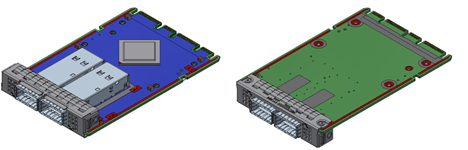

MCX562A-ACAI Drawings |
MCX562A-ACAB Drawings |
|---|---|
|
|
|
|
MCX566A-CCAI Drawings |
MCX566A-CDAB Drawings |
|
|
|
|
MCX566A-CDAI Drawings |
MCX565M-CDAI/MCX565M-CDAB Drawings |
|
|
|

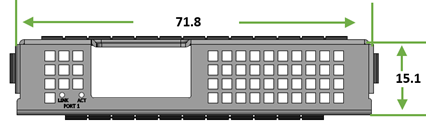

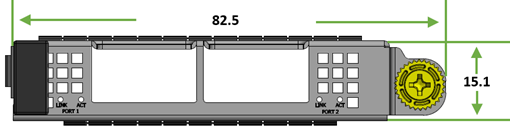

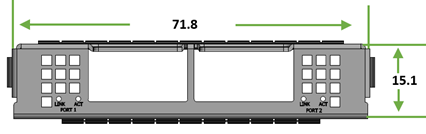

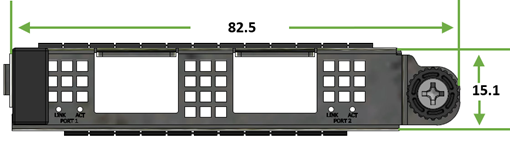

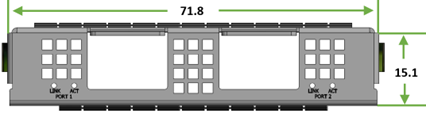

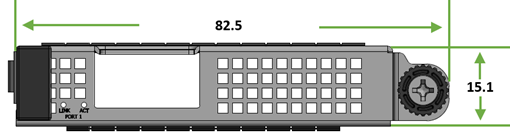

Brackets Mechanical Drawing and Dimensions
All dimensions are in millimeters. All the mechanical tolerances are +/- 0.1mm.
|
MCX562A-ACAI Bracket |
MCX562A-ACAB Bracket |
|---|---|
|
|
|
|
MCX566A-CCAI / MCX566M-GDAI / MCX566A-CDAI Bracket |
MCX565A-CCAB / MCX565M-CDAB Bracket |
|
|
|
|
MCX565M-CDAI Bracket |
MCX566A-CDAB Bracket |
|
|
|
