Specifications | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual

Install the ConnectX-6 Dx OCP 3.0 card in a PCIe slot that is capable of supplying the power levels mentioned below for the appropriate use case.
ConnectX-6 Dx adapters supplement the auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA Ethernet product.
In Standby mode only port0 is available.

Power numbers are provided for passive cables only. For board power numbers while using active cables, please add the outcome of the following formula to the passive cables' power numbers stated below.

Power while using Active Cables = Card Power with Passive Cable + Active Module Power x Number_of_Modules / 0.9 (efficiency factor).

MCX623432AE-ADAB / MCX623432AN-ADAB / MCX623432AC-ADAB / MCX623432AS-ADAB Specifications

Power and Airflow	Voltage: 3.3VAUX, 12V
Physical	Form Factor: Small Form Factor (SFF) OCP 3.0 Size: 4.52 in. x 2.99 in (115.00mm x 76.00mm)
	Connector: Dual SFP28 Ethernet (copper and optical)
	Retention Mechanism: Thumbscrew (Pull Tab) Bracket
Protocol Support	Ethernet: 25GBASE-R, 20GBASE-KR2, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, 10GBASE-KX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
	Data Rate:	Ethernet	1/10/25 Gb/s
	PCI Express Gen 4.0: SERDES @ 16.0GT/s, 16 lanes (2.0 and 1.1 compatible)
Capabilities	MCX623432AE-ADAB: Crypto Enabled, No Secure Boot MCX623432AN-ADAB: Crypto Disabled, No Secure Boot MCX623432AC-ADAB: Crypto Enabled, Secure Boot MCX623432AS-ADAB: Crypto Disabled, Secure Boot
		Cable Type	Active Mode		Standby Mode
	Typical Power^(a)	Passive Cables	15.7W		3.8W
	Maximum Power	Passive Cables	19.74W		7.95W
	Maximum power available through SFP28 port: 1.5W
	Airflow	Cable Type	Hot Aisle HSK to Port		Cold Aisle Port to HSK
		Passive Cable	Active Mode @55C	Standby Mode @45C	Active Mode @35C	Standby Mode @35C
		Passive Cable	400LFM	100LFM	TBD	TBD
		Active 0.8W NVIDIA Cable	400LFM	100LFM	TBD	TBD
		Active 1.5W Cable	500LFM	150LFM	TBD	TBD
Environmental	Temperature	Operational	0°C to 55°C
	Temperature	Non-operational	-40°C to 70°C
	Humidity	Operational	10% to 85% relative humidity
	Humidity	Non-operational	10% to 90% relative humidity^(b)
	Altitude (Operational)	3050m
Regulatory	Safety	CB / cTUVus / CE
	EMC	CE / FCC / VCCI / ICES / RCM
	RoHS	RoHS compliant
a. Typical power for ATIS traffic load. b. The non-operational storage temperature specifications apply to the product without its package.

MCX623432AC-GDAB / MCX623432AN-GDAB / MCX623432AS-GDAI Specifications

	Power	Cable Type	Active Mode		Standby Mode
Physical	Form Factor: Small Form Factor (SFF) OCP 3.0 Size: 4.52 in. x 2.99 in (115.00mm x 76.00mm)
	Connector: Dual SFP56 Ethernet (copper and optical)
	Retention Mechanism:	MCX623432A[N/C]-GDAB: Thumbscrew (Pull Tab) Bracket
	Retention Mechanism:	MCX623432AS-GDAI: Internal Lock
Protocol Support	Ethernet: 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
	Data Rate	Ethernet	1/10/25/40/50 Gb/s
	PCI Express Gen 4.0: SERDES @ 16.0GT/s, 16 lanes (2.0 and 1.1 compatible)
Capabilities	MCX623432AC-GDAB: Crypto Enabled, Secure Boot MCX623432AN-GDAB: Crypto Disabled, No Secure Boot MCX623432AS-GDAI: Crypto Disabled, Secure Boot
Power and Airflow	Voltage: 3.3VAUX, 12V
	Typical Power^(a)	Passive Cables	16.9W		4.54W
	Maximum Power	Passive Cables	21.4W		8.75W
	Maximum power available through SFP56 port: 2W
	Airflow	Cable Type	Hot Aisle HSK to Port		Cold Aisle Port to HSK
		Cable Type	Active Mode @55C	Standby Mode @45C	Active Mode @35C	Standby Mode @35C
		Passive Cable	400LFM	100LFM	TBD	TBD
		Active 2W Cable	800LFM	200LFM	TBD	TBD
Environmental	Temperature	Operational	0°C to 55°C
	Temperature	Non-operational	-40°C to 70°C
	Humidity	Operational	10% to 85% relative humidity
	Humidity	Non-operational	10% to 90% relative humidity^(b)
	Altitude (Operational)	3050m
Regulatory	Safety	CB / cTUVus / CE
	EMC	CE / FCC / VCCI / ICES / RCM
	RoHS	RoHS compliant
a. Typical power for ATIS traffic load. b. The non-operational storage temperature specifications apply to the product without its package.

MCX623435MN-CDAB Specifications

	Power	Cable Type	Active Mode		Standby Mode
Physical	Form Factor: Small Form Factor (SFF) OCP 3.0 Size: 4.52 in. x 2.99 in (115.00mm x 76.00mm)
	Connector: Single QSFP56 Ethernet (copper and optical)
	Retention Mechanism: Thumbscrew (Pull Tab) Bracket
Capabilities	Multi-Host or Socket Direct, Crypto Disabled, No Secure Boot
Protocol Support	Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
	Data Rate:	Ethernet	1/10/25/40/50/100 Gb/s
	PCI Express Gen 4.0: SERDES @ 16.0GT/s, 16 lanes (2.0 and 1.1 compatible)
Power and Airflow	Voltage: 3.3VAUX, 12V
	Typical Power^(a)	Passive Cables	18W		5.7W
	Maximum Power	Passive Cables	23.4W		10W
	Maximum power available through QSFP56 port: 5W
	Airflow	Cable Type	Hot Aisle HSK to Port		Cold Aisle Port to HSK
		Cable Type	Active Mode	Standby Mode @45°C	Active Mode @35C	Standby Mode @35C
		Passive Cable	500LFM @55°C	100LFM	300LFM	100LFM
		Active 2.2W NVIDIA Cable	700LFM @55°C	200LFM	300LFM	100LFM
		Active 3.5W Cable	700LFM @50°C	300LFM	300LFM	100LFM
Environmental	Temperature	Operational	0°C to 55°C
	Temperature	Non-operational	-40°C to 70°C
	Humidity	Operational	10% to 85% relative humidity
	Humidity	Non-operational	10% to 90% relative humidity^(b)
	Altitude (Operational)	3050m
Regulatory	Safety	CB / cTUVus / CE
	EMC	CE / FCC / VCCI / ICES / RCM
	RoHS	RoHS compliant
a. Typical power for ATIS traffic load. b. The non-operational storage temperature specifications apply to the product without its package.

MCX623439MC-CDAB / MCX623439MN-CDAB Specifications

	Power	Cable Type	Active Mode		Standby Mode
Physical	Form Factor: Small Form Factor (SFF) OCP 3.0 Size: 4.52 in. x 2.99 in (115.00mm x 76.00mm)
	Connector: Single-port QSFP56
	Retention Mechanism:	Thumbscrew (Pull Tab) Bracket
Capabilities	MCX623439MC-CDAB: Multi Host or Socket Direct, Crypto Enabled, Secure Boot MCX623439MN-CDAB: Multi Host or Socket Direct, Crypto Disables, Secure Boot
Protocol Support	Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
	Data Rate:	Ethernet	1/10/25/40/50/100 Gb/s
	PCI Express Gen 4.0: SERDES @ 16.0GT/s, 16 lanes (2.0 and 1.1 compatible)
Power and Environmental	Voltage: 3.3VAUX, 12V
	Typical Power^(a)	Passive Cables	17.22W		4.3W
	Maximum Power	Passive Cables	22.77W		8.1W
	Maximum power available through QSFP56 port: 5W
	Airflow	Cable Type	Hot Aisle HSK to Port		Cold Aisle Port to HSK
		Cable Type	Active Mode @55C	Standby Mode @45C	Active Mode @35C	Standby Mode @35C
		Passive Cable	600LFM	100LFM	Not Supported	Not Supported
		Active Cables	TBD	TBD	TBD	TBD
Environmental	Temperature	Operational	0°C to 55°C
	Temperature	Non-operational	-40°C to 70°C
	Humidity	Operational	10% to 85% relative humidity
	Humidity	Non-operational	10% to 90% relative humidity^(b)
	Altitude (Operational)	3050m
Regulatory	Safety	CB / cTUVus / CE
	EMC	CE / FCC / VCCI / ICES / RCM
	RoHS	RoHS compliant
a. Typical power for ATIS traffic load. b. The non-operational storage temperature specifications apply to the product without its package.

MCX623436AC-CDAB / MCX623436AN-CDAB / MCX623436AS-CDAI Specifications

	Power	Cable Type	Active Mode		Standby Mode
Physical	Form Factor: Small Form Factor (SFF) OCP 3.0 Size: 4.52 in. x 2.99 in (115.00mm x 76.00mm)
	Connector: Dual QSFP56 Ethernet (copper and optical)
	Retention Mechanism	MCX623436A[N/C]-CDAB: Thumbscrew (Pull Tab) Bracket
	Retention Mechanism	MCX623436AS-CDAI: Internal Lock Bracket
Capabilities	MCX623436AC-CDAB^(a): Crypto Enabled, Secure Boot, with Host Management MCX623436AN-CDAB: Crypto Disabled, No Secure Boot, with Host Management MCX623436AS-CDAI: Crypto Disabled, Secure Boot, with Host Management
Protocol Support	Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
	Data Rate:	Ethernet	1/10/25/40/50/100 Gb/s
	PCI Express Gen 4.0: SERDES @ 16.0GT/s, 16 lanes (2.0 and 1.1 compatible)
Power and Airflow	Voltage: 3.3VAUX, 12V
	Typical Power^(b)	Passive Cables	19W		5.7W
	Maximum Power	Passive Cables	26.6W		10W
	Maximum power available through QSFP56 port: 5W
	Airflow	Cable Type	Hot Aisle HSK to Port		Cold Aisle @35C Port to HSK
		Cable Type	Active Mode	Standby Mode @45C	Active Mode @35C	Standby Mode @35C
		Passive Cable	600LFM @55C	100LFM	Not Supported	Not Supported
		Active 2.2W NVIDIA Cables	1000LFM @55C	300LFM	Not Supported	Not Supported
		Active 3.5W	800LFM @50C	500LFM	Not Supported	Not Supported
Environmental	Temperature	Operational	0°C to 55°C
	Temperature	Non-operational	-40°C to 70°C^(b)
	Humidity	Operational	10% to 85% relative humidity
	Humidity	Non-operational	10% to 90% relative humidity
	Altitude (Operational)	3050m
Regulatory	Safety	CB / cTUVus / CE
	EMC	CE / FCC / VCCI / ICES / RCM
	RoHS	RoHS compliant
^(a)If your target application for this crypto-enabled card will utilize 100Gb/s or higher bandwidth, where a substantial part of the bandwidth will be allocated for IPsec traffic, please refer to the NVIDIA BlueField-2 DPUs Release Notes document to learn about a potential bandwidth limitation. See Related Documents section for details on accessing the document. Typical power for ATIS traffic load. ^(b) The non-operational storage temperature specifications apply to the product without its package.

MCX623436MN-CDAB / MCX623436MS-CDAB Specifications

	Power	Cable Type	Active Mode		Standby Mode
Physical	Form Factor: Small Form Factor (SFF) OCP 3.0 Size: 4.52 in. x 2.99 in (115.00mm x 76.00mm)
	Connector: Dual QSFP56 Ethernet (copper and optical)
	Retention Mechanism	Thumbscrew (Pull Tab) Bracket
Capabilities	MCX623436MN-CDAB: Crypto disabled, Secure Boot disabled, with Multi-Host or Socket Direct MCX623436MS-CDAB: Crypto disabled, Secure Boot enabled, with Multi-Host or Socket Direct
Protocol Support	Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
	Data Rate:	Ethernet	1/10/25/40/50/100 Gb/s
	PCI Express Gen 4.0: SERDES @ 16.0GT/s, 16 lanes (2.0 and 1.1 compatible)
Power and Airflow	Voltage: 3.3VAUX, 12V
	Typical Power^(a)	Passive Cables	19W		5.7W
	Maximum Power	Passive Cables	26.6W		10W
	Maximum power available through QSFP56 port: 5W
	Airflow	Cable Type	Hot Aisle HSK to Port		Cold Aisle Port to HSK
		Cable Type	Active Mode	Standby Mode @45C	Active Mode @35C	Standby Mode @35C
		Passive Cable	900LFM @55C	100LFM	Not Supported	Not Supported
		Active 2.2W NVIDIA Cables	700LFM @50C	300LFM	Not Supported	Not Supported
		Active 3.5W	800LFM @45C	500LFM	Not Supported	Not Supported
Environmental	Temperature	Operational	0°C to 55°C
	Temperature	Non-operational	-40°C to 70°C
	Humidity	Operational	10% to 85% relative humidity
	Humidity	Non-operational	10% to 90% relative humidity^(b)
	Altitude (Operational)	3050m
Regulatory	Safety	CB / cTUVus / CE
	EMC	CE / FCC / VCCI / ICES / RCM
	RoHS	RoHS compliant
a. Typical power for ATIS traffic load. b. The non-operational storage temperature specifications apply to the product without its package.

MCX623430MS-CDAB Specifications

	Power	Cable Type	Active Mode		Standby Mode
Physical	Form Factor: Small Form Factor (SFF) OCP 3.0 Size: 4.52 in. x 2.99 in (115.00mm x 76.00mm)
	Connector: Dual DSFP Ethernet (copper and optical)
	Retention Mechanism:	Thumbscrew (Pull Tab) Bracket
Capabilities	MCX623430MS-CDAB: Crypto disabled, Secure Boot enabled, with Multi-Host or Socket Direct
Protocol Support	Ethernet: 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2, 50GBASE-R2, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
	Data Rate:	Ethernet	1/10/25/40/50/100 Gb/s
	PCI Express Gen 4.0: SERDES @ 16.0GT/s, 16 lanes (2.0 and 1.1 compatible)
Power and Airflow	Voltage: 3.3VAUX, 12V
	Typical Power^(a)	Passive Cables	19W		5.7W
	Maximum Power	Passive Cables	26.6W		10W
	Maximum power available through DSFP port: 5W
	Airflow	Cable Type	Hot Aisle HSK to Port		Cold Aisle Port to HSK
		Cable Type	Active Mode	Standby Mode @45C	Active Mode @35C	Standby Mode @35C
		Passive Cable	350LFM @55C	100LFM	150LFM	100LFM
		Active 2.5W Cables	400LFM @45C	200LFM	200LFM	100LFM
Environmental	Temperature	Operational	0°C to 55°C
	Temperature	Non-operational	-40°C to 70°C
	Humidity	Operational	10% to 85% relative humidity
	Humidity	Non-operational	10% to 90% relative humidity^(b)
	Altitude (Operational)	3050m
Regulatory	Safety	CB / cTUVus / CE
	EMC	CE / FCC / VCCI / ICES / RCM
	RoHS	RoHS compliant
a. Typical power for ATIS traffic load. b. The non-operational storage temperature specifications apply to the product without its package.

MCX623435AC-CDAB / MCX623435AE-CDAB / MCX623435AN-CDAB Specifications

	Power	Cable Type	Active Mode		Standby Mode
Physical	Form Factor: Small Form Factor (SFF) OCP 3.0 Size: 4.52 in. x 2.99 in (115.00mm x 76.00mm)
	Connector: Single QSFP56 Ethernet (copper and optical)
	Retention Mechanism	Thumbscrew (Pull Tab) Bracket
Capabilities	MCX623435AC-CDAB^(a): Crypto enabled, Secure Boot enabled, with Host Management MCX623435AE-CDAB: Crypto enabled, Secure Boot disabled, with Host Management MCX623435AN-CDAB: Crypto disabled, Secure Boot disabled, with Host Management
Protocol Support	Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
	Data Rate:	Ethernet	1/10/25/40/50/100/200 Gb/s
	PCI Express Gen 4.0: SERDES @ 16.0GT/s, 16 lanes (2.0 and 1.1 compatible)
Power and Airflow	Voltage: 3.3VAUX, 12V
	Typical Power^(a)	Passive Cables	16.9W		5.6W
	Maximum Power	Passive Cables	24W		11.4W
	Maximum power available through QSFP56 port: 5W
	Airflow	Cable Type	Hot Aisle Heatsink to Port		Cold Aisle Port to Heatsink
		Cable Type	Active Mode @55C	Standby Mode @45C	Active Mode @35C	Standby Mode @35C
		Passive Cable	400LFM	100LFM	250LFM	100LFM
		Active 2.2W NVIDIA Cable	700LFM	200LFM	250LFM	100LFM
		Active 3.5W Cable	700LFM^(b)	300LFM	250LFM	100LFM
Environmental	Temperature	Operational	0°C to 55°C
	Temperature	Non-operational	-40°C to 70°C
	Humidity	Operational	10% to 85% relative humidity
	Humidity	Non-operational	10% to 90% relative humidity^(c)
	Altitude (Operational)	3050m
Regulatory	Safety	CB / cTUVus / CE
	EMC	CE / FCC / VCCI / ICES / RCM
	RoHS	RoHS compliant
^(a)If your target application for this crypto-enabled card will utilize 100Gb/s or higher bandwidth, where a substantial part of the bandwidth will be allocated for IPsec traffic, please refer to the NVIDIA BlueField-2 DPUs Release Notes document to learn about a potential bandwidth limitation. See Related Documents section for details on accessing the document. Typical power for ATIS traffic load. ^(b) At 50°C ambient, not 55°C. ^(c) The non-operational storage temperature specifications apply to the product without its package.

MCX623435AC-VDAB / MCX623435AN-VDAB / MCX623435AS-VDAI Specifications

	Power	Cable Type		Active Mode	Standby Mode

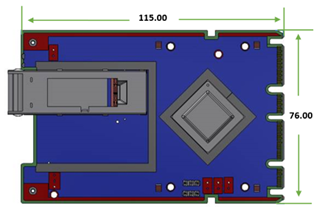

Physical	Form Factor: Small Form Factor (SFF) OCP 3.0 Size: 4.52 in. x 2.99 in (115.00mm x 76.00mm)
	Connector: Single QSFP56 Ethernet (copper and optical)
	Retention Mechanism	MCX623435A[N/C]-VDAB: Thumbscrew (Pull Tab) Bracket
	Retention Mechanism	MCX623435AS-VDAI: Internal Lock
Capabilities	MCX623435AC-VDAB: Crypto enabled, Secure Boot enabled, with Host Management MCX623435AN-VDAB: Crypto disabled, Secure Boot disabled, with Host Management MCX623435AS-VDAI: Crypto disabled, Secure Boot enabled, with Host Management
Protocol Support	Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
	Data Rate	Ethernet	1/10/25/40/50/100/200 Gb/s
	PCI Express Gen 4.0: SERDES @ 16.0GT/s, 16 lanes (2.0 and 1.1 compatible)
Power and Airflow	Voltage: 3.3VAUX, 12V
	Typical Power^(a)	Passive Cables		16.9W	5.6W
	Maximum Power	Passive Cables		24W	11.4W
	Maximum power available through QSFP56 port: 5W
	Airflow	Cable Type	Hot Aisle Heatsink to Port		Cold Aisle Port to Heatsink
		Cable Type	Active Mode @55C	Standby Mode @45C	Active Mode @35C	Standby Mode @35C
		Passive Cable	500LFM	100LFM	300LFM	100LFM
		Active 4.55W Cables	750LFM^(b)	600LFM	300LFM	100LFM
Environmental	Temperature	Operational	0°C to 55°C
	Temperature	Non-operational	-40°C to 70°C
	Humidity	Operational	10% to 85% relative humidity
	Humidity	Non-operational	10% to 90% relative humidity^(c)
	Altitude (Operational)	3050m
Regulatory	Safety	CB / cTUVus / CE
	EMC	CE / FCC / VCCI / ICES / RCM
	RoHS	RoHS compliant
a. Typical power for ATIS traffic load. b. At 50°C ambient, not 55°C. c. The non-operational storage temperature specifications apply to the product without its package.
