Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
MCX614106A-CCAT Specifications
|
Physical |
Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) |
|||
|---|---|---|---|---|
|
Connector: Dual QSFP56 Ethernet (copper and optical) |
||||
|
Protocol Support
|
Ethernet: 100GBASE-CR2, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-KX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
|||
|
Data Rate |
Ethernet |
1/10/25/40/50/100 Gb/s |
||
|
Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible) |
||||
|
Adapter Card Power and Airflow
|
Voltage: 12V, 3.3VAUX |
|||
|
Power |
Cable |
|||
|
Typical Powera |
Passive Cables |
21.0W |
||
|
Maximum Power |
Please refer to ConnectX-6 Ethernet Cards Power Specifications available at NVOnline following login. |
|||
|
Voltage: 3.3Aux
|
||||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Airflow (LFM) /
|
Cable Type |
Airflow Direction |
||
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
350 LFM / 55°C |
250 LFM / 35°C |
||
|
NVIDIA Active 2.7W Cables |
550 LFM / 55°C |
250 LFM / 35°C |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Cb |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX614105A-VCAT Specifications
|
Physical |
Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm)
|
|||
|---|---|---|---|---|
|
Connector: Single QSFP56 Ethernet (copper and optical) |
||||
|
Protocol Support
|
Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR2, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-KX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
|||
|
Data Rate |
Ethernet |
1/10/25/40/50/100/200 Gb/s |
||
|
Gen3: SERDES @ 8.0GT/s/, x16 lanes (2.0 and 1.1 compatible) |
||||
|
Adapter Card Power |
Voltage: 12V, 3.3VAUX |
|||
|
Power |
Cable |
|||
|
Typical Powera |
Passive Cables |
27.1W |
||
|
Maximum Power |
Please refer to ConnectX-6 Ethernet Cards Power Specifications available at NVOnline following login. |
|||
|
Voltage: 3.3Aux
|
||||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Active Auxiliary PCIe Connection Card Power |
Typical Power |
3.0W |
||
|
Maximum Power |
4.0W |
|||
|
Airflow
|
Airflow (LFM) /
|
Cable Type |
Airflow Direction |
|
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
600 LFM / 55°C |
350 LFM / 35°C |
||
|
NVIDIA Active 4.7W Cables |
600 LFM / 55°Cb |
350 LFM / 35°C |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Cc |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
a. Typical power for ATIS traffic load.
b. For engineering samples - add 250LFM
c. The non-operational storage temperature specifications apply to the product without its package.
MCX614106A-VCAT Specifications
|
Physical |
Low Profile Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm)
|
|||
|---|---|---|---|---|
|
Connector: Dual QSFP56 Ethernet (copper and optical) |
||||
|
Protocol Support
|
Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4,100GBASE-CR2,100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-KX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
|||
|
Data Rate |
Ethernet |
1/10/25/40/50/100/200 Gb/s |
||
|
Gen3: SERDES @ 8.0GT/s, x16 lanes (2.0 and 1.1 compatible) |
||||
|
Adapter Card Power |
Voltage: 12V, 3.3VAUX |
|||
|
Power |
Cable |
|||
|
Typical Powera |
Passive Cables |
31.4W |
||
|
Maximum Power |
Please refer to ConnectX-6 Ethernet Cards Power Specifications available at NVOnline following login. |
|||
|
Voltage: 3.3Aux
|
||||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Active Auxiliary PCIe Connection Card Power |
Typical Power |
3.0W |
|
|
|
Maximum Power |
4.0W |
|||
|
Airflow
|
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°C |
|||
|
Humidity: 90% relative humidity c |
||||
|
Altitude (Operational) |
3050m |
|||
|
Airflow (LFM) /
|
Cable Type |
Airflow Direction |
||
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
700 LFM / 55°C |
400 LFM / 35°C |
||
|
NVIDIA Active 4.7W Cables |
1050 LFM / 55°C 600 LFM / 48°C |
400 LFM / 35°C |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Cb |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM// KC |
||||
|
RoHS: RoHS Compliant |
||||
a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX613106A-VDAT Specifications
|
Physical |
Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) |
|||
|---|---|---|---|---|
|
Connector: Dual QSFP56 Ethernet (copper and optical) |
||||
|
Protocol Support |
Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR2, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-KX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
|
|||
|
Data Rate |
Ethernet |
1/10/25/40/50/100/200 Gb/s |
||
|
PCI Express Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible) |
||||
|
Adapter Card Power |
Voltage: 12V, 3.3VAUX |
|||
|
Power |
Cable |
|||
|
Typical Powera |
Passive Cables |
23.6W |
||
|
Maximum Power |
Please refer to ConnectX-6 Ethernet Cards Power Specifications available at NVOnline following login. |
|||
|
Voltage: 3.3Aux
|
||||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Airflow
|
Airflow (LFM) / Ambient Temperature
|
Cable Type |
Airflow Direction |
|
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
400 LFM / 55°C |
300 LFM / 35°C |
||
|
NVIDIA Active 4.7W Cables |
950 LFM / 55°C
|
300 LFM / 35°C |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Cb |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
Board Mechanical Drawing and Dimensions
All dimensions are in millimeters. All the mechanical tolerances are +/- 0.1mm.
|

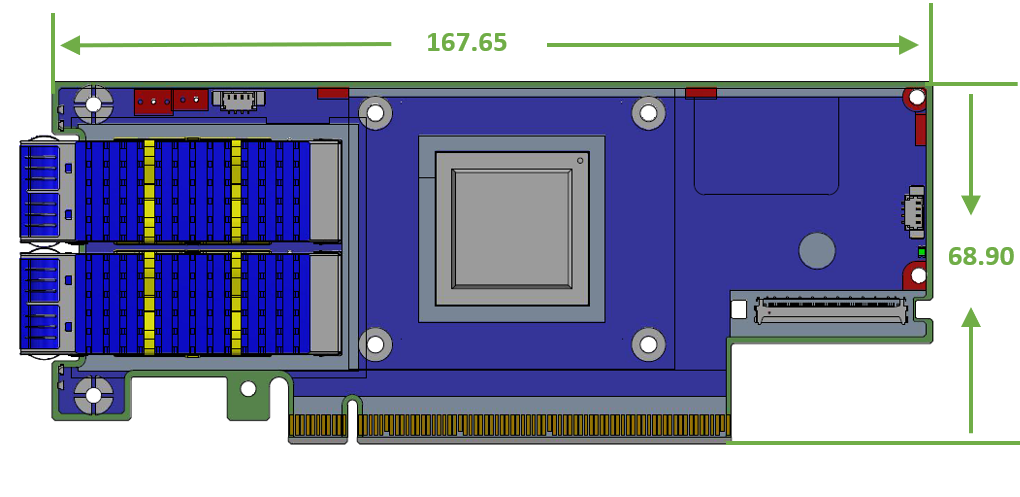

Dual-Port Card |

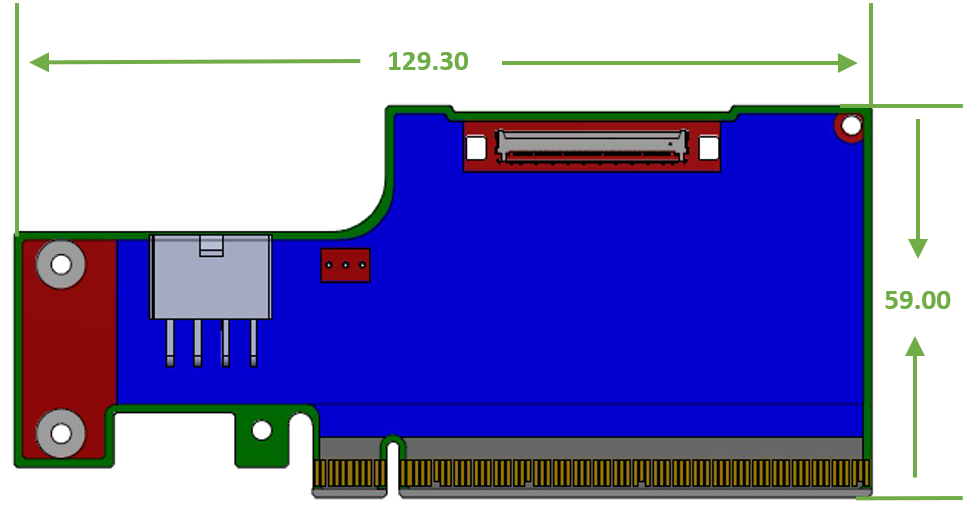

Auxiliary PCIe Connection Card |
|---|---|
|
|
|
|
|
|
Bracket Mechanical Drawing
All dimensions are in millimeters. All the mechanical tolerances are +/- 0.1mm.
|

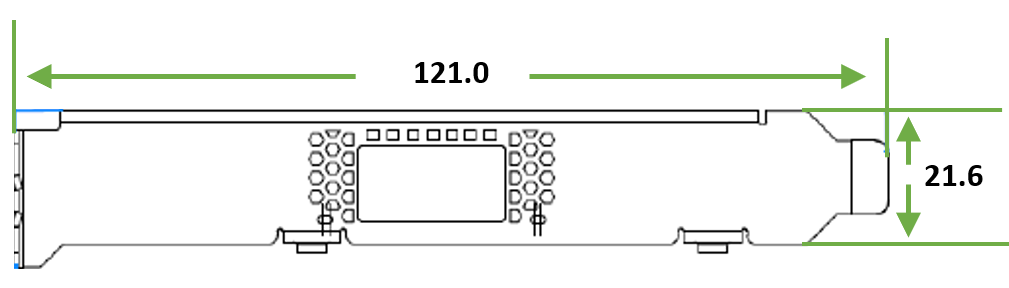

Single-port Tall Bracket |

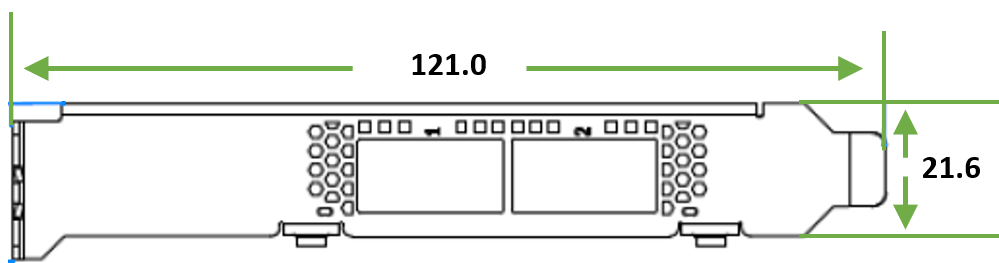

Dual-port Tall Bracket |
|---|---|
|
|
|
|

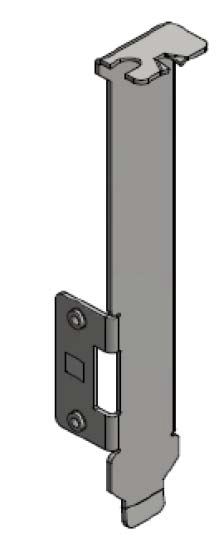

Auxiliary PCIe Connection Card Tall Bracket |
|---|
|
|
