MCX613436A-VDAI Specifications
Please make sure to install the ConnectX-6 OCP 3.0 card in a PCIe slot that is capable of supplying the power levels mentioned below for the appropriate use case
|
Physical |
Size: 2.99 in. x 4.52 in (76.00mm x 115.00mm) |
|||||
|---|---|---|---|---|---|---|
|
Connector: Dual QSFP56 Ethernet (copper and optical) |
||||||
|
Retention Mechanism: Internal Lock |
||||||
|
Protocol Support |
Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-KX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
|||||
|
Data Rate: |
Ethernet |
1/10/25/40/100/200 Gb/s |
||||
|
PCI Express Gen 4.0: SERDES @ 16.0GT/s, 16 lanes (3.0 and 1.1 compatible) |
||||||
|
Power and Airflow
|
Voltage: 3.3VAUX, 12V |
|||||
|
Power |
Cable Type |
Active Mode |
Standby Mode |
|||
|
Typical Power(a) |
Passive Cables |
21.4W |
6.6W |
|||
|
Maximum Power |
Passive Cables |
26.7W |
10.45W |
|||
|
Maximum power available through QSFP56 port: 5W |
||||||
|
Airflow(b) |
|
Hot Aisle
|
Cold Aisle @35C
|
|||
|
|
Active Mode |
Standby Mode @45C |
Active Mode |
Standby Mode |
||
|
Passive Cable |
700LFM@55C |
100LFM |
Not supported |
Not supported |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|||
|
Non-operational |
-40°C to 70°C(c) |
|||||
|
Humidity |
Operational |
10% to 85% relative humidity |
||||
|
Non-operational |
10% to 90% relative humidity |
|||||
|
Altitude (Operational) |
3050m |
|||||
|
Regulatory |
Safety |
CB / cTUVus / CE |
||||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
|||||
|
RoHS |
RoHS compliant |
|||||
a. Typical power for ATIS traffic load.
b. Airflow is measured in wind tunnel.
c. The non-operational storage temperature specifications apply to the product without its package.

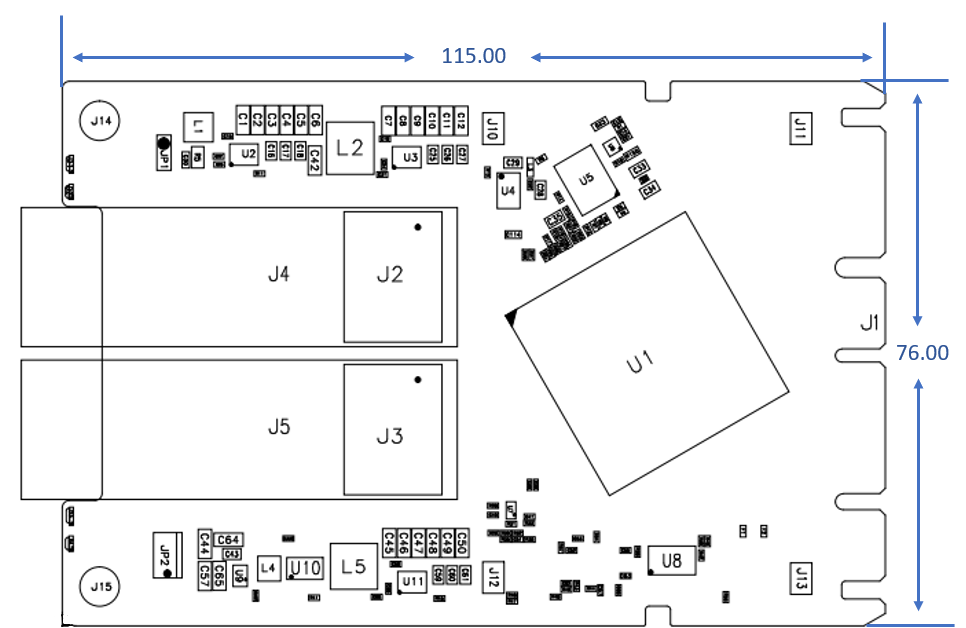

Board Mechanical Drawing and Dimensions
All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.
ConnectX-6 for OCP 3.0 Mechanical Drawing and Dimensions
Bracket Mechanical Drawings and Dimensions
All dimensions are in millimeters. The bracket's mechanical tolerance is +/- 0.25mm.

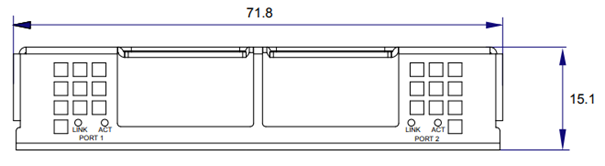

Internal Lock Bracket
