Please make sure to install the ConnectX-7 card in a PCIe slot that is capable of supplying the required power and airflow, as stated in the below table.
In Standby mode only port0 is available.
MCX753436MS-HEBB Specifications
|
Interfaces |
See Supported Interfaces |
|||
|---|---|---|---|---|
|
PCI Express Gen 5.0/4.0 |
SERDES @ 16/32GT/s, x16 lanes (4.0 and 3.0 compatible) |
|||
|
Networking Port: Dual-Port QSFP112 InfiniBand and Ethernet, port split capable |
||||
|
Bracket Type: Thumbscrew (Pull Tab) Bracket |
||||
|
Protocol Support
|
Data Rate |
InfiniBand |
NDR200/HDR/HDR100/EDR/FDR/SDR |
|
|
Ethernet |
200/100/50/25/10 Gb/s |
|||
|
InfiniBand: IBTA v1.5a Auto-Negotiation: NDR200 (2 lanes x 100Gb/s per lane), HDR (4 lanes x 50Gb/s per lane), HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane), FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane) |
||||
|
Ethernet: 200GAUI-4 C2M, 200GAUI-4 C2C, 200GBASE-CR4, 200GBASE-KR4, 200GBASE-CR4, 200GBASE-KR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
|
Capabilities |
MCX753436MS-HEBB |
Secure Boot Enabled, Crypto Disabled, Support for Multi-Host and Port Split capable |
||
|
Electrical and Thermal Specifications |
Voltage: 12V_EDGE, +3.3V_EDGE |
|||
|
Maximum power available through QSFP112 port: 17W per port (Not thermally supported) |
||||
|
Typical power with passive cables in PCIe Gen 5.0 x16 |
24.5W |
|||
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-7 Electrical and Thermal Specifications" document, which is available at NVOnline following login. |
||||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Cb |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-7 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX75343AMC-NEAC / MCX75343AMS-NEAC Specifications
|
Physical
|
Adapter Card Size: Tall Small Form Factor (TSFF) OCP 3.0, 4.52 in. x 2.99 in (115.00mm x 76.00mm)
|
|||
|---|---|---|---|---|
|
Bracket Type: Thumbscrew (Pull Tab) Bracket |
||||
|
Interfaces |
See Supported Interfaces |
|||
|
PCI Express Gen 5.0/4.0 |
SERDES @ 16/32GT/s, x16 lanes (Gen 3.0 compatible) |
|||
|
Networking Port: Single-port OSFP InfiniBand and Ethernet |
||||
|
Protocol Support
|
Data Rate
|
InfiniBand |
NDR/NDR200/HDR/HDR100/EDR/FDR/SDR |
|
|
Ethernet |
400/200/100/50/25/10 Gb/s |
|||
|
InfiniBand: IBTA v1.5a
|
||||
|
Ethernet: 400GAUI-4 C2M, 400GBASE-CR4, 200GAUI-4 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GBASE-CR4, 100GBASE-CR2, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 40GBASE-CR4, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M, XLPPI, SFI |
||||
|
Capabilities |
MCX75343AMC-NEAC |
Secure Boot Enabled, Crypto Enabled, Support for Multi-Host and Socket Direct |
||
|
MCX75343AMS-NEAC |
Secure Boot Enabled, Crypto Disabled, Support for Multi-Host and Socket Direct |
|||
|
Electrical and Thermal Specifications
|
Voltage: 12V_EDGE, +3.3V_EDGE |
|||
|
Typical power with passive cables in PCIe Gen 5.0 x16 |
MCX75343AMC-NEAC |
25.9W |
||
|
MCX75343AMS-NEAC |
24.4W |
|||
|
Maximum power available through OSFP port: 17W per port (Not thermally supported) |
||||
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-7 Electrical and Thermal Specifications" document, which is available at NVOnline following login. |
||||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Cb |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|
||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-7 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX753436MS-HEAB / MCX753436MC-HEAB Specifications
|
Physical
|
Adapter Card Size: Small Form Factor (SFF), 4.52 in. x 2.99 in (115.00mm x 76.00mm)
|
|||
|---|---|---|---|---|
|
Bracket Type: Thumbscrew (Pull Tab) Bracket |
||||
|
Interfaces |
See Supported Interfaces |
|||
|
PCI Express Gen 5.0/4.0 |
SERDES @ 16/32GT/s, x16 lanes (4.0 and 3.0 compatible) |
|||
|
Networking Port: Dual-Port QSFP112 InfiniBand and Ethernet |
||||
|
Protocol Support
|
Data Rate |
InfiniBand |
NDR200/HDR/HDR100/EDR/FDR/SDR |
|
|
Ethernet |
200/100/50/25/10 Gb/s |
|||
|
InfiniBand: IBTA v1.5a Auto-Negotiation: NDR200 (2 lanes x 100Gb/s per lane), HDR (4 lanes x 50Gb/s per lane), HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane), FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane) |
||||
|
Ethernet: 200GAUI-4 C2M, 200GAUI-4 C2C, 200GBASE-CR4, 200GBASE-KR4, 200GBASE-CR4, 200GBASE-KR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
|
Capabilities |
MCX753436MC-HEAB |
Secure Boot Enabled, Crypto Enabled, Support for Multi-Host and Socket Direct |
||
|
MCX753436MS-HEAB |
Secure Boot Enabled, Crypto Disabled, Support for Multi-Host and Socket Direct |
|||
|
Electrical and Thermal Specifications |
Voltage: 12V_EDGE, +3.3V_EDGE |
|||
|
Maximum power available through QSFP112 port: 17W per port (Not thermally supported) |
||||
|
Typical power with passive cables in PCIe Gen 5.0 x16 |
MCX753436MC-HEAB |
25.9W |
||
|
MCX753436MS-HEAB |
24.5W |
|||
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-7 Electrical and Thermal Specifications" document, which is available at NVOnline following login. |
||||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Cb |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|
||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-7 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX713434AS-ADAI Specifications
|
Physical
|
Adapter Card Size: Small Form Factor (SFF), 4.52 in. x 2.99 in (115.00mm x 76.00mm)
|
|||
|---|---|---|---|---|
|
Bracket Type: Internal Bracket |
||||
|
Interfaces |
See Supported Interfaces |
|||
|
PCI Express Gen 4.0 |
SERDES @ 16GT/s, x16 lanes |
|||
|
Networking Port: Quad-Port SFP56 Ethernet |
||||
|
Protocol Support
|
Data Rate |
Ethernet |
25/50 Gb/s |
|
|
Ethernet: 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
|
Capabilities |
Secure Boot Enabled, Crypto Disabled |
|||
|
Electrical and Thermal Specifications |
Voltage: 12V_EDGE, +3.3V_EDGE |
|||
|
Maximum power available through Quad-Port SFP56 port: 1.5W per port (Not thermally supported) 50GbE: Passive only so there is no power
|
||||
|
Typical power with passive cables in PCIe Gen 4.0 x16 |
35W |
|||
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-7 Electrical and Thermal Specifications" document, which is available at NVOnline following login. |
||||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Ca |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
|
Notes:
|
||||
Mechanical Drawings and Dimensions
For the 3D Model of the card, please refer to the PID.
Board Drawings and Dimensions
All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.
|

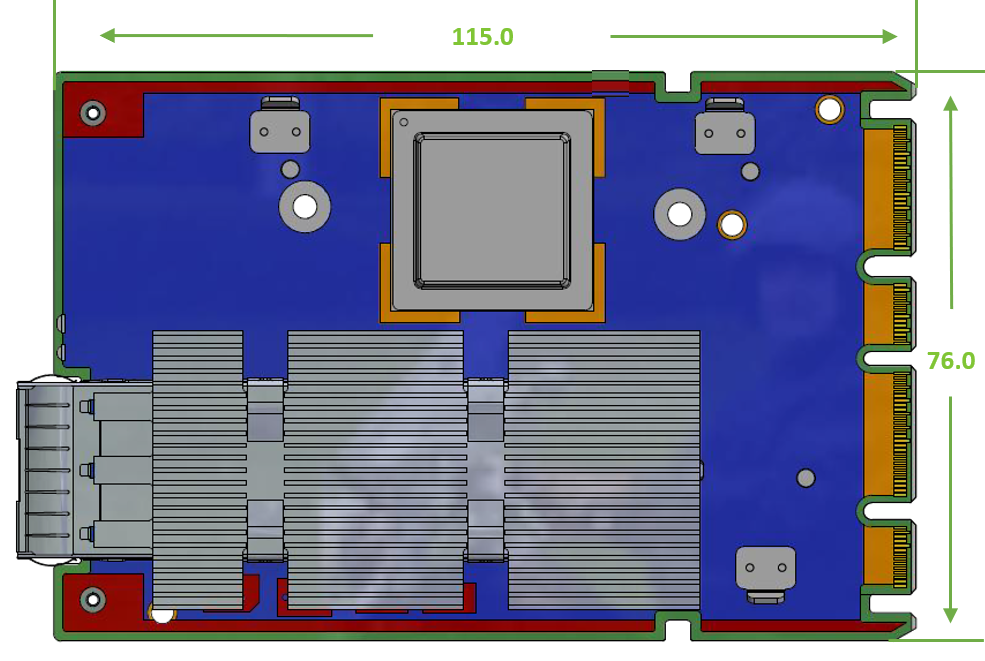

ConnectX-7 Single-Port OSFP |

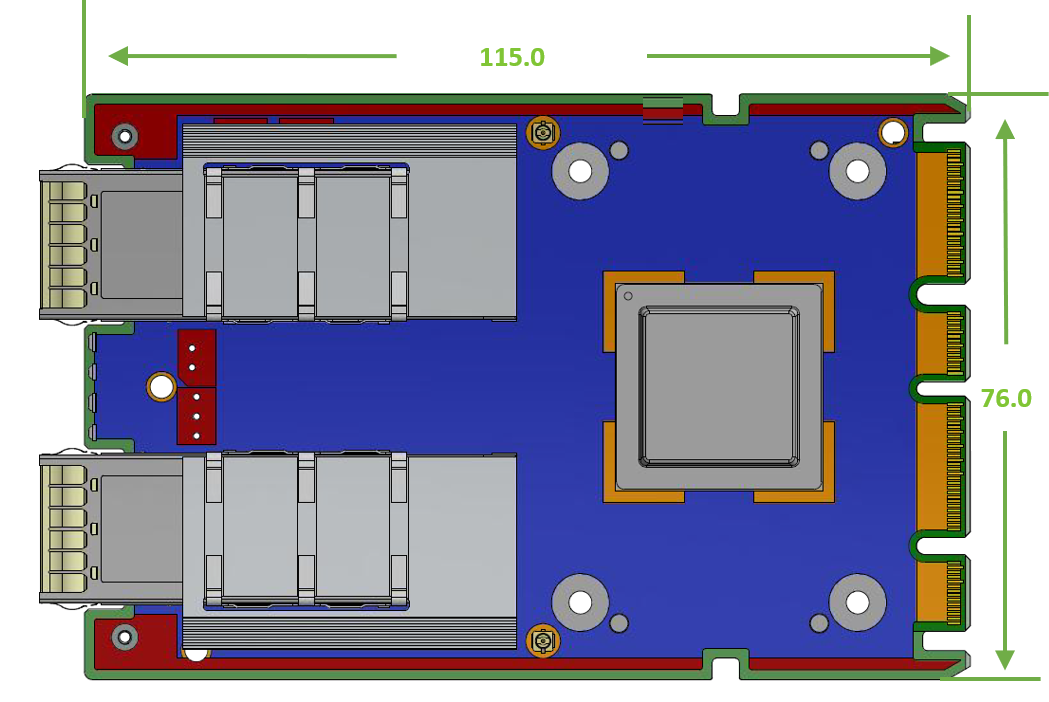

ConnectX-7 Dual-Port QSFP112 |
|---|---|
|
|
|
|

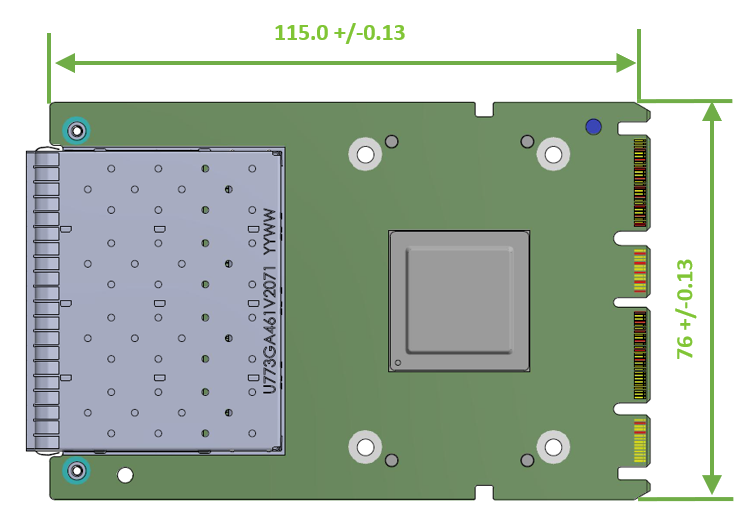

ConnectX-7 Quad-Port SFP56 |
|
|
|
|
Bracket Drawings and Dimensions
All dimensions are in millimeters. The bracket's mechanical tolerance is +/- 0.25mm.
|

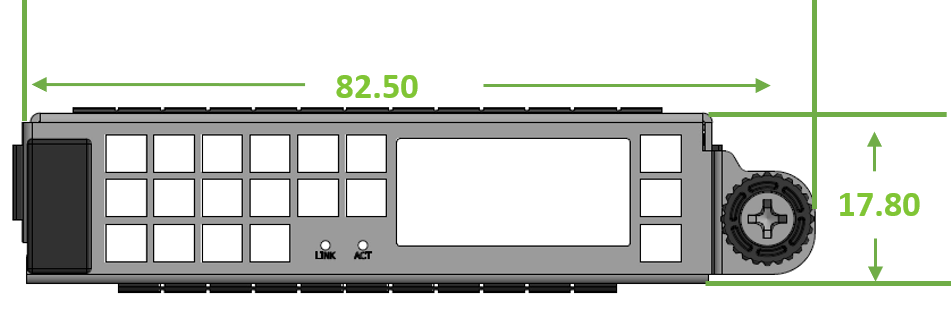

Single-Port OSFP Thumbscrew Bracket |

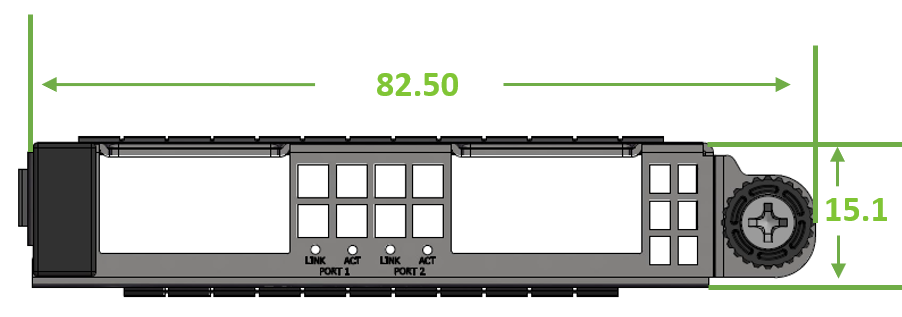

Dual-Port QSFP112 Thumbscrew Bracket |
|---|---|
|
|
|
|

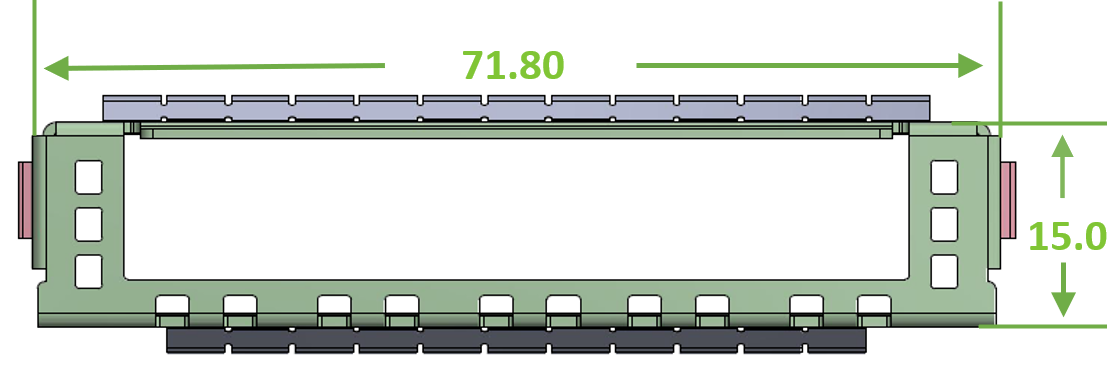

ConnectX-7 Quad-Port SFP56 Internal Lock Bracket |
|
|
|
|
Last updated:
