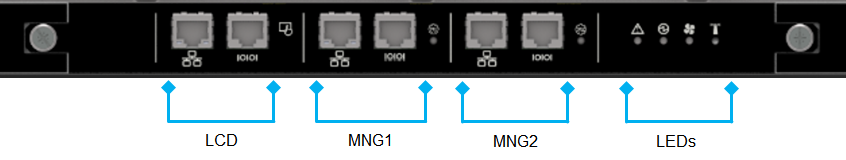

The system IO panel is divided into 4 sections (see below image and table):
-
LCD screen control
-
MNG1 interface
-
MNG2 interface
-
System status LEDs
|
Section |
Symbol |
Description |
|---|---|---|
|
LCD interface |
|
Std RJ45 1GB/100MB ETH connection to LCD tablet. Master MNG owns control over this port and controls functionality of LCD screen |
|
|
RS232 console for LCD debug and configuration. Should be connected to the dedicated slot on LCD screen. |
|
|
MNG 1 interface |
|
Std RJ45 1GB/100MB ETH connection to Management module #1 |
|
|
I2C / RS232 console for system debug and configuration. Please use split cable provided with the system to get access to the relevant interface. |
|
|
|
MNG 1 Master / Slave led – refer to 3.1.6 for further information. |
|
|
MNG 2 interface |
|
Std RJ45 1GB/100MB ETH connection to Management module #1 |
|
|
I2C / RS232 console for system debug and configuration. Please use split cable provided with the system to get access to the relevant interface. |
|
|
|
MNG 2 Master / Slave led – refer to 3.1.6 for further information. |
|
|
LEDs |
|
See LEDs interface chapter for more information |
