DOCA Flow Tune Server

This guide provides an overview and configuration instructions for DOCA Flow Tune Server API.

Introduction

DOCA Flow Tune Server (TS), DOCA Flow subcomponent, exposes an API to collect predefined internal key performance indicators (KPIs) and pipeline visualization of a running DOCA Flow application.

Supported port KPIs:

Total add operations across all queues
Total update operations across all queues
Total remove operations across all queues
Pending operations number across all queues
Number of NO_WAIT flag operations across all queues
Number of shared resources and counters
Number of pipes

Supported application KPIs:

Number of ports
Number of queues
Queues depth

Pipeline information is saved to a JSON file to simplify its structure. Visualization is supported for the following DOCA Flow pipes:

Basic
Control

Each pipe contains the following fields:

Type
Name
Domain
Is root
Match
Match mask
FWD
FWD miss

Supported entry information:

Basic
- FWD
Control
- FWD
- Match
- Match mask
- Priority

Prerequisites

DOCA Flow Tune Server API is available only by using the DOCA Flow and DOCA Flow Tune Server trace libraries.

For more detailed information, refer to section "DOCA Flow Debug and Trace" under DOCA Flow.

API

For more detailed information on DOCA Flow API, refer to NVIDIA DOCA Library APIs.

The following subsections provide additional details about the library API.

enum doca_flow_tune_server_kpi_type

DOCA Flow TS KPI flags.

Flag	Description
`TUNE_SERVER_KPI_TYPE_NR_PORTS,`	Retrieve port number
`TUNE_SERVER_KPI_TYPE_NR_QUEUES,`	Retrieve queue number
`TUNE_SERVER_KPI_TYPE_QUEUE_DEPTH,`	Retrieve queue depth
`TUNE_SERVER_KPI_TYPE_NR_SHARED_RESOURCES,`	Retrieve shared resource and counter numbers
`TUNE_SERVER_KPI_TYPE_NR_PIPES,`	Retrieve number of pipes per port
`TUNE_SERVER_KPI_TYPE_ENTRIES_OPS_ADD,`	Retrieve entry add operations per port
`TUNE_SERVER_KPI_TYPE_ENTRIES_OPS_UPDATE,`	Retrieve entry update operations per port
`TUNE_SERVER_KPI_TYPE_ENTRIES_OPS_REMOVE,`	Retrieve entry remove operations per port
`TUNE_SERVER_KPI_TYPE_PENDING_OPS,`	Retrieve entry pending operations per port
`TUNE_SERVER_KPI_TYPE_NO_WAIT_OPS,`	Retrieve entry `NO_WAIT` flag operations per port

struct doca_flow_tune_server_shared_resources_kpi_res

Holds the number of each shared resources and counters per port.

Field	Description
`uint64_t nr_meter`	Number of meters
`uint64_t nr_counter`	Number of counters
`uint64_t nr_rss`	Number of RSS
`uint64_t nr_mirror`	Number of mirrors
`uint64_t nr_psp`	Number of PSP
`uint64_t nr_encap`	Number of encap
`uint64_t nr_decap`	Number of decap

struct doca_flow_tune_server_kpi_res

Holds the KPI result.

This structure is required when calling doca_flow_tune_server_get_kpi or doca_flow_tune_server_get_port_kpi.

Field	Description
`enum doca_flow_tune_server_kpi_type type`	KPI result type
`struct doca_flow_tune_server_shared_resources_kpi_res shared_resources_kpi`	Shared resource result values
`uint64_t val`	Result value

doca_flow_tune_server_init

Initializes DOCA Flow Tune Server internal structures.

doca_error_t doca_flow_tune_server_init(void);

doca_flow_tune_server_destroy

Destroys DOCA Flow Tune Server internal structures.

void doca_flow_tune_server_destroy(void);

doca_flow_tune_server_query_pipe_line

Queries and dumps pipeline info for all ports to a JSON file pointed by fp.

doca_error_t doca_flow_tune_server_query_pipe_line(FILE *fp);

doca_flow_tune_server_get_port_ids

Retrieves ports identification numbers.

doca_error_t doca_flow_tune_server_get_port_ids(uint16_t *port_id_arr, uint16_t port_id_arr_len, uint16_t *nr_ports);

doca_flow_tune_server_get_kpi

Retrieves application scope KPI.

doca_error_t doca_flow_tune_server_get_kpi(enum doca_flow_tune_server_kpi_type kpi_type,
                       struct doca_flow_tune_server_kpi_res *res)

doca_flow_tune_server_get_port_kpi

Retrieves port scope KPI.

doca_error_t doca_flow_tune_server_get_port_kpi(uint16_t port_id,
                        enum doca_flow_tune_server_kpi_type kpi_type,
                        struct doca_flow_tune_server_kpi_res *res);

DOCA Flow Tune Server Samples

This section describes DOCA Flow Tune Server samples.

The samples illustrate how to use the library API to retrieve KPIs or save pipeline information into a JSON file.

Running the Samples

Refer to the following documents:
- NVIDIA DOCA Installation Guide for Linux for details on how to install BlueField-related software.
- NVIDIA DOCA Troubleshooting Guide for any issue you may encounter with the installation, compilation, or execution of DOCA samples.

To build a given sample:

cd /opt/mellanox/doca/samples/doca_flow/flow_tune_server_dump_pipeline
meson /tmp/build
ninja -C /tmp/build

The binary doca_flow_tune_server_dump_pipeline is created under /tmp/build/samples/.

Sample (e.g., doca_flow_tune_server_dump_pipeline) usage:

Usage: doca_<sample_name> [DOCA Flags] [Program Flags]

DOCA Flags:
  -h, --help                              Print a help synopsis
  -v, --version                           Print program version information
  -l, --log-level                         Set the (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>
  --sdk-log-level                         Set the SDK (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>
  -j, --json <path>                       Parse all command flags from an input json file

For additional information per sample, use the -h option:
```
/tmp/build/samples/<sample_name> -h
```

The following is a CLI example for running the samples:

Bash

/tmp/build/doca_<sample_name> -a auxiliary:mlx5_core.sf.2,dv_flow_en=2 -a auxiliary:mlx5_core.sf.3,dv_flow_en=2 -- -l 60

Samples

Flow Tune Server KPI

This sample illustrates how to use DOCA Flow Tune Server API to retrieve KPIs.

The sample logic includes:

Initializing DOCA Flow by indicating mode_args="vnf,hws" in the doca_flow_cfg struct.
Starting a single DOCA Flow port.
Initializing DOCA Flow server using the doca_flow_tune_server_init function. This must be done after calling the doca_flow_port_start function (or the init_doca_flow_ports helper function).
Querying existing port IDs using the doca_flow_tune_server_get_port_ids function.
Querying application level KPIs using doca_flow_tune_server_get_kpi function. The following KPI are read:
- Number of queues
- Queue depth
KPIs per port on which the basic pipe is created:
1. Add operation entries.
Adding 20 entries followed by a second call to query entries add operations.

Reference:

/opt/mellanox/doca/samples/doca_flow/flow_tune_server_kpi/flow_tune_server_kpi_sample.c
/opt/mellanox/doca/samples/doca_flow/flow_tune_server_kpi/flow_tune_server_kpi_main.c
/opt/mellanox/doca/samples/doca_flow/flow_tune_server_kpi/meson.build

Flow Tune Server Dump Pipeline

This sample illustrates how to use DOCA Flow Tune Server API to dump pipeline information into a JSON file.

The sample logic includes:

Initializing DOCA Flow by indicating mode_args="vnf,hws" in the doca_flow_cfg struct.
Starting two DOCA Flow ports.
Initializing DOCA Flow server using doca_flow_tune_server_init function.

This must be done after calling init_foca_flow_ports function.
Opening a file called sample_pipeline.json for writing.
For each port:
1. Creating a pipe to drop all traffic.
2. Creating a pipe to hairpin traffic from port 0 to port 1
3. Creating FWD pipe to forward traffic based on 5-tuple.
4. Adding two entries to FWD pipe, each entry with different 5-tuple.
5. Creating a control pipe and adding the FWD pipe as an entry.
Dumping the pipeline information into a file.

Reference:

/opt/mellanox/doca/samples/doca_flow/flow_tune_server_dump_pipeline/flow_tune_server_dump_pipeline_sample.c
/opt/mellanox/doca/samples/doca_flow/flow_tune_server_dump_pipeline/flow_tune_server_dump_pipeline_main.c
/opt/mellanox/doca/samples/doca_flow/flow_tune_server_dump_pipeline/meson.build

Flow Visualization

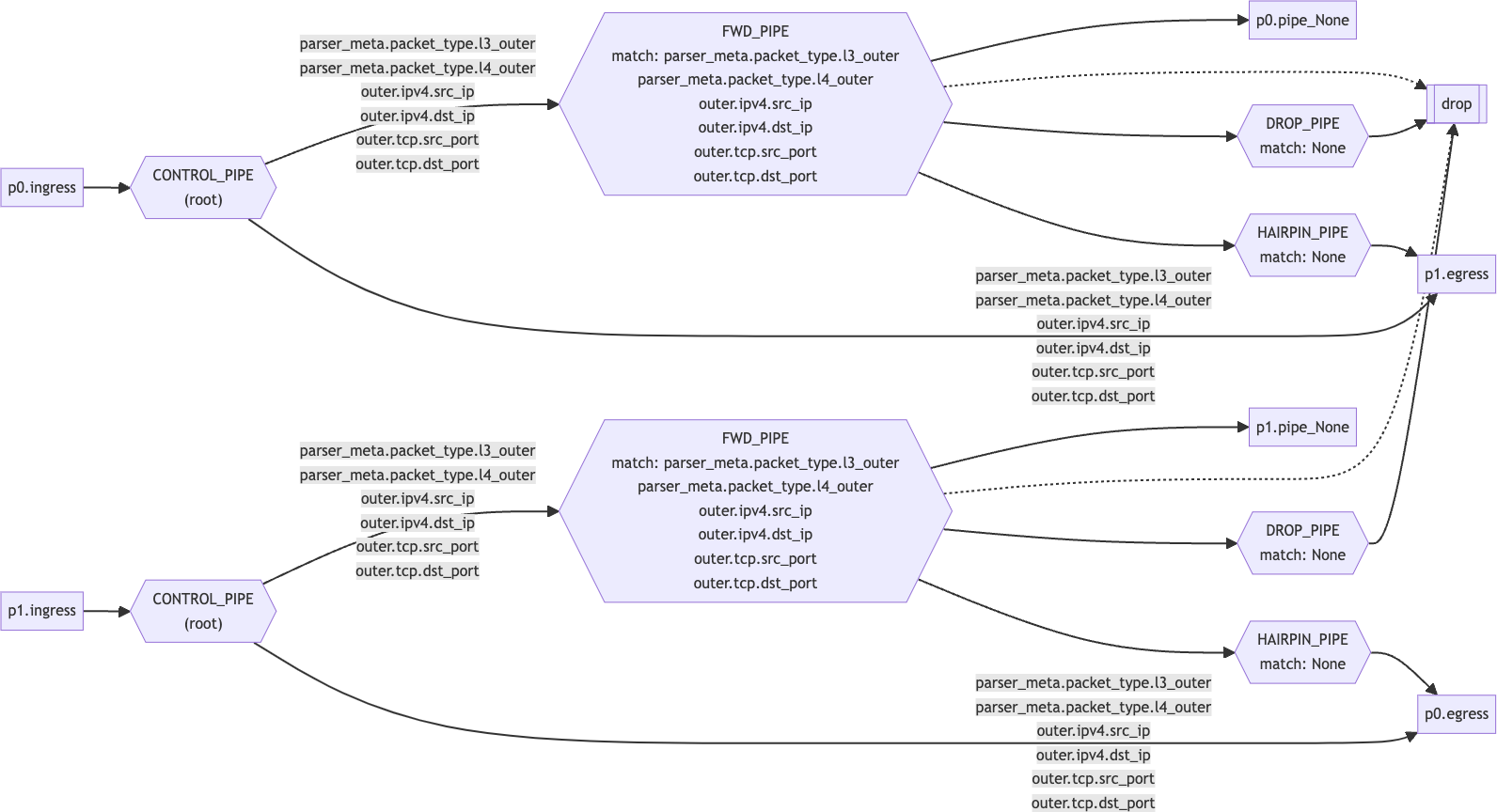

Once a DOCA Flow application pipeline has been exported to a JSON file, it is easy to visualize it using tools such as Mermaid.

Save the following Python script locally to a file named doca-flow-viz.py (or similar). This script converts a given JSON file produced by DOCA Flow TS to a Mermaid diagram embedded in a markdown document.

Python

#!/usr/bin/python3

#
# Copyright (c) 2024 NVIDIA CORPORATION & AFFILIATES, ALL RIGHTS RESERVED.
#
# This software product is a proprietary product of NVIDIA CORPORATION &
# AFFILIATES (the "Company") and all right, title, and interest in and to the
# software product, including all associated intellectual property rights, are
# and shall remain exclusively with the Company.
#
# This software product is governed by the End User License Agreement
# provided with the software product.
#

import glob
import json
import sys
import os.path

class MermaidConfig:
    def __init__(self):
        self.prefix_pipe_name_with_port_id = False
        self.show_match_criteria = False
        self.show_actions = False

class MermaidFormatter:
    def __init__(self, cfg):
        self.cfg = cfg
        self.syntax = ''
        self.prefix_pipe_name_with_port_id = cfg.prefix_pipe_name_with_port_id

    def format(self, data):
        self.prefix_pipe_name_with_port_id = self.cfg.prefix_pipe_name_with_port_id and len(data.get('ports', [])) > 0

        if not 'ports' in data:
            port_id = data.get('port_id', 0)
            data = {
                'ports': [
                    {
                        'port_id': port_id,
                        'pipes': data['pipes']
                    }
                ]
            }

        self.syntax = ''
        self.append('```mermaid')
        self.append('graph LR')

        self.declare_terminal_states(data)

        for port in data['ports']:
            self.process_port(port)

        self.append('```')
        return self.syntax

    def append(self, text, endline = "\n"):
        self.syntax += text + endline

    def declare_terminal_states(self, data):
        all_fwd_types = self.get_all_fwd_types(data)
        if 'drop' in all_fwd_types:
            self.append('    drop[[drop]]')
        if 'rss' in all_fwd_types:
            self.append('    RSS[[RSS]]')

    def get_all_fwd_types(self, data):
        # Gather all 'fwd' and 'fwd_miss' types from pipes and 'fwd' types from entries
        all_fwd_types = {
            fwd_type
            for port in data.get('ports', [])
            for pipe in port.get('pipes', [])
            for tag in ['fwd', 'fwd_miss'] # Process both 'fwd' and 'fwd_miss' for each pipe
            for fwd_type in [pipe.get(tag, {}).get('type', None)]  # Extract the 'type'
            if fwd_type
        } | {
            fwd_type
            for port in data.get('ports', [])
            for pipe in port.get('pipes', [])
            for tag in ['fwd']
            for entry in pipe.get('entries', []) # Process all entries in each pipe
            for fwd_type in [entry.get(tag, {}).get('type', None)]
            if fwd_type
        }
        return all_fwd_types

    def process_port(self, port):
        port_id = port['port_id']
        pipe_names = self.resolve_pipe_names(port)
        self.declare_pipes(port, pipe_names)
        for pipe in port.get('pipes', []):
            self.process_pipe(pipe, port_id)

    def resolve_pipe_names(self, port):
        pipe_names = {}

        port_id = port['port_id']
        for pipe in port.get('pipes', []):
            id = pipe['pipe_id']
            name = pipe['attributes'].get('name', f"pipe_{id}")
            if self.prefix_pipe_name_with_port_id:
                name = f"p{port_id}.{name}"
            pipe_names[id] = name
        return pipe_names

    def declare_pipes(self, port, pipe_names):
        port_id = port['port_id']
        for pipe in port.get('pipes', []):
            id = pipe['pipe_id']
            name = pipe_names[id]
            self.declare_pipe(port_id, pipe, name)

    def declare_pipe(self, port_id, pipe, pipe_name):
        id = pipe['pipe_id']
        attr = "\n(root)" if self.pipe_is_root(pipe) else ""
        if self.cfg.show_match_criteria and not self.pipe_is_ctrl(pipe):
            fields_matched = self.pipe_match_criteria(pipe, 'match')
            attr += f"\nmatch: {fields_matched}"
        self.append(f'    p{port_id}.pipe_{id}{{{{"{pipe_name}{attr}"}}}}')

    def pipe_match_criteria(self, pipe, key: ['match', 'match_mask']):
        return "\n".join(self.extract_match_criteria_paths(None, pipe.get(key, {}))) or 'None'

    def extract_match_criteria_paths(self, prefix, match):
        for k,v in match.items():
            if isinstance(v, dict):
                new_prefix = f"{prefix}.{k}" if prefix else k
                for x in self.extract_match_criteria_paths(new_prefix, v):
                    yield x
            else:
                # ignore v, the match value
                yield f"{prefix}.{k}" if prefix else k

    def pipe_is_ctrl(self, pipe):
        return pipe['attributes']['type'] == 'control'

    def pipe_is_root(self, pipe):
        return pipe['attributes'].get('is_root', False)

    def process_pipe(self, pipe, port_id):
        pipe_id = f"pipe_{pipe['pipe_id']}"
        is_ctrl = self.pipe_is_ctrl(pipe)
        self.declare_fwd(port_id, pipe_id, '-->', self.get_fwd_target(pipe.get('fwd', {}), port_id))
        self.declare_fwd(port_id, pipe_id, '-.->', self.get_fwd_target(pipe.get('fwd_miss', {}), port_id))

        for entry in pipe.get('entries', []):
            fields_matched = self.pipe_match_criteria(entry, 'match') if is_ctrl else None
            fields_matched = f'|"{fields_matched}"|' if fields_matched else ''
            self.declare_fwd(port_id, pipe_id, f'-->{fields_matched}', self.get_fwd_target(entry.get('fwd', {}), port_id))

        if self.pipe_is_root(pipe):
            self.declare_fwd(port_id, None, '-->', f"p{port_id}.{pipe_id}")

    def get_fwd_target(self, fwd, port_id):
        fwd_type = fwd.get('type', None)
        if not fwd_type:
            return None
        if fwd_type == 'changeable':
            return None
        elif fwd_type == 'pipe':
            pipe_id = fwd.get('pipe_id', fwd.get('value', None))
            target = f"p{port_id}.pipe_{pipe_id}"
        elif fwd_type == 'port':
            port_id = fwd.get('port_id', fwd.get('value', None))
            target = f"p{port_id}.egress"
        else:
            target = f"{fwd_type}"
        return target

    def declare_fwd(self, port_id, pipe_id, arrow, target):
        if target:
            src = f"p{port_id}.{pipe_id}" if pipe_id else f"p{port_id}.ingress"
            self.append(f"    {src} {arrow} {target}")

def json_to_md(infile, outfile, cfg):
    formatter = MermaidFormatter(cfg)
    data = json.load(infile)
    mermaid_syntax = formatter.format(data)
    outfile.write(mermaid_syntax)

def json_dir_to_md_inplace(dir, cfg):
    for infile in glob.glob(dir + '/**/*.json', recursive=True):
        outfile = os.path.splitext(infile)[0] + '.md'
        print(f"{infile} --> {outfile}")
        json_to_md(open(infile, 'r'), open(outfile, 'w'), cfg)

def main() -> int:
    cfg = MermaidConfig()
    cfg.show_match_criteria = True

    if len(sys.argv) == 2 and os.path.isdir(sys.argv[1]):
        json_dir_to_md_inplace(sys.argv[1], cfg)

    else:
        infile = open(sys.argv[1], 'r') if len(sys.argv) > 1 else sys.stdin
        outfile = open(sys.argv[2], 'w') if len(sys.argv) > 2 else sys.stdout
        json_to_md(infile, outfile, cfg)

if __name__ == '__main__':
    sys.exit(main())

The resulting Markdown can be viewed in several ways, including:
- Microsoft Visual Studio Code (using an available Mermaid plugin, such as this one)
- In the GitHub and GitLab built-in Markdown renderer (after committing the output to a Git repo)
- By pasting only the Flowchart content into the Online FlowChart and Diagram Editor
The Python script can be invoked as follows:
Bash
```
python3 doca-flow-viz.py sample_pipeline.json sample_pipeline.md
```
In the case of the flow_tune_server_dump_pipeline sample, the script produces the following diagram:

Last updated: May 05, 2024
