Use Cases

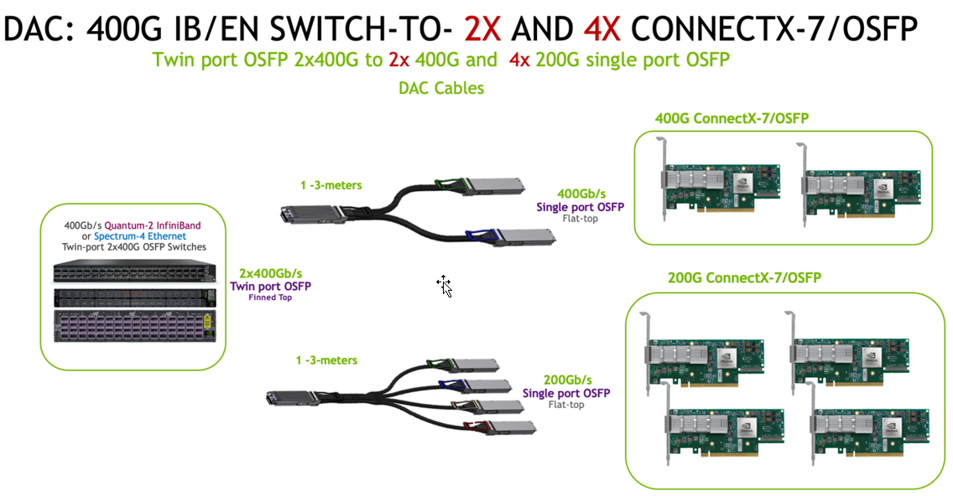

The main use of the MCP7Y00 is linking an 800Gb/s Quantum-2 switch or Spectrum-4 switch to OSFP-based 400Gb/s ConnectX-7 PCIe network adapter cards.
The single port OSFP use is only with ConnectX-7/OSFP network adapters.
BlueField-3/QSFP112 DPUs and ConnectX-7/QSFP112 adapters require QSFP112 ends found on the MCP7Y10 and MCP7Y40 DAC cables.
The splitter DAC cables are available in:
-
MCP7Y00 1:2 splits (2x 400G) (4-channels x 100G-PAM4)
-
MCP7Y50: 1:4 splits (4x 200G) (2-channels x 100G-PAM4).
Active Copper Cables (ACC) are also available for lengths of 4 and 5-meters.
