Introduction
The NVIDIA MMS1V00-WM transceiver is a single-mode 4-channel (DR4) QSFP-DD optical transceiver, designed for 400 Gigabit Ethernet (GbE) links on up to 500m of single mode fiber.
The MMS1V00-WM converts 8 input channels of 50Gb/s PAM4 electrical data to 4 channels of 100Gb/s PAM4 optical signals, using a nominal wavelength of 1310nm, for 400Gb/s optical transmission.
The transceiver has a standard QSFP-DD connector on the electrical side towards the host system. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel single-mode optical cable via a standard MPO connector.
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.

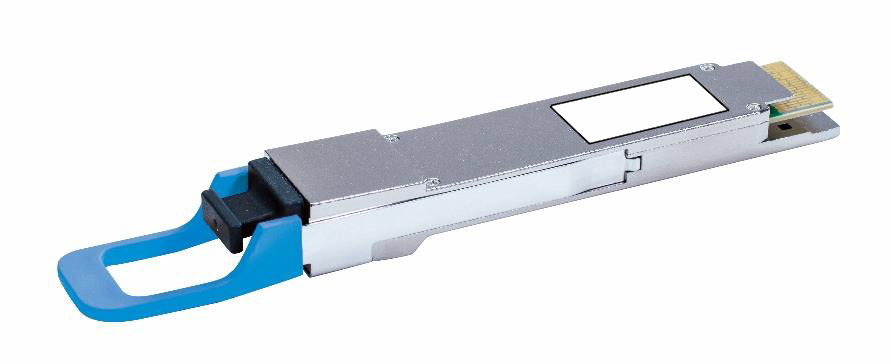

Images are for illustration purposes only. Product labels and colors may vary.
Key Features
-
2x wire serial interface with digital diagnostic monitoring
-
Operating case temperature 0-70°C
-
Maximum power consumption 12W
-
500m reach
-
MPO12/APC optical connector
-
Compliant with IEEE 802.3bs-2017 standard:400GBASE-DR4 optical interface400GAUI-8 electrical interface
-
QSFP-DD MSA HW Rev 5.0; Type 2 housing with MPO-12 connector compliant
-
QSFP-DD CMIS Rev 4.0 compliant
-
Complies with EU Directive 2011/65/EU (RoHS compliant)
Applications
-
400GbE Ethernet systems
-
Campus networks – up to 500 m reach
-
Supports 4x MMS1V70-CM on MSN2700 to a single MMS1V00-WM on MSN4700 and MMS1V00-WM on MSN4700 to MMS1V00-WM on MSN4700
