HTTPS/Authentication Mechanism | NMX Manager (NMX-M) Documentation

In NMX-M, security and user authentication are critical components achieved through the use of HTTPS and a Kong Basic Authentication mechanism. HTTPS (Hypertext Transfer Protocol Secure) is employed to protect data transmitted between clients (such as web browsers) and the server by encrypting this data using SSL/TLS protocols. HTTPS ensures that sensitive information, such as login credentials and personal details is safeguarded from interception or tampering by unauthorized parties. When a client connects to a server over HTTPS, the server presents a digital certificate verified by a trusted Certificate Authority (CA). This certificate authenticates the server's identity and establishes a secure connection, ensuring data integrity, confidentiality, and authentication.

In addition to HTTPS, our system utilizes a basic authentication approach with pre-defined users that are set upon installation. This provides a flexible and secure way to authenticate and authorize users interacting with our REST API. To implement this, we use the Kong API gateway as a reverse proxy, configured with Basic Authentication and ACL plugins. This setup allows Kong to authenticate users attempting to access specific resources using the existing user accounts on the system.

By combining HTTPS and a robust authentication mechanism, our system provides a secure and reliable environment for users, protecting their data and ensuring proper access controls.

Authentication

In NMX-M, there are two users configured for interacting with the API:

ro-user
rw-user

The password for each user is set during the NMX-M cluster installation process. Those users are configured in Kong’s basic authentication settings and applied to all routes. The login information is encrypted and kept in a dedicated PostgreSQL DB.

Authorization

Each user has its own ACL group configuration.

Ready Only ACL Group

This group includes the "ro-user" and grants access to read-only API endpoints. Any NMX API endpoint that uses the GET HTTP method can be accessed here.

Relevant API Endpoints

Group	Operation	Method	URL
KPI	Get KPI	GET	/nmx/v1/kpis
Metric	Get Metrics	GET	/nmx/v1/metrics
Services	List NMX Services	GET	/nmx/v1/services
Services	Get NMX Service	GET	/nmx/v1/services/{id}
Compute Nodes	List Compute Nodes	GET	/nmx/v1/compute-nodes
	Get Compute Nodes Count	GET	/nmx/v1/compute-nodes/count
	Get Compute Node	GET	/nmx/v1/compute-nodes/{id}
Switch Nodes	List Switch Nodes	GET	/nmx/v1/switch-nodes
	Get Switch Nodes Count	GET	/nmx/v1/switch-nodes/count
	Get Switch Node	GET	/nmx/v1/switch-node/{id}
Switches	List Switches	GET	/nmx/v1/switches
	Get Switches Count	GET	/nmx/v1/switches/count
	Get Switch	GET	/nmx/v1/switches/{id}
Chassis	List Chassis	GET	/nmx/v1/chassis
	Get Chassis Count	GET	/nmx/v1/chassis/count
	Get Chassis	GET	/nmx/v1/chassis/{id}
Ports	List Ports	GET	/nmx/v1/ports
	Get Ports Count	GET	/nmx/v1/ports/count
	Get Port	GET	/nmx/v1/ports/{id}
GPU	List GPUs	GET	/nmx/v1/gpus
	Get GPU Count	GET	/nmx/v1/gpus/count
	Get GPU	GET	/nmx/v1/gpus/{id}
Operations	List Operations	GET	/nmx/v1/operations
Operations	Get Operation	GET	/nmx/v1/operations/{id}

Ready Write ACL Group

Includes the "rw-user" and allows access to all API endpoints. Any NMX API endpoint, regardless of its HTTP method, can be accessed here.

Relevant API Endpoints

In addition to the above GET endpoints.

Group	Operation	Method	URL
Services	Add NMX Service	POST	/nmx/v1/services
Services	Delete NMX Service	DELETE	/nmx/v1/services/{id}
Compute Nodes	Update Compute Node	PUT	/nmx/v1/compute-nodes/{id}
Switch Nodes	Update Switch Node	PUT	/nmx/v1/switch-nodes/{id}
Switches	Update Switch	PUT	/nmx/v1/switches/{id}
Chassis	Update Chassis	PUT	/nmx/v1/chassis/{id}
GPU	Update GPU	PUT	/nmx/v1/gpus/{id}
Operations	Cancel Operation	DELETE	/nmx/v1/operations/{id}

Examples

Read Only Endpoint

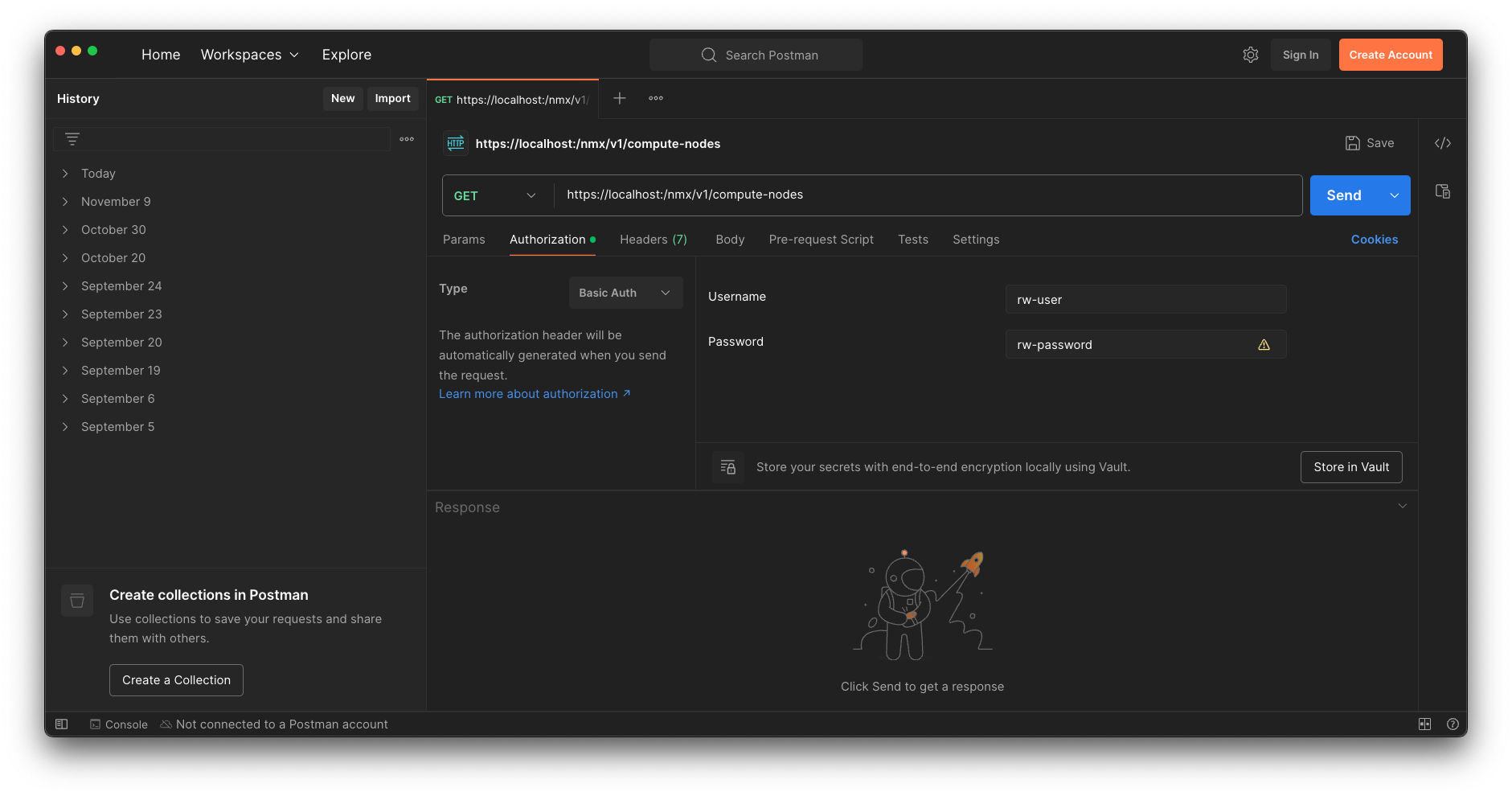

Postman

Authorization settings tab:

Select type: Basic Auth
Username: rw-user ; Password: <password defined during cluster installation>

Terminal

In a terminal window, use "bash plus curl" to execute requests.

Run the following curl command, enter values for the various parameters.

curl -X 'GET' \
  'https://<ip_address>/nmx/v1/compute-nodes' \
  -u ro-user:ro-password

Read Write Endpoint

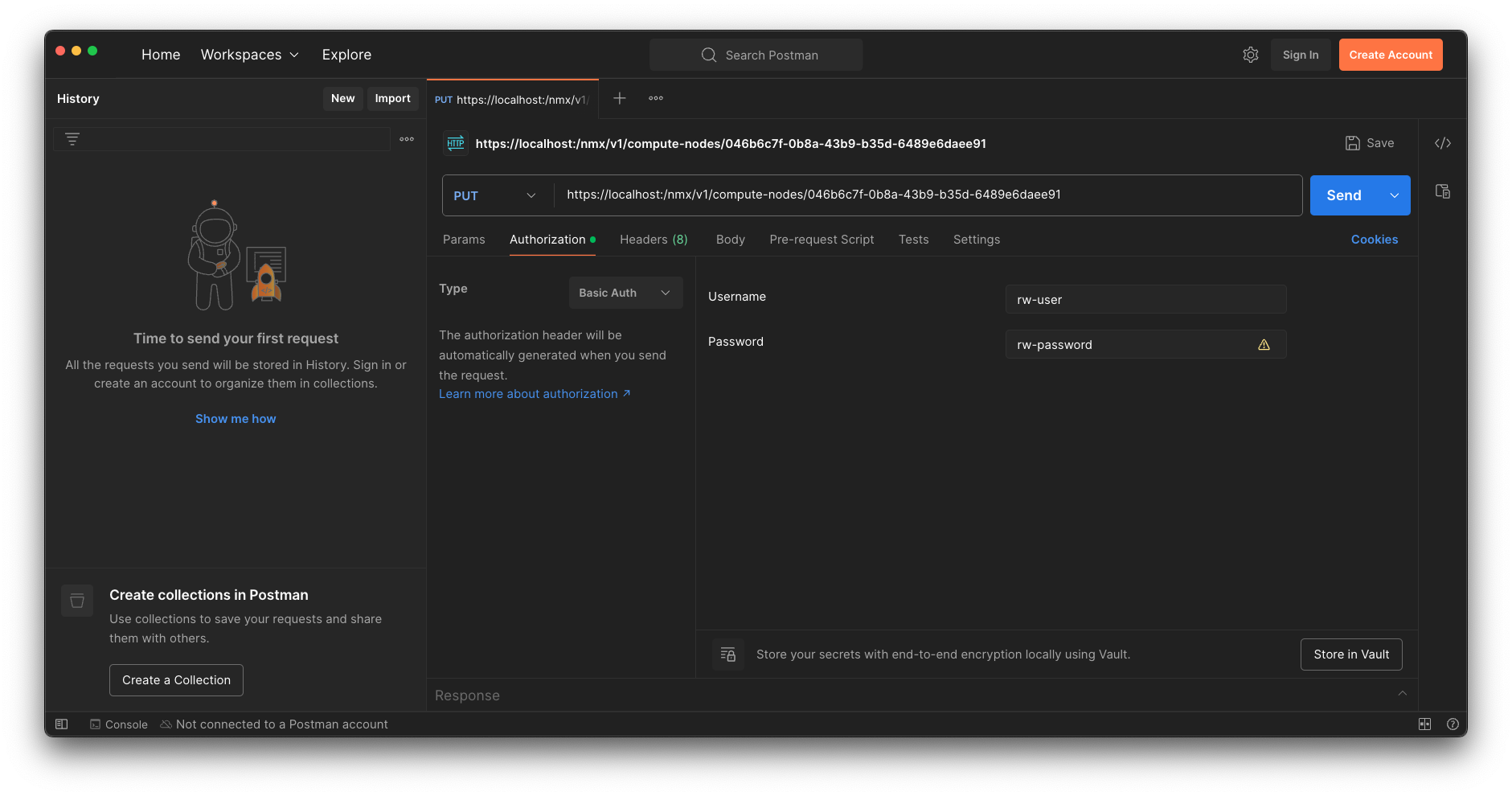

Postman

Authorization settings tab:

Select type: Basic Auth
Username: rw-user ; Password: <password defined during cluster installation>

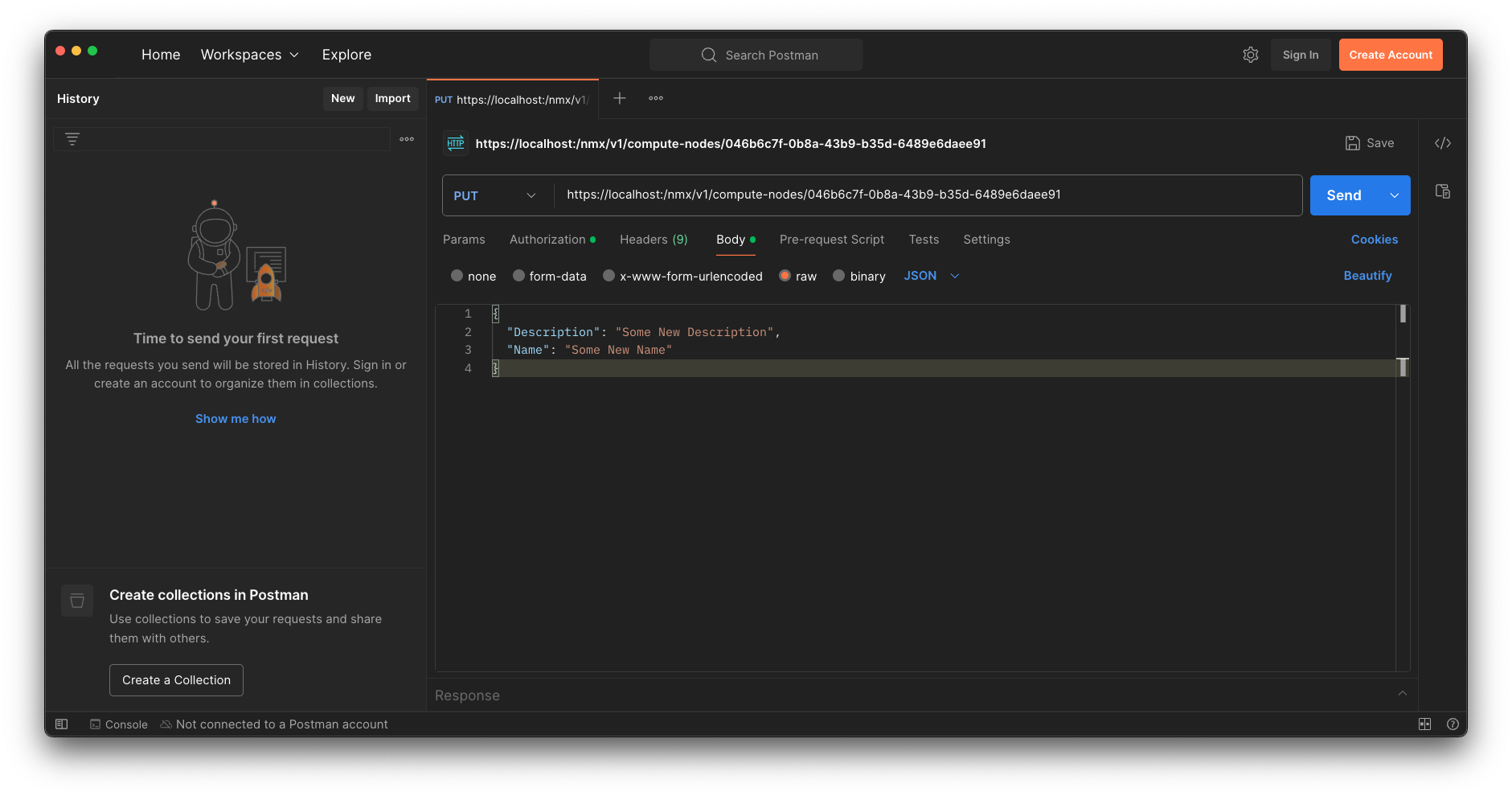

Example Request Body

Select Method: PUT
Select type: JSON
Fill in the request body details as seen below.

Terminal

In a terminal window, use "bash plus curl" to execute requests.

Run the following curl command, and enter values for the various parameters.

curl -X 'PUT' \
  'https://<ip_address>/nmx/v1/compute-nodes/<id>' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -u rw-user:rw-password \
  -d '{
  "Description": "Some New Description",
  "Name": "Some New Name"
}

Last updated: April 02, 2025
