QM97XX 1U NDR 400Gbps InfiniBand Switch Systems User Manual

QM9701 Tool-Less Rail Kit

Kit Part Number

Description

ACC-KIT001265

Installation kit for standard\short depth 2U switches (19" DGX mountable)

The following instructions have been prepared and provided with permission from King Slide.

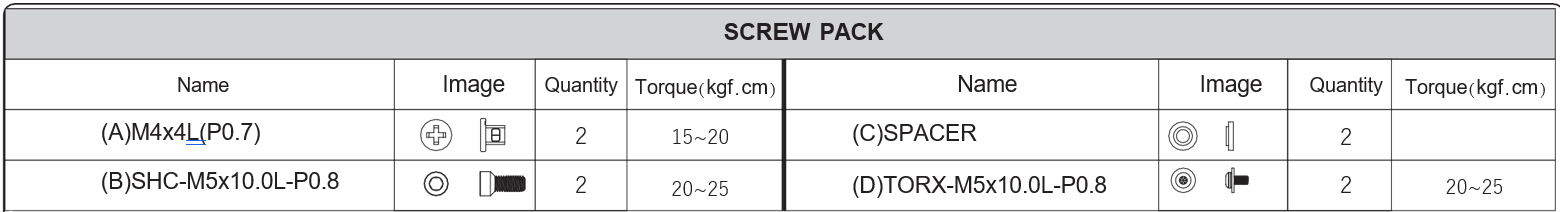

Package Contents

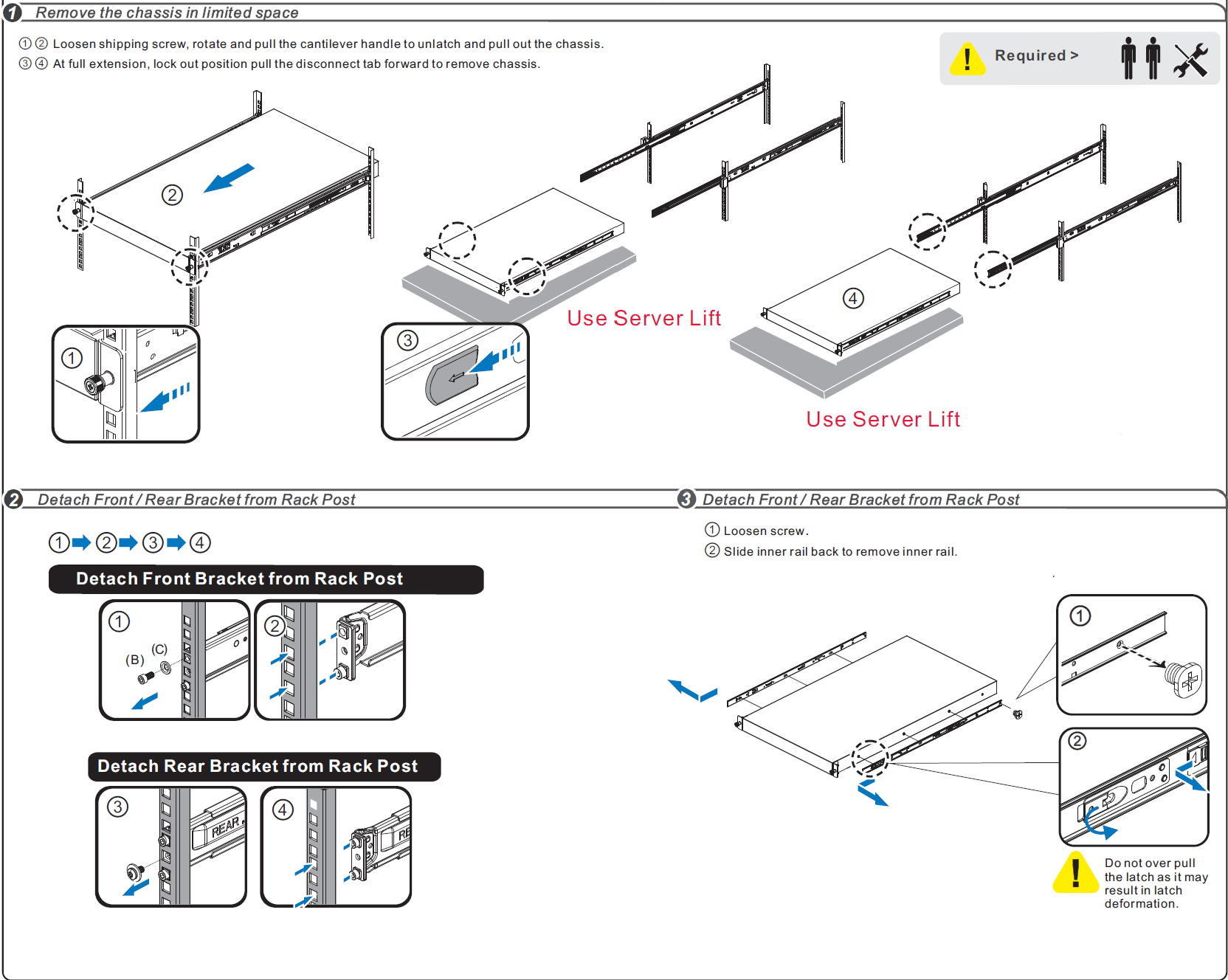

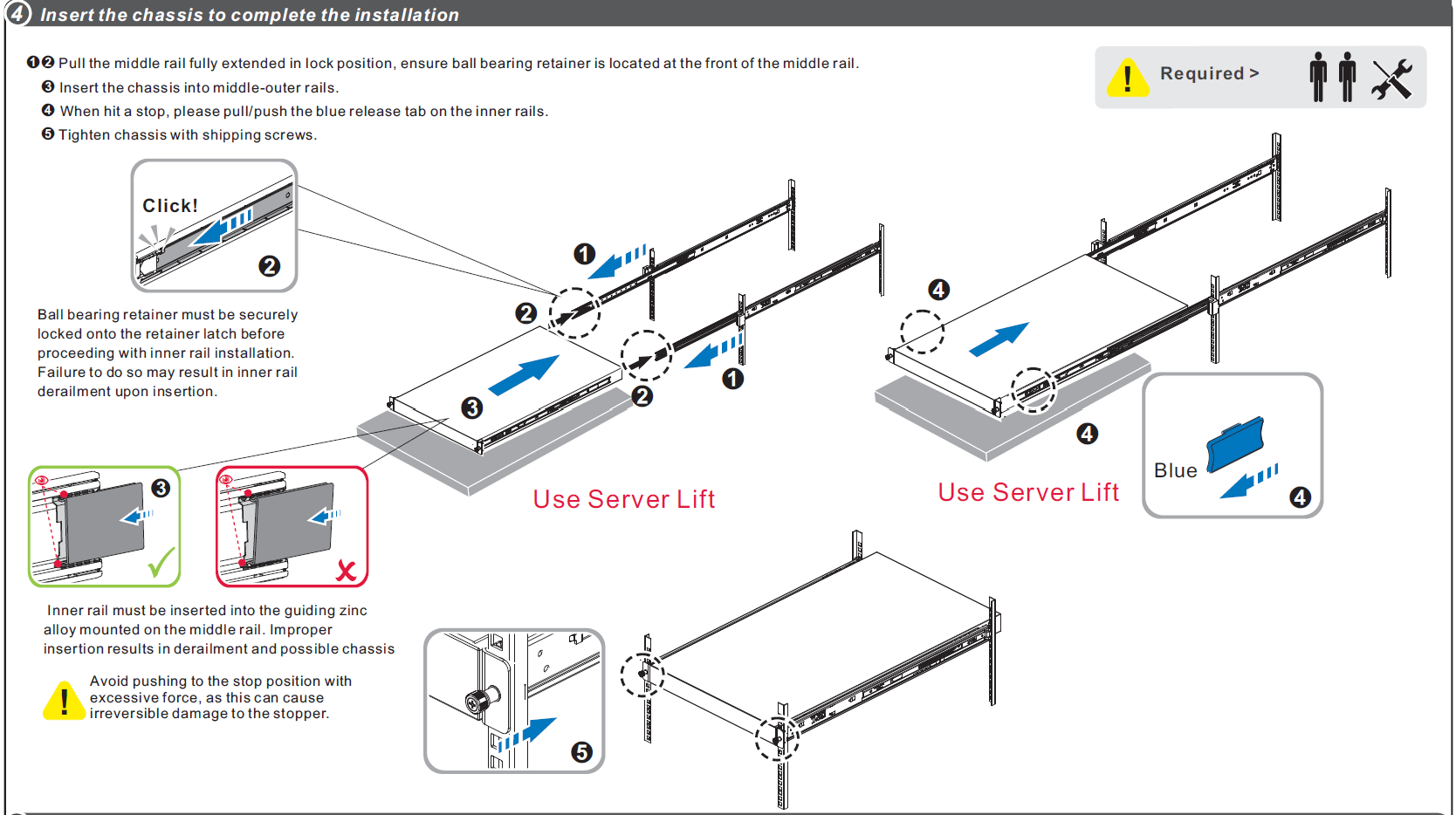

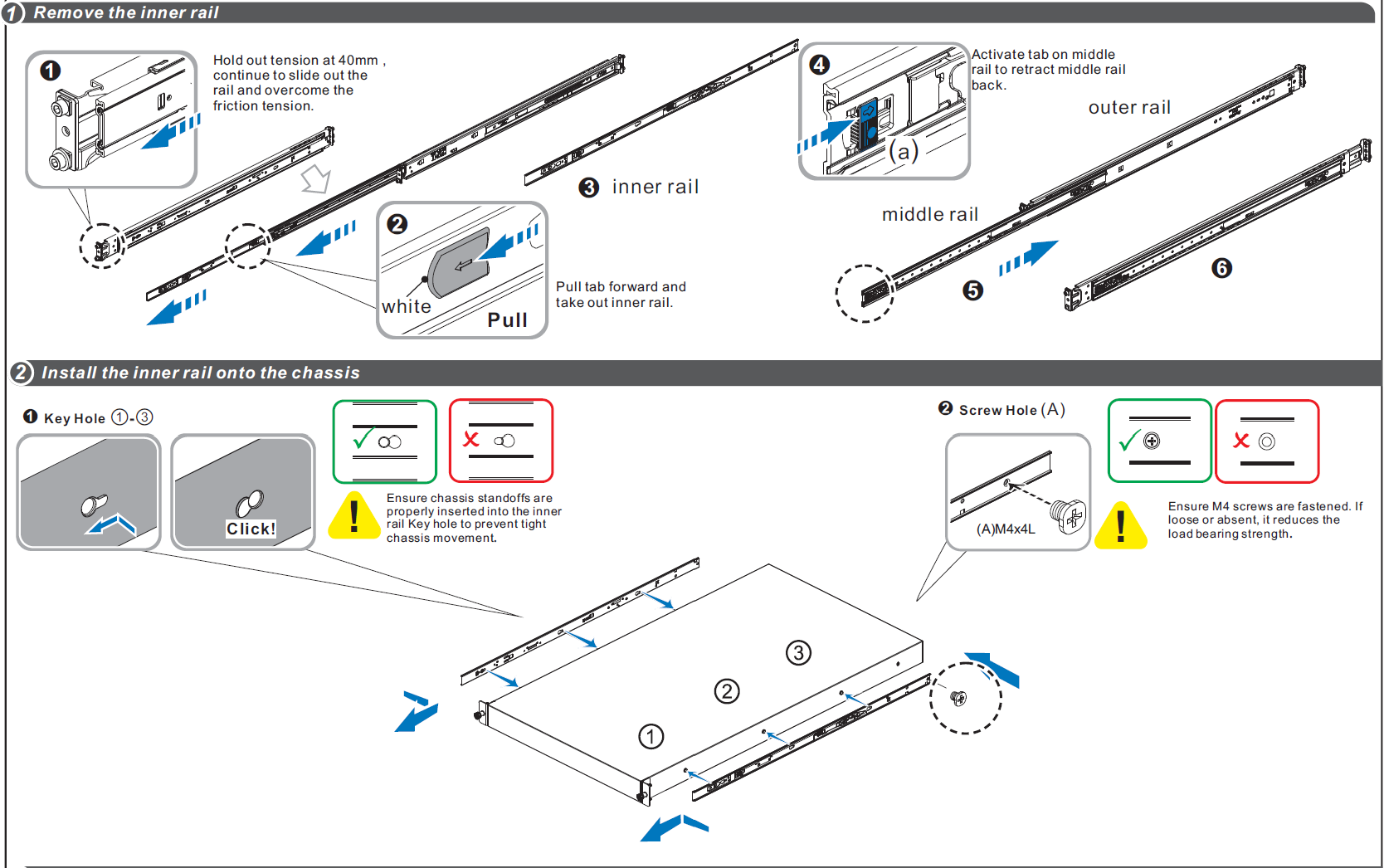

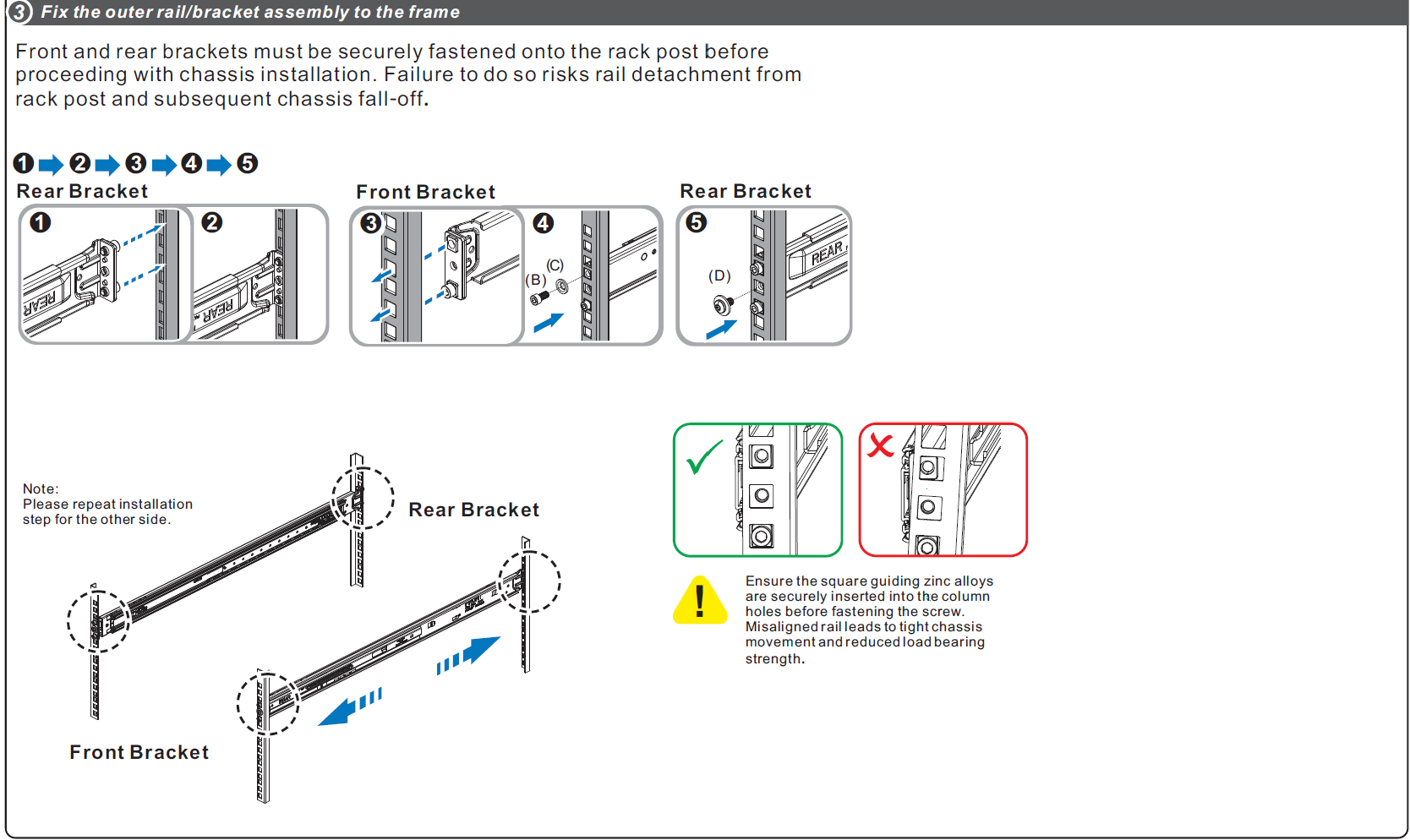

Installation Instructions

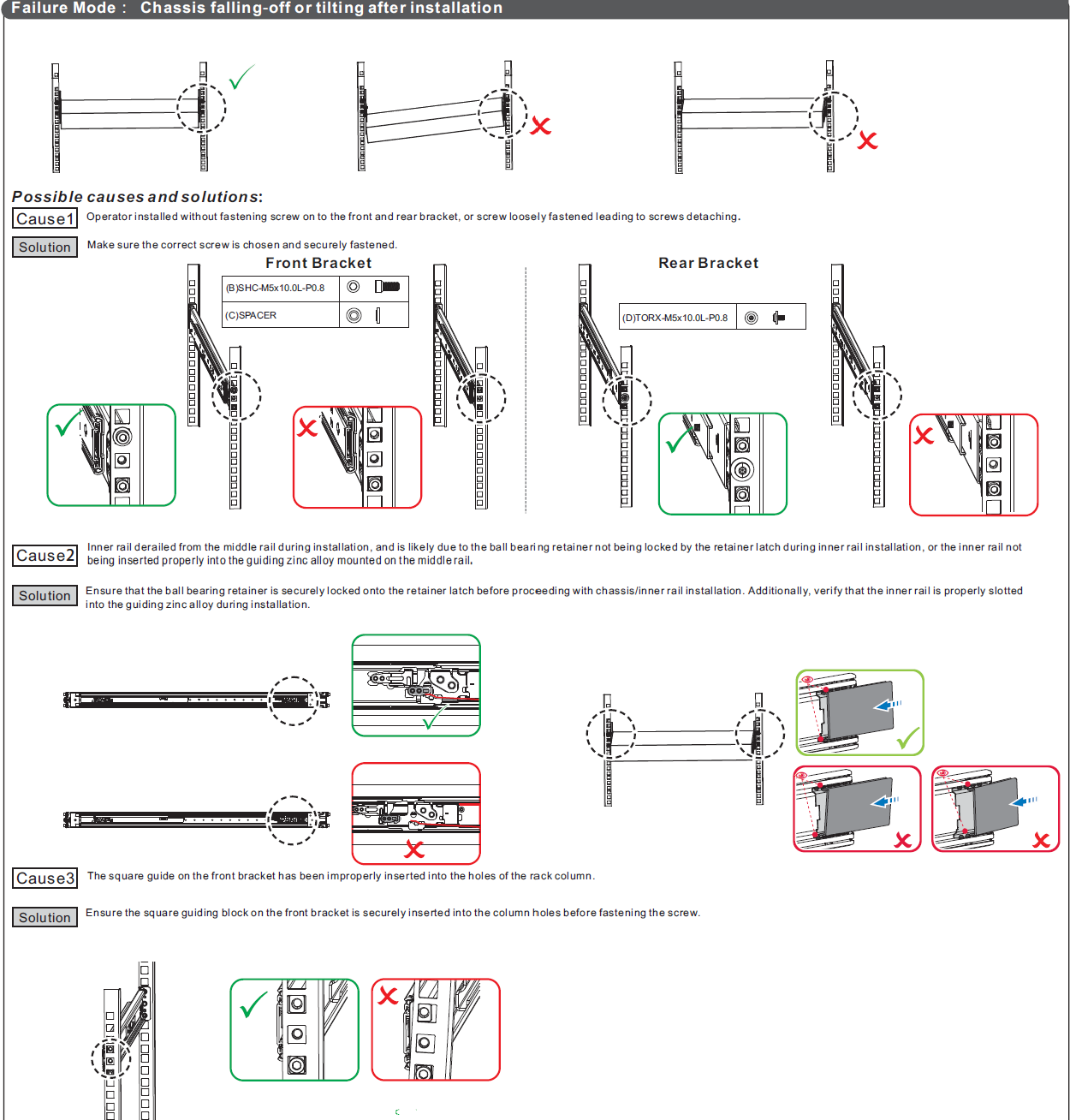

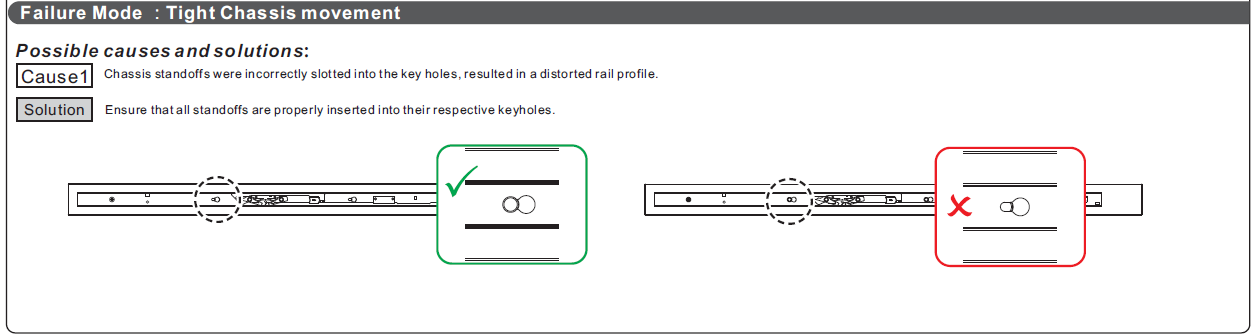

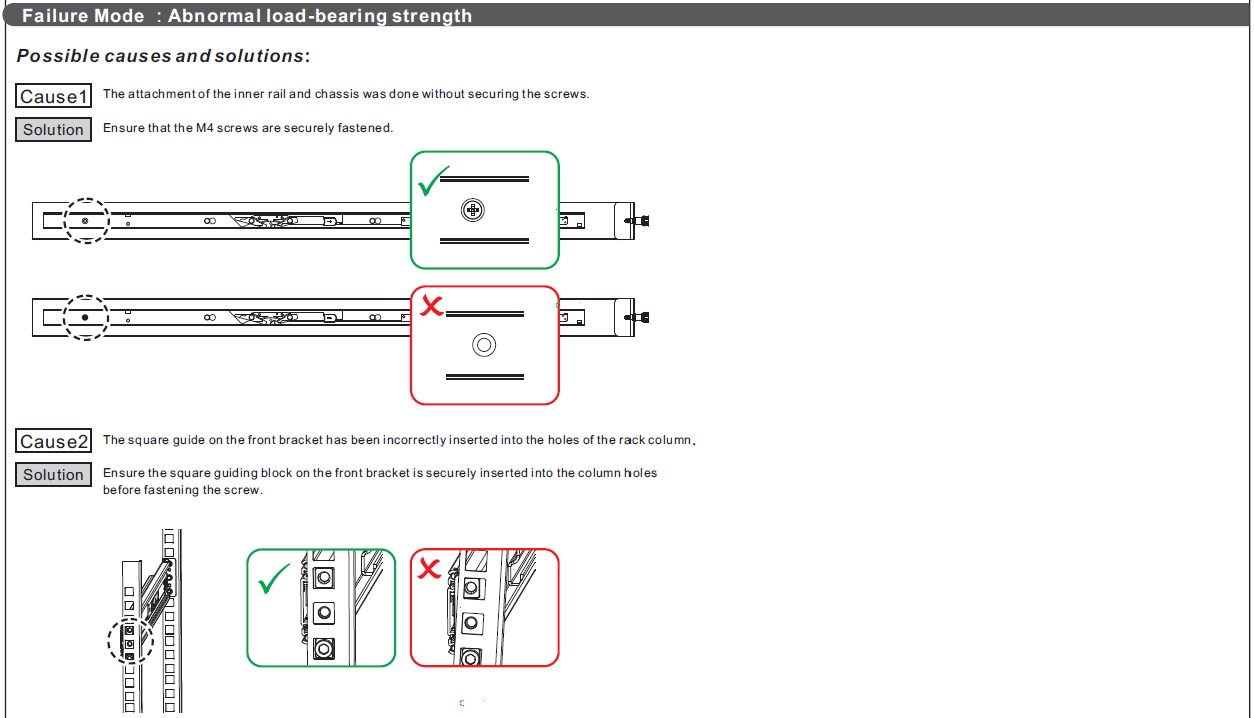

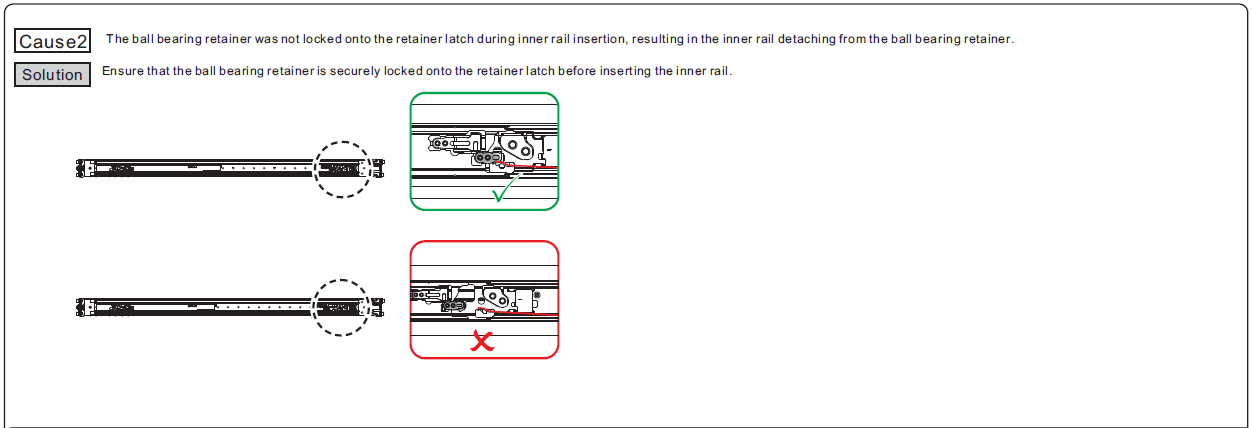

Troubleshooting
