The SN2201_M includes a tool-less rail kit that is compatible with 19-inch MGX racks.
|
Kit Part Number |
Kit Legacy Part Number |
Rack Dimensions |
|---|---|---|
|
930-9NRKT-00JS-001 |
MTEF-KIT-MX-TL |
19” Rack mount
|

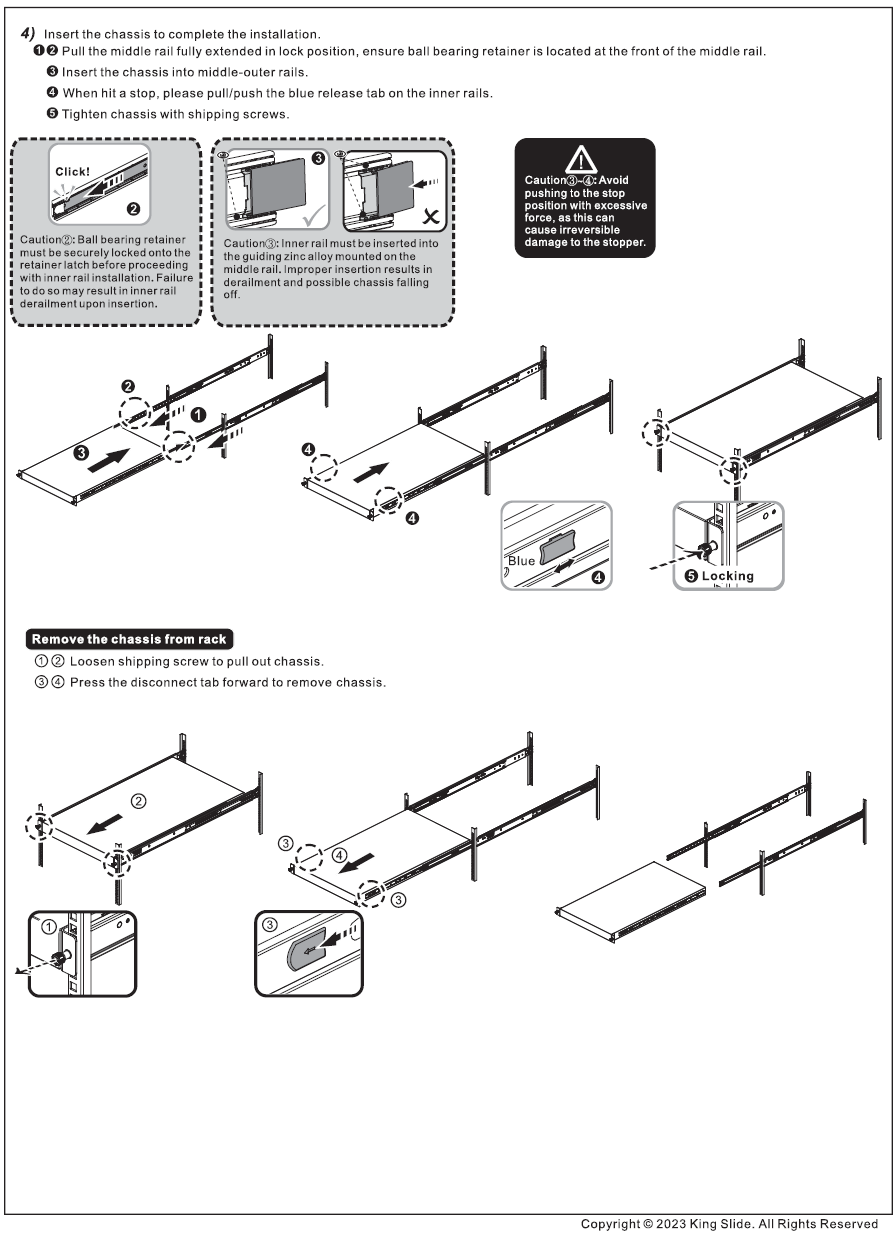

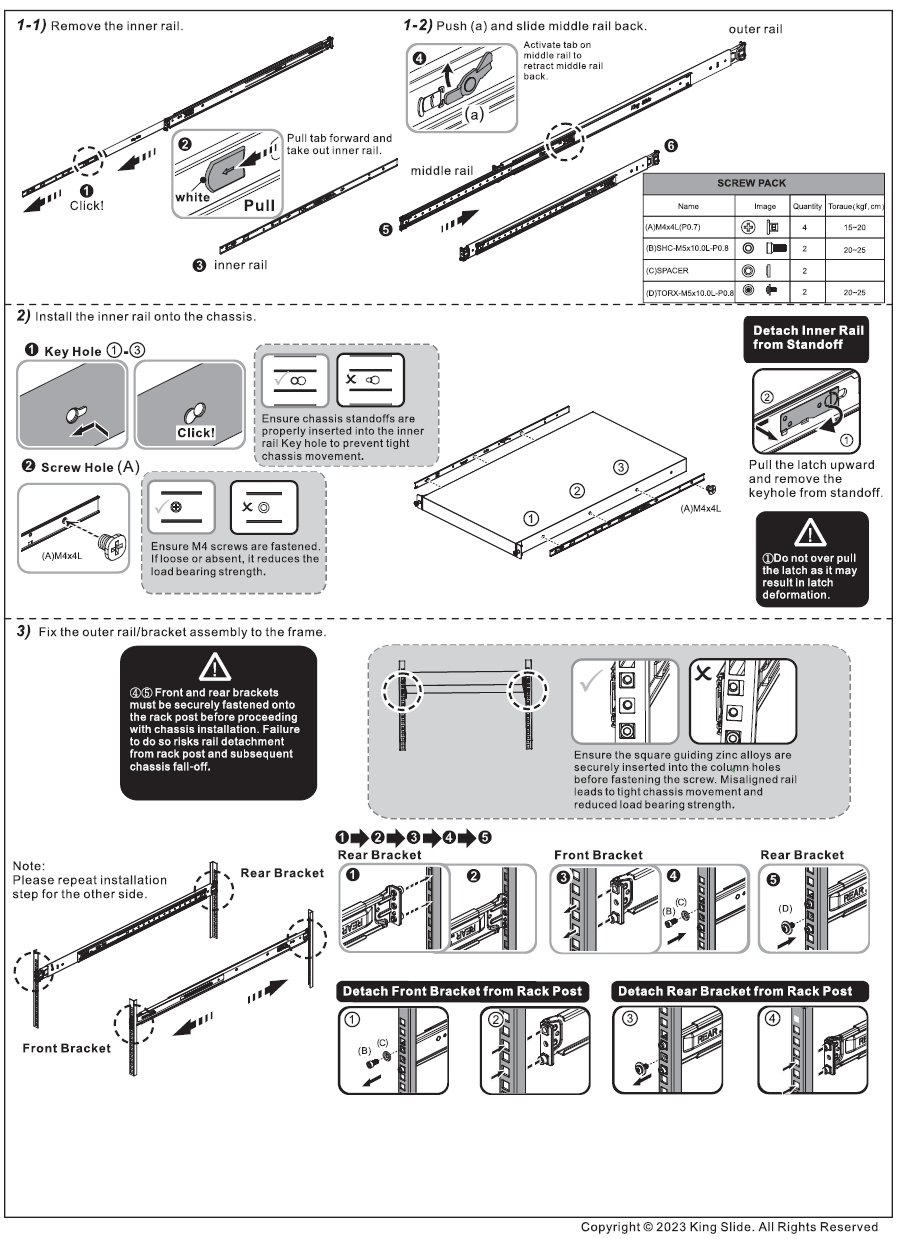

Rail Kit Installation
The following instructions have been prepared and provided with express permission from King Slide.
CRITICAL ORIENTATION REQUIREMENT
The switch must be mounted in an upright position. Verify the correct orientation before inserting the unit into the rack rails.
