The following instructions have been prepared and provided with permission from King Slide.
To install the SN5600D in an OCP 21" rack, the designated adapter tray is required. See SN5600D 21” to 19” Adapter Tray Installation Instructions under (June_2025) Appendixes for details.

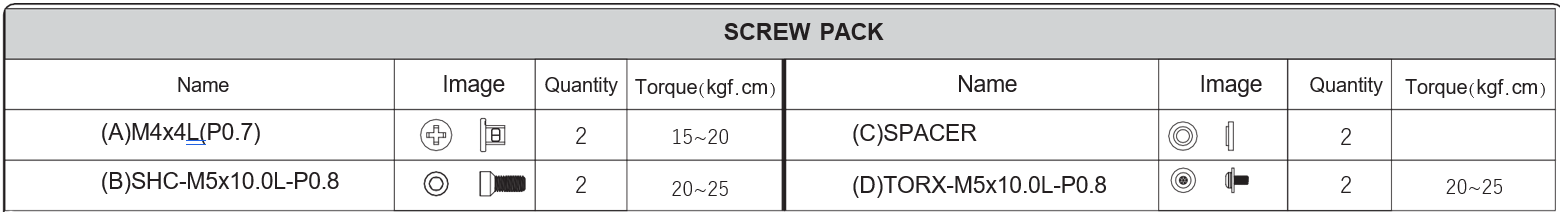

Package Contents

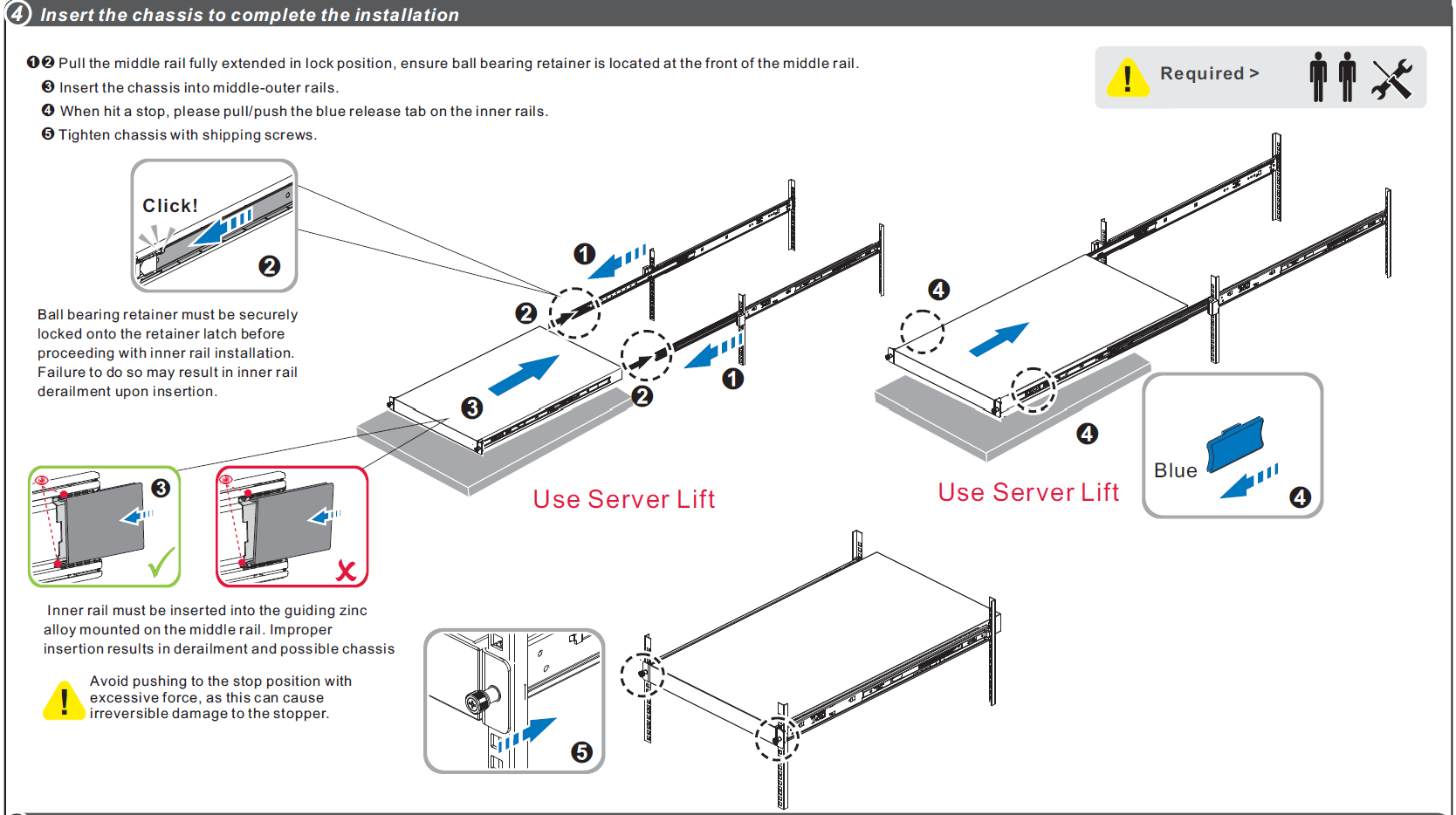

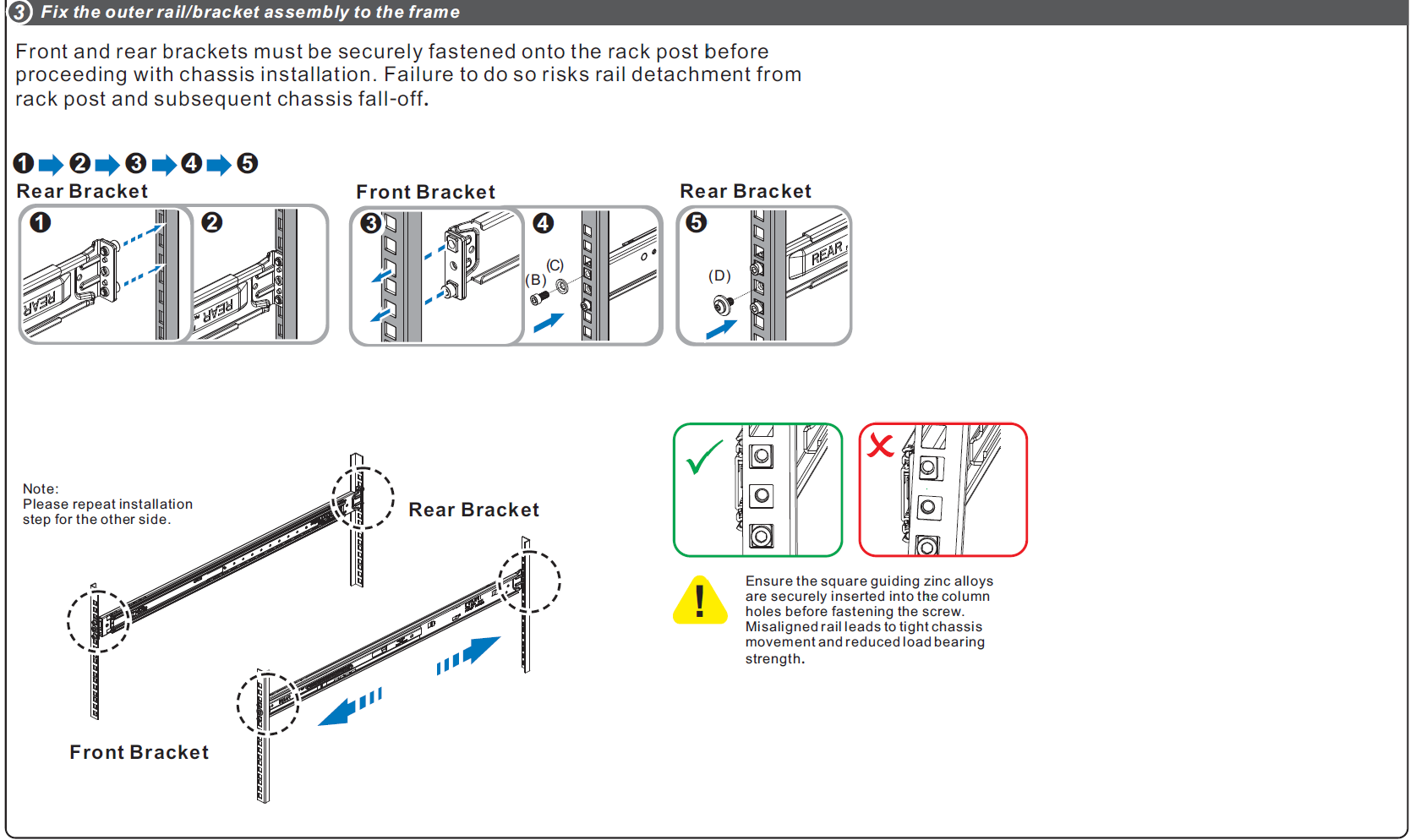

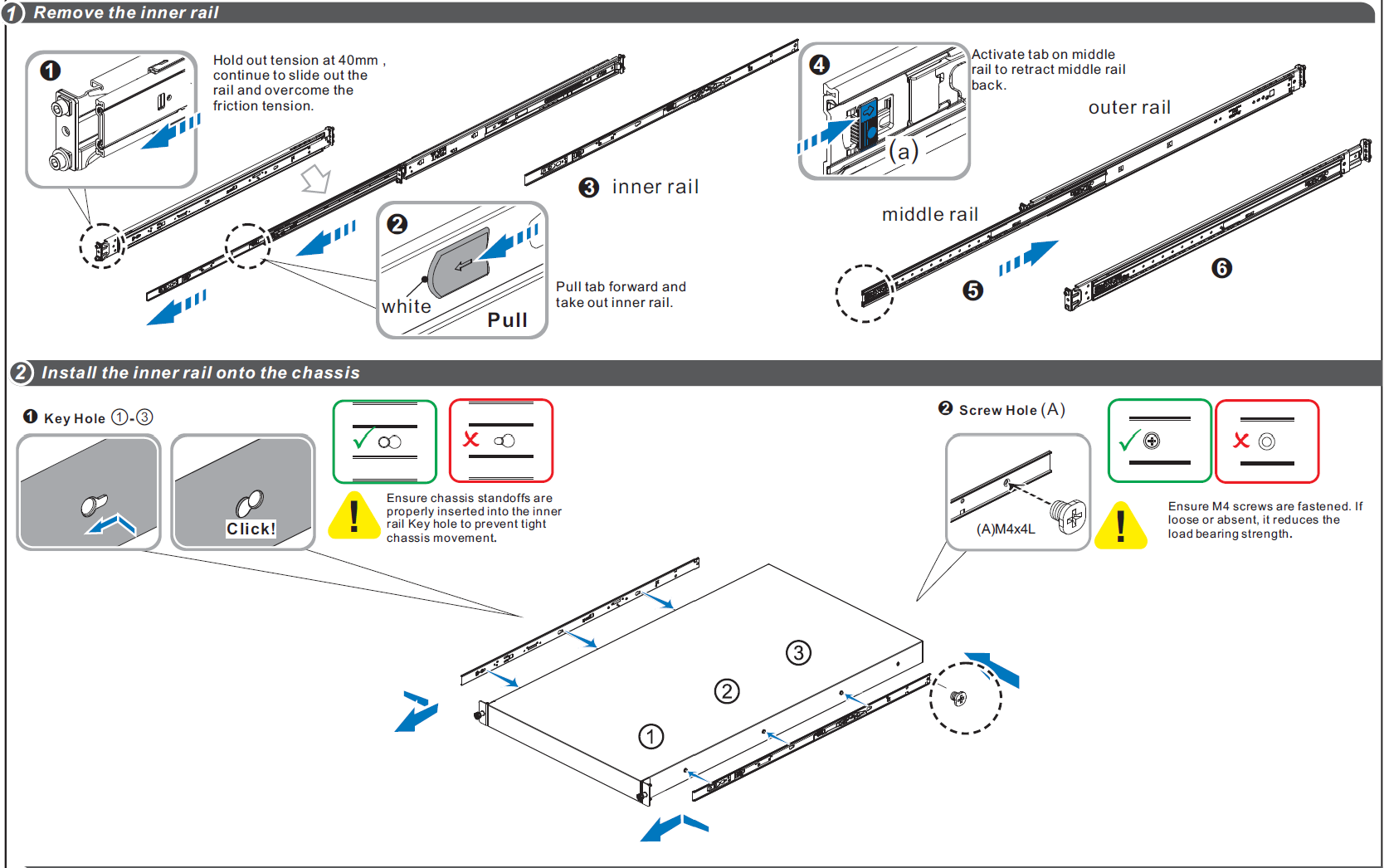

Installation Instructions
CRITICAL ORIENTATION REQUIREMENT
The switch must be mounted in an upright position. Verify the correct orientation before inserting the unit into the rack rails.

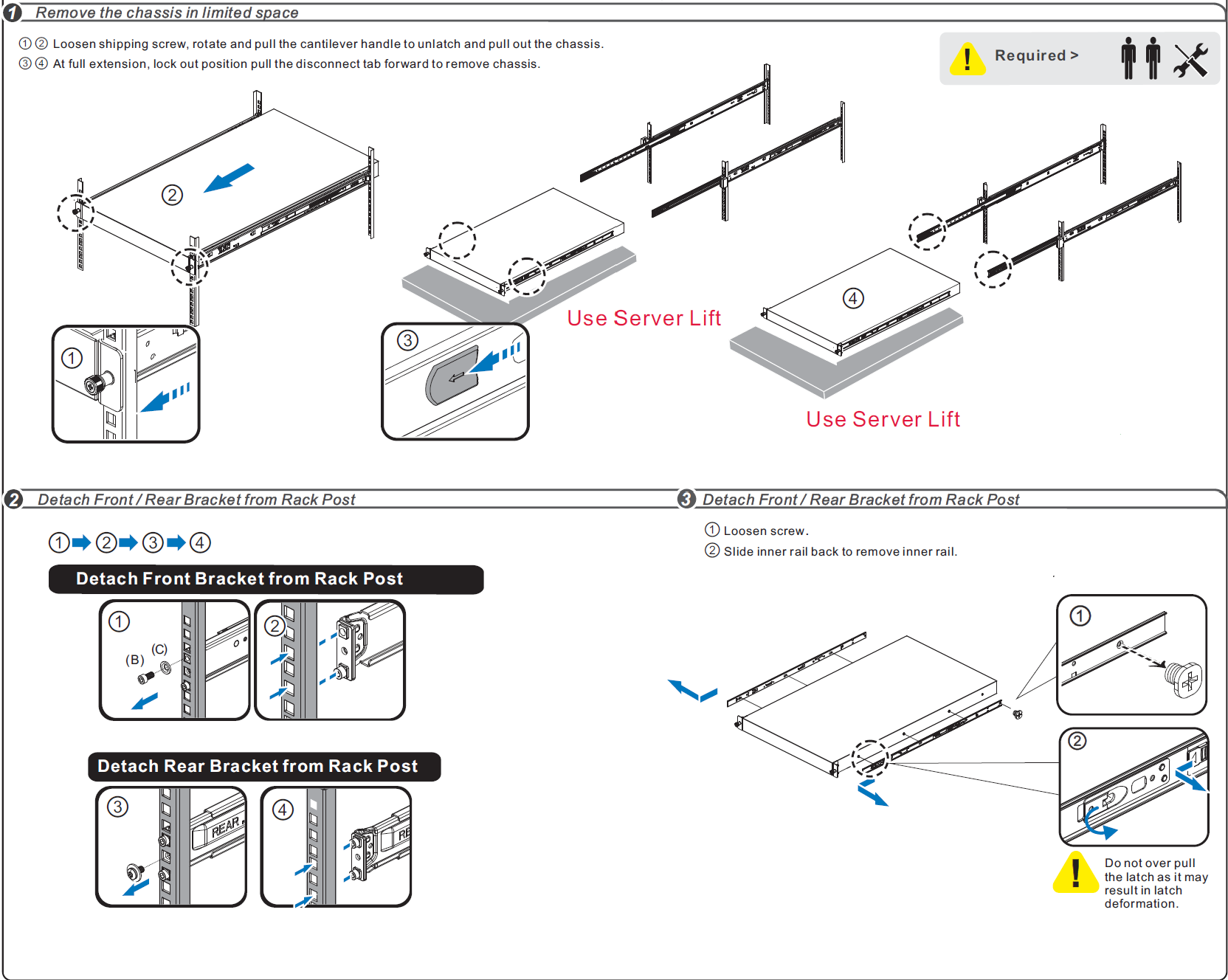

Disassembly Instructions

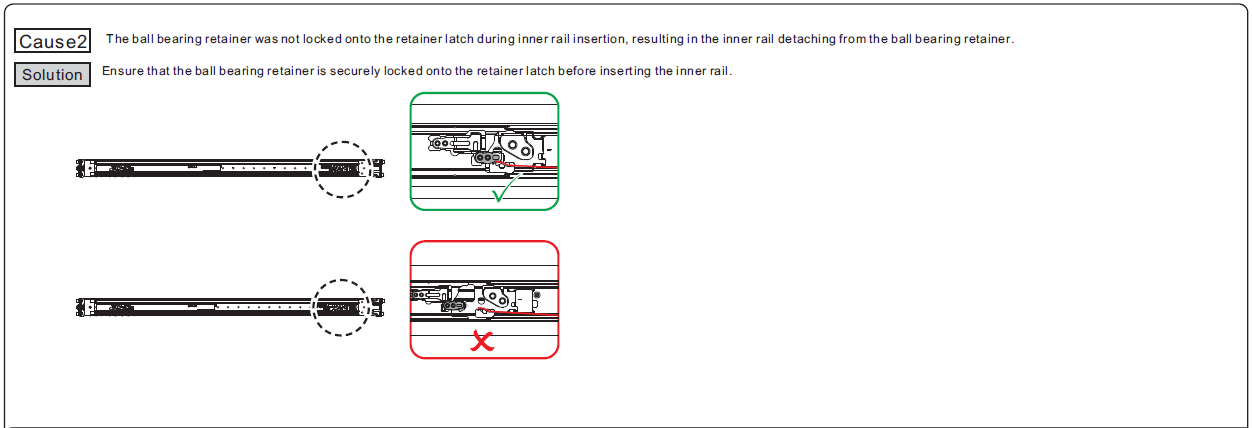

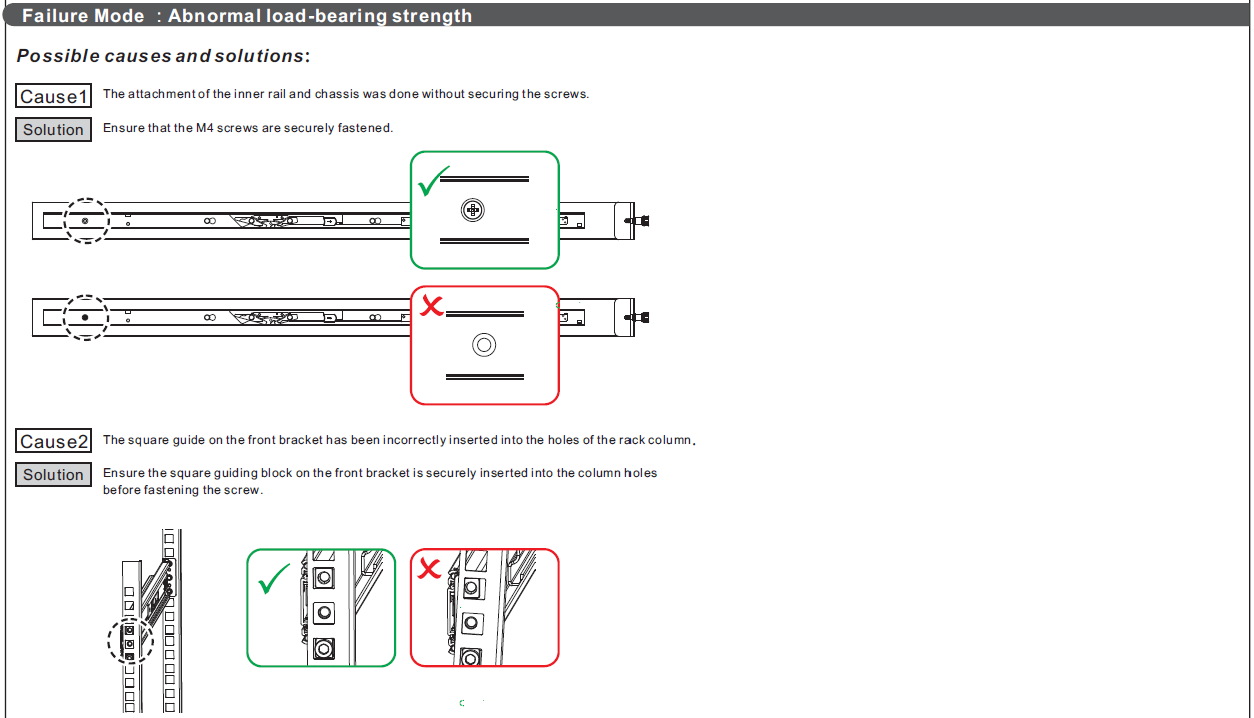

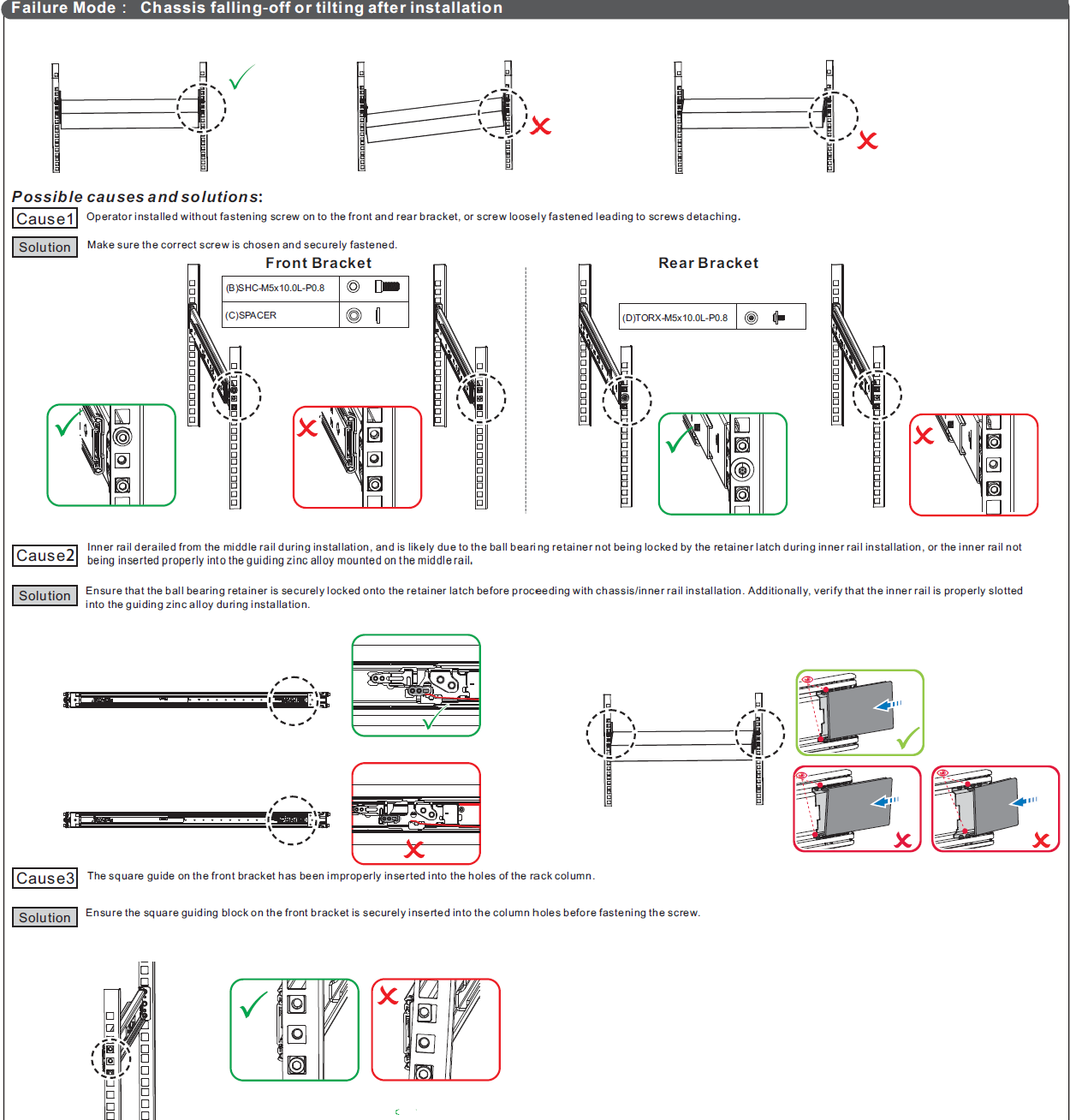

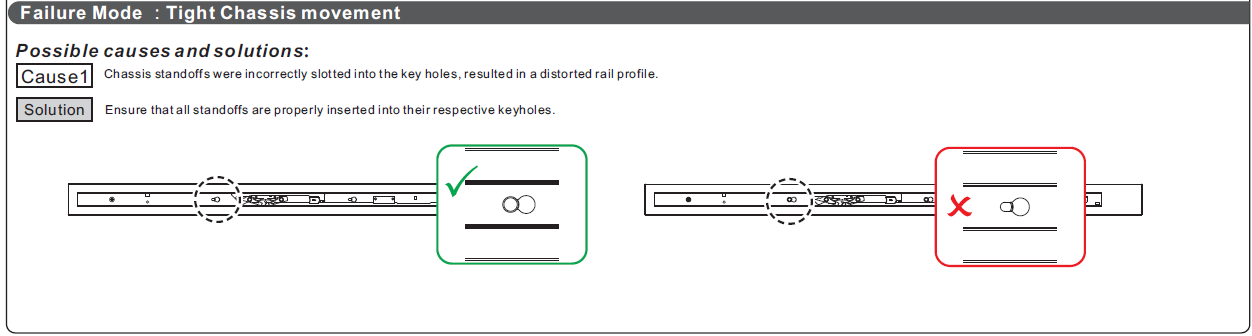

Troubleshooting
