RDG for DPF Host Trusted Multi-DPU with HBN + OVN-Kubernetes on DPU-1 and HBN + SNAP Virtio-fs on DPU-2

Created on December 25, 2025

Scope

This Reference Deployment Guide (RDG) provides detailed instructions for deploying a Kubernetes (K8s) cluster using NVIDIA® BlueField®-3 DPUs and DOCA Platform Framework (DPF) in Host-Trusted mode. The guide covers setting up multiple services on multiple NVIDIA® BlueField®-3 DPUs: accelerated OVN-Kubernetes, Host-Based Networking (HBN) services, and additional complementary services on one DPU, while setting NVIDIA DOCA Storage-Defined Network Accelerated Processing (SNAP) in Virtio-fs mode with HBN on the other DPU.

This document is an extension of the RDG for DPF with OVN-Kubernetes and HBN Services (referred to as the Baseline RDG). It details the additional steps and modifications required to deploy SNAP-VirtioFS with HBN in addition to the services in the Baseline RDG and orchestrate them on a multiple DPUs.

Leveraging NVIDIA's DPF, administrators can provision and manage DPU resources within a Kubernetes cluster while deploying and orchestrating HBN, accelerated OVN-Kubernetes and SNAP Virtio-fs services on multiple DPUs. This approach enables full utilization of NVIDIA DPU hardware acceleration and offloading capabilities, maximizing data center workload efficiency and performance.

This guide is designed for experienced system administrators, system engineers, and solution architects who seek to deploy high-performance Kubernetes clusters and enable NVIDIA BlueField DPUs.

Abbreviations and Acronyms

Introduction

The NVIDIA BlueField-3 data processing unit (DPU) is a 400 Gb/s infrastructure compute platform designed for line-rate processing of software-defined networking, storage, and cybersecurity. BlueField-3 combines powerful computing, high-speed networking, and extensive programmability to deliver hardware-accelerated, software-defined solutions for demanding workloads.

NVIDIA DOCA unlocks the full potential of the NVIDIA BlueField platform, enabling rapid development of applications and services that offload, accelerate, and isolate data center workloads. One such example is DOCA SNAP Virtio-fs service, which allows hardware-accelerated, software-defined Virtio-fs PCIe device emulation. Using BlueField, users can offload and accelerate networked file system operations from the host, freeing up resources for other tasks and improving overall system efficiency. The DOCA SNAP service presents networked filesystem mounted within the BlueField as local volume to the host, allowing applications to interact directly with raw remote file system volume and bypassing traditional filesystem overhead.

Another example is Host-based Networking (HBN), a DOCA service that allows network architects to design networks based on layer-3 (L3) protocols. HBN enables routing to run on the server side by using BlueField as a BGP router. The HBN solution encapsulates a set of network functions inside a container, which is deployed as a service pod on BlueField's Arm cores, and allows user to optimize performance and accelerate traffic routing using DPU hardware.

In this solution, the SNAP Virtio-fs service deployed via NVIDIA DOCA Platform Framework (DPF) is composed of multiple functional components packaged into containers, which DPF orchestrates to run together with HBN on a specific set of DPUs in a multiple DPUs cluster. DPF simplifies DPU management by providing orchestration through a Kubernetes API. It handles the provisioning and lifecycle management of DPUs, orchestrates specialized DPU services, and automates tasks such as service function chaining (SFC).

This RDG extends the capabilities of the DPF-managed Kubernetes cluster described in the RDG for DPF with OVN-Kubernetes and HBN Services (referred to as the "Baseline RDG") by distributing the different DPU services between 2 pair of DPUs - one for OVN-Kubernetes, HBN, Blueman and DOCA Telemetry Service and additional DPU services as covered in the Baseline RDG, while the other pair for the SNAP Virtio-fs and an additional instance of the HBN service. This approach provides more granular control over which DPUs run specific services and allowing for better resource allocation, service isolation and scalability. It also demonstrates performance optimizations, including Jumbo frame implementation, with results validated through standard FIO workload test.

References

• • NVIDIA BlueField DPU

  • NVIDIA DOCA

  • NVIDIA DOCA HBN Service

  • NVIDIA DOCA SNAP Service

  • NVIDIA DPF Release Notes

  • NVIDIA DPF GitHub Repository

  • NVIDIA DPF System Overview

  • NVIDIA Ethernet Switching

  • NVIDIA Cumulus Linux

  • NVIDIA Network Operator

  • What is K8s?

  • Kubespray

Solution Architecture

Key Components and Technologies

• NVIDIA BlueField® Data Processing Unit (DPU)
  The NVIDIA® BlueField® data processing unit (DPU) ignites unprecedented innovation for modern data centers and supercomputing clusters. With its robust compute power and integrated software-defined hardware accelerators for networking, storage, and security, BlueField creates a secure and accelerated infrastructure for any workload in any environment, ushering in a new era of accelerated computing and AI.

• NVIDIA DOCA Software Framework
  NVIDIA DOCA™ unlocks the potential of the NVIDIA® BlueField® networking platform. By harnessing the power of BlueField DPUs and SuperNICs, DOCA enables the rapid creation of applications and services that offload, accelerate, and isolate data center workloads. It lets developers create software-defined, cloud-native, DPU- and SuperNIC-accelerated services with zero-trust protection, addressing the performance and security demands of modern data centers.

• NVIDIA ConnectX SmartNICs
  10/25/40/50/100/200 and 400G Ethernet Network Adapters
  The industry-leading NVIDIA® ConnectX® family of smart network interface cards (SmartNICs) offer advanced hardware offloads and accelerations.
  NVIDIA Ethernet adapters enable the highest ROI and lowest Total Cost of Ownership for hyperscale, public and private clouds, storage, machine learning, AI, big data, and telco platforms.

• NVIDIA LinkX Cables
  The NVIDIA® LinkX® product family of cables and transceivers provides the industry’s most complete line of 10, 25, 40, 50, 100, 200, and 400GbE in Ethernet and 100, 200 and 400Gb/s InfiniBand products for Cloud, HPC, hyperscale, Enterprise, telco, storage and artificial intelligence, data center applications.

• NVIDIA Spectrum Ethernet Switches
  Flexible form-factors with 16 to 128 physical ports, supporting 1GbE through 400GbE speeds.
  Based on a ground-breaking silicon technology optimized for performance and scalability, NVIDIA Spectrum switches are ideal for building high-performance, cost-effective, and efficient Cloud Data Center Networks, Ethernet Storage Fabric, and Deep Learning Interconnects.
  NVIDIA combines the benefits of NVIDIA Spectrum^™ switches, based on an industry-leading application-specific integrated circuit (ASIC) technology, with a wide variety of modern network operating system choices, including NVIDIA Cumulus^® Linux, SONiC and NVIDIA Onyx^®.


• NVIDIA Cumulus Linux
  NVIDIA® Cumulus® Linux is the industry's most innovative open network operating system that allows you to automate, customize, and scale your data center network like no other.

• Kubernetes
  Kubernetes is an open-source container orchestration platform for deployment automation, scaling, and management of containerized applications.

• Kubespray
  Kubespray is a composition of Ansible playbooks, inventory, provisioning tools, and domain knowledge for generic OS/Kubernetes clusters configuration management tasks and provides:A highly available clusterComposable attributesSupport for most popular Linux distributions

• RDMA
  RDMA is a technology that allows computers in a network to exchange data without involving the processor, cache or operating system of either computer.
  Like locally based DMA, RDMA improves throughput and performance and frees up compute resources.

Solution Design

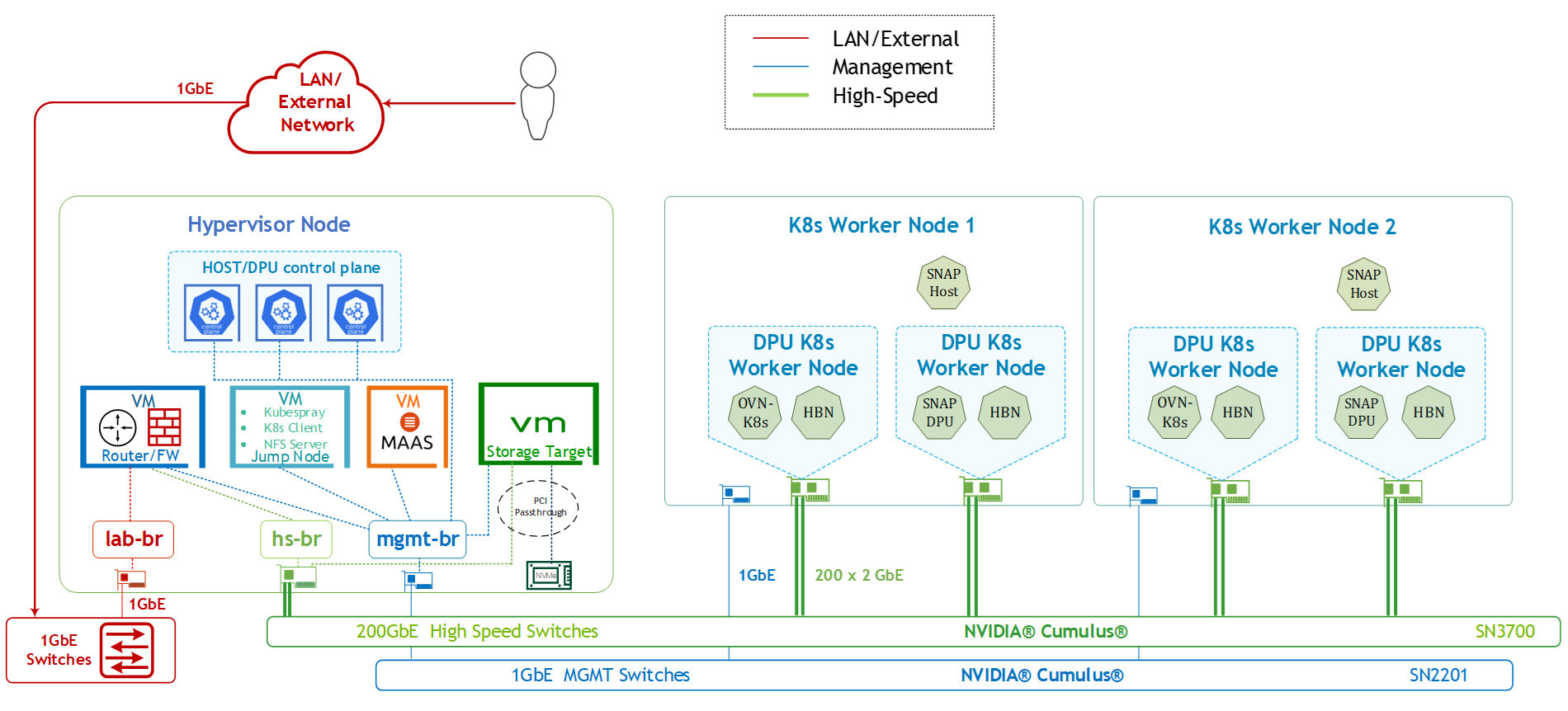

Solution Logical Design

The logical design includes the following components:

• 1 x Hypervisor node (KVM based) with ConnectX-7

  • 1 x Firewall VM

  • 1 x Jump VM

  • 1 x MAAS VM

  • 1 x Storage Target VM

  • 3 x VMs running all K8s management components for Host/DPU clusters

• 2 x Worker nodes, each with a 2 x BlueField-3 NIC

• Single 200 GbE High-Speed (HS) switch

• 1 GbE Host Management network

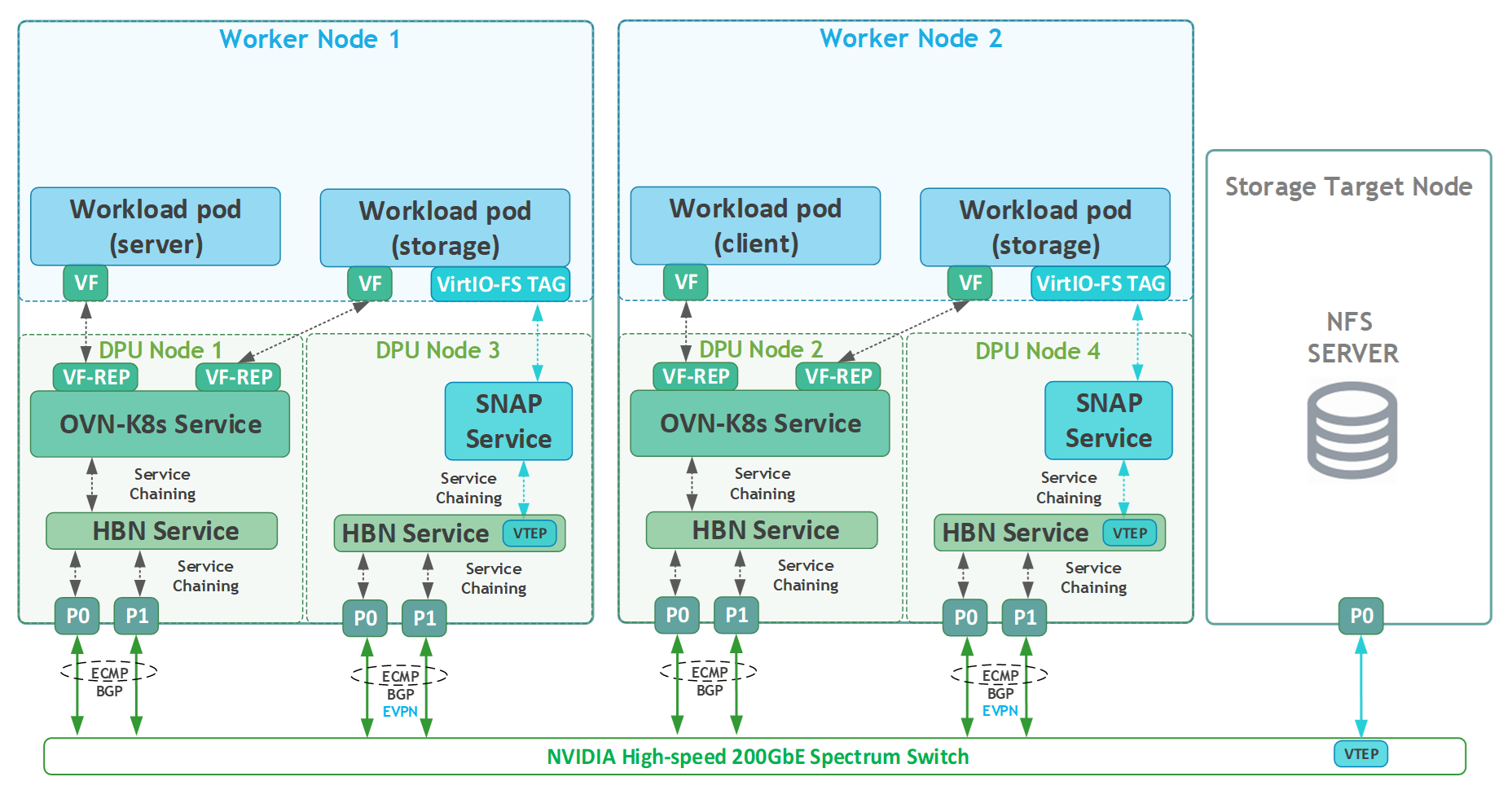

SFC Logical Diagram

The HBN+SNAP-VirtioFS services deployment leverages the Service Function Chaining (SFC) capabilities inherent in the DPF system, as described in the Baseline RDG for the HBN and OVN-Kubernetes (refer to section "Infrastructure Latency & Bandwidth Validation"). The following SFC logical diagram displays the complete flow for all of the services involved in the implemented solution:

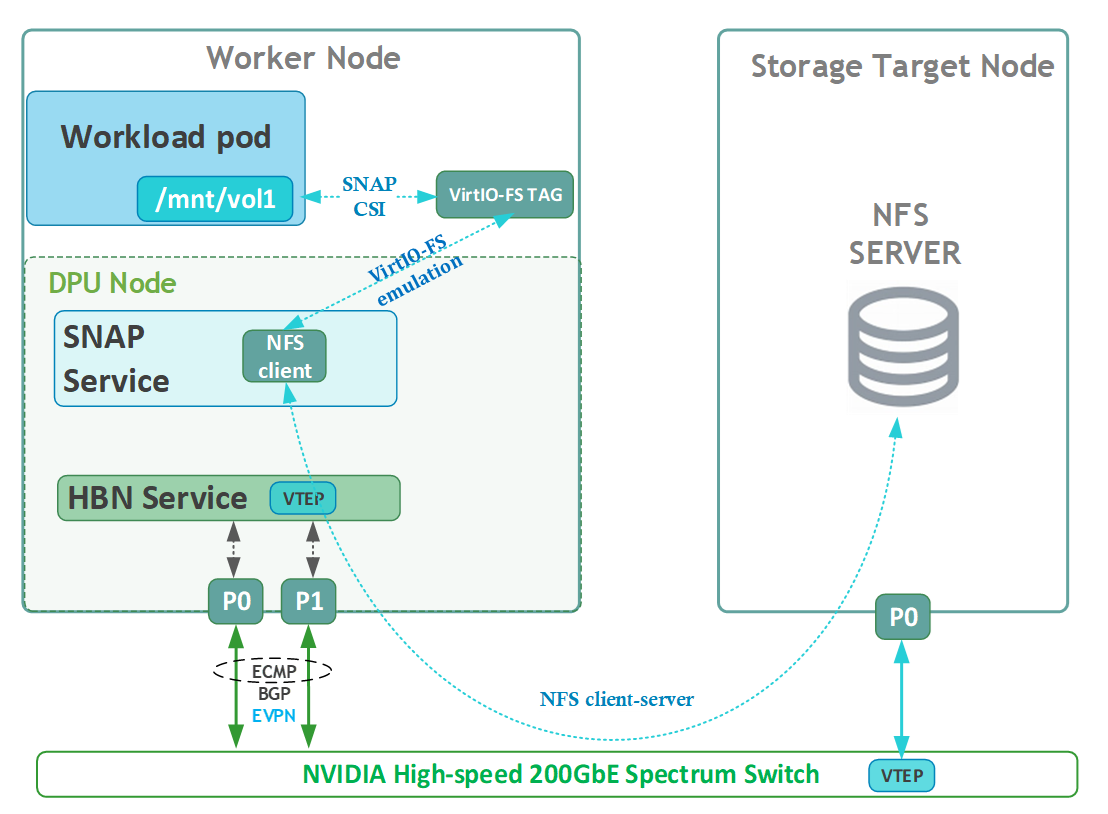

Volume Emulation Logical Diagram

The following logical diagram demonstrates the main components involved in a volume mount procedure to a workload pod.

In the Host Trusted mode, the hosts runs the SNAP CSI plugin, which performs all necessary actions to make storage resources available to the host. Users can utilize Kubernetes Storage APIs (StorageClass, PVC, PV, VolumeAttachment) to provision and attach storage to the host. Upon creation of PersistentVolumeClaim (PVC) object in the host cluster that references a storage class that specifies the SNAP CSI Plugin as its provisioner, the DPF storage subsystem components bring a NFS volume via NFS-kernel client to the required DPU K8s worker node. The DOCA SNAP service then emulates it as a Virtio-fs volume and presents the networked storage as local file system device to the host, which when requested by the kubelet is mounted into the Pod namespace by the SNAP CSI Plugin.

Firewall Design

The pfSense firewall in this solution serves a dual purpose:

• Firewall – Provides an isolated environment for the DPF system, ensuring secure operations

• Router – Enables internet access and connectivity between the host management network and the high-speed network

Port-forwarding rules for SSH and RDP are configured on the firewall to route traffic to the jump node’s IP address in the host management network. From the jump node, administrators can manage and access various devices in the setup, as well as handle the deployment of the Kubernetes (K8s) cluster and DPF components.

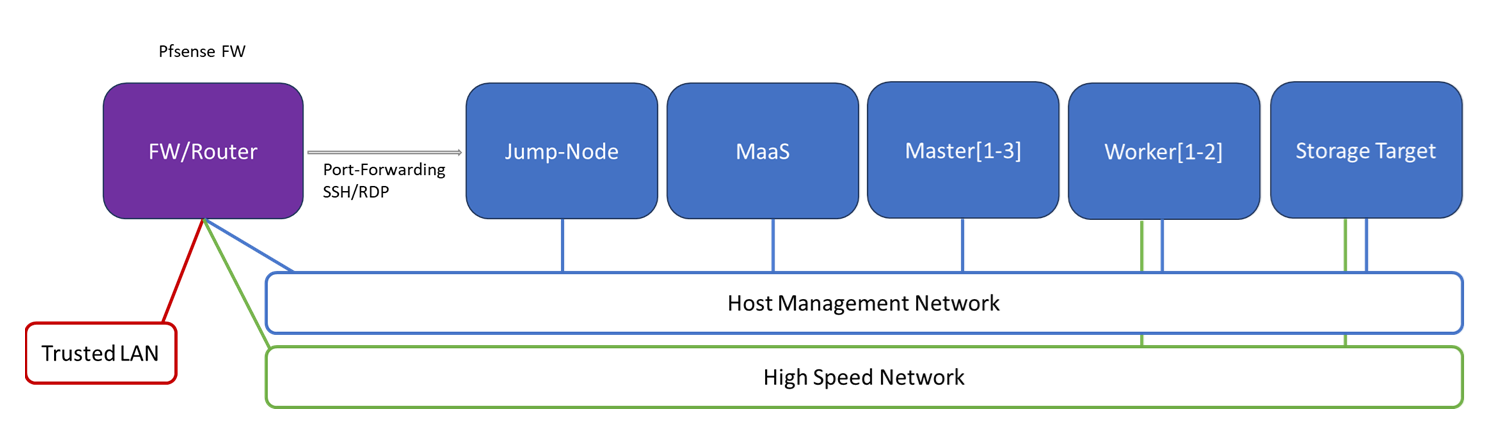

The following diagram illustrates the firewall design used in this solution:

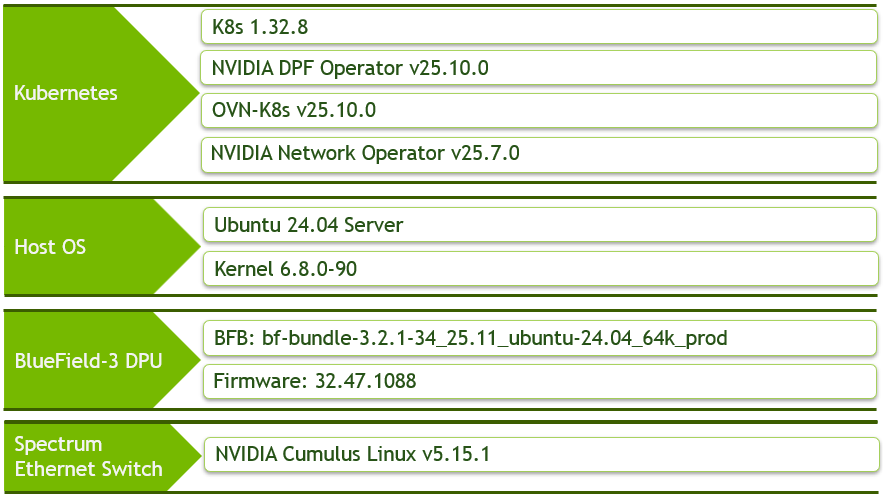

Software Stack Components

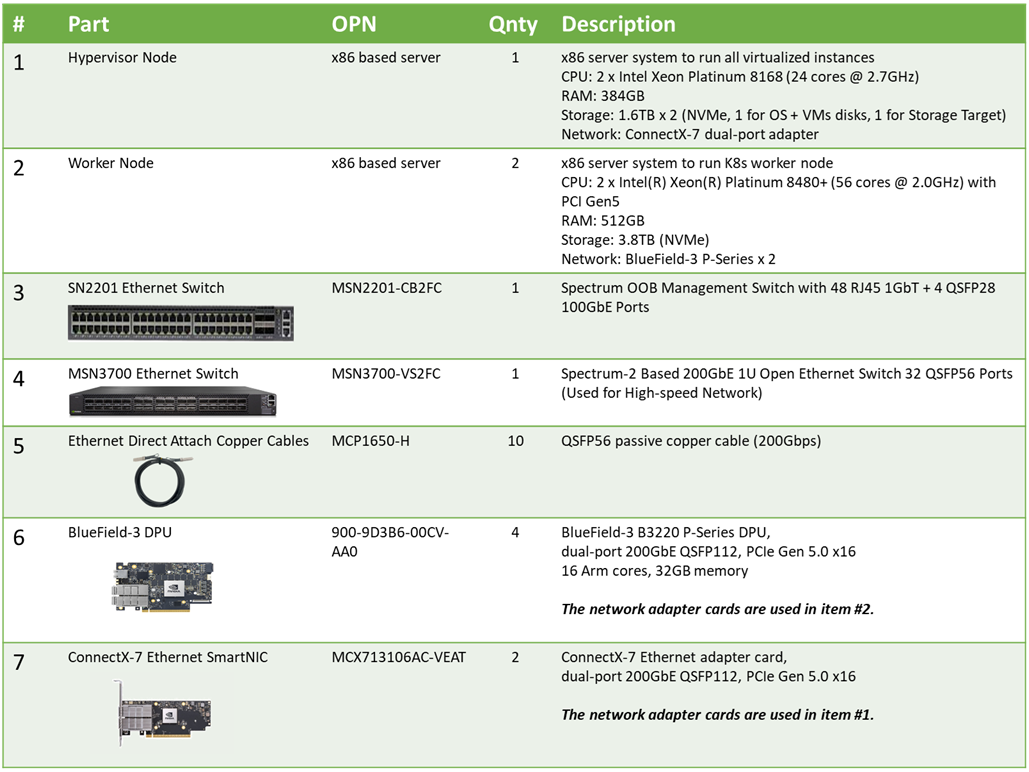

Bill of Materials

Deployment and Configuration

Node and Switch Definitions

These are the definitions and parameters used for deploying the demonstrated fabric:

Wiring

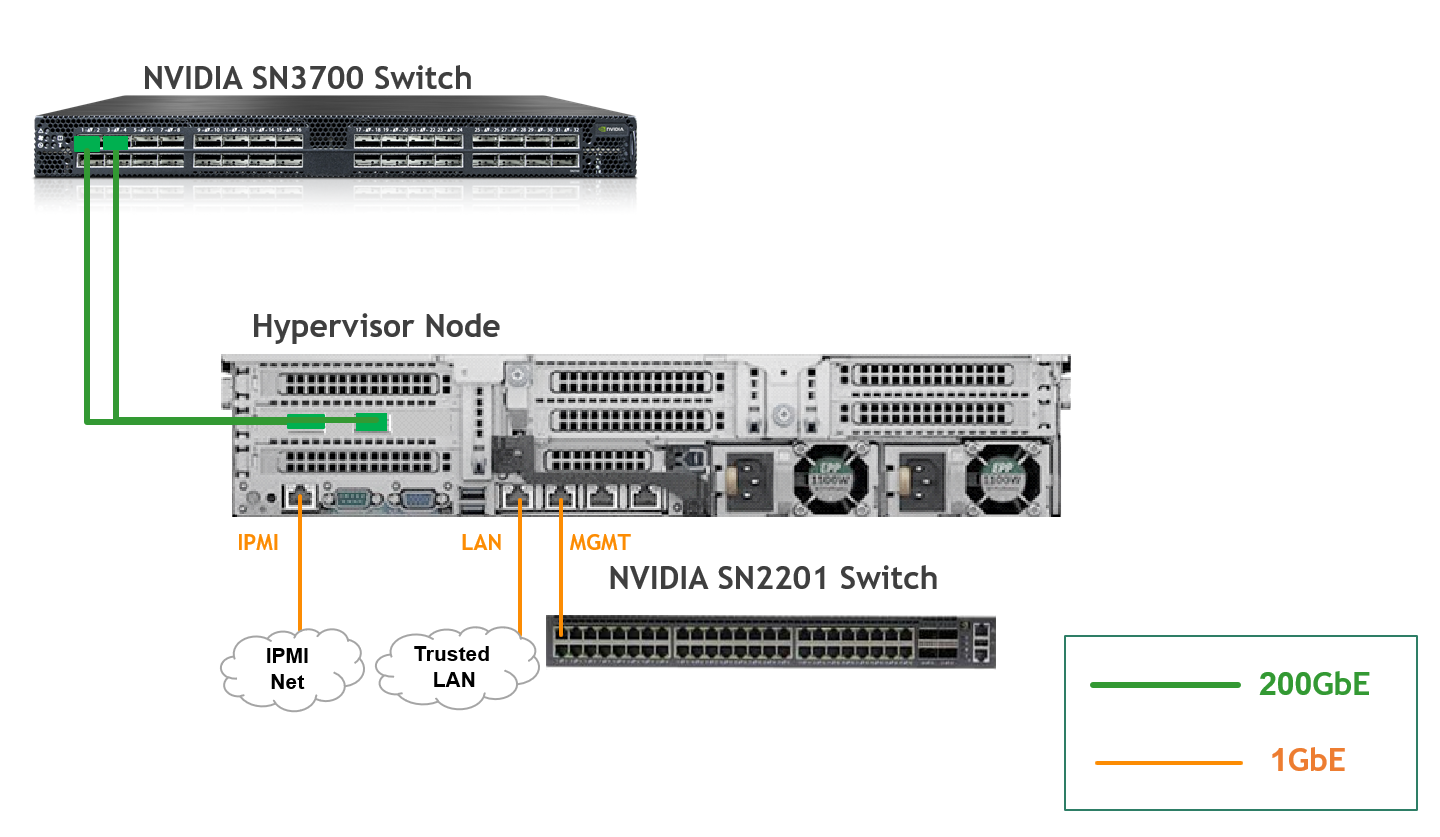

Hypervisor Node

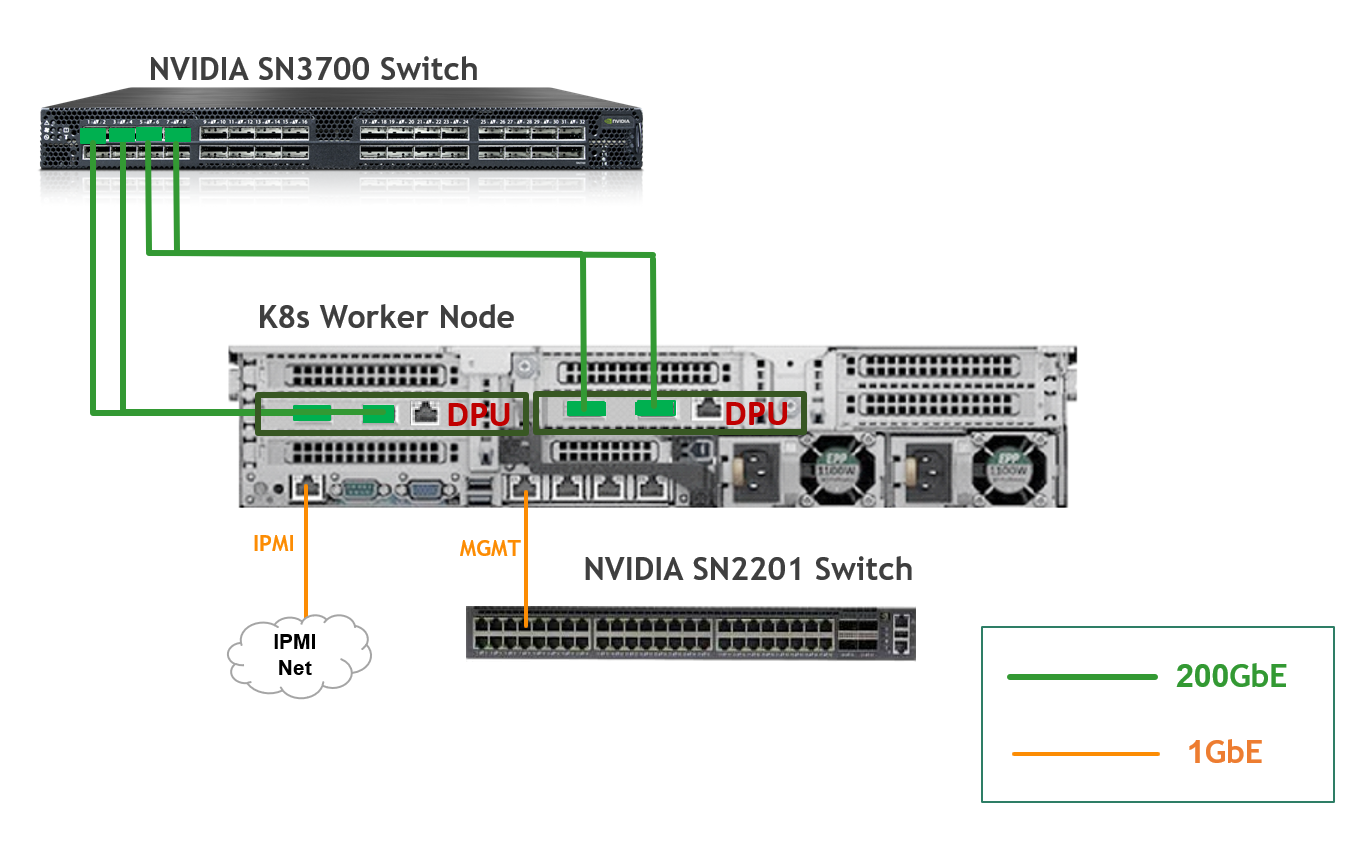

K8s Worker Node

Fabric Configuration

Updating Cumulus Linux

As a best practice, make sure to use the latest released Cumulus Linux NOS version.

For information on how to upgrade Cumulus Linux, refer to the Cumulus Linux User Guide.

Configuring the Cumulus Linux Switch

The SN3700 switch (hs-switch), is configured as follows:

nv set bridge domain br_default vlan 10 vni 10
nv set evpn state enabled
nv set interface lo ipv4 address 11.0.0.101/32
nv set interface lo type loopback
nv set interface swp1 ipv4 address 172.169.50.2/30
nv set interface swp1-2,11-18 link state up
nv set interface swp1-2,11-18 type swp
nv set interface swp2 bridge domain br_default access 10
nv set nve vxlan state enabled
nv set nve vxlan source address 11.0.0.101
nv set router bgp autonomous-system 65001
nv set router bgp state enabled
nv set router bgp graceful-restart mode full
nv set router bgp router-id 11.0.0.101
nv set vrf default router bgp address-family ipv4-unicast state enabled
nv set vrf default router bgp address-family ipv4-unicast redistribute connected state enabled
nv set vrf default router bgp address-family ipv4-unicast redistribute static state enabled
nv set vrf default router bgp address-family ipv6-unicast state enabled
nv set vrf default router bgp address-family ipv6-unicast redistribute connected state enabled
nv set vrf default router bgp address-family l2vpn-evpn state enabled
nv set vrf default router bgp state enabled
nv set vrf default router bgp neighbor swp11-14 peer-group hbn
nv set vrf default router bgp neighbor swp11-14 type unnumbered
nv set vrf default router bgp neighbor swp15-18 peer-group snap
nv set vrf default router bgp neighbor swp15-18 type unnumbered
nv set vrf default router bgp path-selection multipath aspath-ignore enabled
nv set vrf default router bgp peer-group hbn remote-as external
nv set vrf default router bgp peer-group snap remote-as external
nv set vrf default router bgp peer-group snap address-family l2vpn-evpn state enabled
nv set vrf default router static 0.0.0.0/0 address-family ipv4-unicast
nv set vrf default router static 0.0.0.0/0 via 172.169.50.1 type ipv4-address
nv set vrf default router static 10.0.110.0/24 address-family ipv4-unicast
nv set vrf default router static 10.0.110.0/24 via 172.169.50.1 type ipv4-address
nv config apply -y

The SN2201 switch (mgmt-switch) is configured as follows:

nv set bridge domain br_default untagged 1
nv set interface swp1-3 link state up
nv set interface swp1-3 type swp
nv set interface swp1-3 bridge domain br_default
nv config apply -y

Host Configuration

No change from the Baseline RDG (Section "Deployment and Configuration", Subsection "Host Configuration").

Hypervisor Installation and Configuration

No change from the Baseline RDG (Section "Hypervisor Installation and Configuration").

Prepare Infrastructure Servers

No change from the Baseline RDG (Section "Deployment and Configuration", Subsection "Prepare Infrastructure Servers") regarding Firewall VM, Jump VM, MaaS VM.

Provision Master VMs and Worker Nodes Using MaaS

Proceed with the instructions from the Baseline RDG until you reach the subsection "Deploy Master VMs using Cloud-Init".

Use the following cloud-init script instead of the one in the Baseline RDG to install the necessary software, ensure OVS bridge persistency and also configure correct routing to the storage target node:

Master nodes cloud-init

#cloud-config
system_info:
  default_user:
    name: depuser
    passwd: "$6$jOKPZPHD9XbG72lJ$evCabLvy1GEZ5OR1Rrece3NhWpZ2CnS0E3fu5P1VcZgcRO37e4es9gmriyh14b8Jx8gmGwHAJxs3ZEjB0s0kn/"
    lock_passwd: false
    groups: [adm, audio, cdrom, dialout, dip, floppy, lxd, netdev, plugdev, sudo, video]
    sudo: ["ALL=(ALL) NOPASSWD:ALL"]
    shell: /bin/bash
ssh_pwauth: True
package_upgrade: true
runcmd:
    - apt-get update
    - apt-get -y install openvswitch-switch nfs-common
    - |
      UPLINK_MAC=$(cat /sys/class/net/enp1s0/address)
      ovs-vsctl set Bridge brenp1s0 other-config:hwaddr=$UPLINK_MAC
      ovs-vsctl br-set-external-id brenp1s0 bridge-id brenp1s0 -- br-set-external-id brenp1s0 bridge-uplink enp1s0
    - |
      cat <<'EOF' | tee /etc/netplan/99-static-route.yaml
      network:
        version: 2
        bridges:
          brenp1s0:
            routes:
              - to: 10.0.124.1
                via: 10.0.110.30
      EOF
    - netplan apply

After that proceed exactly as instructed in the Baseline RDG, and in addition to the verification commands mentioned there, run the following command to verify that the static route has been configured correctly:

Master1 Console

root@master1:~# ip r
default via 10.0.110.254 dev brenp1s0 proto static
10.0.110.0/24 dev brenp1s0 proto kernel scope link src 10.0.110.1
10.0.124.1 via 10.0.110.30 dev brenp1s0 proto static

No changes from the Baseline RDG to the worker nodes provisioning.

Storage Target Configuration

Suggested specifications:

• vCPU: 8

• RAM: 32GB

• Storage:

  • VirtIO disk of 60GB size

  • NVMe SSD of 1.7TB size

• Network interface:

  • Bridge device, connected to mgmt-br

Procedure:

1. Perform a regular Ubuntu 24.04 installation on the Storage target VM.

2. Create the following Netplan configuration to enable internet connectivity, DNS resolution and set an IP in the storage high-speed subnet:

   Replace enp1s0 and enp5s0np1 with your interface names.




   Storage Target netplan

   YAML

   network:
     version: 2
     ethernets:
       enp1s0:
         addresses:
         - "10.0.110.30/24"
         mtu: 9000
         nameservers:
           addresses:
           - 10.0.110.252
           search:
           - dpf.rdg.local.domain
         routes:
         - to: "default"
           via: "10.0.110.254"
       enp5s0np1:
         addresses:
         - "10.0.124.1/24"
         mtu: 9000


3. Apply the netplan configuration:

   Storage Target Console

   depuser@storage-target:~$ sudo netplan apply


4. Update and upgrade the system:

   Storage Target Console

   sudo apt update -y
   sudo apt upgrade -y


5. Create XFS file system on the NVMe disk and mount it on /srv/nfs directory:

   Replace /dev/nvme0n1 with your device name.



   Storage Target Console

   sudo mkfs.xfs /dev/nvme0n1
   sudo mkdir -m 777 /srv/nfs/
   sudo mount /dev/nvme0n1 /srv/nfs/


6. Set the mount to be persistent:

   Storage Target Console

   $ sudo blkid /dev/nvme0n1
   /dev/nvme0n1: UUID="b37df0a9-d741-4222-82c9-7a3d66ffc0e1" BLOCK_SIZE="512" TYPE="xfs"

   $ echo "/dev/disk/by-uuid/b37df0a9-d741-4222-82c9-7a3d66ffc0e1 /srv/nfs xfs defaults 0 1" | sudo tee -a /etc/fstab


7. Install and configure an NFS server with the /srv/nfs directory:

   Storage Target Console

   sudo apt install -y nfs-server
   echo "/srv/nfs/ 10.0.110.0/24(rw,sync,no_subtree_check)" | sudo tee -a /etc/exports
   echo "/srv/nfs/ 10.0.124.0/24(rw,sync,no_subtree_check)" | sudo tee -a /etc/exports


8. Restart the NFS server:

   Storage Target Console

   sudo systemctl restart nfs-server


9. Create the directory share under /srv/nfs with the same permissions as the parent directory:

   Storage Target Console

   sudo mkdir -m 777 /srv/nfs/share


K8s Cluster Deployment and Configuration

Kubespray Deployment and Configuration

The procedures for initial Kubernetes cluster deployment using Kubespray for the master nodes, and subsequent verification, remain unchanged from the Baseline RDG (Section "K8s Cluster Deployment and Configuration", Subsections: "Kubespray Deployment and Configuration", "Deploying Cluster Using Kubespray Ansible Playbook","K8s Deployment Verification".

As in Baseline RDG, Worker nodes are added later, after DPF and prerequisite components for accelerated CNI are installed.

DPF Installation

The DPF installation process (Operator, System components) largely follows the Baseline RDG. The primary modifications occur during "DPU Provisioning and Service Installation" to deploy HBN+OVN-Kubernetes on the 1st DPU and HBN+SNAP-VirtioFS on the 2nd DPU.

Software Prerequisites and Required Variables

Refer to the Baseline RDG (Section "DPF Installation", Subsection "Software Prerequisites and Required Variables") for software prerequisites (like helm, envsubst) and the required environment variables defined in manifests/00-env-vars/envvars.env.

CNI Installation

No change from the Baseline RDG (Section "DPF Installation", Subsection "CNI Installation").

DPF Operator Installation

No change from the Baseline RDG (Section "DPF Installation", Subsection "DPF Operator Installation").

DPF System Installation

No change from the Baseline RDG (Section "DPF Installation", Subsection "DPF System Installation").

Install Components to Enable Accelerated CNI Nodes

No change from the Baseline RDG (Section "DPF Installation", Subsection "Install Components to Enable Accelerated CNI Nodes").

DPU Provisioning and Service Installation

In addition to the adjustments that outlined in the Baseline RDG, the following modification is needed:

• Add nodeSelector to the ovn DPUServiceInterface so it will only be applied to the DPU cluster nodes managed by the ovn-hbn DPUDeployment:

  manifests/05-dpudeployment-installation/ovn-iface.yaml

  YAML

  ---
  apiVersion: svc.dpu.nvidia.com/v1alpha1
  kind: DPUServiceInterface
  metadata:
    name: ovn
    namespace: dpf-operator-system
  spec:
    template:
      spec:
        nodeSelector:
          matchLabels:
            svc.dpu.nvidia.com/owned-by-dpudeployment: "dpf-operator-system_ovn-hbn"
        template:
          metadata:
            labels:
              port: ovn
          spec:
            interfaceType: ovn


After adding those modifications, proceed as described in the Baseline RDG until "Infrastructure Latency & Bandwidth Validation" section.

At this point, the first DPUDeployment is ready and it's possible to continue to the second.

In another tab, change directory to readme.md of hbn-snap use-case from where all the commands will be run in this tab:

Jump Node Console

cd doca-platform/docs/public/user-guides/host-trusted/use-cases/hbn-snap

Use the following file to define the required variables for the installation:

manifests/00-env-vars/envvars.env

## Virtual IP used by the load balancer for the DPU Cluster. Must be a reserved IP from the management subnet and not allocated by DHCP.
export DPUCLUSTER_VIP=10.0.110.200

## Interface on which the DPUCluster load balancer will listen. Should be the management interface of the control plane node.
export DPUCLUSTER_INTERFACE=brenp1s0

## DPU2_P0 is the name of the first port of the 2nd DPU. This name must be the same on all worker nodes.
export DPU2_P0=ens4f0np0

## IP address of the NFS server used for storing the BFB image.
## NOTE: This environment variable does NOT control the address of the NFS server used as a remote target by SNAP VirtioFS.
export NFS_SERVER_IP=10.0.110.253

## The repository URL for the NVIDIA Helm chart registry.
## Usually this is the NVIDIA Helm NGC registry. For development purposes, this can be set to a different repository.
export HELM_REGISTRY_REPO_URL=https://helm.ngc.nvidia.com/nvidia/doca

## The repository URL for the HBN container image.
## Usually this is the NVIDIA NGC registry. For development purposes, this can be set to a different repository.
export HBN_NGC_IMAGE_URL=nvcr.io/nvidia/doca/doca_hbn

## The repository URL for the SNAP VFS container image.
## Usually this is the NVIDIA NGC registry. For development purposes, this can be set to a different repository.
export SNAP_NGC_IMAGE_URL=nvcr.io/nvidia/doca/doca_vfs

## The DPF REGISTRY is the Helm repository URL where the DPF Operator Chart resides.
## Usually this is the NVIDIA Helm NGC registry. For development purposes, this can be set to a different repository.
export REGISTRY=https://helm.ngc.nvidia.com/nvidia/doca

## The DPF TAG is the version of the DPF components which will be deployed in this guide.
export TAG=v25.10.0

## URL to the BFB used in the `bfb.yaml` and linked by the DPUSet.
export BFB_URL="https://content.mellanox.com/BlueField/BFBs/Ubuntu24.04/bf-bundle-3.2.1-34_25.11_ubuntu-24.04_64k_prod.bfb"

Export environment variables for the installation:

Jump Node Console

source manifests/00-env-vars/envvars.env

Since all the steps of the DPF installation up until the "DPU provisioning and service installation" have already been done, proceed to apply the files under manifests/04.2-dpudeployment-installation-virtiofs . However, few adjustments need to be made to support multi-dpu deployment and preserve consistency with the other DPUDeployment and DPUServices that were installed previously:

1. Edit the dpudeployment.yaml based on the following configuration to support multi-dpu and set high MTU suited for performance:

   manifests/04.2-dpudeployment-installation-virtiofs/dpudeployment.yaml

   YAML

   ---
   apiVersion: svc.dpu.nvidia.com/v1alpha1
   kind: DPUDeployment
   metadata:
     name: hbn-snap
     namespace: dpf-operator-system
   spec:
     dpus:
       bfb: bf-bundle-$TAG
       flavor: hbn-snap-virtiofs-$TAG
       dpuSets:
       - nameSuffix: "dpuset1"
         dpuAnnotations:
           storage.nvidia.com/preferred-dpu: "true"
         nodeSelector:
           matchLabels:
             feature.node.kubernetes.io/dpu-enabled: "true"
         dpuSelector:
             provisioning.dpu.nvidia.com/dpudevice-pf0-name: $DPU2_P0
     services:
       doca-hbn:
         serviceTemplate: doca-hbn
         serviceConfiguration: doca-hbn
       snap-csi-plugin:
         serviceTemplate: snap-csi-plugin
         serviceConfiguration: snap-csi-plugin
       snap-host-controller:
         serviceTemplate: snap-host-controller
         serviceConfiguration: snap-host-controller
       snap-node-driver:
         serviceTemplate: snap-node-driver
         serviceConfiguration: snap-node-driver
       doca-snap:
         serviceTemplate: doca-snap
         serviceConfiguration: doca-snap
       fs-storage-dpu-plugin:
         serviceTemplate: fs-storage-dpu-plugin
         serviceConfiguration: fs-storage-dpu-plugin
       nfs-csi-controller:
         serviceTemplate: nfs-csi-controller
         serviceConfiguration: nfs-csi-controller
       nfs-csi-controller-dpu:
         serviceTemplate: nfs-csi-controller-dpu
         serviceConfiguration: nfs-csi-controller-dpu
     serviceChains:
       switches:
         - ports:
           - serviceInterface:
               matchLabels:
                 uplink: p0
           - service:
               name: doca-hbn
               interface: p0_if
         - ports:
           - serviceInterface:
               matchLabels:
                 uplink: p1
           - service:
               name: doca-hbn
               interface: p1_if
         - ports:
           - service:
               name: doca-snap
               interface: app_sf
               ipam:
                 matchLabels:
                   svc.dpu.nvidia.com/pool: storage-pool
           - service:
               name: fs-storage-dpu-plugin
               interface: app_sf
               ipam:
                 matchLabels:
                   svc.dpu.nvidia.com/pool: storage-pool
           - service:
               name: doca-hbn
               interface: snap_if
           serviceMTU: 9000


2. Remove physical-ifaces.yaml since the DPUServiceInterfaces for the uplinks p0/p1 have already been created and pf0vf10-rep/pf1vf10-rep aren't relevant for this deployment.

   Jump Node Console

   rm manifests/04.2-dpudeployment-installation-virtiofs/physical-ifaces.yaml


3. Apply the same for hbn-ipam.yaml since it won't need any IP allocation on those subnets:

   Jump Node Console

   rm manifests/04.2-dpudeployment-installation-virtiofs/hbn-ipam.yaml


4. Remove bfb.yaml and hbn-loopback-ipam.yaml since they were already created:

   Jump Node Console

   rm manifests/04.2-dpudeployment-installation-virtiofs/bfb.yaml
   rm manifests/04.2-dpudeployment-installation-virtiofs/hbn-loopback-ipam.yaml


5. Edit hbn-dpuserviceconfig.yaml based on the following configuration file:

   The changes include, but are not limited to:

   • Setting a different bgp_peer_group for the 2nd HBN service.

   • Adjusting bgp_autonomous_system values based on the loopback IPAM.

   • Removal of unnecessary interfaces, annotations and EVPN distributed symmetric routing configuration.




   manifests/04.2-dpudeployment-installation-virtiofs/hbn-dpuserviceconfig.yaml

   YAML

   ---
   apiVersion: svc.dpu.nvidia.com/v1alpha1
   kind: DPUServiceConfiguration
   metadata:
     name: doca-hbn
     namespace: dpf-operator-system
   spec:
     deploymentServiceName: "doca-hbn"
     serviceConfiguration:
       serviceDaemonSet:
         annotations:
           k8s.v1.cni.cncf.io/networks: |-
             [
             {"name": "iprequest", "interface": "ip_lo", "cni-args": {"poolNames": ["loopback"], "poolType": "cidrpool"}}
             ]
       helmChart:
         values:
           configuration:
             perDPUValuesYAML: |
               - hostnamePattern: "*"
                 values:
                   bgp_peer_group: snap-hbn
             startupYAMLJ2: |
               - header:
                   model: BLUEFIELD
                   nvue-api-version: nvue_v1
                   rev-id: 1.0
                   version: HBN 3.0.0
               - set:
                   evpn:
                     enable: on
                     route-advertise: {}
                   bridge:
                     domain:
                       br_default:
                         vlan:
                           '10':
                             vni:
                               '10': {}
                   interface:
                     lo:
                       ip:
                         address:
                           {{ ipaddresses.ip_lo.ip }}/32: {}
                       type: loopback
                     p0_if,p1_if,snap_if:
                       type: swp
                       link:
                         mtu: 9000
                     snap_if:
                       bridge:
                         domain:
                           br_default:
                             access: 10
                   nve:
                     vxlan:
                       arp-nd-suppress: on
                       enable: on
                       source:
                         address: {{ ipaddresses.ip_lo.ip }}
                   router:
                     bgp:
                       enable: on
                       graceful-restart:
                         mode: full
                   vrf:
                     default:
                       router:
                         bgp:
                           address-family:
                             ipv4-unicast:
                               enable: on
                               redistribute:
                                 connected:
                                   enable: on
                               multipaths:
                                 ebgp: 16
                             l2vpn-evpn:
                               enable: on
                           autonomous-system: {{ ( ipaddresses.ip_lo.ip.split(".")[3] | int ) + 65101 }}
                           enable: on
                           neighbor:
                             p0_if:
                               peer-group: {{ config.bgp_peer_group }}
                               type: unnumbered
                               address-family:
                                 l2vpn-evpn:
                                   enable: on
                                   add-path-tx: off
                             p1_if:
                               peer-group: {{ config.bgp_peer_group }}
                               type: unnumbered
                               address-family:
                                 l2vpn-evpn:
                                   enable: on
                                   add-path-tx: off
                           path-selection:
                             multipath:
                               aspath-ignore: on
                           peer-group:
                             {{ config.bgp_peer_group }}:
                               address-family:
                                 ipv4-unicast:
                                   enable: on
                                 l2vpn-evpn:
                                   enable: on
                               remote-as: external
                           router-id: {{ ipaddresses.ip_lo.ip }}
     interfaces:
     - name: p0_if
       network: mybrhbn
     - name: p1_if
       network: mybrhbn
     - name: snap_if
       network: mybrhbn


6. Edit hbn-dpuservicetemplate.yaml to request 3 SFs instead of 5 since it only uses 3 DPUServiceInterfaces:

   manifests/04.2-dpudeployment-installation-virtiofs/hbn-dpuservicetemplate.yaml

   YAML

   ---
   apiVersion: svc.dpu.nvidia.com/v1alpha1
   kind: DPUServiceTemplate
   metadata:
     name: doca-hbn
     namespace: dpf-operator-system
   spec:
     deploymentServiceName: "doca-hbn"
     helmChart:
       source:
         repoURL: $HELM_REGISTRY_REPO_URL
         version: 1.0.5
         chart: doca-hbn
       values:
         image:
           repository: $HBN_NGC_IMAGE_URL
           tag: 3.2.1-doca3.2.1
         resources:
           memory: 6Gi
           nvidia.com/bf_sf: 3


7. Edit snap-csi-plugin-dpuserviceconfiguration.yaml so it will use hostNetwork :

   manifests/04.2-dpudeployment-installation-virtiofs/snap-csi-plugin-dpuserviceconfiguration.yaml

   YAML

   ---
   apiVersion: svc.dpu.nvidia.com/v1alpha1
   kind: DPUServiceConfiguration
   metadata:
     name: snap-csi-plugin
     namespace: dpf-operator-system
   spec:
     deploymentServiceName: snap-csi-plugin
     upgradePolicy:
       applyNodeEffect: false
     serviceConfiguration:
       deployInCluster: true
       helmChart:
         values:
           host:
             snapCsiPlugin:
               enabled: true
               emulationMode: "virtiofs"
               controller:
                 affinity:
                   nodeAffinity:
                     requiredDuringSchedulingIgnoredDuringExecution:
                       nodeSelectorTerms:
                         - matchExpressions:
                             - key: "node-role.kubernetes.io/master"
                               operator: Exists
                         - matchExpressions:
                             - key: "node-role.kubernetes.io/control-plane"
                               operator: Exists
               node:
                 hostNetwork: true


8. The rest of the configuration files remain the same, including:

   • DPUServiceConfiguration and DPUServiceTemplate for DOCA SNAP.

     YAML

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceConfiguration
     metadata:
       name: doca-snap
       namespace: dpf-operator-system
     spec:
       deploymentServiceName: doca-snap
       serviceConfiguration:
         helmChart:
           values:
             dpu:
               docaSnap:
                 enabled: true
                 env:
                   XLIO_ENABLED: "0"
                 image:
                   repository: $SNAP_NGC_IMAGE_URL
                   tag: 1.5.0-doca3.2.0
       interfaces:
       - name: app_sf
         network: mybrsfc


     YAML

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceTemplate
     metadata:
       name: doca-snap
       namespace: dpf-operator-system
     spec:
       deploymentServiceName: doca-snap
       helmChart:
         source:
           repoURL: $REGISTRY
           version: $TAG
           chart: dpf-storage
         values:
           serviceDaemonSet:
             resources:
               memory: "2Gi"
               hugepages-2Mi: "4Gi"
               cpu: "8"
               nvidia.com/bf_sf: 1
       resourceRequirements:
         memory: "2Gi"
         hugepages-2Mi: "4Gi"
         cpu: "8"
         nvidia.com/bf_sf: 1


   • DPUServiceConfiguration and DPUServiceTemplate for SNAP Host Controller.

     YAML

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceConfiguration
     metadata:
       name: snap-host-controller
       namespace: dpf-operator-system
     spec:
       deploymentServiceName: snap-host-controller
       upgradePolicy:
         applyNodeEffect: false
       serviceConfiguration:
         deployInCluster: true
         helmChart:
           values:
             host:
               snapHostController:
                 enabled: true
                 config:
                   targetNamespace: dpf-operator-system
                 affinity:
                   nodeAffinity:
                     requiredDuringSchedulingIgnoredDuringExecution:
                       nodeSelectorTerms:
                       - matchExpressions:
                           - key: "node-role.kubernetes.io/master"
                             operator: Exists
                       - matchExpressions:
                           - key: "node-role.kubernetes.io/control-plane"
                             operator: Exists


     YAML

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceTemplate
     metadata:
       name: snap-host-controller
       namespace: dpf-operator-system
     spec:
       deploymentServiceName: snap-host-controller
       helmChart:
         source:
           repoURL: $REGISTRY
           version: $TAG
           chart: dpf-storage


   • DPUServiceConfiguration and DPUServiceTemplate for SNAP Node Driver.

     YAML

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceConfiguration
     metadata:
       name: snap-node-driver
       namespace: dpf-operator-system
     spec:
       deploymentServiceName: snap-node-driver
       serviceConfiguration:
         helmChart:
           values:
             dpu:
               deployCrds: true
               snapNodeDriver:
                 enabled: true


     YAML

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceTemplate
     metadata:
       name: snap-node-driver
       namespace: dpf-operator-system
     spec:
       deploymentServiceName: snap-node-driver
       helmChart:
         source:
           repoURL: $REGISTRY
           version: $TAG
           chart: dpf-storage


   • DPUServiceTemplate for SNAP CSI Plugin.

     YAML

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceTemplate
     metadata:
       name: snap-csi-plugin
       namespace: dpf-operator-system
     spec:
       deploymentServiceName: snap-csi-plugin
       helmChart:
         source:
           repoURL: $REGISTRY
           version: $TAG
           chart: dpf-storage


   • DPUServiceConfiguration and DPUServiceTemplate for FS Storage DPU Plugin.

     YAML

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceConfiguration
     metadata:
       name: fs-storage-dpu-plugin
       namespace: dpf-operator-system
     spec:
       deploymentServiceName: fs-storage-dpu-plugin
       serviceConfiguration:
         helmChart:
           values:
             dpu:
               fsStorageVendorDpuPlugin:
                 enabled: true
       interfaces:
         - name: app_sf
           network: mybrsfc


     YAML

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceTemplate
     metadata:
       name: fs-storage-dpu-plugin
       namespace: dpf-operator-system
     spec:
       deploymentServiceName: fs-storage-dpu-plugin
       helmChart:
         source:
           repoURL: $REGISTRY
           version: $TAG
           chart: dpf-storage
         values:
           serviceDaemonSet:
             resources:
               nvidia.com/bf_sf: 1
       resourceRequirements:
         nvidia.com/bf_sf: 1


   • DPUServiceConfiguration, DPUServiceTemplate and DPUServiceCredentialRequest for NFS CSI Controller (host).

     YAML

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceConfiguration
     metadata:
       name: nfs-csi-controller
       namespace: dpf-operator-system
     spec:
       deploymentServiceName: nfs-csi-controller
       upgradePolicy:
         applyNodeEffect: false
       serviceConfiguration:
         deployInCluster: true
         helmChart:
           values:
             host:
               enabled: true
               config:
                 # required parameter, name of the secret that contains connection
                 # details to access the DPU cluster.
                 # this secret should be created by the DPUServiceCredentialRequest API.
                 dpuClusterSecret: nfs-csi-controller-dpu-cluster-credentials


     YAML

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceTemplate
     metadata:
       name: nfs-csi-controller
       namespace: dpf-operator-system
     spec:
       deploymentServiceName: nfs-csi-controller
       helmChart:
         source:
           repoURL: oci://ghcr.io/mellanox/dpf-storage-vendors-charts
           version: v0.2.0
           chart: nfs-csi-controller


     YAML

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceCredentialRequest
     metadata:
       name: nfs-csi-controller-credentials
       namespace: dpf-operator-system
     spec:
       duration: 24h
       serviceAccount:
         name: nfs-csi-controller-sa
         namespace: dpf-operator-system
       targetCluster:
         name: dpu-cplane-tenant1
         namespace: dpu-cplane-tenant1
       type: tokenFile
       secret:
         name: nfs-csi-controller-dpu-cluster-credentials
         namespace: dpf-operator-system


   • DPUServiceConfiguration and DPUServiceTemplate for NFS CSI Controller (DPU).

     YAML

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceConfiguration
     metadata:
       name: nfs-csi-controller-dpu
       namespace: dpf-operator-system
     spec:
       deploymentServiceName: nfs-csi-controller-dpu
       upgradePolicy:
         applyNodeEffect: false
       serviceConfiguration:
         helmChart:
           values:
             dpu:
               enabled: true
               storageClasses:
                 # List of storage classes to be created for nfs-csi
                 # These StorageClass names should be used in the StorageVendor settings
                 - name: nfs-csi
                   parameters:
                     server: 10.0.124.1
                     share: /srv/nfs/share
               rbacRoles:
                 nfsCsiController:
                   # the name of the service account for nfs-csi-controller
                   # this value must be aligned with the value from the DPUServiceCredentialRequest
                   serviceAccount: nfs-csi-controller-sa


     YAML

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceTemplate
     metadata:
       name: nfs-csi-controller-dpu
       namespace: dpf-operator-system
     spec:
       deploymentServiceName: nfs-csi-controller-dpu
       helmChart:
         source:
           repoURL: oci://ghcr.io/mellanox/dpf-storage-vendors-charts
           version: v0.2.0
           chart: nfs-csi-controller


   • DPUServiceIPAM for storage.

     YAML

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceIPAM
     metadata:
       name: storage-pool
       namespace: dpf-operator-system
     spec:
       metadata:
         labels:
           svc.dpu.nvidia.com/pool: storage-pool
       ipv4Subnet:
         subnet: "10.0.124.0/24"
         gateway: "10.0.124.1"
         perNodeIPCount: 8


9. Apply all of the YAML files mentioned above using the following command:

   Jump Node Console

   cat manifests/04.2-dpudeployment-installation-virtiofs/*.yaml | envsubst | kubectl apply -f -



10. Verify the DPU and Service installation by ensuring the DPUServices are created and have been reconciled, that the DPUServiceIPAMs have been reconciled, that the DPUServiceInterfaces have been reconciled, and that the DPUServiceChains have been reconciled

    Jump Node Console

    $ kubectl wait --for=condition=ApplicationsReconciled --namespace dpf-operator-system dpuservices -l svc.dpu.nvidia.com/owned-by-dpudeployment=dpf-operator-system_hbn-snap
    dpuservice.svc.dpu.nvidia.com/doca-hbn-wm2mm condition met
    dpuservice.svc.dpu.nvidia.com/doca-snap-knmzt condition met
    dpuservice.svc.dpu.nvidia.com/fs-storage-dpu-plugin-97654 condition met
    dpuservice.svc.dpu.nvidia.com/nfs-csi-controller-dpu-sckmp condition met
    dpuservice.svc.dpu.nvidia.com/nfs-csi-controller-xwd66 condition met
    dpuservice.svc.dpu.nvidia.com/snap-csi-plugin-crv7d condition met
    dpuservice.svc.dpu.nvidia.com/snap-host-controller-b56jw condition met
    dpuservice.svc.dpu.nvidia.com/snap-node-driver-gcmls condition met

    $ kubectl wait --for=condition=DPUIPAMObjectReconciled --namespace dpf-operator-system dpuserviceipam --all
    dpuserviceipam.svc.dpu.nvidia.com/loopback condition met
    dpuserviceipam.svc.dpu.nvidia.com/pool1 condition met
    dpuserviceipam.svc.dpu.nvidia.com/storage-pool condition met

    $ kubectl wait --for=condition=ServiceInterfaceSetReconciled --namespace dpf-operator-system dpuserviceinterface -l svc.dpu.nvidia.com/owned-by-dpudeployment=dpf-operator-system_hbn-snap
    dpuserviceinterface.svc.dpu.nvidia.com/doca-hbn-p0-if-qhqrv condition met
    dpuserviceinterface.svc.dpu.nvidia.com/doca-hbn-p1-if-dxm6p condition met
    dpuserviceinterface.svc.dpu.nvidia.com/doca-hbn-snap-if-9qgb2 condition met
    dpuserviceinterface.svc.dpu.nvidia.com/doca-snap-app-sf-zvqbl condition met
    dpuserviceinterface.svc.dpu.nvidia.com/fs-storage-dpu-plugin-app-sf-cdpq4 condition met

    $ kubectl wait --for=condition=ServiceChainSetReconciled --namespace dpf-operator-system dpuservicechain -l svc.dpu.nvidia.com/owned-by-dpudeployment=dpf-operator-system_hbn-snap
    dpuservicechain.svc.dpu.nvidia.com/hbn-snap-rbvvs condition met



K8s Cluster Scale-out

Add Worker Nodes to the Cluster

Since the worker nodes have already been added to the cluster, the second pair DPU provisioning should start immediately.

Verification

1. To follow the progress of the DPU provisioning, run the following command to check in which phase it currently is:

   Jump Node Console

   $ watch -n10 "kubectl describe dpu -n dpf-operator-system -l svc.dpu.nvidia.com/owned-by-dpudeployment=dpf-operator-system_hbn-snap | grep 'Node Name\|Type\|Last\|Phase'"

   Every 10.0s: kubectl describe dpu -n dpf-operator-system -l svc.dpu.nvidia.com/owned-by-dpudeployment=dpf-operator-system_...
      Dpu Node Name:                                                     worker1
       Last Transition Time:  2025-12-25T16:10:08Z
       Type:                  BFBPrepared
       Last Transition Time:  2025-12-25T16:09:14Z
       Type:                  BFBReady
       Last Transition Time:  2025-12-25T16:09:14Z
       Type:                  Initialized
       Last Transition Time:  2025-12-25T16:10:04Z
       Type:                  NodeEffectReady
       Last Transition Time:  2025-12-25T16:10:08Z
       Type:                  FWConfigured
       Last Transition Time:  2025-12-25T16:10:05Z
       Type:                  InterfaceInitialized
       Last Transition Time:  2025-12-25T16:10:09Z
       Type:                  OSInstalled
     Phase:                OS Installing
     Dpu Node Name:                                                     worker2
       Last Transition Time:  2025-12-25T16:10:06Z
       Type:                  BFBPrepared
       Last Transition Time:  2025-12-25T16:09:14Z
       Type:                  BFBReady
       Last Transition Time:  2025-12-25T16:09:14Z
       Type:                  Initialized
       Last Transition Time:  2025-12-25T16:10:04Z
       Type:                  NodeEffectReady
       Last Transition Time:  2025-12-25T16:10:06Z
       Type:                  FWConfigured
       Last Transition Time:  2025-12-25T16:10:04Z
       Type:                  InterfaceInitialized
       Last Transition Time:  2025-12-25T16:10:06Z
       Type:                  OSInstalled
     Phase:                OS Installing



2. Validate that the DPUs have been provisioned successfully by ensuring they're in ready state:

   Jump Node Console

   $ kubectl wait --for=condition=ready --namespace dpf-operator-system dpu --all
   dpu.provisioning.dpu.nvidia.com/worker1-mt2438xz0263 condition met
   dpu.provisioning.dpu.nvidia.com/worker1-mt2516604v3j condition met
   dpu.provisioning.dpu.nvidia.com/worker2-mt2438xz0265 condition met
   dpu.provisioning.dpu.nvidia.com/worker2-mt2516604w9z condition met





3. Ensure that the following DaemonSets have 2 ready replicas:

   Jump Node Console

   $ kubectl wait ds --for=jsonpath='{.status.numberReady}'=2 --namespace nvidia-network-operator kube-multus-ds sriov-network-config-daemon sriov-device-plugin
   daemonset.apps/kube-multus-ds condition met
   daemonset.apps/sriov-network-config-daemon condition met
   daemonset.apps/sriov-device-plugin condition met

   $ kubectl wait ds --for=jsonpath='{.status.numberReady}'=2 --namespace ovn-kubernetes ovn-kubernetes-node-dpu-host
   daemonset.apps/ovn-kubernetes-node-dpu-host condition met





4. Validate that all the different DPUServices, DPUServiceIPAMs, DPUServiceInterfaces and DPUServiceChains objects are now in ready state:

   Jump Node Console

   $ kubectl wait --for=condition=ApplicationsReady --namespace dpf-operator-system dpuservices -l 'svc.dpu.nvidia.com/owned-by-dpudeployment in (dpf-operator-system_ovn-hbn,dpf-operator-system_hbn-snap)'
   dpuservice.svc.dpu.nvidia.com/blueman-w7rkk condition met
   dpuservice.svc.dpu.nvidia.com/doca-hbn-wm2mm condition met
   dpuservice.svc.dpu.nvidia.com/doca-snap-knmzt condition met
   dpuservice.svc.dpu.nvidia.com/dts-thsl5 condition met
   dpuservice.svc.dpu.nvidia.com/fs-storage-dpu-plugin-97654 condition met
   dpuservice.svc.dpu.nvidia.com/hbn-skl2g condition met
   dpuservice.svc.dpu.nvidia.com/nfs-csi-controller-dpu-sckmp condition met
   dpuservice.svc.dpu.nvidia.com/nfs-csi-controller-xwd66 condition met
   dpuservice.svc.dpu.nvidia.com/ovn-s8k5c condition met
   dpuservice.svc.dpu.nvidia.com/snap-csi-plugin-crv7d condition met
   dpuservice.svc.dpu.nvidia.com/snap-host-controller-b56jw condition met
   dpuservice.svc.dpu.nvidia.com/snap-node-driver-gcmls condition met

   $ kubectl wait --for=condition=DPUIPAMObjectReady --namespace dpf-operator-system dpuserviceipam --all
   dpuserviceipam.svc.dpu.nvidia.com/loopback condition met
   dpuserviceipam.svc.dpu.nvidia.com/pool1 condition met
   dpuserviceipam.svc.dpu.nvidia.com/storage-pool condition met

   $ kubectl wait --for=condition=ServiceInterfaceSetReady --namespace dpf-operator-system dpuserviceinterface --all
   dpuserviceinterface.svc.dpu.nvidia.com/doca-hbn-p0-if-qhqrv condition met
   dpuserviceinterface.svc.dpu.nvidia.com/doca-hbn-p1-if-dxm6p condition met
   dpuserviceinterface.svc.dpu.nvidia.com/doca-hbn-snap-if-9qgb2 condition met
   dpuserviceinterface.svc.dpu.nvidia.com/doca-snap-app-sf-zvqbl condition met
   dpuserviceinterface.svc.dpu.nvidia.com/fs-storage-dpu-plugin-app-sf-cdpq4 condition met
   dpuserviceinterface.svc.dpu.nvidia.com/hbn-p0-if-8t6gz condition met
   dpuserviceinterface.svc.dpu.nvidia.com/hbn-p1-if-7mfn7 condition met
   dpuserviceinterface.svc.dpu.nvidia.com/hbn-pf2dpu2-if-7shwq condition met
   dpuserviceinterface.svc.dpu.nvidia.com/ovn condition met
   dpuserviceinterface.svc.dpu.nvidia.com/p0 condition met
   dpuserviceinterface.svc.dpu.nvidia.com/p1 condition met

   $ kubectl wait --for=condition=ServiceChainSetReady --namespace dpf-operator-system dpuservicechain --all
   dpuservicechain.svc.dpu.nvidia.com/hbn-snap-rbvvs condition met
   dpuservicechain.svc.dpu.nvidia.com/ovn-hbn-lmxw2 condition met





5. Verify the status of the DPUDeployments using the following command:

   Jump Node Console

   $ kubectl -n dpf-operator-system exec deploy/dpf-operator-controller-manager -- /dpfctl describe dpudeployments
   NAME                                 NAMESPACE            STATUS       REASON   SINCE  MESSAGE
   DPFOperatorConfig/dpfoperatorconfig  dpf-operator-system  Ready: True  Success  4h32m
   └─DPUDeployments
     └─2 DPUDeployments...              dpf-operator-system  Ready: True  Success  4h28m  See hbn-snap, ovn-hbn



Congratulations—the DPF system has been successfully installed!

Infrastructure Latency & Bandwidth Validation

No changes from the Baseline RDG (Section "Verification", Subsection "Infrastructure Latency & Bandwidth Validation").

HBN+SNAP-VirtioFS Services Validation

Perform the following steps to validate HBN+SNAP-VirtioFS services functionality and performance:

1. The following YAML files define the DPUStorageVendor for NFS CSI and the DPUStoragePolicy for filesystem policy:

   manifests/07.2-storage-configuration-virtiofs/nfs-csi-dpustoragevendor.yaml

   YAML

   ---
   apiVersion: storage.dpu.nvidia.com/v1alpha1
   kind: DPUStorageVendor
   metadata:
     name: nfs-csi
     namespace: dpf-operator-system
   spec:
     storageClassName: nfs-csi
     pluginName: nvidia-fs





   manifests/07.2-storage-configuration-virtiofs/policy-fs-dpustoragepolicy.yaml

   YAML

   ---
   apiVersion: storage.dpu.nvidia.com/v1alpha1
   kind: DPUStoragePolicy
   metadata:
     name: policy-fs
     namespace: dpf-operator-system
   spec:
     dpuStorageVendors:
       - nfs-csi
     selectionAlgorithm: "NumberVolumes"
     parameters: {}






2. Apply the previous YAML files:

   Jump Node Console

   cat manifests/07.2-storage-configuration-virtiofs/*.yaml | envsubst | kubectl apply -f -





3. Verify the DPUStorageVendor and DPUStoragePolicy objects are ready:

   Jump Node Console

   $ kubectl wait --for=condition=Ready --namespace dpf-operator-system dpustoragevendors --all
   dpustoragevendor.storage.dpu.nvidia.com/nfs-csi condition met

   $ kubectl wait --for=condition=Ready --namespace dpf-operator-system dpustoragepolicies --all
   dpustoragepolicy.storage.dpu.nvidia.com/policy-fs condition met





4. Deploy storage test pods that mount a storage volume provided by SNAP VirtioFS:

   Jump Node Console

   kubectl apply -f manifests/08.2-storage-test-virtiofs





5. Check if the pod is ready and the virtiofs-tag name:

   Jump Node Console

   $ kubectl wait statefulsets --for=jsonpath='{.status.readyReplicas}'=1 storage-test-pod-virtiofs-hotplug-pf
   statefulset.apps/storage-test-pod-virtiofs-hotplug-pf condition met

   $ kubectl get dpuvolumeattachments.storage.dpu.nvidia.com -A -o json | jq '.items[0].status.dpu.virtioFSAttrs.filesystemTag'
   "9c8eda4f518fc303tag"





6. Connect to the test pod, validate that the virtiofs filesystem is mounted with the previous tag name and install the fio  software:

   Jump Node Console

   depuser@jump:~$ kubectl exec -it storage-test-pod-virtiofs-hotplug-pf-0 -- bash
   root@storage-test-pod-virtiofs-hotplug-pf-0:/# df -Th
   Filesystem          Type      Size  Used Avail Use% Mounted on
   overlay             overlay   439G   20G  397G   5% /
   tmpfs               tmpfs      64M     0   64M   0% /dev
   9c8eda4f518fc303tag virtiofs  1.8T   35G  1.8T   2% /mnt/vol1
   /dev/nvme0n1p2      ext4      439G   20G  397G   5% /etc/hosts
   shm                 tmpfs      64M     0   64M   0% /dev/shm
   tmpfs               tmpfs     251G   12K  251G   1% /run/secrets/kubernetes.io/serviceaccount
   tmpfs               tmpfs     126G     0  126G   0% /proc/acpi
   tmpfs               tmpfs     126G     0  126G   0% /proc/scsi
   tmpfs               tmpfs     126G     0  126G   0% /sys/firmware
   tmpfs               tmpfs     126G     0  126G   0% /sys/devices/virtual/powercap

   root@storage-test-pod-virtiofs-hotplug-pf-0:/# apt update -y
   root@storage-test-pod-virtiofs-hotplug-pf-0:/# apt install -y fio vim





7. Configure the following FIO job file:

   job-4k.fio

   [global]
   ioengine=libaio
   direct=1
   iodepth=32
   rw=read
   bs=4k
   size=1G
   numjobs=8
   runtime=60
   time_based
   group_reporting

   [job1]
   filename=/mnt/vol1/test.fio





8. Run the FIO job and check the performance:

   Storage Test Pod Console

   root@storage-test-pod-virtiofs-hotplug-pf-0:/# fio job-4k.fio
   job1: (g=0): rw=read, bs=4K-4K/4K-4K/4K-4K, ioengine=libaio, iodepth=32
   ...
   fio-2.2.10
   ...
   ...
   Starting 8 processes
   job1: Laying out IO file(s) (1 file(s) / 1024MB)
   Jobs: 8 (f=8): [R(8)] [100.0% done] [826.1MB/0KB/0KB /s] [212K/0/0 iops] [eta 00m:00s]
   job1: (groupid=0, jobs=8): err= 0: pid=1183: Mon Dec  1 10:31:32 2025
     read : io=47664MB, bw=813351KB/s, iops=203337, runt= 60008msec
       slat (usec): min=0, max=679, avg= 6.90, stdev= 4.13
       clat (usec): min=167, max=135036, avg=1250.42, stdev=4941.25
        lat (usec): min=170, max=135038, avg=1257.36, stdev=4940.79
       clat percentiles (usec):
        |  1.00th=[  258],  5.00th=[  278], 10.00th=[  286], 20.00th=[  298],
        | 30.00th=[  302], 40.00th=[  310], 50.00th=[  314], 60.00th=[  322],
        | 70.00th=[  326], 80.00th=[  338], 90.00th=[  358], 95.00th=[  470],
        | 99.00th=[27520], 99.50th=[32128], 99.90th=[46336], 99.95th=[52992],
        | 99.99th=[68096]
       bw (KB  /s): min=85832, max=121912, per=12.51%, avg=101789.00, stdev=5105.93
       lat (usec) : 250=0.39%, 500=95.22%, 750=0.55%, 1000=0.01%
       lat (msec) : 2=0.01%, 4=0.01%, 10=0.01%, 20=1.05%, 50=2.70%
       lat (msec) : 100=0.07%, 250=0.01%
     cpu          : usr=2.78%, sys=24.20%, ctx=8652632, majf=0, minf=340
     IO depths    : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=100.0%, >=64=0.0%
        submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
        complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.1%, 64=0.0%, >=64=0.0%
        issued    : total=r=12201896/w=0/d=0, short=r=0/w=0/d=0, drop=r=0/w=0/d=0
        latency   : target=0, window=0, percentile=100.00%, depth=32

   Run status group 0 (all jobs):
      READ: io=47664MB, aggrb=813351KB/s, minb=813351KB/s, maxb=813351KB/s, mint=60008msec, maxt=60008msec





Done.

Authors

Last updated: May 31, 2026
