RDG for DPF Zero Trust (DPF-ZT) with VPC OVN DPU service



Created on Sep 10, 2025

Update on Dec 31, 2025 (v25.10.0 GA)

Scope

This Reference Deployment Guide (RDG) provides comprehensive instructions for deploying the NVIDIA DOCA Platform Framework (DPF) with the DOCA VPC(Virtual Private Cloud) OVN(Open Virtual Network) service on high-performance, bare-metal infrastructure in Zero-Trust mode. It focuses on the setup and use of DPU-based services on NVIDIA® BlueField®-3 DPUs to deliver secure, isolated, and hardware-accelerated environments.

The guide is intended for experienced system administrators, systems engineers, and solution architects who build highly secure bare-metal environments using NVIDIA BlueField DPUs for acceleration, isolation, and infrastructure offload.

This document is an extension of the RDG for DPF Zero Trust (DPF-ZT) - NVIDIA Docs (referred to as the Baseline RDG). It outlines the additional steps and modifications required to deploy the VPC OVN service in the Baseline RDG environment.

  • This reference implementation, as the name implies, is a specific, opinionated deployment example designed to address the use case described above.

  • Although other approaches may exist for implementing similar solutions, this document provides a detailed guide for this specific method.

Abbreviations and Acronyms

Term

Definition

Term

Definition

BFB

BlueField Bootstream

NFS

Network File System

DOCA

Data Center Infrastructure-on-a-Chip Architecture

OOB

Out-of-Band

DPF

DOCA Platform Framework

OVN

Open Virtual Network

DPU

Data Processing Unit

PF

Physical Function

K8S

Kubernetes

RDG

Reference Deployment Guide

KVM

Kernel-based Virtual Machine

RDMA

Remote Direct Memory Access

MAAS

Metal as a Service

RoCE

RDMA over Converged Ethernet

MTU

Maximum Transmission Unit

VPC

Virtual Private Cloud

NGC

NVIDIA GPU Cloud

ZT

Zero Trust

Introduction

The NVIDIA BlueField-3 Data Processing Unit (DPU) is a 400 Gb/s infrastructure compute platform designed for line-rate processing of software-defined networking, storage, and cybersecurity workloads. It combines powerful compute resources, high-speed networking, and advanced programmability to deliver hardware-accelerated, software-defined solutions for modern data centers.

NVIDIA DOCA unleashes the full potential of the BlueField platform by enabling rapid development of applications and services that offload, accelerate, and isolate data center workloads.

One such service is the DOCA VPC OVN Service provides accelerated VPC networking functionality for the DPF. Built on top of OVN, this service enables network isolation, virtualization, and advanced SDN capabilities directly on NVIDIA DPUs.

Key Features:

  • Multi-tenant Network Isolation: Create isolated VPCs for different tenants with guaranteed network separation.

  • Virtual Network Management: Support the creation of virtual networks with DHCP and custom IP addressing.

  • External Connectivity: Configurable external routing with NAT/masquerading capabilities.

  • Hardware Acceleration: Leverages DPU hardware acceleration for high-performance networking.

  • Flexible Topology: Support for complex network topologies with inter-network routing controls.

  • Kubernetes Integration: Native Kubernetes resources for declarative VPC management.

However, deploying and managing DPUs, especially at scale, presents operational challenges. Without a robust provisioning and orchestration system, tasks such as lifecycle management, service deployment, and network configuration for service function chaining (SFC) can quickly become complex and error prone. This is where the DOCA Platform Framework (DPF) comes into play.

DPF automates the full DPU lifecycle, and simplifies advanced network configurations. With DPF, services can be deployed seamlessly, allowing for efficient offloading and intelligent routing of traffic through the DPU data plane.

By leveraging DPF, users can scale and automate DPU management across Bare Metal, Virtual, and Kubernetes customer environments - optimizing performance while simplifying operations.

DPF supports multiple deployment models. This guide focuses on the Zero Trust bare-metal deployment model. In this scenario:

  • The DPU is managed through its Baseboard Management Controller (BMC)

  • All management traffic occurs over the DPU's out-of-band (OOB) network

  • The host is considered as an untrusted entity towards the data center network. The DPU acts as a barrier between the host and the network.

  • The host sees the DPU as a standard NIC, with no access to the internal DPU management plane (Zero Trust Mode)

This Reference Deployment Guide (RDG) provides a step-by-step example for installing DPF in Zero-Trust mode. It also includes practical demonstrations of performance optimization, validated using standard RDMA and TCP workloads.

As part of the reference implementation, open-source components outside the scope of DPF (e.g., MAAS, pfSense, Kubespray) are used to simulate a realistic customer deployment environment. The guide includes the full end-to-end deployment process, including:

  • Infrastructure provisioning

  • DPF deployment

  • DPU provisioning (redfish)

  • Service configuration and deployment

  • Service chaining.

This document extends the capabilities of the DPF-managed Kubernetes cluster described in the RDG for DPF Zero Trust (DPF-ZT) - NVIDIA Docs (referred to as the Baseline RDG) by deploying the NVIDIA DOCA VPC OVN Service within the existing DPF deployment to achieve a comprehensive, accelerated infrastructure.

References


Solution Architecture

Key Components and Technologies

  • NVIDIA BlueField® Data Processing Unit (DPU)
    The NVIDIA® BlueField® data processing unit (DPU) ignites unprecedented innovation for modern data centers and supercomputing clusters. With its robust compute power and integrated software-defined hardware accelerators for networking, storage, and security, BlueField creates a secure and accelerated infrastructure for any workload in any environment, ushering in a new era of accelerated computing and AI.

  • NVIDIA DOCA Software Framework
    NVIDIA DOCA™ unlocks the potential of the NVIDIA® BlueField® networking platform. By harnessing the power of BlueField DPUs and SuperNICs, DOCA enables the rapid creation of applications and services that offload, accelerate, and isolate data center workloads. It lets developers create software-defined, cloud-native, DPU- and SuperNIC-accelerated services with zero-trust protection, addressing the performance and security demands of modern data centers.

  • NVIDIA ConnectX SmartNICs
    10/25/40/50/100/200 and 400G Ethernet Network Adapters
    The industry-leading NVIDIA® ConnectX® family of smart network interface cards (SmartNICs) offer advanced hardware offloads and accelerations.
    NVIDIA Ethernet adapters enable the highest ROI and lowest Total Cost of Ownership for hyperscale, public and private clouds, storage, machine learning, AI, big data, and telco platforms.

  • NVIDIA LinkX Cables
    The NVIDIA® LinkX® product family of cables and transceivers provides the industry’s most complete line of 10, 25, 40, 50, 100, 200, and 400GbE in Ethernet and 100, 200 and 400Gb/s InfiniBand products for Cloud, HPC, hyperscale, Enterprise, telco, storage and artificial intelligence, data center applications.

  • NVIDIA Spectrum Ethernet Switches
    Flexible form-factors with 16 to 128 physical ports, supporting 1GbE through 400GbE speeds.
    Based on a ground-breaking silicon technology optimized for performance and scalability, NVIDIA Spectrum switches are ideal for building high-performance, cost-effective, and efficient Cloud Data Center Networks, Ethernet Storage Fabric, and Deep Learning Interconnects.
    NVIDIA combines the benefits of NVIDIA Spectrum switches, based on an industry-leading application-specific integrated circuit (ASIC) technology, with a wide variety of modern network operating system choices, including NVIDIA Cumulus® LinuxSONiC and NVIDIA Onyx®.

  • NVIDIA Cumulus Linux
    NVIDIA® Cumulus® Linux is the industry's most innovative open network operating system that allows you to automate, customize, and scale your data center network like no other.

  • Kubernetes
    Kubernetes is an open-source container orchestration platform for deployment automation, scaling, and management of containerized applications.

  • Kubespray
    Kubespray is a composition of Ansible playbooks, inventory, provisioning tools, and domain knowledge for generic OS/Kubernetes clusters configuration management tasks and provides:A highly available clusterComposable attributesSupport for most popular Linux distributions

Solution Design

Solution Logical Design

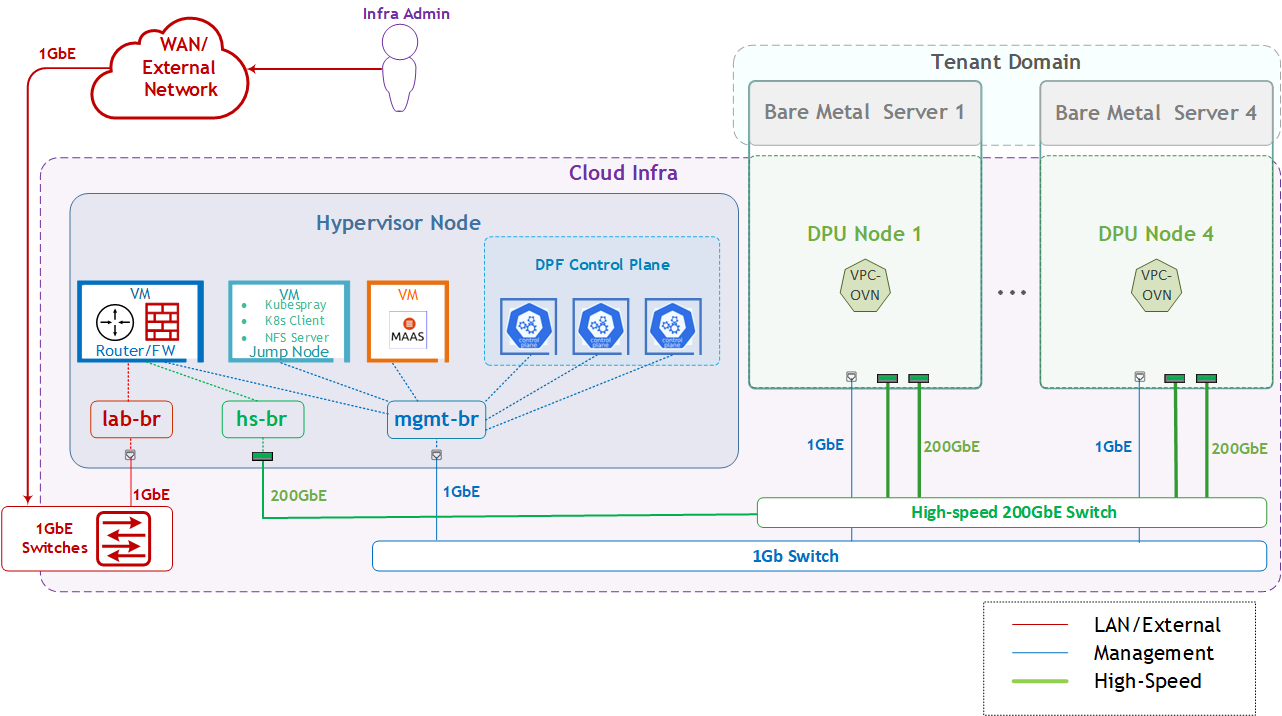

The logical design includes the following components:

  • 1 x Hypervisor node (KVM-based) with ConnectX-7:

    • 1 x Firewall VM

    • 1 x Jump Node VM

    • 1 x MaaS VM

    • 3 x K8s Master VMs running all K8s management components

  • 4 x Worker nodes (PCI Gen5), each with a 1 x BlueField-3 NIC

  • Single High-Speed (HS) switch

  • 1 Gb Host Management network


VPC service Logical Design

As part of this RDG, we will:

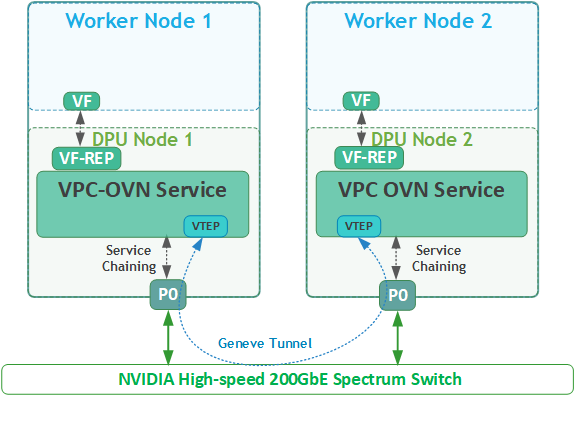

We will deploy VPC OVN over a simple bridged network, using a single highspeed uplink on each worker node

  • Create two isolated VPCs on each pair bare-metal workload server (Worker1/2, Worker3/4) using a virtual function VF

  • Each network connects through the VPC OVN service on separate VPCs - RED and BLUE

  • Route traffic through the VPC OVN service

  • Assign VF to each bare-metal workload server as its network interfaces

  • Demonstrate accelerated RDMA and TCP traffic between two workload servers that run on different bare-metal servers within the same VPC network (e.g., RED network)

  • Validate network isolation between bare-metal workload servers connected to different VPC networks (RED vs BLUE).


Firewall Design

The pfSense firewall in this solution serves a dual purpose:

  • Firewall—provides an isolated environment for the DPF system, ensuring secure operations

  • Router—enables Internet access for the management network

Port-forwarding rules for SSH and RDP are configured on the firewall to route traffic to the jump node’s IP address in the host management network. From the jump node, administrators can manage and access various devices in the setup, as well as handle the deployment of the Kubernetes (K8s) cluster and DPF components.

The following diagram illustrates the firewall design used in this solution:


Software Stack Components

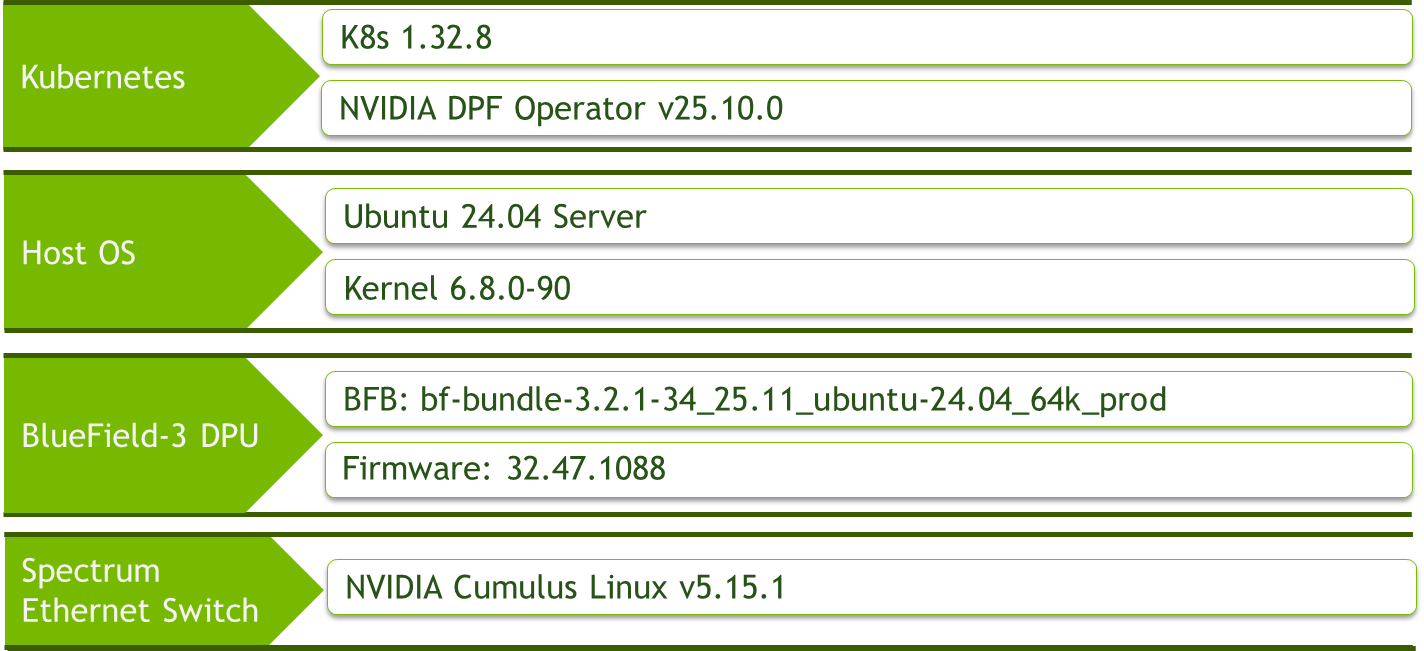

Make sure to use the exact same versions for the software stack as described above.

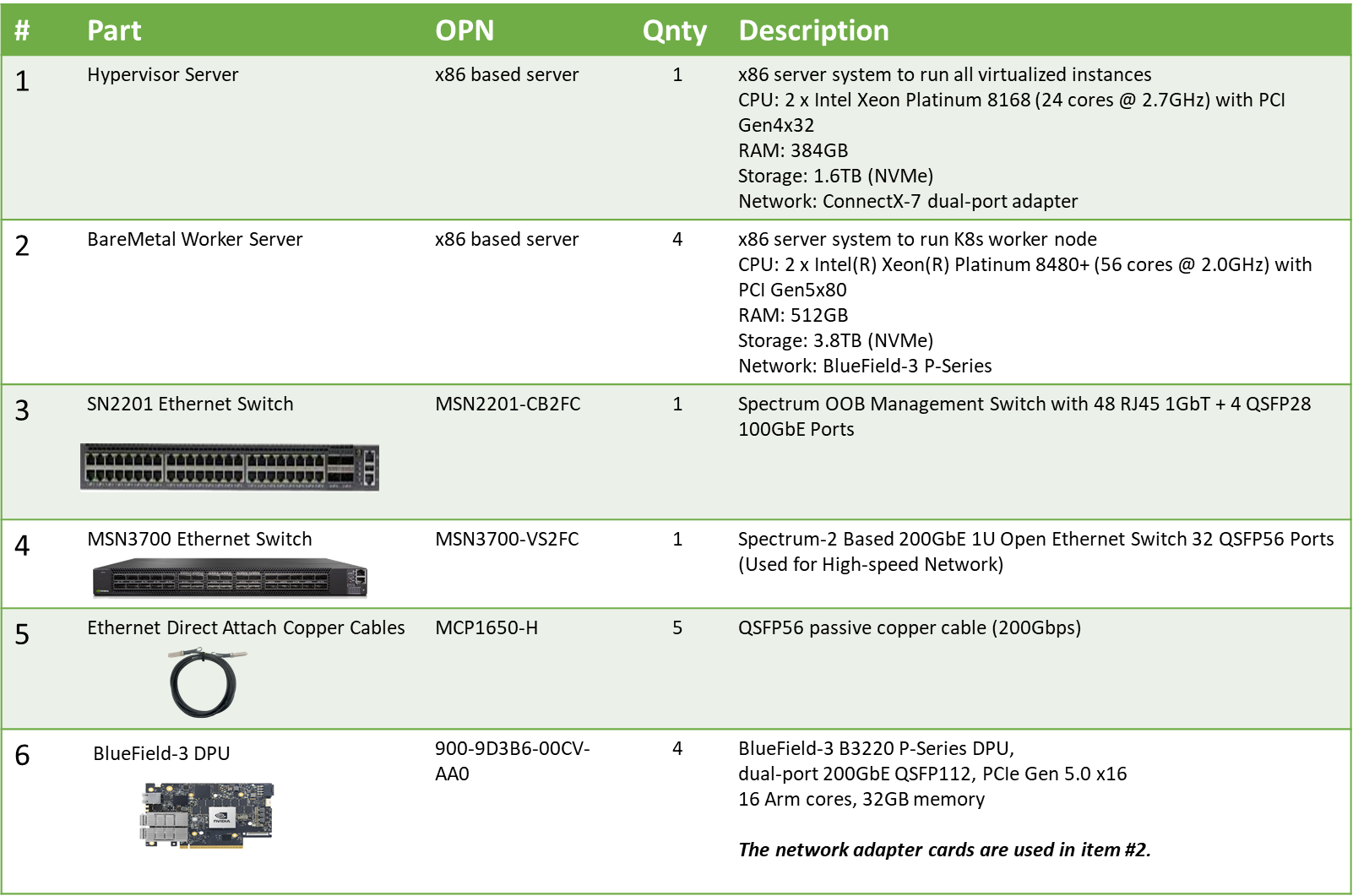

Bill of Materials


Deployment and Configuration

Node and Switch Definitions

These are the definitions and parameters used for deploying the demonstrated fabric:

Switches Ports Usage

Hostname

Rack ID

Ports

mgmt-switch

1

swp1-5

hs-switch

1

swp1-5

Hosts

Rack

Server Type

Server Name

Switch Port

IP and NICs

Default Gateway

Rack1


Hypervisor Node

hypervisor

mgmt-switch: swp1

hs-switch: swp1

lab-br (interface eno1): Trusted LAN IP

mgmt-br (interface eno2): -

hs-br (interface enp1s0): -

Trusted LAN GW

Rack1

Firewall (Virtual)

fw

-

WAN (lab-br): Trusted LAN IP

LAN (mgmt-br): 10.0.110.254/24

    OPT1(hs-br): 10.0.123.254/22

Trusted LAN GW

Rack1

Jump Node (Virtual)

jump

-

enp1s0: 10.0.110.253/24

10.0.110.254

Rack1

MaaS (Virtual)

maas

-

enp1s0: 10.0.110.252/24

10.0.110.254

Rack1

Master Node
(Virtual)

master1

-

enp1s0: 10.0.110.1/24

10.0.110.254

Rack1

Master Node
(Virtual)

master2

-

enp1s0: 10.0.110.2/24

10.0.110.254

Rack1

Master Node
(Virtual)

master3

-

enp1s0: 10.0.110.3/24

10.0.110.254

Rack1


Worker Node

worker1

mgmt-switch: swp2(DPU OOB)

hs-switch: swp2

dpubmc: 10.0.110.21/24

ens1f0v2: DHCP

10.0.110.254

10.0.123.254

Rack1


Worker Node

worker2

mgmt-switch: swp3(DPU OOB)

hs-switch: swp3

dpubmc: 10.0.110.22/24

ens1f0v2: DHCP

10.0.110.254

10.0.123.254

Rack1


Worker Node

worker3

mgmt-switch: swp2(DPU OOB)

hs-switch: swp4

dpubmc: 10.0.110.23/24

ens1f0v2: DHCP

10.0.110.254

10.0.123.254

Rack1


Worker Node

worker4

mgmt-switch: swp3(DPU OOB)

hs-switch: swp5

dpubmc: 10.0.110.24/24

ens1f0v2: DHCP

10.0.110.254

10.0.123.254

Wiring

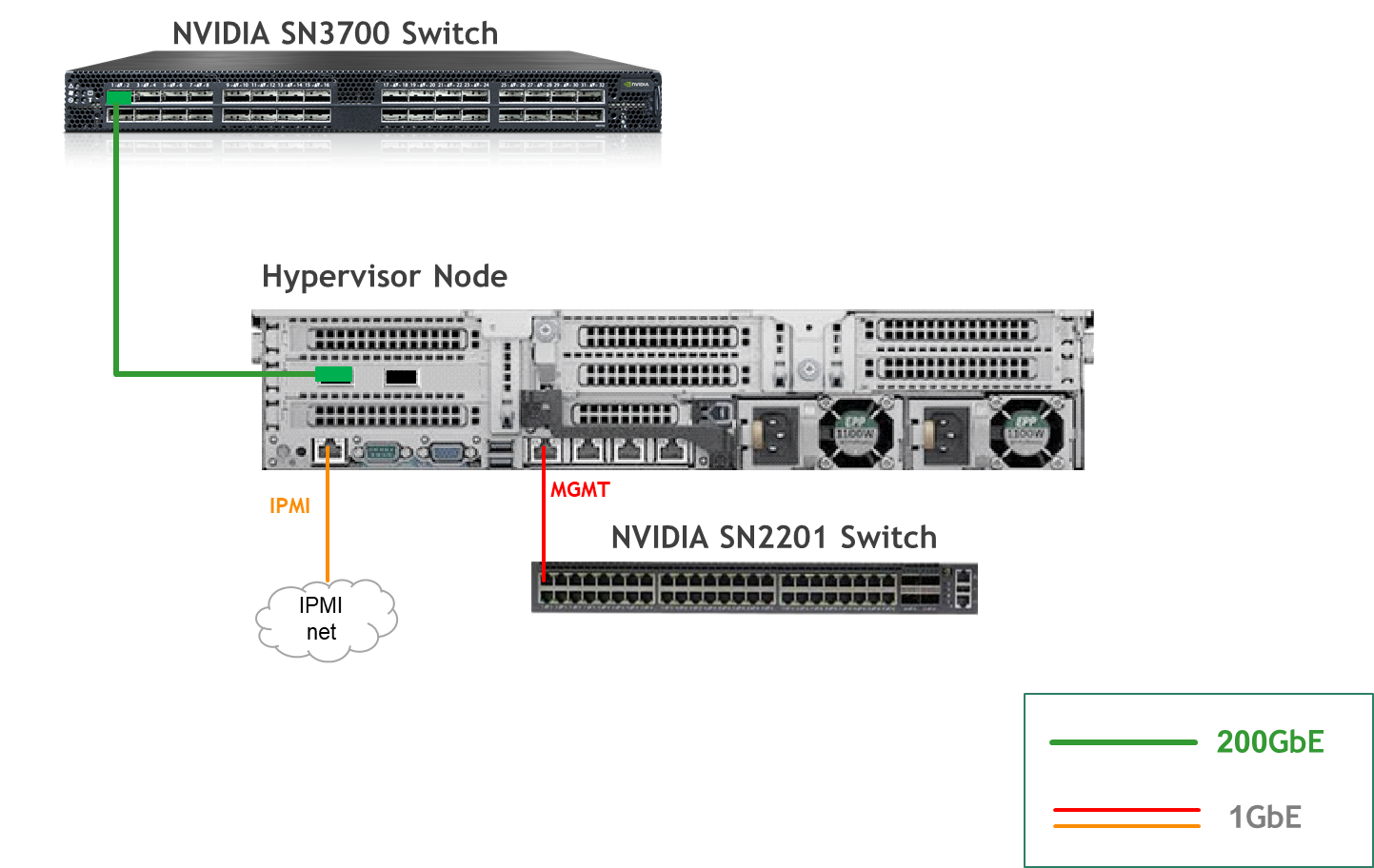

Hypervisor Node

HW node.png

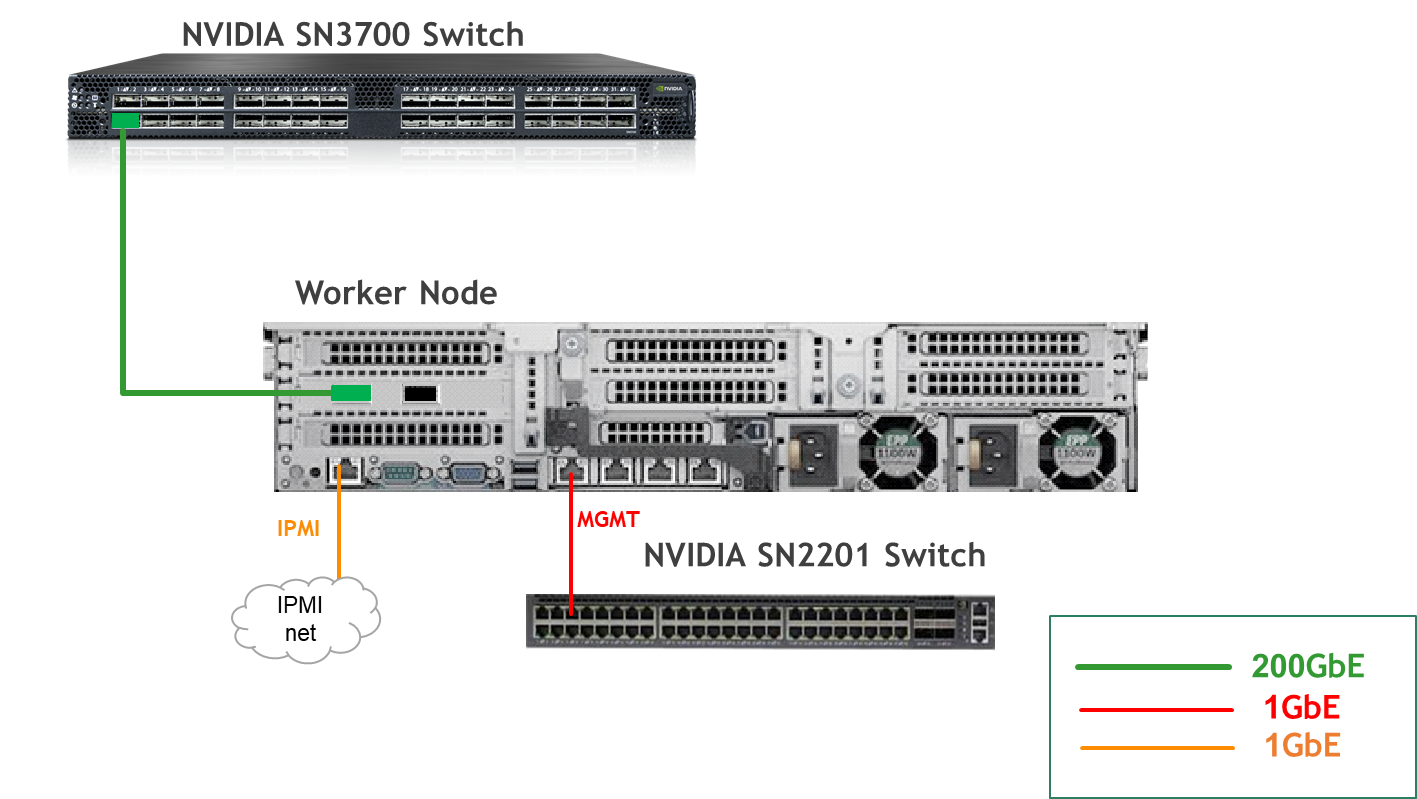

Bare Metal Worker Node


Fabric Configuration

Updating Cumulus Linux

As a best practice, make sure to use the latest released Cumulus Linux NOS version.

For information on how to upgrade Cumulus Linux, refer to the Cumulus Linux User Guide.

Configuring the Cumulus Linux Switch

The SN3700 switch (hs-switch), is configured as follows:

SN3700 Switch Console
nv set bridge domain br_hs untagged 1
nv set interface swp1-5 bridge domain br_hs
nv set interface swp1-5 link state up
nv set interface swp1-5 type swp
nv config apply applied
nv config save

The SN2201 switch (mgmt-switch) is configured as follows:

SN2201 Switch Console
nv set interface swp1-5 link state up
nv set interface swp1-5 type swp
nv set interface swp1-5 bridge domain br_default
nv set bridge domain br_default untagged 1
nv config apply applied
nv config save



Host Configuration

Make sure that the BIOS settings on the worker node servers have SR-IOV enabled and that the servers are tuned for maximum performance.

All worker nodes must have the same PCIe placement for the BlueField-3 NIC and must display the same interface name.

Make sure that you have DPU BMC and OOB MAC addresses.

No change from the Reference Deployment Guide (Baseline RDG) (Section "Deployment and Configuration", Subsection "Host Configuration").

Hypervisor Installation and Configuration

No change from the Baseline RDG (Section "Deployment and Configuration", Subsection "Hypervisor Installation and Configuration").

Prepare Infrastructure Servers

No change from the Baseline RDG (Section "Deployment and Configuration", Subsection "Prepare Infrastructure Servers") regarding Firewall VM, Jump VM, MaaS VM.

(Optional) Firewall VM – Bare Metal Server Outside Conection

To provide outside connection from Bare Metal Host via High Speed network, open Firefox web browser and go to the pfSense web UI (http://10.0.110.254).

  • System:

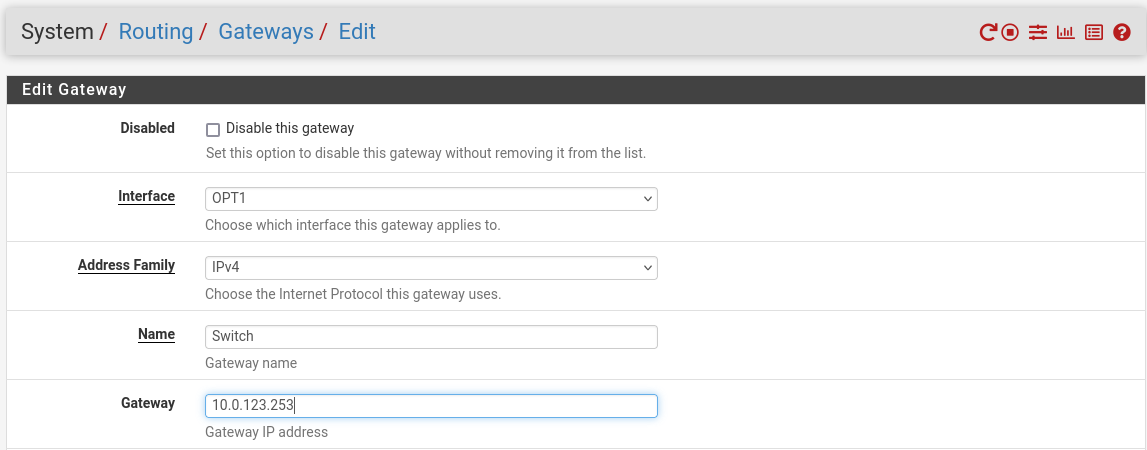

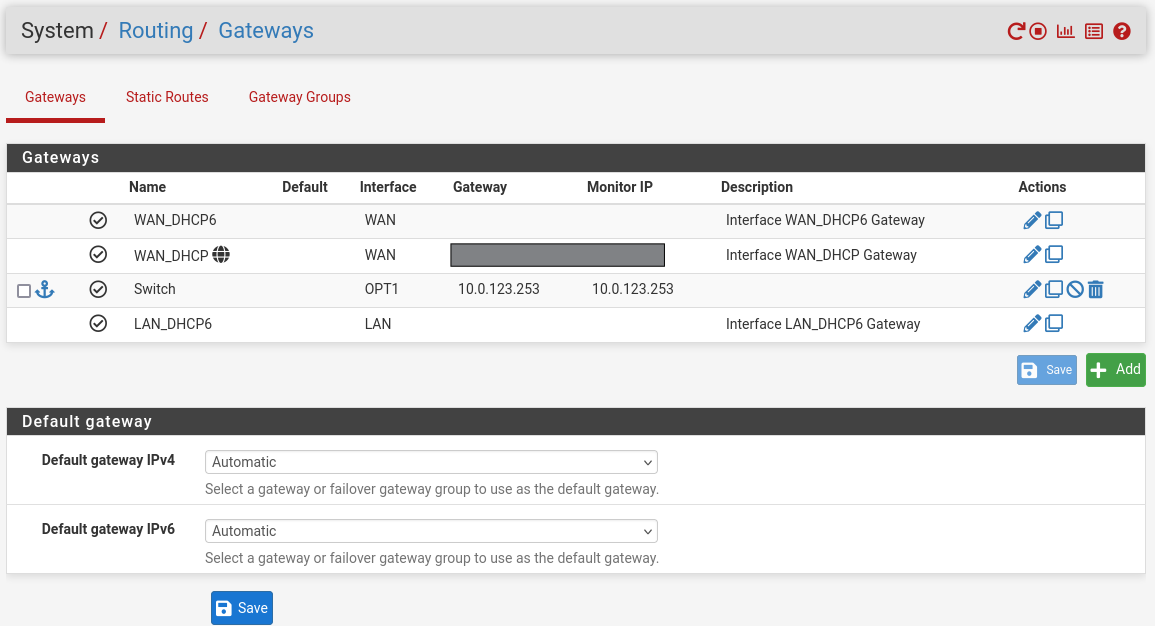

    • Routing → Gateways → Add → “Interface”: OPT1, “Address Family”: IPv4, “Name”: switch, “Gateway”: 10.0.123.253 → Click "Save"→ Under "Default Gateway" - "Default gateway IPv4" choose WAN_DHCP → Click "Save"

      Note that the IP addresses from the Trusted LAN network under "Gateway" and "Monitor IP" are blurred.


Provision Master VMs Using MaaS

No change from the Baseline RDG (Section "Deployment and Configuration", Subsection "Provision Master VMs Using MaaS").

K8s Cluster Deployment and Configuration

The procedures for initial Kubernetes cluster deployment using Kubespray for the master nodes, and subsequent verification, remain unchanged from the Baseline RDG (Section "K8s Cluster Deployment and Configuration", Subsections: "Kubespray Deployment and Configuration", "Deploying Cluster Using Kubespray Ansible Playbook","K8s Deployment Verification".

DPF Installation

The DPF installation process (Operator, System components) largely follows the Baseline RDG.

Software Prerequisites and Required Variables

  1. Start by installing the remaining software perquisites.

    Jump Node Console

    ## Connect to master1 to copy helm client utility that was installed during kubespray deployment
    $ depuser@jump:~$ ssh master1
    depuser@master1:~$ cp /usr/local/bin/helm /tmp/

    ## In another tab
    depuser@jump:~$ scp master1:/tmp/helm /tmp/
    depuser@jump:~$ sudo chown root:root /tmp/helm
    depuser@jump:~$ sudo mv /tmp/helm /usr/local/bin/

    ## Verify that envsubst utility is installed
    depuser@jump:~$ which envsubst
    /usr/bin/envsubst

  2. Proceed to clone the doca-platform Git repository:

    Jump Node Console

    $ git clone https://github.com/NVIDIA/doca-platform.git

  3. Change directory to doca-platform and checkout to tag v25.10.0

    Jump Node Console

    $ cd doca-platform/
    $ git checkout v25.10.0

  4. Change directory to readme.md from where all the commands will be run:

    Jump Node Console

    $ cd doca-platform/docs/public/user-guides/zero-trust/use-cases/hbn

  5. Change the BMC root's password.
    In Zero Trust mode, provisioning DPUs requires authentication with Redfish.
    In order to do that, you must set the same root password to access the BMC for all DPUs DPF is going to manage.For more information on how to set the BMC root password refer to BlueField DPU Administrator Quick Start Guide

    Connect to the DPU BMC over SSH to change the BMC root's password on all DPUs.

    Jump Node Console

    $ ssh root@10.0.110.201
    root@10.0.110.201's password: <BMC Root Password. Default root/0penBmc. need to change first time to $BMC_ROOT_PASSWORD in the manifests/00-env-vars/envvars.env file>

  6. Modify the variables in manifests/00-env-vars/envvars.env to fit your environment, then source the file:

    Replace the values for the variables in the following file with the values that fit your setup. Specifically, pay attention to DPUCLUSTER_INTERFACE, and BMC_ROOT_PASSWORD.

    manifests/00-env-vars/envvars.env

    Bash
    ## IP Address for the Kubernetes API server of the target cluster on which DPF is installed.
    ## This should never include a scheme or a port.
    ## e.g. 10.10.10.10
    export TARGETCLUSTER_API_SERVER_HOST=10.0.110.10

    ## Virtual IP used by the load balancer for the DPU Cluster. Must be a reserved IP from the management subnet and not
    ## allocated by DHCP.
    export DPUCLUSTER_VIP=10.0.110.200

    ## Interface on which the DPUCluster load balancer will listen. Should be the management interface of the control plane node.
    export DPUCLUSTER_INTERFACE=ens160

    ## IP address to the NFS server used as storage for the BFB.
    export NFS_SERVER_IP=10.0.110.253

    ## The DPF REGISTRY is the Helm repository URL where the DPF Operator Chart resides.
    ## Usually this is the NVIDIA Helm NGC registry. For development purposes, this can be set to a different repository.
    export REGISTRY=https://helm.ngc.nvidia.com/nvidia/doca

    ## The repository URL for the NVIDIA Helm chart registry.
    ## Usually this is the NVIDIA Helm NGC registry. For development purposes, this can be set to a different repository.
    export HELM_REGISTRY_REPO_URL=https://helm.ngc.nvidia.com/nvidia/doca

    ## IP_RANGE_START and IP_RANGE_END
    ## These define the IP range for DPU discovery via Redfish/BMC interfaces
    ## Example: If your DPUs have BMC IPs in range 10.0.110.201-240
    ## export IP_RANGE_START=10.0.110.201
    ## export IP_RANGE_END=10.0.110.224

    ## Start of DPUDiscovery IpRange
    export IP_RANGE_START=10.0.110.201

    ## End of DPUDiscovery IpRange
    export IP_RANGE_END=10.0.110.204

    # The password used for DPU BMC root login, must be the same for all DPUs
    # For more information on how to set the BMC root password refer to BlueField DPU Administrator Quick Start Guide.
    export BMC_ROOT_PASSWORD=<set your BMC_ROOT_PASSWORD>

    ## IP Address through which ovn-central service (exposed as NodePort)
    ## is accessible. This can be a VIP or one of the control-plane node IP
    ## in the host k8s cluster.
    ## This should never include a scheme or a port.
    ## e.g. 10.10.10.10
    export TARGETCLUSTER_OVN_CENTRAL_IP=${TARGETCLUSTER_API_SERVER_HOST}

    ## IP address range for VTEPs used by VPC OVN Service on the high speed fabric.
    ## This is a CIDR in the form e.g. 20.20.0.0/16
    export VTEP_CIDR=20.20.0.0/16

    ## The Gateway address of the VTEP subnet
    ## This is an IP in the form e.g. 20.20.0.1
    export VTEP_GATEWAY=20.20.0.1

    ## IP address range for external network used by VPC OVN Service on the high speed fabric.
    ## This is a CIDR in the form e.g. 30.30.0.0/16
    export EXTERNAL_CIDR=30.30.0.0/16

    ## The Gateway address of the external subnet
    ## This is an IP in the form e.g. 30.30.0.1
    export EXTERNAL_GATEWAY=30.30.0.1

    ## The DPF TAG is the version of the DPF components which will be deployed in this guide.
    export TAG=v25.10.0

    ## URL to the BFB used in the `bfb.yaml` and linked by the DPUSet.
    export BFB_URL="https://content.mellanox.com/BlueField/BFBs/Ubuntu24.04/bf-bundle-3.2.1-34_25.11_ubuntu-24.04_64k_prod.bfb"

  7. Export environment variables for the installation:

    Jump Node Console

    $ source manifests/00-env-vars/envvars.env


DPF Operator Installation

No change from the Baseline RDG (Section "DPF Installation", Subsection "DPF Operator Installation").

DPF System Installation

No change from the Baseline RDG (Section "DPF Installation", Subsection "DPF System Installation").

DPU Service Installation

This section focuses on provisioning NVIDIA® BlueField®-3 DPUs using DPF and installing the VPC OVN and Argus DPU Services on those DPUs.

The DOCA VPC OVN Service provides accelerated VPC networking functionality for the DPF. Built on top of OVN, this service enables network isolation, virtualization, and advanced SDN capabilities directly on NVIDIA DPUs.

Before deploying the objects under doca-platform/docs/public/zero-trust/use-cases/vpc/ directory, a few adjustments are required.


  1. Change directory to readme.md from where all the commands will be run:

    Jump Node Console

    $ cd doca-platform/docs/public/user-guides/zero-trust/use-cases/vpc/

  2. Use the following YAML to define a BFB resource that downloads the Bluefield Bitstream to a shared volume:

    ---
    apiVersion: provisioning.dpu.nvidia.com/v1alpha1
    kind: BFB
    metadata:
      name: bf-bundle-$TAG
      namespace: dpf-operator-system
    spec:
      url: $BFB_URL

  3. Run the command to create the BFB:

    Jump Node Console

    $ cat manifests/03-bfb-and-flavor/bfb.yaml | envsubst |kubectl apply -f -

  4. Change a DPUFlavor using the following YAML.

    ---
    apiVersion: provisioning.dpu.nvidia.com/v1alpha1
    kind: DPUFlavor
    metadata:
      name: vpc-flavor-$TAG
      namespace: dpf-operator-system
    spec:
      dpuMode: zero-trust
      bfcfgParameters:
      - UPDATE_ATF_UEFI=yes
      - UPDATE_DPU_OS=yes
      - WITH_NIC_FW_UPDATE=yes
      configFiles:
      - operation: override
        path: /etc/mellanox/mlnx-bf.conf
        permissions: "0644"
        raw: |
          ALLOW_SHARED_RQ="no"
          IPSEC_FULL_OFFLOAD="no"
          ENABLE_ESWITCH_MULTIPORT="yes"
      - operation: override
        path: /etc/mellanox/mlnx-ovs.conf
        permissions: "0644"
        raw: |
          CREATE_OVS_BRIDGES="no"
          OVS_DOCA="yes"
      - operation: override
        path: /etc/mellanox/mlnx-sf.conf
        permissions: "0644"
        raw: ""
      grub:
        kernelParameters:
        - console=hvc0
        - console=ttyAMA0
        - earlycon=pl011,0x13010000
        - fixrttc
        - net.ifnames=0
        - biosdevname=0
        - iommu.passthrough=1
        - cgroup_no_v1=net_prio,net_cls
        - hugepagesz=2048kB
        - hugepages=3072
      nvconfig:
      - device: '*'
        parameters:
        - PF_BAR2_ENABLE=0
        - PER_PF_NUM_SF=1
        - PF_TOTAL_SF=20
        - PF_SF_BAR_SIZE=10
        - NUM_PF_MSIX_VALID=0
        - PF_NUM_PF_MSIX_VALID=1
        - PF_NUM_PF_MSIX=228
        - INTERNAL_CPU_MODEL=1
        - INTERNAL_CPU_OFFLOAD_ENGINE=0
        - SRIOV_EN=1
        - NUM_OF_VFS=46
        - LAG_RESOURCE_ALLOCATION=1
        - LINK_TYPE_P1=ETH
        - LINK_TYPE_P2=ETH
        - EXP_ROM_UEFI_x86_ENABLE=1
      ovs:
        rawConfigScript: |
          _ovs-vsctl() {
            ovs-vsctl --no-wait --timeout 15 "$@"
          }

          _ovs-vsctl set Open_vSwitch . other_config:doca-init=true
          _ovs-vsctl set Open_vSwitch . other_config:dpdk-max-memzones=50000
          _ovs-vsctl set Open_vSwitch . other_config:hw-offload=true
          _ovs-vsctl set Open_vSwitch . other_config:pmd-quiet-idle=true
          _ovs-vsctl set Open_vSwitch . other_config:max-idle=20000
          _ovs-vsctl set Open_vSwitch . other_config:max-revalidator=5000
          _ovs-vsctl --if-exists del-br ovsbr1
          _ovs-vsctl --if-exists del-br ovsbr2
          _ovs-vsctl --may-exist add-br br-sfc
          _ovs-vsctl set bridge br-sfc datapath_type=netdev
          _ovs-vsctl set bridge br-sfc fail_mode=secure
          _ovs-vsctl --may-exist add-port br-sfc p0
          _ovs-vsctl set Interface p0 type=dpdk
          _ovs-vsctl set Interface p0 mtu_request=9216
          _ovs-vsctl set Port p0 external_ids:dpf-type=physical

  5. Apply all of the YAML files mentioned above using the following command:

    Jump Node Console

    $ cat manifests/03-bfb-and-flavor/dpuflavor.yaml | envsubst | kubectl apply -f -

  6. Change the dpudeployment.yaml file to reference the DPUFlavor.

    ---
    apiVersion: svc.dpu.nvidia.com/v1alpha1
    kind: DPUDeployment
    metadata:
      name: vpc-ovn
      namespace: dpf-operator-system
    spec:
      dpus:
        bfb: bf-bundle-$TAG
        flavor: vpc-flavor-$TAG
        nodeEffect:
          hold: true
        dpuSets:
        - nameSuffix: "dpuset1"
          nodeSelector:
            matchLabels:
              feature.node.kubernetes.io/dpu-enabled: "true"
      services:
        ovn-central:
          serviceTemplate: ovn-central
          serviceConfiguration: ovn-central
        ovn-controller:
          serviceTemplate: ovn-controller
          serviceConfiguration: ovn-controller
        vpc-ovn-controller:
          serviceTemplate: vpc-ovn-controller
          serviceConfiguration: vpc-ovn-controller
        vpc-ovn-node:
          serviceTemplate: vpc-ovn-node
          serviceConfiguration: vpc-ovn-node
      serviceChains:
        switches:
          - ports:
            - serviceInterface:
                matchLabels:
                  ovn.vpc.dpu.nvidia.com/interface: p0
            - serviceInterface:
                matchLabels:
                  ovn.vpc.dpu.nvidia.com/interface: ovn-vtep-patch
            - serviceInterface:
                matchLabels:
                  ovn.vpc.dpu.nvidia.com/interface: ovn-ext-patch


    Please notice that with default nodeEffect above, DPU provisioning workflow will be paused and wait for an external signal (annotation) in order to proceed, as demonstrated in upcoming steps.
    To implement a fully automated process that won’t require user intervention, see customAction option.

  7. The VPC OVN service consists of the following components:

    1. ovn-central: Deployed in the target cluster (runs northd, sb_db, nb_db)

    2. ovn-controller: Deployed in the DPU cluster

    3. vpc-ovn-controller: VPC controller in the target cluster

    4. vpc-ovn-node: VPC node agent in the DPU cluster

      ---
      apiVersion: svc.dpu.nvidia.com/v1alpha1
      kind: DPUServiceConfiguration
      metadata:
        name: ovn-central
        namespace: dpf-operator-system
      spec:
        deploymentServiceName: ovn-central
        upgradePolicy:
          applyNodeEffect: false
        serviceConfiguration:
          deployInCluster: true
          helmChart:
            values:
              exposedPorts:
                ports:
                  ovnnb: true
                  ovnsb: true
              management:
                ovnCentral:
                  enabled: true
                  affinity:
                    nodeAffinity:
                      requiredDuringSchedulingIgnoredDuringExecution:
                        nodeSelectorTerms:
                          - matchExpressions:
                              - key: "node-role.kubernetes.io/master"
                                operator: Exists
                          - matchExpressions:
                              - key: "node-role.kubernetes.io/control-plane"
                                operator: Exists
                  tolerations:
                    - key: node-role.kubernetes.io/master
                      operator: Exists
                      effect: NoSchedule
                    - key: node-role.kubernetes.io/control-plane
                      operator: Exists
                      effect: NoSchedule

      ---
      apiVersion: svc.dpu.nvidia.com/v1alpha1
      kind: DPUServiceConfiguration
      metadata:
        name: ovn-controller
        namespace: dpf-operator-system
      spec:
        deploymentServiceName: ovn-controller
        upgradePolicy:
          applyNodeEffect: false
        serviceConfiguration:
          helmChart:
            values:
              dpu:
                ovnController:
                  enabled: true

       ---
      apiVersion: svc.dpu.nvidia.com/v1alpha1
      kind: DPUServiceConfiguration
      metadata:
        name: vpc-ovn-controller
        namespace: dpf-operator-system
      spec:
        deploymentServiceName: vpc-ovn-controller
        upgradePolicy:
          applyNodeEffect: false
        serviceConfiguration:
          deployInCluster: true
          helmChart:
            values:
              host:
                vpcOVNController:
                  enabled: true
                  affinity:
                    nodeAffinity:
                      requiredDuringSchedulingIgnoredDuringExecution:
                        nodeSelectorTerms:
                        - matchExpressions:
                          - key: "node-role.kubernetes.io/master"
                            operator: Exists
                        - matchExpressions:
                          - key: "node-role.kubernetes.io/control-plane"
                            operator: Exists

      ---
      apiVersion: svc.dpu.nvidia.com/v1alpha1
      kind: DPUServiceConfiguration
      metadata:
        name: vpc-ovn-node
        namespace: dpf-operator-system
      spec:
        deploymentServiceName: vpc-ovn-node
        upgradePolicy:
          applyNodeEffect: false
        serviceConfiguration:
          helmChart:
            values:
              dpu:
                vpcOVNNode:
                  enabled: true
                  initContainers:
                    vpcOVNDpuProvisioner:
                      env:
                        ovnSbEndpoint: "tcp:$TARGETCLUSTER_OVN_CENTRAL_IP:30642"
                  ipRequests:
                    - name: "vtep"
                      poolName: "vpc-ippool-vtep"
                      allocateIPWithIndex: 1
                    - name: "gateway"
                      poolName: "vpc-ippool-gateway"
                      allocateIPWithIndex: 1

       ---
      apiVersion: svc.dpu.nvidia.com/v1alpha1
      kind: DPUServiceTemplate
      metadata:
        name: ovn-central
        namespace: dpf-operator-system
      spec:
        deploymentServiceName: ovn-central
        helmChart:
          source:
            repoURL: $HELM_REGISTRY_REPO_URL
            version: $TAG
            chart: ovn-chart

       ---
      apiVersion: svc.dpu.nvidia.com/v1alpha1
      kind: DPUServiceTemplate
      metadata:
        name: ovn-controller
        namespace: dpf-operator-system
      spec:
        deploymentServiceName: ovn-controller
        helmChart:
          source:
            repoURL: $HELM_REGISTRY_REPO_URL
            version: $TAG
            chart: ovn-chart

       ---
      apiVersion: svc.dpu.nvidia.com/v1alpha1
      kind: DPUServiceTemplate
      metadata:
        name: vpc-ovn-controller
        namespace: dpf-operator-system
      spec:
        deploymentServiceName: vpc-ovn-controller
        helmChart:
          source:
            repoURL: $HELM_REGISTRY_REPO_URL
            version: $TAG
            chart: dpf-vpc-ovn

       ---
      apiVersion: svc.dpu.nvidia.com/v1alpha1
      kind: DPUServiceTemplate
      metadata:
        name: vpc-ovn-node
        namespace: dpf-operator-system
      spec:
        deploymentServiceName: vpc-ovn-node
        helmChart:
          source:
            repoURL: $HELM_REGISTRY_REPO_URL
            version: $TAG
            chart: dpf-vpc-ovn

       ---
      apiVersion: svc.dpu.nvidia.com/v1alpha1
      kind: DPUServiceIPAM
      metadata:
        name: vpc-ippool-vtep
        namespace: dpf-operator-system
      spec:
        metadata:
          labels:
            ovn.vpc.dpu.nvidia.com/pool: vpc-ippool-vtep
        ipv4Subnet:
          subnet: $VTEP_CIDR
          gateway: $VTEP_GATEWAY
          perNodeIPCount: 4
      ---
      apiVersion: svc.dpu.nvidia.com/v1alpha1
      kind: DPUServiceIPAM
      metadata:
        name: vpc-ippool-gateway
        namespace: dpf-operator-system
      spec:
        metadata:
          labels:
            ovn.vpc.dpu.nvidia.com/pool: vpc-ippool-gateway
        ipv4Subnet:
          subnet: $EXTERNAL_CIDR
          gateway: $EXTERNAL_GATEWAY
          perNodeIPCount: 4

       ---
      apiVersion: "svc.dpu.nvidia.com/v1alpha1"
      kind: DPUServiceInterface
      metadata:
        name: p0
        namespace: dpf-operator-system
      spec:
        template:
          spec:
            template:
              metadata:
                labels:
                  ovn.vpc.dpu.nvidia.com/interface: "p0"
              spec:
                interfaceType: physical
                physical:
                  interfaceName: p0
      ---
      apiVersion: "svc.dpu.nvidia.com/v1alpha1"
      kind: DPUServiceInterface
      metadata:
        name: ovn-vtep-patch
        namespace: dpf-operator-system
      spec:
        template:
          spec:
            template:
              metadata:
                labels:
                  ovn.vpc.dpu.nvidia.com/interface: "ovn-vtep-patch"
              spec:
                interfaceType: ovn
                ovn:
                  externalBridge: br-ovn-vtep
      ---
      apiVersion: "svc.dpu.nvidia.com/v1alpha1"
      kind: DPUServiceInterface
      metadata:
        name: ovn-ext-patch
        namespace: dpf-operator-system
      spec:
        template:
          spec:
            template:
              metadata:
                labels:
                  ovn.vpc.dpu.nvidia.com/interface: "ovn-ext-patch"
              spec:
                interfaceType: ovn
                ovn:
                  externalBridge: br-ovn-ext



  1. Apply all of the YAML files mentioned above using the following command:

    Jump Node Console

    $ cat manifests/04-vpc-ovn-dpudeployment/* | envsubst | kubectl apply -f -

  2.  Verify the DPUService installation by ensuring that:

    Notes

    These verification commands may need to be run multiple times to ensure the conditions are met.

    Jump Node Console

    $ kubectl wait --for=condition=ApplicationsReconciled --namespace dpf-operator-system dpuservices --all
    dpuservice.svc.dpu.nvidia.com/cni-installer condition met
    dpuservice.svc.dpu.nvidia.com/flannel condition met
    dpuservice.svc.dpu.nvidia.com/multus condition met
    dpuservice.svc.dpu.nvidia.com/nvidia-k8s-ipam condition met
    dpuservice.svc.dpu.nvidia.com/ovn-central-q2t74 condition met
    dpuservice.svc.dpu.nvidia.com/ovn-controller-fppzd condition met
    dpuservice.svc.dpu.nvidia.com/ovs-cni condition met
    dpuservice.svc.dpu.nvidia.com/servicechainset-controller condition met
    dpuservice.svc.dpu.nvidia.com/servicechainset-rbac-and-crds condition met
    dpuservice.svc.dpu.nvidia.com/sfc-controller condition met
    dpuservice.svc.dpu.nvidia.com/sriov-device-plugin condition met
    dpuservice.svc.dpu.nvidia.com/vpc-ovn-controller-mxssq condition met
    dpuservice.svc.dpu.nvidia.com/vpc-ovn-node-zqm9n condition met

    $ kubectl wait --for=condition=DPUIPAMObjectReconciled --namespace dpf-operator-system dpuserviceipam --all
    dpuserviceipam.svc.dpu.nvidia.com/vpc-ippool-gateway condition met
    dpuserviceipam.svc.dpu.nvidia.com/vpc-ippool-vtep condition met

    $ kubectl wait --for=condition=ServiceInterfaceSetReconciled --namespace dpf-operator-system dpuserviceinterface --all
    dpuserviceinterface.svc.dpu.nvidia.com/ovn-ext-patch condition met
    dpuserviceinterface.svc.dpu.nvidia.com/p0 condition met

    $ kubectl wait --for=condition=ServiceChainSetReconciled --namespace dpf-operator-system dpuservicechain --all
    dpuservicechain.svc.dpu.nvidia.com/vpc-ovn-b2qsp condition met


  3. To follow the progress of DPU provisioning, run the following command to check its current phase:

    Jump Node Console

    $ watch -n10 "kubectl describe dpu -n dpf-operator-system | grep 'Node Name\|Type\|Last\|Phase'"




  4. Wait for the NodeEffect stage (at this point the provisioning is paused, waintig for external signal).
    Run following command on all/specific DPU nodemaintanace object/s to proceed with provisioning:

    Jump Node Console

    $ kubectl annotate dpunodemaintenances -n dpf-operator-system --all provisioning.dpu.nvidia.com/wait-for-external-nodeeffect=false --overwrite

  5. To follow the progress of DPU provisioning, run the following command to check its current phase:

    Jump Node Console

    $ watch -n10 "kubectl describe dpu -n dpf-operator-system | grep 'Node Name\|Type\|Last\|Phase'"
    Every 10.0s: kubectl describe dpu -n dpf-operator-system | grep 'Node Name\|Type\|Last\|Phase'                                                                           setup5-jump: Wed Dec 31 10:58:00 2025

      Dpu Node Name:                                                    dpu-node-mt2402xz0f7x
        Last Transition Time:  2025-12-31T08:42:35Z
        Type:                  BFBPrepared
        Last Transition Time:  2025-12-31T08:42:31Z
        Type:                  BFBReady
        Last Transition Time:  2025-12-31T08:47:12Z
        Type:                  BFBTransferred
        Last Transition Time:  2025-12-31T08:42:34Z
        Type:                  FWConfigured
        Last Transition Time:  2025-12-31T08:42:31Z
        Type:                  Initialized
        Last Transition Time:  2025-12-31T08:42:32Z
        Type:                  InterfaceInitialized
        Last Transition Time:  2025-12-31T08:42:31Z
        Type:                  NodeEffectReady
        Last Transition Time:  2025-12-31T08:53:59Z
        Reason:                OemLastState
        Type:                  OSInstalled
        Last Transition Time:  2025-12-31T08:57:02Z
        Type:                  Rebooted
      Phase:                Rebooting
      Dpu Node Name:                                                    dpu-node-mt2402xz0f80
        Last Transition Time:  2025-12-31T08:42:35Z
        Type:                  BFBPrepared
        Last Transition Time:  2025-12-31T08:42:31Z
        Type:                  BFBReady
        Last Transition Time:  2025-12-31T08:47:14Z
        Type:                  BFBTransferred
        Last Transition Time:  2025-12-31T08:42:34Z
        Type:                  FWConfigured
        Last Transition Time:  2025-12-31T08:42:31Z
        Type:                  Initialized
        Last Transition Time:  2025-12-31T08:42:33Z
        Type:                  InterfaceInitialized
        Last Transition Time:  2025-12-31T08:42:31Z
        Type:                  NodeEffectReady
        Last Transition Time:  2025-12-31T08:54:19Z
        Reason:                OemLastState
        Type:                  OSInstalled
        Last Transition Time:  2025-12-31T08:57:21Z
        Type:                  Rebooted
      Phase:                Rebooting
    ...

  6. Wait for the Rebooted stage and then Power Cycle the bare-metal host manual.

    After the DPU is up, run following command for each DPU worker:

    Jump Node Console

    $ kubectl -n dpf-operator-system annotate dpunode --all provisioning.dpu.nvidia.com/dpunode-external-reboot-required-

  7. At this point, the DPU workers should be added to the cluster. As they being added to the cluster, the DPUs are provisioned.

    Jump Node Console

    $ watch -n10 "kubectl describe dpu -n dpf-operator-system | grep 'Node Name\|Type\|Last\|Phase'"
    Every 10.0s: kubectl describe dpu -n dpf-operator-system | grep 'Node Name\|Type\|Last\|Phase'                                                                           setup5-jump: Wed Dec 31 11:05:08 2025

      Dpu Node Name:                                                    dpu-node-mt2402xz0f7x
        Type:       InternalIP
        Type:       Hostname
        Last Transition Time:  2025-12-31T09:04:40Z
        Type:                  Ready
        Last Transition Time:  2025-12-31T08:42:35Z
        Type:                  BFBPrepared
        Last Transition Time:  2025-12-31T08:42:31Z
        Type:                  BFBReady
        Last Transition Time:  2025-12-31T08:47:12Z
        Type:                  BFBTransferred
        Last Transition Time:  2025-12-31T09:04:40Z
        Type:                  DPUClusterReady
        Last Transition Time:  2025-12-31T08:42:34Z
        Type:                  FWConfigured
        Last Transition Time:  2025-12-31T08:42:31Z
        Type:                  Initialized
        Last Transition Time:  2025-12-31T08:42:32Z
        Type:                  InterfaceInitialized
        Last Transition Time:  2025-12-31T08:42:31Z
        Type:                  NodeEffectReady
        Last Transition Time:  2025-12-31T09:04:40Z
        Type:                  NodeEffectRemoved
        Last Transition Time:  2025-12-31T08:53:59Z
        Reason:                OemLastState
        Type:                  OSInstalled
        Last Transition Time:  2025-12-31T09:04:40Z
        Type:                  Rebooted
      Phase:                Ready
      Dpu Node Name:                                                    dpu-node-mt2402xz0f80
        Type:       InternalIP
        Type:       Hostname
        Last Transition Time:  2025-12-31T09:04:40Z
        Type:                  Ready
        Last Transition Time:  2025-12-31T08:42:35Z
        Type:                  BFBPrepared
        Last Transition Time:  2025-12-31T08:42:31Z
        Type:                  BFBReady
        Last Transition Time:  2025-12-31T08:47:14Z
        Type:                  BFBTransferred
        Last Transition Time:  2025-12-31T09:04:40Z
        Type:                  DPUClusterReady
        Last Transition Time:  2025-12-31T08:42:34Z
        Type:                  FWConfigured
        Last Transition Time:  2025-12-31T08:42:31Z
        Type:                  Initialized
        Last Transition Time:  2025-12-31T08:42:33Z
        Type:                  InterfaceInitialized
        Last Transition Time:  2025-12-31T08:42:31Z
        Type:                  NodeEffectReady
        Last Transition Time:  2025-12-31T09:04:40Z
        Type:                  NodeEffectRemoved
        Last Transition Time:  2025-12-31T08:54:19Z
        Reason:                OemLastState
        Type:                  OSInstalled
        Last Transition Time:  2025-12-31T09:04:40Z
        Type:                  Rebooted
      Phase:                Ready
    ...

  8. Finally, validate that all the different DPU-related objects are now in the Ready state:

    Jump Node Console

    $ echo 'alias dpfctl="kubectl -n dpf-operator-system exec deploy/dpf-operator-controller-manager -- /dpfctl "' >> ~/.bashrc

    $ dpfctl describe dpudeployments
    NAME                                             NAMESPACE            STATUS       REASON    SINCE  MESSAGE
    DPFOperatorConfig/dpfoperatorconfig              dpf-operator-system  Ready: True  Success   40s
    └─DPUDeployments
      └─DPUDeployment/vpc-ovn                        dpf-operator-system  Ready: True  Success   13s
        ├─DPUServiceChains
        │ └─DPUServiceChain/vpc-ovn-b2qsp            dpf-operator-system  Ready: True  Success   88s
        ├─DPUSets
        │ └─DPUSet/vpc-ovn-dpuset1                   dpf-operator-system  Ready: True  Success   110s
        │   ├─BFB/bf-bundle-v25.10.0                 dpf-operator-system  Ready: True  Ready     36m    File: bf-bundle-3.2.1-34_25.11_ubuntu-24.04_64k_prod.bfb, DOCA: 3.2.1
        │   ├─DPUNodes
        │   │ └─4 DPUNodes...                        dpf-operator-system  Ready: True  Ready     110s   See dpu-node-mt2402xz0f7x, dpu-node-mt2402xz0f80, dpu-node-mt2402xz0f8g, dpu-node-mt2402xz0f9n
        │   └─DPUs
        │     └─4 DPUs...                            dpf-operator-system  Ready: True  DPUReady  110s   See dpu-node-mt2402xz0f7x-mt2402xz0f7x, dpu-node-mt2402xz0f80-mt2402xz0f80,
        │                                                                                               dpu-node-mt2402xz0f8g-mt2402xz0f8g, dpu-node-mt2402xz0f9n-mt2402xz0f9n
        └─Services
          ├─DPUServiceTemplates
          │ ├─DPUServiceTemplate/ovn-central         dpf-operator-system  Ready: True  Success   24m
          │ ├─DPUServiceTemplate/ovn-controller      dpf-operator-system  Ready: True  Success   24m
          │ ├─DPUServiceTemplate/vpc-ovn-controller  dpf-operator-system  Ready: True  Success   24m
          │ └─DPUServiceTemplate/vpc-ovn-node        dpf-operator-system  Ready: True  Success   24m
          └─DPUServices
            └─4 DPUServices...                       dpf-operator-system  Ready: True  Success   23m    See ovn-central-q2t74, ovn-controller-fppzd, vpc-ovn-controller-mxssq, vpc-ovn-node-zqm9n


    $ echo "alias ki='KUBECONFIG=/home/depuser/dpu-cluster.config kubectl'" >> ~/.bashrc
    $ kubectl get secrets -n dpu-cplane-tenant1 dpu-cplane-tenant1-admin-kubeconfig -o json | jq -r '.data["admin.conf"]' | base64 --decode > /home/depuser/dpu-cluster.config
    $ ki get node -A
    NAME                                 STATUS   ROLES    AGE     VERSION
    dpu-node-mt2402xz0f7x-mt2402xz0f7x   Ready    <none>   3m33s   v1.34.3
    dpu-node-mt2402xz0f80-mt2402xz0f80   Ready    <none>   2m51s   v1.34.3
    dpu-node-mt2402xz0f8g-mt2402xz0f8g   Ready    <none>   2m51s   v1.34.3
    dpu-node-mt2402xz0f9n-mt2402xz0f9n   Ready    <none>   3m24s   v1.34.3

    $ kubectl get dpu -A
    NAMESPACE             NAME                                 READY   PHASE   AGE
    dpf-operator-system   dpu-node-mt2402xz0f7x-mt2402xz0f7x   True    Ready   24m
    dpf-operator-system   dpu-node-mt2402xz0f80-mt2402xz0f80   True    Ready   24m
    dpf-operator-system   dpu-node-mt2402xz0f8g-mt2402xz0f8g   True    Ready   24m
    dpf-operator-system   dpu-node-mt2402xz0f9n-mt2402xz0f9n   True    Ready   24m

    $ kubectl wait --for=condition=ready --namespace dpf-operator-system dpu --all
    dpu.provisioning.dpu.nvidia.com/dpu-node-mt2402xz0f7x-mt2402xz0f7x condition met
    dpu.provisioning.dpu.nvidia.com/dpu-node-mt2402xz0f80-mt2402xz0f80 condition met
    dpu.provisioning.dpu.nvidia.com/dpu-node-mt2402xz0f8g-mt2402xz0f8g condition met
    dpu.provisioning.dpu.nvidia.com/dpu-node-mt2402xz0f9n-mt2402xz0f9n condition met


Deploy IsolationClass

In this step, you will deploy the IsolationClass resource, which will be used by subsequent user-created DPUVPC and DPUVirtualNetwork resources.

  1. Validate the manifests/05-vpc-resources/ovn-isolation-class.yaml file.

    ---
    apiVersion: vpc.dpu.nvidia.com/v1alpha1
    kind: IsolationClass
    metadata:
      name: ovn.vpc.dpu.nvidia.com
    spec:
      provisioner: ovn.vpc.dpu.nvidia.com
      parameters:
        ovn-nb-endpoint: "tcp:$TARGETCLUSTER_OVN_CENTRAL_IP:30641"
        ovn-sb-endpoint: "tcp:$TARGETCLUSTER_OVN_CENTRAL_IP:30642"
        ovn-nb-reconnect-time: "5"

  2. Deploy IsolationClass

    Jump Node Console

    cat manifests/05-vpc-resources/* | envsubst | kubectl apply -f -


Deploy test topology

In our deployment we are going to create dual VPC environment (blue and red).

  1. Add blue and red labels to relevant DPU Nodes. Set the values according to your environment.

    Jump Node Console

    $ ki label node dpu-node-mt2402xz0f7x-mt2402xz0f7x dpu-node-mt2402xz0f80-mt2402xz0f80 vpc.dpu.nvidia.com/tenant=red
    node/dpu-node-mt2402xz0f7x-mt2402xz0f7x labeled
    node/dpu-node-mt2402xz0f80-mt2402xz0f80 labeled

    $ ki label node dpu-node-mt2402xz0f8g-mt2402xz0f8g dpu-node-mt2402xz0f9n-mt2402xz0f9n vpc.dpu.nvidia.com/tenant=blue
    node/dpu-node-mt2402xz0f8g-mt2402xz0f8g labeled
    node/dpu-node-mt2402xz0f9n-mt2402xz0f9n labeled

  2. Create the manifests/06-optional-test-traffic/vpc-topology-dual-vpc.yaml to following configuration:

    ---
    apiVersion: v1
    kind: Namespace
    metadata:
      name: blue
    ---
    apiVersion: v1
    kind: Namespace
    metadata:
      name: red
    ---
    apiVersion: vpc.dpu.nvidia.com/v1alpha1
    kind: DPUVPC
    metadata:
      name: blue-vpc
      namespace: blue
    spec:
      tenant: blue
      isolationClassName: ovn.vpc.dpu.nvidia.com
      interNetworkAccess: true
      nodeSelector:
        matchLabels:
          vpc.dpu.nvidia.com/tenant: blue
    ---
    apiVersion: vpc.dpu.nvidia.com/v1alpha1
    kind: DPUVirtualNetwork
    metadata:
      name: blue-net
      namespace: blue
    spec:
      vpcName: blue-vpc
      type: Bridged
      externallyRouted: true
      masquerade: true
      bridgedNetwork:
        ipam:
          ipv4:
            dhcp: true
            subnet: 192.178.0.0/16
    ---
    apiVersion: svc.dpu.nvidia.com/v1alpha1
    kind: DPUServiceInterface
    metadata:
      name: blue-vf2
      namespace: blue
    spec:
      template:
        spec:
          nodeSelector:
            matchLabels:
              vpc.dpu.nvidia.com/tenant: blue
          template:
            spec:
              interfaceType: vf
              vf:
                pfID: 0
                vfID: 2
                virtualNetwork: blue-net
                parentInterfaceRef: ""
    ---
    apiVersion: vpc.dpu.nvidia.com/v1alpha1
    kind: DPUVPC
    metadata:
      name: red-vpc
      namespace: red
    spec:
      tenant: red
      isolationClassName: ovn.vpc.dpu.nvidia.com
      interNetworkAccess: true
      nodeSelector:
        matchLabels:
          vpc.dpu.nvidia.com/tenant: red
    ---
    apiVersion: vpc.dpu.nvidia.com/v1alpha1
    kind: DPUVirtualNetwork
    metadata:
      name: red-net
      namespace: red
    spec:
      vpcName: red-vpc
      type: Bridged
      externallyRouted: true
      masquerade: true
      bridgedNetwork:
        ipam:
          ipv4:
            dhcp: true
            subnet: 192.178.0.0/16
    ---
    apiVersion: svc.dpu.nvidia.com/v1alpha1
    kind: DPUServiceInterface
    metadata:
      name: red-vf2
      namespace: red
    spec:
      template:
        spec:
          nodeSelector:
            matchLabels:
              vpc.dpu.nvidia.com/tenant: red
          template:
            spec:
              interfaceType: vf
              vf:
                pfID: 0
                vfID: 2
                virtualNetwork: red-net
                parentInterfaceRef: ""

  3. Connect to Workload Servers console, set number of VFs:

    First Pod Console

    root@worker1:~# lspci | grep nox
    2b:00.0 Ethernet controller: Mellanox Technologies MT43244 BlueField-3 integrated ConnectX-7 network controller (rev 01)
    2b:00.1 Ethernet controller: Mellanox Technologies MT43244 BlueField-3 integrated ConnectX-7 network controller (rev 01)

    root@worker1:~# echo 8 > /sys/bus/pci/devices/0000\:2b:00.0/sriov_numvfs


    First Pod Console

    root@worker2:~# lspci | grep nox
    2b:00.0 Ethernet controller: Mellanox Technologies MT43244 BlueField-3 integrated ConnectX-7 network controller (rev 01)
    2b:00.1 Ethernet controller: Mellanox Technologies MT43244 BlueField-3 integrated ConnectX-7 network controller (rev 01)

    root@worker2:~# echo 8 > /sys/bus/pci/devices/0000\:2b:00.0/sriov_numvfs


    First Pod Console

    root@worker3:~# lspci | grep nox
    2b:00.0 Ethernet controller: Mellanox Technologies MT43244 BlueField-3 integrated ConnectX-7 network controller (rev 01)
    2b:00.1 Ethernet controller: Mellanox Technologies MT43244 BlueField-3 integrated ConnectX-7 network controller (rev 01)

    root@worker3:~# echo 8 > /sys/bus/pci/devices/0000\:2b:00.0/sriov_numvfs


    First Pod Console

    root@worker4:~# lspci | grep nox
    2b:00.0 Ethernet controller: Mellanox Technologies MT43244 BlueField-3 integrated ConnectX-7 network controller (rev 01)
    2b:00.1 Ethernet controller: Mellanox Technologies MT43244 BlueField-3 integrated ConnectX-7 network controller (rev 01)

    root@worker4:~# echo 8 > /sys/bus/pci/devices/0000\:2b:00.0/sriov_numvfs

  4. Apply the YAML files mentioned above using the following command:

    Jump Node Console

    $ kubectl apply -f manifests/06-optional-test-traffic/vpc-topology-dual-vpc.yaml

  5. Verify:

    Jump Node Console

    $ ki get serviceinterface -A
    NAMESPACE             NAME                 IFTYPE     IFNAME   NODE                                 READY   REASON    AGE
    blue                  blue-vf29xcrl        vf                  dpu-node-mt2402xz0f8g-mt2402xz0f8g   True    Success   7s
    blue                  blue-vf2pvbc8        vf                  dpu-node-mt2402xz0f9n-mt2402xz0f9n   True    Success   7s
    dpf-operator-system   ovn-ext-patchdfhtf   ovn                 dpu-node-mt2402xz0f7x-mt2402xz0f7x   True    Success   19m
    dpf-operator-system   ovn-ext-patchmpg54   ovn                 dpu-node-mt2402xz0f8g-mt2402xz0f8g   True    Success   19m
    dpf-operator-system   ovn-ext-patchpnmxl   ovn                 dpu-node-mt2402xz0f9n-mt2402xz0f9n   True    Success   19m
    dpf-operator-system   ovn-ext-patchz9q9l   ovn                 dpu-node-mt2402xz0f80-mt2402xz0f80   True    Success   19m
    dpf-operator-system   p04g2pt              physical            dpu-node-mt2402xz0f9n-mt2402xz0f9n   True    Success   19m
    dpf-operator-system   p09nzbv              physical            dpu-node-mt2402xz0f80-mt2402xz0f80   True    Success   19m
    dpf-operator-system   p0f8rqq              physical            dpu-node-mt2402xz0f7x-mt2402xz0f7x   True    Success   19m
    dpf-operator-system   p0wdsfs              physical            dpu-node-mt2402xz0f8g-mt2402xz0f8g   True    Success   19m
    red                   red-vf2tnpcd         vf                  dpu-node-mt2402xz0f80-mt2402xz0f80   True    Success   5s
    red                   red-vf2w8prh         vf                  dpu-node-mt2402xz0f7x-mt2402xz0f7x   True    Success   6s

    $ kubectl get dpuvpcs.vpc.dpu.nvidia.com -A
    NAMESPACE   NAME       READY   PHASE     AGE
    blue        blue-vpc   True    Success   40s
    red         red-vpc    True    Success   39s

    $ ki get serviceinterface -A -o yaml -n red
    ...
      status:
        conditions:
        - lastTransitionTime: "2025-12-31T09:33:53Z"
          message: ""
          observedGeneration: 1
          reason: Success
          status: "True"
          type: Ready
        - lastTransitionTime: "2025-12-31T09:33:53Z"
          message: ""
          observedGeneration: 1
          reason: Success
          status: "True"
          type: ServiceInterfaceReconciled
        observedGeneration: 1
    ...

    $ ki get serviceinterface -A -o yaml -n blue
    ...
      status:
        conditions:
        - lastTransitionTime: "2025-12-31T09:33:53Z"
          message: ""
          observedGeneration: 1
          reason: Success
          status: "True"
          type: Ready
        - lastTransitionTime: "2025-12-31T09:33:53Z"
          message: ""
          observedGeneration: 1
          reason: Success
          status: "True"
          type: ServiceInterfaceReconciled
        observedGeneration: 1
    ...



Zero-Trust Mode Checking

Ubuntu 24.04 was installed on the servers.

Here's a step-by-step procedure to check the Zero-Trust Mode on your NVIDIA BlueField DPU from the host server, including the installation of the Mellanox Firmware Tools (MFT).

  1. Navigate to the NVIDIA Downloads Site: Open your web browser and go to the official NVIDIA Mellanox software downloads page.

  2. Select the Latest Version for your OS: image-2025-9-9_12-24-17.png

  3. Transfer and Extract MFT Tools on the Worker 1 BareMetal Host.

    First Pod Console

    root@worker1:~# tar -xvzf /tmp/mft-4.33.0-169-x86_64-deb.tgz

  4. Navigate into the Extracted Directory.

    First Pod Console

    root@worker1:~# cd mft-4.33.0-169-x86_64-deb/

  5. Run following commands.

    First Pod Console

    root@worker1:~# apt-get install gcc make dkms
    root@worker1:~# ./install.sh

  6. Start MST (Mellanox Software Tools) Service and Identify DPU Device Name.

    First Pod Console

    root@worker1:~# mst start

    Starting MST (Mellanox Software Tools) driver set
    Loading MST PCI module - Success
    Loading MST PCI configuration module - Success
    Create devices
    Unloading MST PCI module (unused) - Success

    root@worker1:~# mst status

    MST modules:
    ------------
        MST PCI module is not loaded
        MST PCI configuration module loaded

    MST devices:
    ------------
    /dev/mst/mt41692_pciconf0        - PCI configuration cycles access.
                                       domain:bus:dev.fn=0000:2b:00.0 addr.reg=88 data.reg=92 cr_bar.gw_offset=-1
                                       Chip revision is: 01

  7. Perform Zero-Trust Checking.

    First Pod Console

    root@worker1:~# mlxprivhost -d 2b:00.0 q
    Host configurations
    -------------------
    level                         : RESTRICTED

    Port functions status:
    -----------------------
    disable_rshim                 : TRUE
    disable_tracer                : TRUE
    disable_port_owner            : TRUE
    disable_counter_rd            : TRUE

    #Expected Zero-Trust Output.


    This is the most definitive confirmation. level : RESTRICTED means the host is in Zero-Trust Mode, and the TRUE flags confirm individual security restrictions are active.

  8. Check Firmware Access with mlxfwmanager:

    First Pod Console

    root@worker1:~# mlxfwmanager -d 2b:00.0 --query
    Querying Mellanox devices firmware ...

    Device #1:
    ----------

      Device Type:      BlueField3
      Part Number:      --
      Description:
      PSID:
      PCI Device Name:  2b:00.0
      Base MAC:         N/A
      Versions:         Current        Available
         FW             --

      Status:           Failed to open device      # Expected Zero-Trust Output


    "Failed to open device" indicates the host is blocked from accessing the DPU for firmware operations, a key aspect of Zero-Trust.

  9. Check Device Configuration with mlxconfig:

    First Pod Console

    root@worker1:~# mlxconfig -d 2b:00.0 q

    Device #1:
    ----------

    Device type:        BlueField3
    Name:               900-9D3B6-00CV-A_Ax
    Description:        NVIDIA BlueField-3 B3220 P-Series FHHL DPU; 200GbE (default mode) / NDR200 IB; Dual-port QSFP112; PCIe Gen5.0 x16 with x16 PCIe extension option; 16 Arm cores; 32GB on-board DDR; integrated BMC; Crypto Enabled
    Device:             2b:00.0

    Configurations:                                          Next Boot
    ...
            ALLOW_RD_COUNTERS                           True(1)   # No RO, but restricted by mlxprivhost
    ...
            PORT_OWNER                                  True(1)   # No RO, but restricted by mlxprivhost
    ...
            TRACER_ENABLE                               True(1)   # No RO, but restricted by mlxprivhost


    Most configuration parameters will be prefixed with RO (Read-Only). Parameters related to direct host control, like PORT_OWNER, ALLOW_RD_COUNTERS, TRACER_ENABLE, even if shown as True(1) for the DPU's internal capability, will be unenforcible by the host due to the mlxprivhost restrictions. The widespread RO status shows that the host cannot modify these configurations, reinforcing the DPU's autonomous and secure state. The few parameters without RO are still overridden by the mlxprivhost security policy.

  10. Check Low-Level Hardware Access with ethtool:

    First Pod Console

    root@worker1:~# ethtool -d ens1f0np0
    Cannot get register dump: Operation not supported


     This confirms the DPU is preventing deep, low-level hardware access from the host, aligning with Zero-Trust's isolation goals.

Conclusion

The command outputs of mlxprivhost, mlxfwmanager, mlxconfig (showing RO flags), and ethtool (showing "Operation not supported"), then your NVIDIA BlueField DPU is indeed operating in Zero-Trust Mode.
This means the host has significantly restricted privileges and cannot perform sensitive operations on the DPU, ensuring its security and isolation.

Infrastructure Bandwidth & Latency Validation

Verify the deployment and confirm that the DPU system achieves link-speed performance and low latency by running various tests:

  1. Iperf TCP—for bandwidth measurements

  2. RDMA—for bandwidth and latency measurements

  3. Network isolation

Each test is described in detail. At the end of each test, the achieved performance is displayed.

Notes

Make sure that the servers are tuned for maximum performance (not covered in this document).

Performance and Isolation Tests

Now that the test deployment is running, perform bandwidth and latency performance tests between two bare-metal workload servers.

Ubuntu 24.04 was installed on the servers.

  1. Connect to a first Workload Server console, install iperf, perftestdhcp client, check VF2 IP address, and identify the relevant RDMA device:

    First Pod Console

    root@worker1:~# apt install iperf3
    root@worker1:~# apt install perftest
    root@worker1:~# apt install isc-dhcp-client
    root@worker1:~# dhclient -1 -v ens1f0v2
    root@worker1:~# ip a s
    ...
    10: ens1f0v2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
        link/ether 72:fa:ff:bc:3a:43 brd ff:ff:ff:ff:ff:ff
        altname enp43s0f0v2
        inet 192.178.0.2/16 brd 192.178.255.255 scope global dynamic ens1f0v2
           valid_lft 3595sec preferred_lft 3595sec
        inet6 fe80::70fa:ffff:febc:3a43/64 scope link
           valid_lft forever preferred_lft forever
    ...

    depuser@worker1:~$ ping 8.8.8.8
    PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
    64 bytes from 8.8.8.8: icmp_seq=1 ttl=117 time=5.35 ms
    64 bytes from 8.8.8.8: icmp_seq=2 ttl=117 time=5.10 ms
    64 bytes from 8.8.8.8: icmp_seq=3 ttl=117 time=5.15 ms

    root@worker1:~#  rdma link | grep ens1f0v2
    link mlx5_4/1 state ACTIVE physical_state LINK_UP netdev ens1f0v2



  2. Using another console window, reconnect to the jump node and connect to a second Workload Server.
    From within the servers, install iperf, perftest, dhcp client, check VF2 IP address, and identify the relevant RDMA device:

    First Pod Console

    root@worker2:~# apt install iperf3
    root@worker2:~# apt install perftest
    root@worker2:~# apt install isc-dhcp-client
    root@worker2:~# dhclient -1 -v ens1f0v2
    root@worker2:~# ip a s
    ...
    10: ens1f0v2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
        link/ether 66:8a:59:ea:40:fa brd ff:ff:ff:ff:ff:ff
        altname enp43s0f0v2
        inet 192.178.0.3/16 brd 192.178.255.255 scope global dynamic ens1f0v2
           valid_lft 3596sec preferred_lft 3596sec
        inet6 fe80::648a:59ff:feea:40fa/64 scope link
           valid_lft forever preferred_lft forever
    ...

    depuser@worker2:~$ ping 8.8.8.8
    PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
    64 bytes from 8.8.8.8: icmp_seq=1 ttl=117 time=5.35 ms
    64 bytes from 8.8.8.8: icmp_seq=2 ttl=117 time=5.10 ms
    64 bytes from 8.8.8.8: icmp_seq=3 ttl=117 time=5.15 ms

    root@worker2:~# rdma link | grep ens1f0v2
    link mlx5_4/1 state ACTIVE physical_state LINK_UP netdev ens1f0v2


iPerf TCP Bandwidth Test
  1. Move back to the first server console.

  2. Start the iperf server side:

    First BM Server Console

    root@worker1:~# iperf3 -s
    -----------------------------------------------------------
    Server listening on 5201 (test #1)
    -----------------------------------------------------------

  3. Move to the second server console.
    Start the iperf client side:

    Second BM Server Console

    root@worker2:~# iperf3 -c 192.178.0.3 -P 16
    Connecting to host 192.178.0.3, port 5201
    [  5] local 192.178.0.2 port 46348 connected to 192.178.0.3 port 5201
    [  7] local 192.178.0.2 port 46360 connected to 192.178.0.3 port 5201
    [  9] local 192.178.0.2 port 46368 connected to 192.178.0.3 port 5201
    [ 11] local 192.178.0.2 port 46372 connected to 192.178.0.3 port 5201
    [ 13] local 192.178.0.2 port 46376 connected to 192.178.0.3 port 5201
    [ 15] local 192.178.0.2 port 46378 connected to 192.178.0.3 port 5201
    [ 17] local 192.178.0.2 port 46382 connected to 192.178.0.3 port 5201
    [ 19] local 192.178.0.2 port 46384 connected to 192.178.0.3 port 5201
    [ 21] local 192.178.0.2 port 46396 connected to 192.178.0.3 port 5201
    [ 23] local 192.178.0.2 port 46402 connected to 192.178.0.3 port 5201
    [ 25] local 192.178.0.2 port 46410 connected to 192.178.0.3 port 5201
    [ 27] local 192.178.0.2 port 46424 connected to 192.178.0.3 port 5201
    [ 29] local 192.178.0.2 port 46438 connected to 192.178.0.3 port 5201
    [ 31] local 192.178.0.2 port 46454 connected to 192.178.0.3 port 5201
    [ 33] local 192.178.0.2 port 46466 connected to 192.178.0.3 port 5201
    [ 35] local 192.178.0.2 port 46472 connected to 192.178.0.3 port 5201

    [ ID] Interval       Transfer     Bandwidth
    [  3] 0.0000-10.0058 sec  14.1 GBytes  12.1 Gbits/sec
    [ 13] 0.0000-10.0057 sec  14.2 GBytes  12.2 Gbits/sec
    [  7] 0.0000-10.0056 sec  13.4 GBytes  11.5 Gbits/sec
    [ 12] 0.0000-10.0057 sec  15.2 GBytes  13.1 Gbits/sec
    [  4] 0.0000-10.0058 sec  14.1 GBytes  12.1 Gbits/sec
    [ 11] 0.0000-10.0058 sec  15.8 GBytes  13.6 Gbits/sec
    [  8] 0.0000-10.0057 sec  13.9 GBytes  11.9 Gbits/sec
    [  9] 0.0000-10.0058 sec  13.8 GBytes  11.9 Gbits/sec
    [ 15] 0.0000-10.0057 sec  14.3 GBytes  12.3 Gbits/sec
    [ 16] 0.0000-10.0058 sec  14.6 GBytes  12.5 Gbits/sec
    [  1] 0.0000-10.0057 sec  14.6 GBytes  12.6 Gbits/sec
    [  6] 0.0000-10.0058 sec  13.1 GBytes  11.3 Gbits/sec
    [ 14] 0.0000-10.0059 sec  13.6 GBytes  11.6 Gbits/sec
    [ 10] 0.0000-10.0055 sec  13.5 GBytes  11.6 Gbits/sec
    [  2] 0.0000-10.0057 sec  14.0 GBytes  12.0 Gbits/sec
    [  5] 0.0000-10.0058 sec  14.6 GBytes  12.6 Gbits/sec
    [SUM] 0.0000-10.0010 sec   227 GBytes   195 Gbits/sec

RoCE Latency Test

Return to the first server console.

  1. Start the ib_read_lat server side:

    First BM Server Console

    root@worker1:~# ib_read_lat -F -n 20000 -d mlx5_4

    ************************************
    * Waiting for client to connect... *
    ************************************

  2. Move to the second server console.
    Start the ib_read_lat client side:

    Second BM Server Console

    root@worker2:~# ib_read_lat -F -n 20000 -d mlx5_4 192.178.0.3

    ---------------------------------------------------------------------------------------
                        RDMA_Read Latency Test
     Dual-port       : OFF          Device         : mlx5_4
     Number of qps   : 1            Transport type : IB
     Connection type : RC           Using SRQ      : OFF
     PCIe relax order: ON
     ibv_wr* API     : ON
     TX depth        : 1
     Mtu             : 1024[B]
     Link type       : Ethernet
     GID index       : 3
     Outstand reads  : 16
     rdma_cm QPs     : OFF
     Data ex. method : Ethernet
    ---------------------------------------------------------------------------------------
     local address: LID 0000 QPN 0x0108 PSN 0xa5a4e OUT 0x10 RKey 0x031005 VAddr 0x005a7a24ef7000
     GID: 00:00:00:00:00:00:00:00:00:00:255:255:192:178:00:02
     remote address: LID 0000 QPN 0x0108 PSN 0x6caf0 OUT 0x10 RKey 0x031005 VAddr 0x006264a9e00000
     GID: 00:00:00:00:00:00:00:00:00:00:255:255:192:178:00:03
    ---------------------------------------------------------------------------------------
     #bytes #iterations    t_min[usec]    t_max[usec]  t_typical[usec]    t_avg[usec]    t_stdev[usec]   99% percentile[usec]   99.9% percentile[usec]
     2       20000          10.51          73.16        13.81              15.35            4.74            29.66                   42.23
    ---------------------------------------------------------------------------------------

RoCE Bandwidth Test

Return to the first server console.

  1. Start the ib_write_bw server side:

    First BM Server Console

    root@worker1:~# ib_write_bw -s 1048576 -F -D 30 -q 64 -d mlx5_4

    ************************************
    * Waiting for client to connect... *
    ************************************

  2. Move to the second server console.
    Start the ib_write_bw client side:

    Second BM Server Console

    root@worker2:~# ib_write_bw -s 1048576 -F  -D 30 -q 64 -d mlx5_4 192.178.0.3 --report_gbit
     ---------------------------------------------------------------------------------------
                        RDMA_Write BW Test
    Dual-port       : OFF          Device         : mlx5_4
    Number of qps   : 64           Transport type : IB
    Connection type : RC           Using SRQ      : OFF
    PCIe relax order: ON
    ibv_wr* API     : ON
    TX depth        : 128
    CQ Moderation   : 1
    Mtu             : 1024[B]
    Link type       : Ethernet
    GID index       : 3
    Max inline data : 0[B]
    rdma_cm QPs     : OFF
    Data ex. method : Ethernet
    ---------------------------------------------------------------------------------------
    …
    ---------------------------------------------------------------------------------------
    #bytes     #iterations    BW peak[Gb/sec]    BW average[Gb/sec]   MsgRate[Mpps]
    1048576    448865           0.00               235.89             0.028120
    ---------------------------------------------------------------------------------------


Network Isolation Test

Finally, verify that the two servers running on different networks—using virtual functions on the RED VPC and the PBLUE VPC can't communicate with each other.

Run the Iperf3 test between the Worker1 to the Worker3.

  1. Start the iperf3 server side:

    First BM Server Console

    root@worker1:~# iperf3 -s
    -----------------------------------------------------------
    Server listening on 5201 (test #1)
    -----------------------------------------------------------

  2. Move to the second server console.

  3. Start the iperf3 client side:

Second BM Server Console
root@worker3:~# apt install iperf3
root@worker3:~# apt install isc-dhcp-client
root@worker3:~# dhclient -1 -v ens1f0v2
root@worker3:~# iperf3 -c 192.178.0.3 -P 16
iperf3: error - unable to connect to server - server may have stopped running or use a different port, firewall issue, etc.: Connection refused

This ping operation should fail due to the network isolation implemented in HBN using different VLANs, VNIs and VRFs.


Done.

Authors



Boris Kovalev

Boris Kovalev has worked for the past several years as a Solutions Architect, focusing on NVIDIA Networking/Mellanox technology, and is responsible for complex machine learning, Big Data and advanced VMware-based cloud research and design. Boris previously spent more than 20 years as a senior consultant and solutions architect at multiple companies, most recently at VMware. He has written multiple reference designs covering VMware, machine learning, Kubernetes, and container solutions which are available at the NVIDIA Documents website.



NVIDIA, the NVIDIA logo, and BlueField are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries. Other company and product names may be trademarks of the respective companies with which they are associated.
2025 NVIDIA Corporation. All rights reserved.©



Last updated:
