RDG for DPF Zero-Trust Multi-DPU: DPU1 with HBN and DPU2 with DTS/Blueman services v26_4

 Created on Jul 05, 2026 (DPF 26.4.0 GA)

Scope

This Reference Deployment Guide (RDG) provides comprehensive instructions for deploying the NVIDIA DOCA Platform Framework (DPF) on high-performance, bare-metal infrastructure in Zero-Trust mode. The guide focuses on setting up an accelerated Host-Based Networking (HBN) service on NVIDIA® BlueField®-3 DPUs to deliver secure, isolated, and hardware-accelerated environments. The guide also covers deploying the DOCA Telemetry Service (DTS) and BlueMan Service on additional workload NVIDIA® BlueField®-3 DPUs, enabling a unified interface to accessing essential DPU information, health status, and telemetry metrics.

The guide is intended for experienced system administrators, systems engineers, and solution architects who build highly secure bare-metal environments with Host-Based Networking enabled using NVIDIA BlueField DPUs for acceleration, isolation, and infrastructure offload.

This document is an extension of the RDG for DPF Zero Trust (DPF-ZT) (referred to as the Baseline RDG). It details the additional steps and modifications required to deploy the HBN, DTS, and BlueMan Services into the Baseline RDG environment.

Abbreviations and Acronyms

Introduction

The NVIDIA BlueField-3 Data Processing Unit (DPU) is a 400 Gb/s infrastructure compute platform designed for line-rate processing of software-defined networking, storage, and cybersecurity workloads. It combines powerful compute resources, high-speed networking, and advanced programmability to deliver hardware-accelerated, software-defined solutions for modern data centers.

NVIDIA DOCA unleashes the full potential of the BlueField platform by enabling rapid development of applications and services that offload, accelerate, and isolate data center workloads.

One such service is Host-Based Networking (HBN) - a DOCA-enabled solution that allows network architects to design networks based on Layer 3 (L3) protocols. HBN enables routing on the server side by using BlueField as a BGP router. It encapsulates key networking functions in a containerized service pod, deployed directly on the BlueField’s Arm cores.

DOCA Telemetry Service (DTS) collects data from built-in providers (data providers such as sysfs, ethtool and tc, and aggregation providers such as fluent_aggr and prometheus_aggr), and from external telemetry applications.

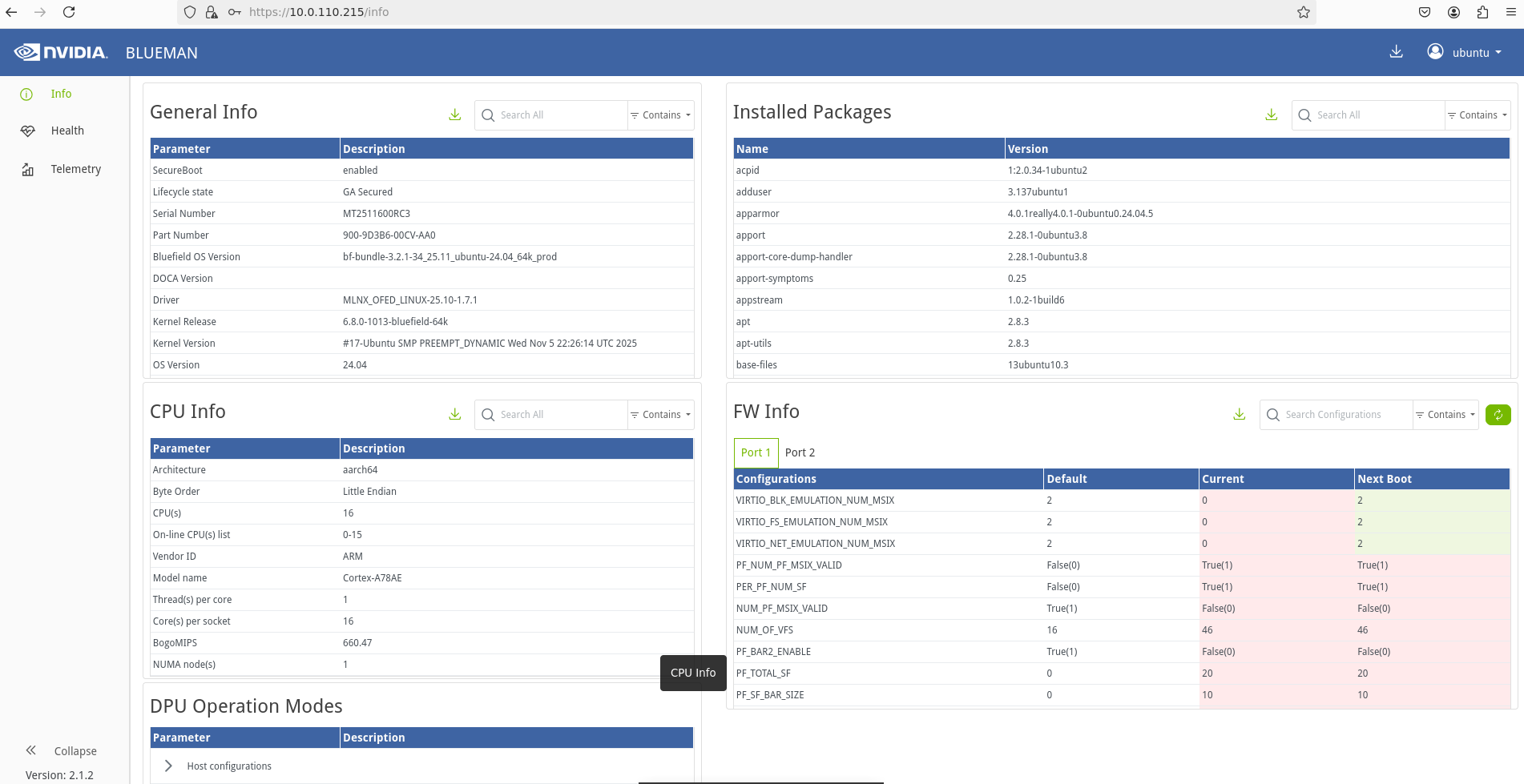

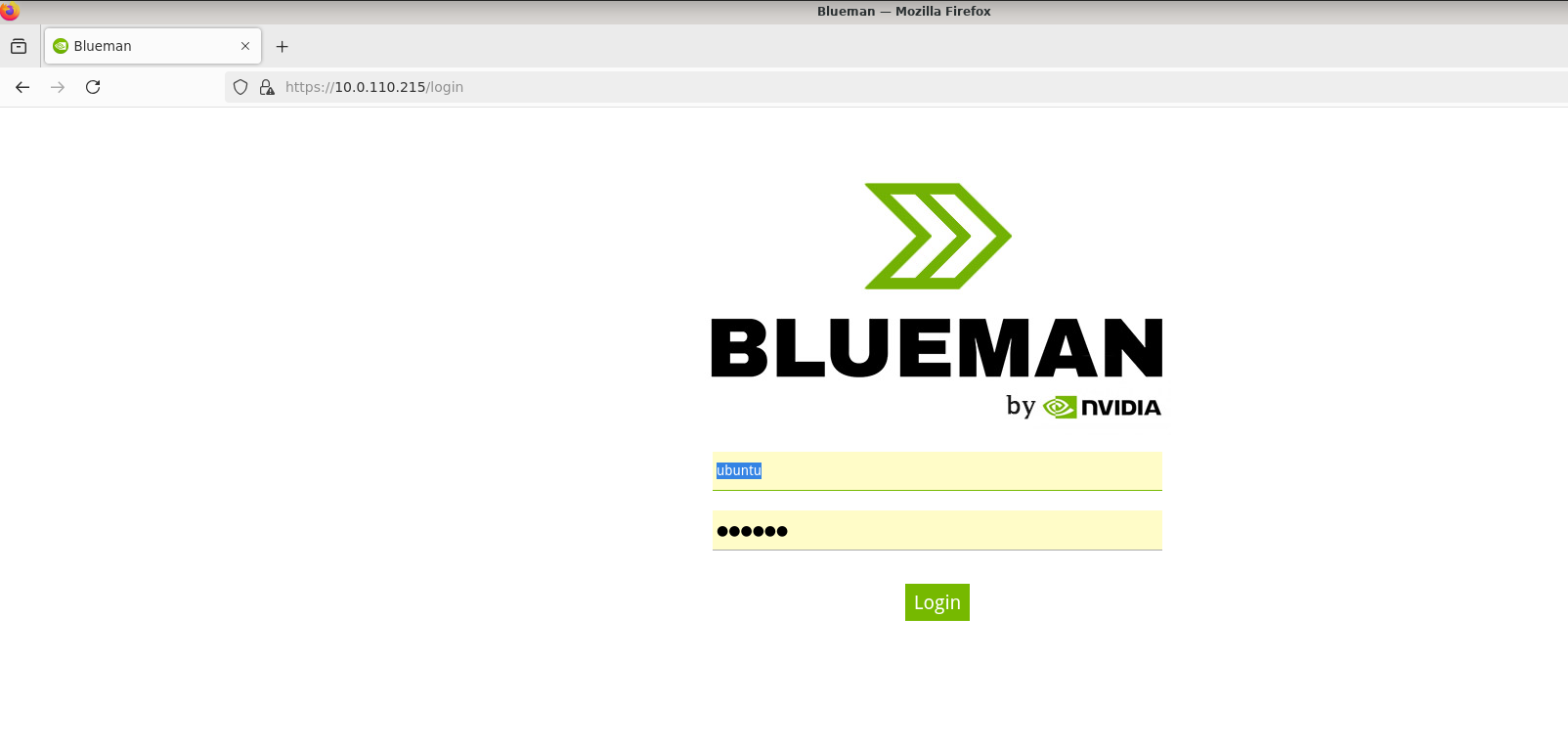

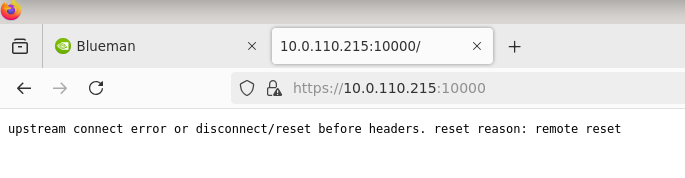

DOCA BlueMan runs in the DPU as a standalone web dashboard and consolidates all the basic information, health, and telemetry counters into a single interface.
All the information that BlueMan provides is gathered from the DOCA Telemetry Service (DTS).

However, deploying and managing DPUs and their associated DOCA services, especially at scale, presents operational challenges. Without a robust provisioning and orchestration system, tasks such as lifecycle management, service deployment, and network configuration for service function chaining (SFC) can quickly become complex and error prone. This is where the DOCA Platform Framework (DPF) comes into play.

DPF automates the full DPU lifecycle, streamlines the deployment of DOCA services, and simplifies advanced network configurations. With DPF, services such as HBN can be deployed seamlessly, allowing for efficient offloading and intelligent routing of traffic through the DPU data plane.

By leveraging DPF, users can scale and automate DPU management across Bare Metal, Virtual, and Kubernetes customer environments - optimizing performance while simplifying operations.

DPF supports multiple deployment models. This guide focuses on the Zero Trust bare-metal deployment model. In this scenario:

• The DPU is managed through its Baseboard Management Controller (BMC)

• All management traffic occurs over the DPU's out-of-band (OOB) network

• The host is considered as an untrusted entity towards the data center network. The DPU acts as a barrier between the host and the network.

• The host sees the DPU as a standard NIC, with no access to the internal DPU management plane (Zero Trust Mode)

This Reference Deployment Guide (RDG) provides a step-by-step example for installing DPF in Zero-Trust mode and HBN. It also includes practical demonstrations of performance optimization, validated using standard RDMA and TCP workloads.

As part of the reference implementation, open-source components outside the scope of DPF (e.g., MAAS, pfSense, Kubespray) are used to simulate a realistic customer deployment environment. The guide includes the full end-to-end deployment process, including:

• Infrastructure provisioning

• DPF deployment

• DPU provisioning (redfish)

• Service configuration and deployment

• Service chaining.

This document extends the capabilities of the DPF-managed Kubernetes cluster described in the RDG for DPF Zero Trust (DPF-ZT) (referred to as the Baseline RDG) by deploying the NVIDIA DOCA HBN, DTS and BlueMan Services within the existing DPF deployment to achieve a comprehensive, accelerated infrastructure.

References

• • NVIDIA BlueField DPU

  • NVIDIA DOCA

  • NVIDIA DPF Release Notes

  • NVIDIA DPF GitHub Repository

  • NVIDIA DPF System Overview

  • NVIDIA Ethernet Switching

  • NVIDIA Cumulus Linux

  • What is K8s?

  • Kubespray

Solution Architecture

Key Components and Technologies

• NVIDIA BlueField® Data Processing Unit (DPU)
  The NVIDIA® BlueField® data processing unit (DPU) ignites unprecedented innovation for modern data centers and supercomputing clusters. With its robust compute power and integrated software-defined hardware accelerators for networking, storage, and security, BlueField creates a secure and accelerated infrastructure for any workload in any environment, ushering in a new era of accelerated computing and AI.

• NVIDIA DOCA Software Framework
  NVIDIA DOCA™ unlocks the potential of the NVIDIA® BlueField® networking platform. By harnessing the power of BlueField DPUs and SuperNICs, DOCA enables the rapid creation of applications and services that offload, accelerate, and isolate data center workloads. It lets developers create software-defined, cloud-native, DPU- and SuperNIC-accelerated services with zero-trust protection, addressing the performance and security demands of modern data centers.

• NVIDIA ConnectX SmartNICs
  10/25/40/50/100/200 and 400G Ethernet Network Adapters
  The industry-leading NVIDIA® ConnectX® family of smart network interface cards (SmartNICs) offer advanced hardware offloads and accelerations.
  NVIDIA Ethernet adapters enable the highest ROI and lowest Total Cost of Ownership for hyperscale, public and private clouds, storage, machine learning, AI, big data, and telco platforms.

• NVIDIA LinkX Cables
  The NVIDIA® LinkX® product family of cables and transceivers provides the industry’s most complete line of 10, 25, 40, 50, 100, 200, and 400GbE in Ethernet and 100, 200 and 400Gb/s InfiniBand products for Cloud, HPC, hyperscale, Enterprise, telco, storage and artificial intelligence, data center applications.

• NVIDIA Spectrum Ethernet Switches
  Flexible form-factors with 16 to 128 physical ports, supporting 1GbE through 400GbE speeds.
  Based on a ground-breaking silicon technology optimized for performance and scalability, NVIDIA Spectrum switches are ideal for building high-performance, cost-effective, and efficient Cloud Data Center Networks, Ethernet Storage Fabric, and Deep Learning Interconnects.
  NVIDIA combines the benefits of NVIDIA Spectrum^™ switches, based on an industry-leading application-specific integrated circuit (ASIC) technology, with a wide variety of modern network operating system choices, including NVIDIA Cumulus^® Linux, SONiC and NVIDIA Onyx^®.


• NVIDIA Cumulus Linux
  NVIDIA® Cumulus® Linux is the industry's most innovative open network operating system that allows you to automate, customize, and scale your data center network like no other.

• Kubernetes
  Kubernetes is an open-source container orchestration platform for deployment automation, scaling, and management of containerized applications.

• Kubespray
  Kubespray is a composition of

  Ansible

   playbooks, inventory, provisioning tools, and domain knowledge for generic OS/Kubernetes clusters configuration management tasks and provides:

  • A highly available cluster

  • Composable attributes

  • Support for most popular Linux distributions

Solution Design

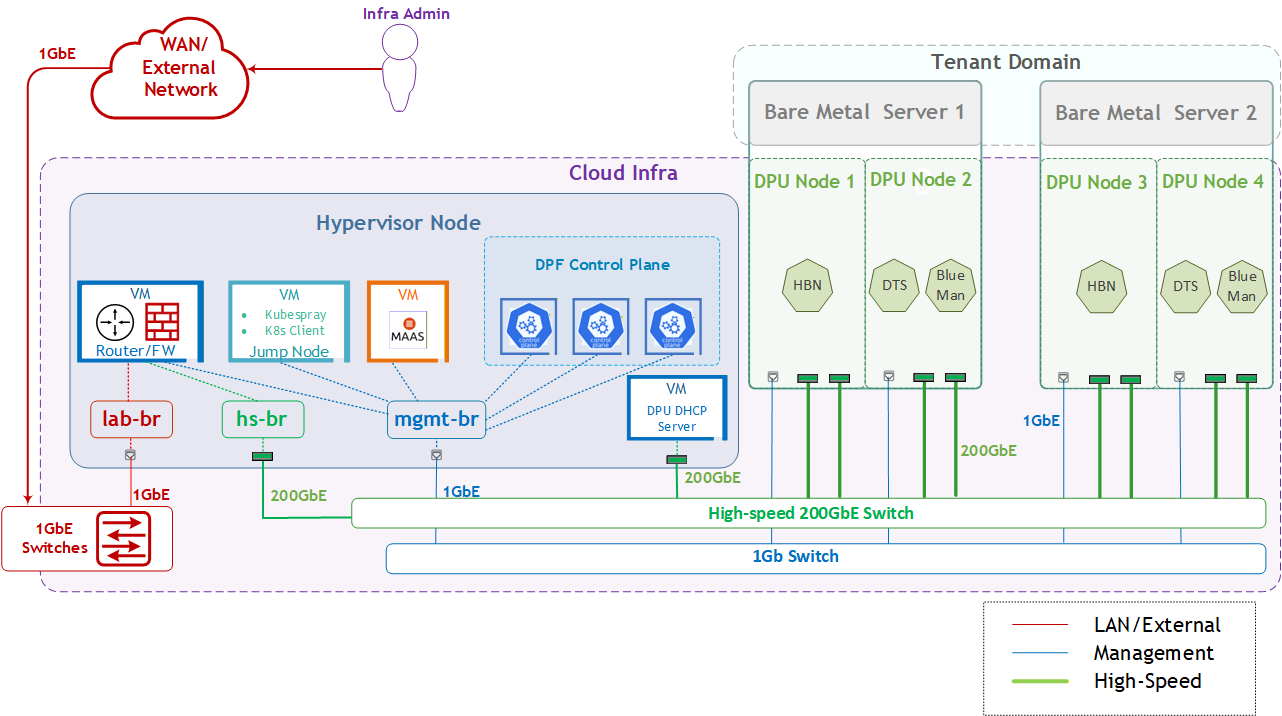

Solution Logical Design

The logical design includes the following components:

• 1 x Hypervisor node (KVM-based) with ConnectX-7:

  • 1 x Firewall VM

  • 1 x Jump Node VM

  • 1 x MaaS VM

  • 3 x K8s Master VMs running all K8s management components

• 2 x Worker nodes (PCI Gen5), each with 2 x BlueField-3 NIC

• Single High-Speed (HS) switch

• 1 Gb Host Management network

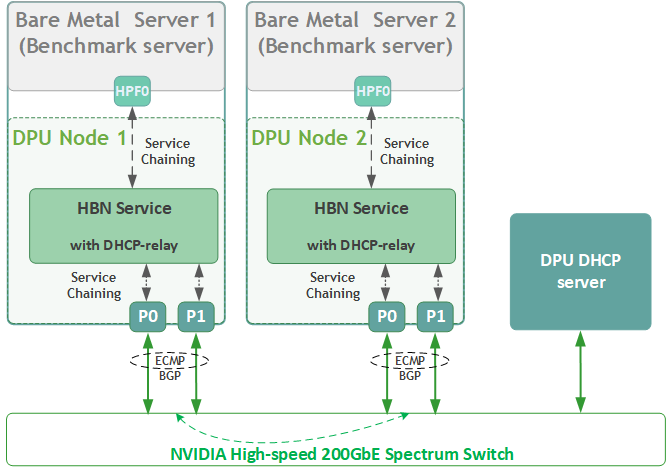

HBN service Logical Design

As part of this RDG, we will:

• Create a logical network for a bare-metal workload server using a single physical function (HPF0)

• Route all workload traffic through the HBN service, routing inside the DPU.

• Assign HPF0 as the sole network interface for each bare-metal workload server, and configure no host networking.
  HPF0 on each server should have DHCP enabled.

• Demonstrate accelerated RDMA and TCP traffic between workload servers on different bare-metal hosts within the same network.

Firewall Design

The pfSense firewall in this solution serves a dual purpose:

• Firewall—provides an isolated environment for the DPF system, ensuring secure operations

• Router—enables Internet access for the management network

Port-forwarding rules for SSH and RDP are configured on the firewall to route traffic to the jump node’s IP address in the host management network. From the jump node, administrators can manage and access various devices in the setup, as well as handle the deployment of the Kubernetes (K8s) cluster and DPF components.

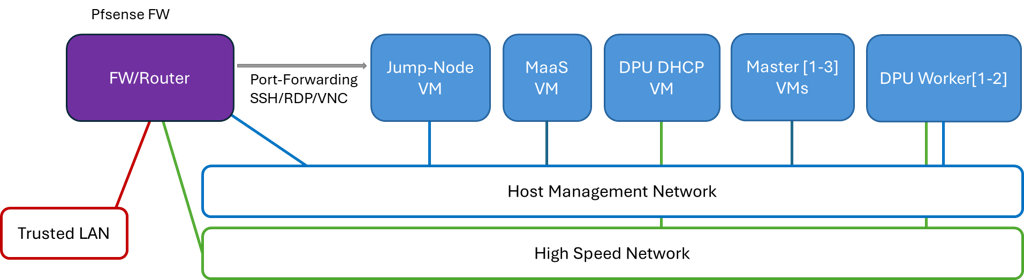

The following diagram illustrates the firewall design used in this solution:

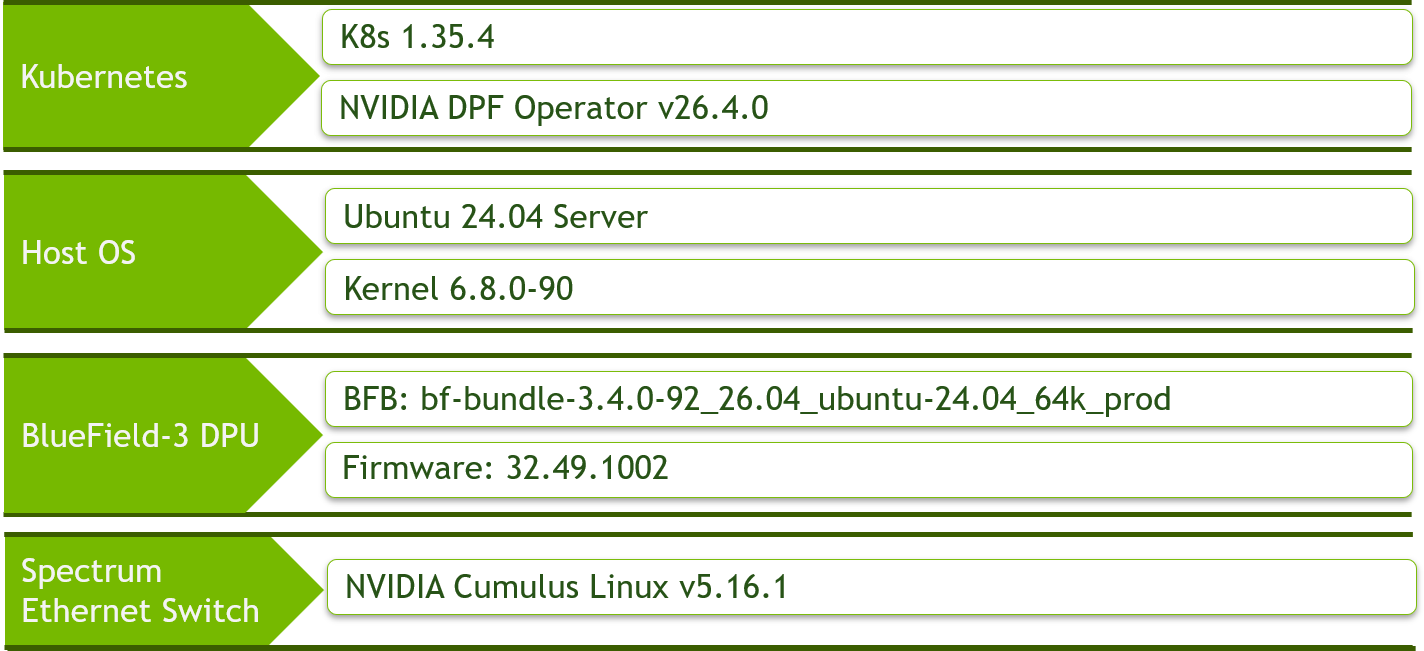

Software Stack Components

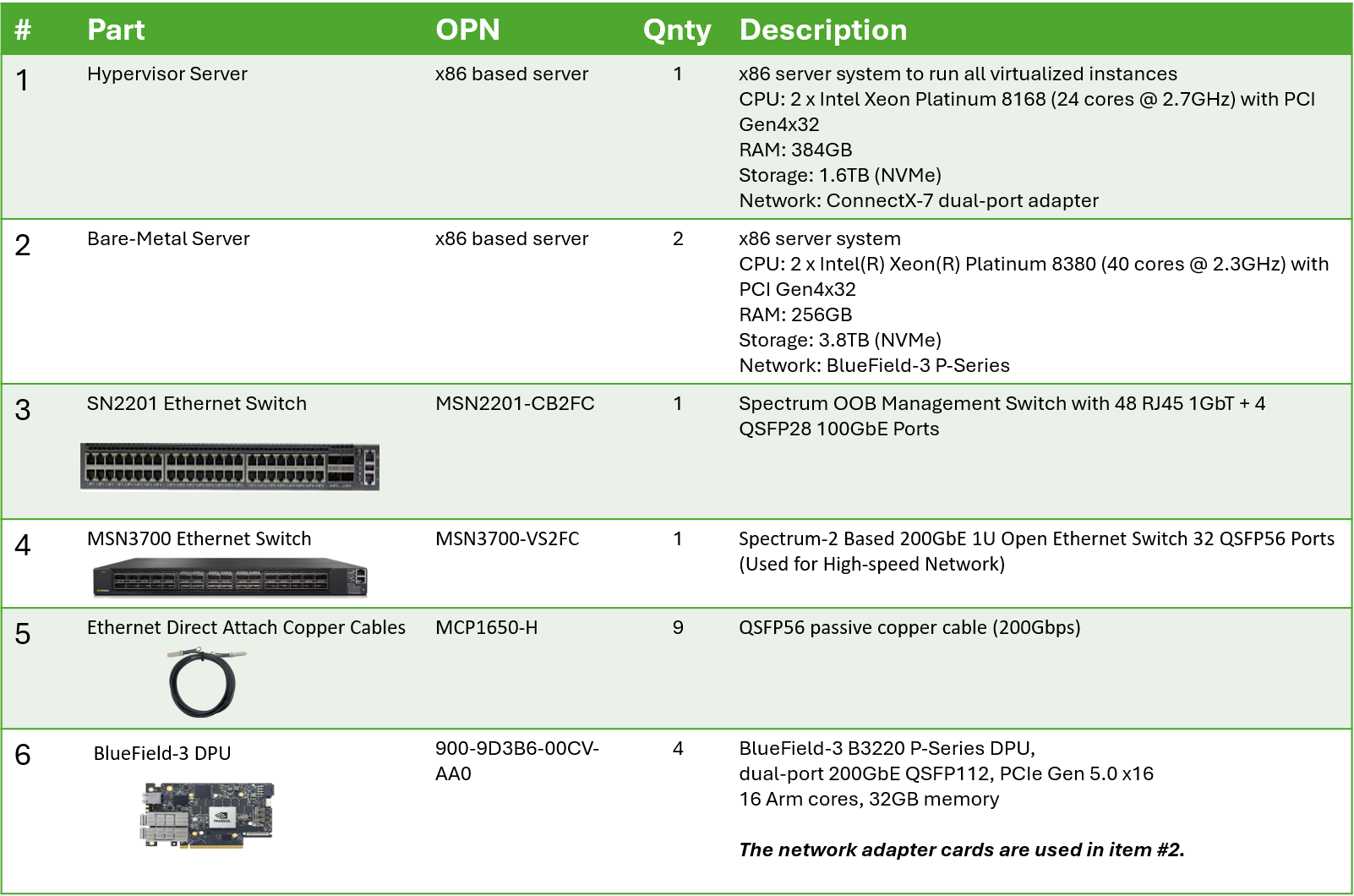

Bill of Materials

Deployment and Configuration

Node and Switch Definitions

These are the definitions and parameters used for deploying the demonstrated fabric:

Wiring

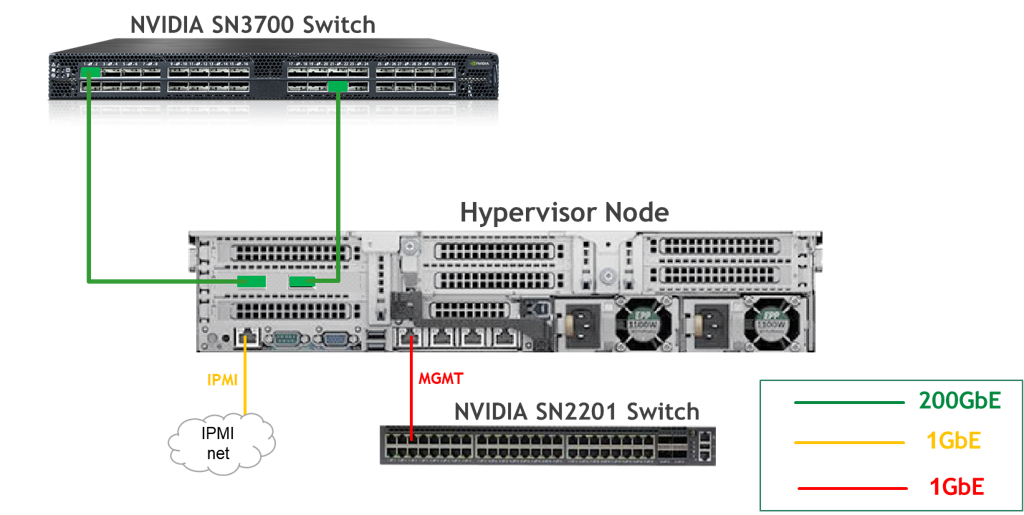

Hypervisor Node

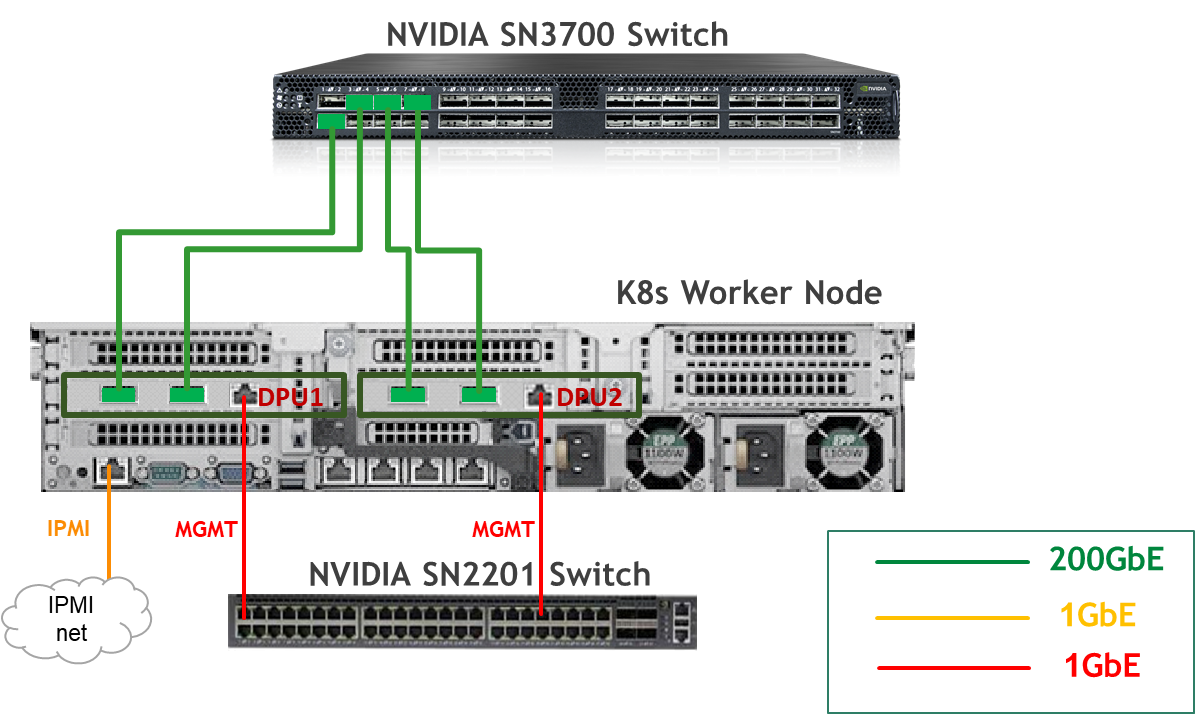

Bare Metal Worker Node

Fabric Configuration

Updating Cumulus Linux

As a best practice, make sure to use the latest released Cumulus Linux NOS version.

For information on how to upgrade Cumulus Linux, refer to the Cumulus Linux User Guide.

Configuring the Cumulus Linux Switch

The SN3700 switch (hs-switch), is configured as follows:

nv set interface lo ipv4 address 11.0.0.101/32
nv set interface lo type loopback
nv set interface swp1 ipv4 address 172.169.50.2/30
nv set interface swp1-10 link state up
nv set interface swp1-10 type swp
nv set interface swp2 ipv4 address 10.0.125.254/24
nv set interface swp2 link mtu 1500
nv set qos roce mode lossless
nv set qos roce state enabled
nv set router bgp autonomous-system 65001
nv set router bgp graceful-restart mode full
nv set router bgp router-id 11.0.0.101
nv set router bgp state enabled
nv set system hostname clx-swx-056
nv set vrf default router bgp address-family ipv4-unicast network 10.0.125.0/24
nv set vrf default router bgp address-family ipv4-unicast network 11.0.0.101/32
nv set vrf default router bgp address-family ipv4-unicast state enabled
nv set vrf default router bgp address-family ipv6-unicast redistribute connected state enabled
nv set vrf default router bgp address-family ipv6-unicast state enabled
nv set vrf default router bgp neighbor swp3-10 enforce-first-as disabled
nv set vrf default router bgp neighbor swp3-10 peer-group hbn
nv set vrf default router bgp neighbor swp3-10 type unnumbered
nv set vrf default router bgp path-selection multipath aspath-ignore enabled
nv set vrf default router bgp peer-group hbn address-family ipv4-unicast default-route-origination state enabled
nv set vrf default router bgp peer-group hbn address-family ipv4-unicast state enabled
nv set vrf default router bgp peer-group hbn address-family ipv6-unicast state enabled
nv set vrf default router bgp peer-group hbn enforce-first-as disabled
nv set vrf default router bgp peer-group hbn remote-as external
nv set vrf default router bgp state enabled
nv set vrf default router static 0.0.0.0/0 address-family ipv4-unicast
nv set vrf default router static 0.0.0.0/0 via 172.169.50.1 type ipv4-address
nv config apply
nv config save

The SN2201 switch (mgmt-switch) is configured as follows:

nv set interface swp1-3 link state up
nv set interface swp1-3 type swp
nv set interface swp1-3 bridge domain br_default
nv set bridge domain br_default untagged 1
nv config apply
nv config save -y

Host Configuration

No change from the Reference Deployment Guide (Baseline RDG) (Section "Deployment and Configuration", Subsection "Host Configuration").

Hypervisor Installation and Configuration

No change from the Baseline RDG (Section "Deployment and Configuration", Subsection "Hypervisor Installation and Configuration").

Prepare Infrastructure Servers

No change from the Baseline RDG (Section "Deployment and Configuration", Subsection "Prepare Infrastructure Servers") regarding Firewall VM, Jump VM, MaaS VM.

Firewall VM – DPU DHCP Server to High Speed network Conection

To provide an connection from DPU DHCP Server to High Speed network, open Firefox web browser and go to the pfSense web UI (http://10.0.110.254).

• System:

  • Routing → Static Routing → Add → “Destination network”: 10.0.125.0/24, “Gateway”: Switch - 172.169.50.2 → , “Description”: To DPU DHCP → Click "Save"→ Under "Default Gateway" - "Default gateway IPv4" choose WAN_DHCP → Click "Save"




    Note that the IP addresses from the Trusted LAN network under "Gateway" and "Monitor IP" are blurred.

Provisioning "DPU DHCP VM"

1. Please install Rocky Linux 9.0 in minimal server configuration.

2. Configure manually IP address to 10.0.125.4/24 with default GW 10.0.125.1/24 and your prefferred DNS server.

3. Install following modules:

   DPU DHCP Node Console

   sudo dnf -y update
   sudo dnf install -y lldpd dnsmasq


4. Apply following configuration to DNSMASQ apps - file /etc/dnsmasq.conf

5. Start and enable autostart for dnsmasq.service.

   DPU DHCP Node Console

   sudo systemctl start dnsmasq.service
   sudo systemctl enable dnsmasq.service


6. Check service status

   DPU DHCP Node Console

   sudo systemctl status dnsmasq.service

   ### Command output should look like: ###

    dnsmasq.service - DNS caching server.
        Loaded: loaded (/usr/lib/systemd/system/dnsmasq.service; enabled; preset: disabled)
        Active: active (running) since Wed 2025-12-24 08:49:28 EST; 2 weeks 3 days ago
    Invocation: 10eb617fa5fe4bedb1fc021ddcc7751f
       Process: 1172 ExecStart=/usr/sbin/dnsmasq (code=exited, status=0/SUCCESS)
      Main PID: 1193 (dnsmasq)
         Tasks: 1 (limit: 23017)
        Memory: 2M (peak: 2.5M)
           CPU: 112ms
        CGroup: /system.slice/dnsmasq.service
                └─1193 /usr/sbin/dnsmasq

   Dec 24 08:49:28 hbn-dhcp systemd[1]: Starting dnsmasq.service - DNS caching server....
   Dec 24 08:49:28 hbn-dhcp systemd[1]: Started dnsmasq.service - DNS caching server..


Provision Master VMs Using MaaS

No change from the Baseline RDG (Section "Deployment and Configuration", Subsection "Provision Master VMs Using MaaS").

K8s Cluster Deployment and Configuration

The procedures for initial Kubernetes cluster deployment using Kubespray for the master nodes, and subsequent verification, remain unchanged from the Baseline RDG (Section "K8s Cluster Deployment and Configuration", Subsections: "Kubespray Deployment and Configuration", "Deploying Cluster Using Kubespray Ansible Playbook","K8s Deployment Verification".

DPF Installation

The DPF installation process (Operator, System components) largely follows the Baseline RDG.

Software Prerequisites and Required Variables

1. Start by installing the remaining software perquisites.

   Jump Node Console

   ## Connect to master1 to copy helm client utility that was installed during kubespray deployment
   $ depuser@jump:~$ ssh master1
   depuser@master1:~$ cp /usr/local/bin/helm /tmp/

   ## In another tab
   depuser@jump:~$ scp master1:/tmp/helm /tmp/
   depuser@jump:~$ sudo chown root:root /tmp/helm
   depuser@jump:~$ sudo mv /tmp/helm /usr/local/bin/

   ## Verify that envsubst utility is installed
   depuser@jump:~$ which envsubst
   /usr/bin/envsubst


2. Proceed to clone the doca-platform Git repository:

   Jump Node Console

   $ git clone https://github.com/NVIDIA/doca-platform.git


3. Change directory to doca-platform and checkout to tag v26.4.0:

   Jump Node Console

   $ cd doca-platform/
   $ git checkout v26.4.0


4. Change directory to doca-platform/docs/public/user-guides/zero-trust/use-cases/hbn from where all the commands will be run:

   Jump Node Console

   $ cd doca-platform/docs/public/user-guides/zero-trust/use-cases/hbn


5. Change the BMC root's password.
   In Zero Trust mode, provisioning DPUs requires authentication with Redfish.
   In order to do that, you must set the same root password to access the BMC for all DPUs DPF is going to manage.For more information on how to set the BMC root password refer to BlueField DPU Administrator Quick Start Guide.

   Connect to the DPU BMC over SSH to change the BMC root's password on all DPUs.

   Jump Node Console

   $ ssh root@10.0.110.201
   root@10.0.110.201's password: <BMC Root Password. Default root/0penBmc. need to change first time to $BMC_ROOT_PASSWORD in the manifests/00-env-vars/envvars.env file>


6. Modify the variables in manifests/00-env-vars/envvars.env to fit your environment, then source the file:

   Replace the values for the variables in the following file with the values that fit your setup. Specifically, pay attention to DPUCLUSTER_INTERFACE, BMC_ROOT_PASSWORD, and DPU's serial number.
   To get a DPU's serial number you can use following command. Sample:
   $ curl -k -u root:'BMC root password' https://10.0.110.201/redfish/v1/Systems/Bluefield | jq -r '.SerialNumber | ascii_downcase'
     % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                    Dload  Upload   Total   Spent    Left  Speed
   100  4970  100  4970    0     0   4211      0  0:00:01  0:00:01 --:--:--  4211
   mt2402xz0f7x

   manifests/00-env-vars/envvars.env

   Bash

   ## IP Address for the Kubernetes API server of the target cluster on which DPF is installed.
   ## This should never include a scheme or a port.
   ## e.g. 10.10.10.10
   export TARGETCLUSTER_API_SERVER_HOST=10.0.110.10

   ## Virtual IP used by the load balancer for the DPU Cluster. Must be a reserved IP from the management subnet and not
   ## allocated by DHCP.
   export DPUCLUSTER_VIP=10.0.110.200

   ## Interface on which the DPUCluster load balancer will listen. Should be the management interface of the control plane node.
   export DPUCLUSTER_INTERFACE=enp1s0

   ## The repository URL for the NVIDIA Helm chart registry.
   ## Usually this is the NVIDIA Helm NGC registry. For development purposes, this can be set to a different repository.
   export HELM_REGISTRY_REPO_URL=https://helm.ngc.nvidia.com/nvidia/doca

   ## The repository URL for the HBN container image.
   ## Usually this is the NVIDIA NGC registry. For development purposes, this can be set to a different repository.
   export HBN_NGC_IMAGE_URL=nvcr.io/nvidia/doca/doca_hbn

   ## The DPF REGISTRY is the Helm repository URL where the DPF Operator Chart resides.
   ## Usually this is the NVIDIA Helm NGC registry. For development purposes, this can be set to a different repository.
   export REGISTRY=https://helm.ngc.nvidia.com/nvidia/doca

   ## The DPF TAG is the version of the DPF components which will be deployed in this guide.
   export TAG=v26.4.0

   ## URL to the BFB used in the `bfb.yaml` and linked by the DPUSet.
   export BFB_URL="https://content.mellanox.com/BlueField/BFBs/Ubuntu24.04/bf-bundle-3.4.0-92_26.04_ubuntu-24.04_64k_prod.bfb"

   ## IP_RANGE_START and IP_RANGE_END
   ## These define the IP range for DPU discovery via Redfish/BMC interfaces
   ## Example: If your DPUs have BMC IPs in range 10.0.110.201-224
   ## export IP_RANGE_START=10.0.110.201
   ## export IP_RANGE_END=10.0.110.224

   ## Start of DPUDiscovery IpRange
   export IP_RANGE_START=10.0.110.201

   ## End of DPUDiscovery IpRange
   export IP_RANGE_END=10.0.110.206

   # The password used for DPU BMC root login, must be the same for all DPUs
   # For more information on how to set the BMC root password refer to BlueField DPU Administrator Quick Start Guide.
   export BMC_ROOT_PASSWORD=<set your BMC_ROOT_PASSWORD>

   ## Serial number of DPUs. If you have more than 2 DPUs, you will need to parameterize the system accordingly and expose
   ## additional variables.
   ## All serial numbers must be in lowercase.

   ## Serial number of DPU1
   export DPU1_SERIAL=mt2402xz0f7x

   ## Serial number of DPU2
   export DPU2_SERIAL=mt2402xz0f80

   ## Serial number of DPU3
   export DPU3_SERIAL=mt2511600rc3

   ## Serial number of DPU4
   export DPU4_SERIAL=mt2511600ruh


7. Export environment variables for the installation:

   Jump Node Console

   $ source manifests/00-env-vars/envvars.env


DPF Operator Installation

No change from the Baseline RDG (Section "DPF Installation", Subsection "DPF Operator Installation").

DPF System Installation

No change from the Baseline RDG (Section "DPF Installation", Subsection "DPF System Installation").

DPU Services Installation

HBN DPU Service Installation

This section focuses on provisioning NVIDIA®BlueField®-3 DPUs using DPF, installing the HBN DPU Service on those DPUs and enabling workload traffic to pass through HBN before leaving the DPU.

1. Export environment variables for the installation:

   Jump Node Console

   $ source manifests/00-env-vars/envvars.env


2. Use the following YAML to define a BFB resource that downloads the Bluefield Bitstream to a shared volume:

   manifests/03.1-dpudeployment-installation-pf/bfb.yaml

   ---
   apiVersion: provisioning.dpu.nvidia.com/v1alpha1
   kind: BFB
   metadata:
     name: bf-bundle-$TAG
     namespace: dpf-operator-system
   spec:
     url: $BFB_URL


3. Change the DPUFlavor using the following YAML.

   manifests/03.1-dpudeployment-installation-pf/hbn-dpuflavor.yaml

   ---
   apiVersion: provisioning.dpu.nvidia.com/v1alpha1
   kind: DPUFlavor
   metadata:
     name: hbn-$TAG
     namespace: dpf-operator-system
   spec:
     bfcfgParameters:
     - UPDATE_ATF_UEFI=yes
     - UPDATE_DPU_OS=yes
     - WITH_NIC_FW_UPDATE=yes
     configFiles:
     - operation: override
       path: /etc/mellanox/mlnx-bf.conf
       permissions: "0644"
       raw: |
         ALLOW_SHARED_RQ="no"
         IPSEC_FULL_OFFLOAD="no"
         ENABLE_ESWITCH_MULTIPORT="yes"
     - operation: override
       path: /etc/mellanox/mlnx-ovs.conf
       permissions: "0644"
       raw: |
         CREATE_OVS_BRIDGES="no"
         OVS_DOCA="yes"
     - operation: override
       path: /etc/mellanox/mlnx-sf.conf
       permissions: "0644"
       raw: ""
     grub:
       kernelParameters:
       - console=hvc0
       - console=ttyAMA0
       - earlycon=pl011,0x13010000
       - fixrttc
       - net.ifnames=0
       - biosdevname=0
       - iommu.passthrough=1
       - cgroup_no_v1=net_prio,net_cls
       - hugepagesz=2048kB
       - hugepages=3072
     nvconfig:
     - device: '*'
       parameters:
       - PF_BAR2_ENABLE=0
       - PER_PF_NUM_SF=1
       - PF_TOTAL_SF=20
       - PF_SF_BAR_SIZE=10
       - NUM_PF_MSIX_VALID=0
       - PF_NUM_PF_MSIX_VALID=1
       - PF_NUM_PF_MSIX=228
       - INTERNAL_CPU_MODEL=1
       - INTERNAL_CPU_OFFLOAD_ENGINE=0
       - SRIOV_EN=1
       - NUM_OF_VFS=46
       - LAG_RESOURCE_ALLOCATION=1
       - LINK_TYPE_P1=ETH
       - LINK_TYPE_P2=ETH
   	- EXP_ROM_UEFI_x86_ENABLE=1
     ovs:
       rawConfigScript: |
         _ovs-vsctl() {
           ovs-vsctl --timeout 15 "$@"
         }

         # Remove default OVS configuration on the DPU and ensure no leftovers on the OVS kernel side
         _ovs-vsctl --if-exists del-br ovsbr1
         _ovs-vsctl --if-exists del-br ovsbr2
         ovs-appctl --timeout 15 dpctl/del-dp system@ovs-system || true

         _ovs-vsctl set Open_vSwitch . other_config:doca-init=true
         _ovs-vsctl set Open_vSwitch . other_config:dpdk-max-memzones=50000
         _ovs-vsctl set Open_vSwitch . other_config:hw-offload=true
         _ovs-vsctl set Open_vSwitch . other_config:pmd-quiet-idle=true
         _ovs-vsctl set Open_vSwitch . other_config:max-idle=20000
         _ovs-vsctl set Open_vSwitch . other_config:max-revalidator=5000
         _ovs-vsctl remove Open_vSwitch . other_config default-datapath-type || true

         if systemctl list-unit-files openvswitch-switch.service &>/dev/null; then
           systemctl restart openvswitch-switch
         elif systemctl list-unit-files openvswitch.service &>/dev/null; then
           systemctl restart openvswitch
         fi
         _ovs-vsctl --may-exist add-br br-sfc
         _ovs-vsctl set bridge br-sfc datapath_type=netdev
         _ovs-vsctl set bridge br-sfc fail_mode=secure
         _ovs-vsctl --may-exist add-port br-sfc p0
         _ovs-vsctl set Interface p0 type=dpdk
         _ovs-vsctl set Interface p0 mtu_request=9216
         _ovs-vsctl set Port p0 external_ids:dpf-type=physical
         _ovs-vsctl --may-exist add-port br-sfc p1
         _ovs-vsctl set Interface p1 type=dpdk
         _ovs-vsctl set Interface p1 mtu_request=9216
         _ovs-vsctl set Port p1 external_ids:dpf-type=physical
         _ovs-vsctl --may-exist add-br br-hbn
         _ovs-vsctl set bridge br-hbn datapath_type=netdev
         _ovs-vsctl set bridge br-hbn fail_mode=secure


4. In multi-DPU configurations—where a single host worker node includes two or more NVIDIA® BlueField® DPUs—using a standard nodeSelector targets the host node rather than individual DPUs. As a result, all DPU-scoped services (HBN, DTS, BlueMan) are deployed onto every DPU on that node, which may lead to service conflicts and prevents proper role separation across DPUs.

   The dpuSelector mechanism provides fine-grained control over service placement by enabling operators to target specific DPUs directly. This approach improves resource allocation, enforces service isolation, and enables clean scalability in multi-DPU deployments.

   Using dpuSelector, you can:

   • Run the HBN service exclusively on the first DPU.

   • Deploy the DTS and BlueMan services on the second DPU.

   To target a specific DPU, apply labels to the corresponding DPUDevice object. The labeled device can then be referenced by dpuSelector.
   Below is an example (replace the serial number with the one from your environment):

   Jump Node Console

   $ kubectl label dpudevice -n dpf-operator-system mt2402xz0f7x mt2402xz0f80 provisioning.dpu.nvidia.com/dpudevice-service-name=hbn
   $ kubectl label dpudevice -n dpf-operator-system mt2511600rc3 mt2511600ruh provisioning.dpu.nvidia.com/dpudevice-service-name=dts-blueman


5. Change the dpudeployment.yaml file to reference the DPUFlavor.

   manifests/03.1-dpudeployment-installation-pf/dpudeployment.yaml

   ---
   apiVersion: svc.dpu.nvidia.com/v1alpha1
   kind: DPUDeployment
   metadata:
     name: hbn-only
     namespace: dpf-operator-system
   spec:
     dpus:
       bfb: bf-bundle-$TAG
       flavor: hbn-$TAG
       nodeEffect:
         hold: true
       dpuSetStrategy:
         type: OnDelete
       dpuSets:
       - nameSuffix: "dpuset1"
         dpuNodeSelector:
           matchLabels:
             feature.node.kubernetes.io/dpu-enabled: "true"
         dpuSelector:
           provisioning.dpu.nvidia.com/dpudevice-service-name: hbn
     services:
       doca-hbn:
         serviceTemplate: doca-hbn
         serviceConfiguration: doca-hbn
     serviceChains:
       switches:
         - ports:
           serviceMTU: 9000
           - serviceInterface:
               matchLabels:
                 interface: p0
           - service:
               name: doca-hbn
               interface: p0_if
         - ports:
           serviceMTU: 9000
           - serviceInterface:
               matchLabels:
                 interface: p1
           - service:
               name: doca-hbn
               interface: p1_if
         - ports:
           serviceMTU: 9000
           - serviceInterface:
               matchLabels:
                 interface: pf0hpf
           - service:
               interface: pf0hpf_if
               name: doca-hbn


   Please notice that with default nodeEffect above, DPU provisioning workflow will be paused and wait for an external signal (annotation) in order to proceed, as demonstrated in upcoming steps.
   To implement a fully automated process that won’t require user intervention, see customAction option.

6. Change the rest of the configuration files.
   As explained in the introduction, these files create service chains that connect physical functions PF) to the outer fabric through HBN, providing EVPN VXLAN overlay, and ECMP redundancy across both DPU uplinks (p0 and p1).
   These are the configuration files.

   • HBN DPUServiceConfig and DPUServiceTemplate to deploy HBN workloads to the DPUs.

     manifests/03.1-dpudeployment-installation-pf/hbn-dpuserviceconfig.yaml

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceConfiguration
     metadata:
       name: doca-hbn
       namespace: dpf-operator-system
     spec:
       deploymentServiceName: "doca-hbn"
       serviceConfiguration:
         serviceDaemonSet:
           annotations:
             k8s.v1.cni.cncf.io/networks: |-
               [
               {"name": "iprequest", "interface": "ip_lo", "cni-args": {"poolNames": ["loopback"], "poolType": "cidrpool"}},
               {"name": "iprequest", "interface": "ip_pf0hpf", "cni-args": {"poolNames": ["pool1"], "poolType": "cidrpool", "allocateDefaultGateway": true}}
               ]
         helmChart:
           values:
             configuration:
               perDPUValuesYAML: |
                 - hostnamePattern: "*"
                   values:
                     bgp_peer_group: hbn
                 - hostnamePattern: "dpu-node-${DPU1_SERIAL}*"
                   values:
                     bgp_autonomous_system: 65101
                 - hostnamePattern: "dpu-node-${DPU2_SERIAL}*"
                   values:
                     bgp_autonomous_system: 65201
               startupYAMLJ2: |
                 - header:
                     model: bluefield
                     nvue-api-version: nvue_v1
                     rev-id: 1.0
                     version: HBN 3.0.0
                 - set:
                     interface:
                       lo:
                         ip:
                           address:
                             {{ ipaddresses.ip_lo.ip }}/32: {}
                         type: loopback
                       p0_if,p1_if:
                         type: swp
                         link:
                           mtu: 9000
                       pf0hpf_if:
                         ip:
                           address:
                             {{ ipaddresses.ip_pf0hpf.cidr }}: {}
                         type: swp
                         link:
                           mtu: 9000
                     router:
                       bgp:
                         autonomous-system: {{ config.bgp_autonomous_system }}
                         enable: on
                         graceful-restart:
                           mode: full
                         router-id: {{ ipaddresses.ip_lo.ip }}
                     service:
                       dhcp-relay:
                         default:
                           server:
                             10.0.125.4: {}
                     vrf:
                       default:
                         router:
                           bgp:
                             address-family:
                               ipv4-unicast:
                                 enable: on
                                 redistribute:
                                   connected:
                                     enable: on
                               ipv6-unicast:
                                 enable: on
                                 redistribute:
                                   connected:
                                     enable: on
                             enable: on
                             neighbor:
                               p0_if:
                                 peer-group: {{ config.bgp_peer_group }}
                                 type: unnumbered
                               p1_if:
                                 peer-group: {{ config.bgp_peer_group }}
                                 type: unnumbered
                             path-selection:
                               multipath:
                                 aspath-ignore: on
                             peer-group:
                               {{ config.bgp_peer_group }}:
                                 address-family:
                                   ipv4-unicast:
                                     enable: on
                                   ipv6-unicast:
                                     enable: on
                                 remote-as: external
       interfaces:
       - name: p0_if
         network: mybrhbn
       - name: p1_if
         network: mybrhbn
       - name: pf0hpf_if
         network: mybrhbn


     manifests/03.1-dpudeployment-installation-pf/hbn-dpuservicetemplate.yaml

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceTemplate
     metadata:
       name: doca-hbn
       namespace: dpf-operator-system
     spec:
       deploymentServiceName: "doca-hbn"
       helmChart:
         source:
           repoURL: $HELM_REGISTRY_REPO_URL
           version: 3.4.0-0
           chart: doca-hbn
         values:
           image:
             repository: $HBN_NGC_IMAGE_URL
             tag: release-3.4.0-doca3.4.0
           resources:
             memory: 6Gi
             nvidia.com/bf_sf: 3


   • Physical Interfaces for physical ports on the DPU.

     manifests/03.1-dpudeployment-installation-pf/physical-ifaces.yaml

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceInterface
     metadata:
       name: p0
       namespace: dpf-operator-system
     spec:
       template:
         spec:
           template:
             metadata:
               labels:
                 uplink: "p0"
             spec:
               interfaceType: physical
               physical:
                 interfaceName: p0
     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceInterface
     metadata:
       name: p1
       namespace: dpf-operator-system
     spec:
       template:
         spec:
           template:
             metadata:
               labels:
                 uplink: "p1"
             spec:
               interfaceType: physical
               physical:
                 interfaceName: p1
     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceInterface
     metadata:
       name: pf0hpf
       namespace: dpf-operator-system
     spec:
       template:
         spec:
           template:
             metadata:
               labels:
                 interface: "pf0hpf"
             spec:
               interfaceType: pf
               pf:
                 pfID: 0


   • DPU Service IPAM objects to set up IP Address Management on the DPUCluster.

     manifests/03.1-dpudeployment-installation-pf/hbn-ipam.yaml

     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceIPAM
     metadata:
       name: pool1
       namespace: dpf-operator-system
     spec:
       ipv4Network:
         network: "10.0.120.0/22"
         gatewayIndex: 1
         prefixSize: 29


     ---
     apiVersion: svc.dpu.nvidia.com/v1alpha1
     kind: DPUServiceIPAM
     metadata:
       name: loopback
       namespace: dpf-operator-system
     spec:
       ipv4Network:
         network: "11.0.0.0/24"
         prefixSize: 32


     It is necessary to set several environment variables before running this command.

     $ source manifests/00-env-vars/envvars.env

7. Apply all of the YAML files mentioned above using the following command:

   Jump Node Console

   $ cat manifests/03.1-dpudeployment-installation-pf/*.yaml | envsubst | kubectl apply -f -




   Jump Node Console

   $ kubectl wait --for=condition=ApplicationsReconciled --namespace dpf-operator-system dpuservices --all
   dpuservice.svc.dpu.nvidia.com/cni-installer condition met
   dpuservice.svc.dpu.nvidia.com/doca-hbn-x92vr condition met
   dpuservice.svc.dpu.nvidia.com/flannel condition met
   dpuservice.svc.dpu.nvidia.com/kube-state-metrics-05f12f695b condition met
   dpuservice.svc.dpu.nvidia.com/kube-state-metrics-rbac condition met
   dpuservice.svc.dpu.nvidia.com/multus condition met
   dpuservice.svc.dpu.nvidia.com/node-problem-detector condition met
   dpuservice.svc.dpu.nvidia.com/nvidia-k8s-ipam-05f12f695b condition met
   dpuservice.svc.dpu.nvidia.com/nvidia-k8s-ipam-node condition met
   dpuservice.svc.dpu.nvidia.com/ovs-cni condition met
   dpuservice.svc.dpu.nvidia.com/servicechainset-controller-05f12f695b condition met
   dpuservice.svc.dpu.nvidia.com/servicechainset-rbac-and-crds condition met
   dpuservice.svc.dpu.nvidia.com/sfc-controller condition met
   dpuservice.svc.dpu.nvidia.com/sriov-device-plugin condition met

   $ kubectl wait --for=condition=DPUIPAMObjectReconciled --namespace dpf-operator-system dpuserviceipam --all
   dpuserviceipam.svc.dpu.nvidia.com/loopback condition met
   dpuserviceipam.svc.dpu.nvidia.com/pool1 condition met

   $ kubectl wait --for=condition=ServiceInterfaceSetReconciled --namespace dpf-operator-system dpuserviceinterface --all
   dpuserviceinterface.svc.dpu.nvidia.com/doca-hbn-p0-if-f9hzk condition met
   dpuserviceinterface.svc.dpu.nvidia.com/doca-hbn-p1-if-2ld7q condition met
   dpuserviceinterface.svc.dpu.nvidia.com/doca-hbn-pf0hpf-if-gt8zw condition met
   dpuserviceinterface.svc.dpu.nvidia.com/p0 condition met
   dpuserviceinterface.svc.dpu.nvidia.com/p1 condition met
   dpuserviceinterface.svc.dpu.nvidia.com/pf0hpf condition met

   $ kubectl wait --for=condition=ServiceChainSetReconciled --namespace dpf-operator-system dpuservicechain --all
   dpuservicechain.svc.dpu.nvidia.com/hbn-only-cjpt5 condition met


8. To follow the progress of DPU provisioning, run the following command to check its current phase:

   Jump Node Console

   $ watch -n10 "kubectl describe dpu -n dpf-operator-system | grep 'Node Name\|Type\|Last\|Phase'"





9. Wait for the NodeEffect stage (at this point the provisioning is paused, waintig for an external signal).
   Run the following command on all/specific DPU nodemaintanace object/s to proceed with provisioning:

   Jump Node Console

   $ kubectl annotate dpunodemaintenances -n dpf-operator-system --all \
     provisioning.dpu.nvidia.com/wait-for-external-nodeeffect=false \
     maintenance.dpu.nvidia.com/wait-for-external-nodeeffect=false \
     --overwrite


10. To follow the progress of DPU provisioning, run the following command to check its current phase:

    Jump Node Console

    $ watch -n10 "kubectl -n dpf-operator-system get dpu,dpuset,dpudeployment,dpuservice,dpuserviceconfigurations,dpuservicetemplates"


11. Wait for the Rebooted stage and then Power Cycle the bare-metal host manual.
    After the DPU is up, run following command for each DPU worker:

    Jump Node Console

    $ kubectl -n dpf-operator-system annotate dpunode dpu-node-mt2402xz0f7x dpu-node-mt2402xz0f80 provisioning.dpu.nvidia.com/dpunode-external-reboot-required-


12. At this point, the DPU workers should be added to the cluster. As they being added to the cluster, the DPUs are provisioned.

    Jump Node Console

    watch -n 2 'kubectl -n dpf-operator-system get dpu,dpuset,dpudeployment,dpuservice,dpuserviceconfigurations,dpuservicetemplates'

    NAME                                                                 READY   OPERATIONAL   PHASE   AGE
    dpu.provisioning.dpu.nvidia.com/dpu-node-mt2402xz0f7x-mt2402xz0f7x   True    True          Ready   114m
    dpu.provisioning.dpu.nvidia.com/dpu-node-mt2402xz0f80-mt2402xz0f80   True    True          Ready   114m

    NAME                                                  READY   AGE
    dpuset.provisioning.dpu.nvidia.com/hbn-only-dpuset1   True    114m

    NAME                                        READY   PHASE     AGE
    dpudeployment.svc.dpu.nvidia.com/hbn-only   True    Success   115m

    NAME                                                                  READY   PHASE     AGE
    dpuservice.svc.dpu.nvidia.com/cni-installer                           True    Success   116m
    dpuservice.svc.dpu.nvidia.com/doca-hbn-x92vr                          True    Success   114m
    dpuservice.svc.dpu.nvidia.com/flannel                                 True    Success   116m
    dpuservice.svc.dpu.nvidia.com/kube-state-metrics-05f12f695b           True    Success   116m
    dpuservice.svc.dpu.nvidia.com/kube-state-metrics-rbac                 True    Success   116m
    dpuservice.svc.dpu.nvidia.com/multus                                  True    Success   116m
    dpuservice.svc.dpu.nvidia.com/node-problem-detector                   True    Success   116m
    dpuservice.svc.dpu.nvidia.com/nvidia-k8s-ipam-05f12f695b              True    Success   116m
    dpuservice.svc.dpu.nvidia.com/nvidia-k8s-ipam-node                    True    Success   116m
    dpuservice.svc.dpu.nvidia.com/ovs-cni                                 True    Success   116m
    dpuservice.svc.dpu.nvidia.com/servicechainset-controller-05f12f695b   True    Success   116m
    dpuservice.svc.dpu.nvidia.com/servicechainset-rbac-and-crds           True    Success   116m
    dpuservice.svc.dpu.nvidia.com/sfc-controller                          True    Success   116m
    dpuservice.svc.dpu.nvidia.com/sriov-device-plugin                     True    Success   116m

    NAME                                                  AGE
    dpuserviceconfiguration.svc.dpu.nvidia.com/doca-hbn   115m

    NAME                                             AGE
    dpuservicetemplate.svc.dpu.nvidia.com/doca-hbn   115m


13.  Finally, validate that all the different DPU-related objects are now in the Ready state:

    Jump Node Console

    $ kubectl get secrets -n dpu-cplane-tenant1 dpu-cplane-tenant1-admin-kubeconfig -o json | jq -r '.data["admin.conf"]' | base64 --decode > /home/depuser/dpu-cluster.config

    $ echo "alias ki='KUBECONFIG=/home/depuser/dpu-cluster.config kubectl'" >> ~/.bashrc
    $ echo 'alias dpfctl="kubectl -n dpf-operator-system exec deploy/dpf-operator-controller-manager -- /dpfctl "' >> ~/.bashrc
    $ source ~/.bashrc

    $ dpfctl describe dpudeployments
    NAME                                    NAMESPACE            STATUS       REASON    SINCE  MESSAGE
    DPFOperatorConfig/dpfoperatorconfig     dpf-operator-system  Ready: True  Success   64m
    └─DPUDeployments
      └─DPUDeployment/hbn-only              dpf-operator-system  Ready: True  Success   64m
        ├─DPUServiceChains
        │ └─DPUServiceChain/hbn-only-cjpt5  dpf-operator-system  Ready: True  Success   65m
        ├─DPUServiceInterfaces
        │ └─3 DPUServiceInterfaces...       dpf-operator-system  Ready: True  Success   65m    See doca-hbn-p0-if-f9hzk, doca-hbn-p1-if-2ld7q, doca-hbn-pf0hpf-if-gt8zw
        ├─DPUSets
        │ └─DPUSet/hbn-only-dpuset1         dpf-operator-system  Ready: True  Success   66m
        │   ├─BFB/bf-bundle-v26.4.0         dpf-operator-system  Ready: True  Ready     96m    File: 3.4.0-92_26.04_ubuntu-24.04_64k_prod.bfb, DOCA: 3.4.0
        │   ├─DPUNodes
        │   │ └─2 DPUNodes...               dpf-operator-system  Ready: True  Ready     73m    See dpu-node-mt2402xz0f7x, dpu-node-mt2402xz0f80
        │   └─DPUs
        │     └─2 DPUs...                   dpf-operator-system  Ready: True  DPUReady  73m    See dpu-node-mt2402xz0f7x-mt2402xz0f7x, dpu-node-mt2402xz0f80-mt2402xz0f80
        └─Services
          ├─DPUServiceTemplates
          │ └─DPUServiceTemplate/doca-hbn   dpf-operator-system  Ready: True  Success   96m
          └─DPUServices
            └─DPUService/doca-hbn-x92vr     dpf-operator-system  Ready: True  Success   64m


    $ ki get node -A
    NAME                                 STATUS   ROLES    AGE   VERSION
    dpu-node-mt2402xz0f7x-mt2402xz0f7x   Ready    <none>   75m   v1.34.8
    dpu-node-mt2402xz0f80-mt2402xz0f80   Ready    <none>   66m   v1.34.8


    $ kubectl get dpu -A
    NAMESPACE             NAME                                 READY   OPERATIONAL   PHASE   AGE
    dpf-operator-system   dpu-node-mt2402xz0f7x-mt2402xz0f7x   True    True          Ready   97m
    dpf-operator-system   dpu-node-mt2402xz0f80-mt2402xz0f80   True    True          Ready   97m

    $ kubectl wait --for=condition=ready --namespace dpf-operator-system dpu --all
    dpu.provisioning.dpu.nvidia.com/dpu-node-mt2402xz0f7x-mt2402xz0f7x condition met
    dpu.provisioning.dpu.nvidia.com/dpu-node-mt2402xz0f80-mt2402xz0f80 condition met

    $ ki get pods -A -o wide
    NAMESPACE             NAME                                                    READY   STATUS    RESTARTS   AGE   IP             NODE                                 NOMINATED NODE   READINESS GATES
    dpf-operator-system   dpu-cplane-tenant1-cni-installer-mp8pl                  1/1     Running   0          67m   10.244.1.3     dpu-node-mt2402xz0f80-mt2402xz0f80   <none>           <none>
    dpf-operator-system   dpu-cplane-tenant1-cni-installer-ndndh                  1/1     Running   0          76m   10.244.0.2     dpu-node-mt2402xz0f7x-mt2402xz0f7x   <none>           <none>
    dpf-operator-system   dpu-cplane-tenant1-doca-hbn-x92vr-ds-4h7rw              2/2     Running   0          67m   10.244.1.5     dpu-node-mt2402xz0f80-mt2402xz0f80   <none>           <none>
    dpf-operator-system   dpu-cplane-tenant1-doca-hbn-x92vr-ds-8g5hc              2/2     Running   0          76m   10.244.0.8     dpu-node-mt2402xz0f7x-mt2402xz0f7x   <none>           <none>
    dpf-operator-system   dpu-cplane-tenant1-node-problem-detector-5rlv5          1/1     Running   0          67m   10.0.110.212   dpu-node-mt2402xz0f80-mt2402xz0f80   <none>           <none>
    dpf-operator-system   dpu-cplane-tenant1-node-problem-detector-684vk          1/1     Running   0          76m   10.0.110.211   dpu-node-mt2402xz0f7x-mt2402xz0f7x   <none>           <none>
    dpf-operator-system   dpu-cplane-tenant1-nvidia-k8s-ipam-node-node-ds-4wg48   1/1     Running   0          76m   10.244.0.4     dpu-node-mt2402xz0f7x-mt2402xz0f7x   <none>           <none>
    dpf-operator-system   dpu-cplane-tenant1-nvidia-k8s-ipam-node-node-ds-rrml4   1/1     Running   0          67m   10.244.1.2     dpu-node-mt2402xz0f80-mt2402xz0f80   <none>           <none>
    dpf-operator-system   dpu-cplane-tenant1-ovs-cni-arm64-8g5l5                  1/1     Running   0          67m   10.0.110.212   dpu-node-mt2402xz0f80-mt2402xz0f80   <none>           <none>
    dpf-operator-system   dpu-cplane-tenant1-ovs-cni-arm64-9s6pz                  1/1     Running   0          76m   10.0.110.211   dpu-node-mt2402xz0f7x-mt2402xz0f7x   <none>           <none>
    dpf-operator-system   dpu-cplane-tenant1-sfc-controller-node-ds-5xjb6         1/1     Running   0          76m   10.0.110.211   dpu-node-mt2402xz0f7x-mt2402xz0f7x   <none>           <none>
    dpf-operator-system   dpu-cplane-tenant1-sfc-controller-node-ds-96frp         1/1     Running   0          67m   10.0.110.212   dpu-node-mt2402xz0f80-mt2402xz0f80   <none>           <none>
    dpf-operator-system   kube-flannel-ds-djhmw                                   1/1     Running   0          67m   10.0.110.212   dpu-node-mt2402xz0f80-mt2402xz0f80   <none>           <none>
    dpf-operator-system   kube-flannel-ds-q7x8p                                   1/1     Running   0          76m   10.0.110.211   dpu-node-mt2402xz0f7x-mt2402xz0f7x   <none>           <none>
    dpf-operator-system   kube-multus-ds-glk2f                                    1/1     Running   0          67m   10.0.110.212   dpu-node-mt2402xz0f80-mt2402xz0f80   <none>           <none>
    dpf-operator-system   kube-multus-ds-pvvhc                                    1/1     Running   0          76m   10.0.110.211   dpu-node-mt2402xz0f7x-mt2402xz0f7x   <none>           <none>
    dpf-operator-system   kube-sriov-device-plugin-9cxbv                          1/1     Running   0          76m   10.0.110.211   dpu-node-mt2402xz0f7x-mt2402xz0f7x   <none>           <none>
    dpf-operator-system   kube-sriov-device-plugin-lzsh5                          1/1     Running   0          67m   10.0.110.212   dpu-node-mt2402xz0f80-mt2402xz0f80   <none>           <none>
    kube-system           coredns-66bc5c9577-2zznx                                1/1     Running   0          98m   10.244.0.6     dpu-node-mt2402xz0f7x-mt2402xz0f7x   <none>           <none>
    kube-system           coredns-66bc5c9577-5kkd4                                1/1     Running   0          98m   10.244.0.5     dpu-node-mt2402xz0f7x-mt2402xz0f7x   <none>           <none>
    kube-system           kube-proxy-jk8zx                                        1/1     Running   0          76m   10.0.110.211   dpu-node-mt2402xz0f7x-mt2402xz0f7x   <none>           <none>
    kube-system           kube-proxy-qtr6q                                        1/1     Running   0          67m   10.0.110.212   dpu-node-mt2402xz0f80-mt2402xz0f80   <none>           <none>


    Congratulations! The DPF system with the HBN service has been successfully installed.


DTS and BlueMan DPU Services Installation

This section focuses on provisioning NVIDIA®BlueField®-3 DPUs using DPF, installing the DTS and BlueMan DPU Services on the second DPU in the first bare-metal host, and enabling a unified interface for accessing essential DPU information, health status, and telemetry metrics.

Before deploying the objects under doca-platform/dpuservices/dts-blueman/directory, a few adjustments are required.

1. Export environment variables for the installation:

   Jump Node Console

   $ source manifests/00-env-vars/envvars.env


2. Create a directory from where all the commands will be run:

   Jump Node Console

   $ mkdir /home/depuser/doca-platform/dpuservices/dts-blueman/
   $ cd /home/depuser/doca-platform/dpuservices/dts-blueman/


1. Create the DPUFlavor using the following YAML:

   DPUFlavor.yaml

   ---
   apiVersion: provisioning.dpu.nvidia.com/v1alpha1
   kind: DPUFlavor
   metadata:
     name: hbn-$TAG
     namespace: dpf-operator-system
   spec:
     bfcfgParameters:
     - UPDATE_ATF_UEFI=yes
     - UPDATE_DPU_OS=yes
     - WITH_NIC_FW_UPDATE=yes
     configFiles:
     - operation: override
       path: /etc/mellanox/mlnx-bf.conf
       permissions: "0644"
       raw: |
         ALLOW_SHARED_RQ="no"
         IPSEC_FULL_OFFLOAD="no"
         ENABLE_ESWITCH_MULTIPORT="yes"
     - operation: override
       path: /etc/mellanox/mlnx-ovs.conf
       permissions: "0644"
       raw: |
         CREATE_OVS_BRIDGES="no"
         OVS_DOCA="yes"
     - operation: override
       path: /etc/mellanox/mlnx-sf.conf
       permissions: "0644"
       raw: ""
     grub:
       kernelParameters:
       - console=hvc0
       - console=ttyAMA0
       - earlycon=pl011,0x13010000
       - fixrttc
       - net.ifnames=0
       - biosdevname=0
       - iommu.passthrough=1
       - cgroup_no_v1=net_prio,net_cls
       - hugepagesz=2048kB
       - hugepages=3072
     nvconfig:
     - device: '*'
       parameters:
       - PF_BAR2_ENABLE=0
       - PER_PF_NUM_SF=1
       - PF_TOTAL_SF=20
       - PF_SF_BAR_SIZE=10
       - NUM_PF_MSIX_VALID=0
       - PF_NUM_PF_MSIX_VALID=1
       - PF_NUM_PF_MSIX=228
       - INTERNAL_CPU_MODEL=1
       - INTERNAL_CPU_OFFLOAD_ENGINE=0
       - SRIOV_EN=1
       - NUM_OF_VFS=46
       - LAG_RESOURCE_ALLOCATION=1
       - LINK_TYPE_P1=ETH
       - LINK_TYPE_P2=ETH
   	- EXP_ROM_UEFI_x86_ENABLE=1
     ovs:
       rawConfigScript: |
         _ovs-vsctl() {
           ovs-vsctl --timeout 15 "$@"
         }

         # Remove default OVS configuration on the DPU and ensure no leftovers on the OVS kernel side
         _ovs-vsctl --if-exists del-br ovsbr1
         _ovs-vsctl --if-exists del-br ovsbr2
         ovs-appctl --timeout 15 dpctl/del-dp system@ovs-system || true

         _ovs-vsctl set Open_vSwitch . other_config:doca-init=true
         _ovs-vsctl set Open_vSwitch . other_config:dpdk-max-memzones=50000
         _ovs-vsctl set Open_vSwitch . other_config:hw-offload=true
         _ovs-vsctl set Open_vSwitch . other_config:pmd-quiet-idle=true
         _ovs-vsctl set Open_vSwitch . other_config:max-idle=20000
         _ovs-vsctl set Open_vSwitch . other_config:max-revalidator=5000
         _ovs-vsctl remove Open_vSwitch . other_config default-datapath-type || true

         if systemctl list-unit-files openvswitch-switch.service &>/dev/null; then
           systemctl restart openvswitch-switch
         elif systemctl list-unit-files openvswitch.service &>/dev/null; then
           systemctl restart openvswitch
         fi
         _ovs-vsctl --may-exist add-br br-sfc
         _ovs-vsctl set bridge br-sfc datapath_type=netdev
         _ovs-vsctl set bridge br-sfc fail_mode=secure
         _ovs-vsctl --may-exist add-port br-sfc p0
         _ovs-vsctl set Interface p0 type=dpdk
         _ovs-vsctl set Interface p0 mtu_request=9216
         _ovs-vsctl set Port p0 external_ids:dpf-type=physical
         _ovs-vsctl --may-exist add-br br-hbn
         _ovs-vsctl set bridge br-hbn datapath_type=netdev
         _ovs-vsctl set bridge br-hbn fail_mode=secure


2. Create the DPUDeployment.yaml file:

   DPUDeployment.yaml

   ---
   apiVersion: svc.dpu.nvidia.com/v1alpha1
   kind: DPUDeployment
   metadata:
     name: dts-blueman
     namespace: dpf-operator-system
   spec:
     dpus:
       bfb: bf-bundle-$TAG
       flavor: dpf-provisioning-dts-blueman
       nodeEffect:
         noEffect: true
       dpuSetStrategy:
         type: OnDelete
       dpuSets:
       - nameSuffix: dpuset-dts-blueman
         dpunodeSelector:
           matchLabels:
             feature.node.kubernetes.io/dpu-enabled: "true"
         dpuSelector:
           provisioning.dpu.nvidia.com/dpudevice-service-name: "dts-blueman"
     services:
       dts:
         serviceTemplate: dts
         serviceConfiguration: dts
       blueman:
         serviceTemplate: blueman
         serviceConfiguration: blueman
     serviceChains:
       switches:
         - ports:
           serviceMTU: 9000
           - serviceInterface:
               matchLabels:
                 interface: p0


3. Create the DPUServiceconfig_dts.yaml file:

   ---
   apiVersion: svc.dpu.nvidia.com/v1alpha1
   kind: DPUServiceConfiguration
   metadata:
     name: dts
     namespace: dpf-operator-system
   spec:
     deploymentServiceName: "dts"


4. Create the DPUServicetemplate_dts.yaml file:

   ---
   apiVersion: svc.dpu.nvidia.com/v1alpha1
   kind: DPUServiceTemplate
   metadata:
     name: dts
     namespace: dpf-operator-system
   spec:
     deploymentServiceName: "dts"
     helmChart:
       source:
         repoURL: $HELM_REGISTRY_REPO_URL
         version: 1.0.8
         chart: doca-telemetry


5. Create the DPUServiceconfig_blueman.yaml file:

   ---
   apiVersion: svc.dpu.nvidia.com/v1alpha1
   kind: DPUServiceConfiguration
   metadata:
     name: blueman
     namespace: dpf-operator-system
   spec:
     deploymentServiceName: "blueman"


6. Create the DPUServicetemplate_blueman.yaml file:

   ---
   apiVersion: svc.dpu.nvidia.com/v1alpha1
   kind: DPUServiceTemplate
   metadata:
     name: blueman
     namespace: dpf-operator-system
   spec:
     deploymentServiceName: "blueman"
     helmChart:
       source:
         repoURL: $HELM_REGISTRY_REPO_URL
         version: 1.0.8
         chart: doca-blueman


7. Apply all of the YAML files mentioned above using the following command:

   Jump Node Console

   $ cat *.yaml | envsubst | kubectl apply -f -


8. To follow the progress of DPU provisioning, run the following command to check its current phase:

   Jump Node Console

   $ watch -n10 "kubectl describe dpu -n dpf-operator-system | grep 'Node Name\|Type\|Last\|Phase'"





9. Wait for the NodeEffect stage (at this point the provisioning is paused, waintig for an external signal).
   Run the following command on all/specific DPU nodemaintanace object/s to proceed with provisioning:

   Jump Node Console

   $ kubectl annotate dpunodemaintenances -n dpf-operator-system --all \
     provisioning.dpu.nvidia.com/wait-for-external-nodeeffect=false \
     maintenance.dpu.nvidia.com/wait-for-external-nodeeffect=false \
     --overwrite


10. To follow the progress of DPU provisioning, run the following command several time (take 20-30 minutes) to check its current phase:

    Jump Node Console

    $ dpfctl describe dpudeployments
    ...
      │ │   └─DPUs
      │ │     ├─DPU/dpu-node-mt2511600rc3-mt2511600rc3  dpf-operator-system
      │ │     │             ├─Rebooted                                       False        WaitingForManualPowerCycleOrReboot  11m
      │ │     │             └─Ready                                          False        Rebooting                           11m
      │ │     └─DPU/dpu-node-mt2511600ruh-mt2511600ruh  dpf-operator-system
      │ │                   ├─Rebooted                                       False        WaitingForManualPowerCycleOrReboot  13m
      │ │                   └─Ready                                          False        Rebooting                           13m
    ...


11. Wait for the Rebooted stage and then Power Cycle the bare-metal host manual.
    After the DPU is up, run following command for each DPU worker:

    Jump Node Console

    $ kubectl -n dpf-operator-system annotate dpunode dpu-node-mt2511600rc3 dpu-node-mt2511600ruh provisioning.dpu.nvidia.com/dpunode-external-reboot-required-


12. At this point, the DPU workers should be added to the cluster. As they being added to the cluster, the DPUs are provisioned.

    Jump Node Console

    $ dpfctl describe dpudeployments
    NAME                                 NAMESPACE            STATUS       REASON   SINCE  MESSAGE
    DPFOperatorConfig/dpfoperatorconfig  dpf-operator-system  Ready: True  Success  118s
    └─DPUDeployments
      └─2 DPUDeployments...              dpf-operator-system  Ready: True  Success  3m49s  See dts-blueman, hbn


13. Finally, validate that all the different DPU-related objects are now in the Ready state:

    Jump Node Console

    $ echo "alias ki='KUBECONFIG=/home/depuser/dpu-cluster.config kubectl'" >> ~/.bashrc
    $ kubectl get secrets -n dpu-cplane-tenant1 dpu-cplane-tenant1-admin-kubeconfig -o json | jq -r '.data["admin.conf"]' | base64 --decode > /home/depuser/dpu-cluster.config
    $ ki get node -A
    NAME                                 STATUS   ROLES    AGE     VERSION
    dpu-node-mt2402xz0f7x-mt2402xz0f7x   Ready    <none>   113m    v1.34.8
    dpu-node-mt2402xz0f80-mt2402xz0f80   Ready    <none>   114m    v1.34.8
    dpu-node-mt2511600rc3-mt2511600rc3   Ready    <none>   5m20s   v1.34.8
    dpu-node-mt2511600ruh-mt2511600ruh   Ready    <none>   5m56s   v1.34.8

    $ kubectl get dpu -A
    NAMESPACE             NAME                                 READY   PHASE   AGE
    dpf-operator-system   dpu-node-mt2402xz0f7x-mt2402xz0f7x   True    Ready   98m
    dpf-operator-system   dpu-node-mt2402xz0f80-mt2402xz0f80   True    Ready   98m
    dpf-operator-system   dpu-node-mt2511600rc3-mt2511600rc3   True    Ready   67m
    dpf-operator-system   dpu-node-mt2511600ruh-mt2511600ruh   True    Ready   67m


    $ kubectl wait --for=condition=ready --namespace dpf-operator-system dpu --all
    dpu.provisioning.dpu.nvidia.com/dpu-node-mt2402xz0f7x-mt2402xz0f7x condition met
    dpu.provisioning.dpu.nvidia.com/dpu-node-mt2402xz0f80-mt2402xz0f80 condition met
    dpu.provisioning.dpu.nvidia.com/dpu-node-mt2511600rc3-mt2511600rc3 condition met
    dpu.provisioning.dpu.nvidia.com/dpu-node-mt2511600ruh-mt2511600ruh condition met


    Congratulations! The DTS and BlueMan services have been successfully deployed on the second DPU in the first bare-metal host.

Zero-Trust Mode Checking

Here's a step-by-step procedure to check the Zero-Trust Mode on your NVIDIA BlueField DPU from the host server, including the installation of the Mellanox Firmware Tools (MFT).

1. Navigate to the NVIDIA Downloads Site: Open your web browser and go to the official NVIDIA Mellanox software downloads page.

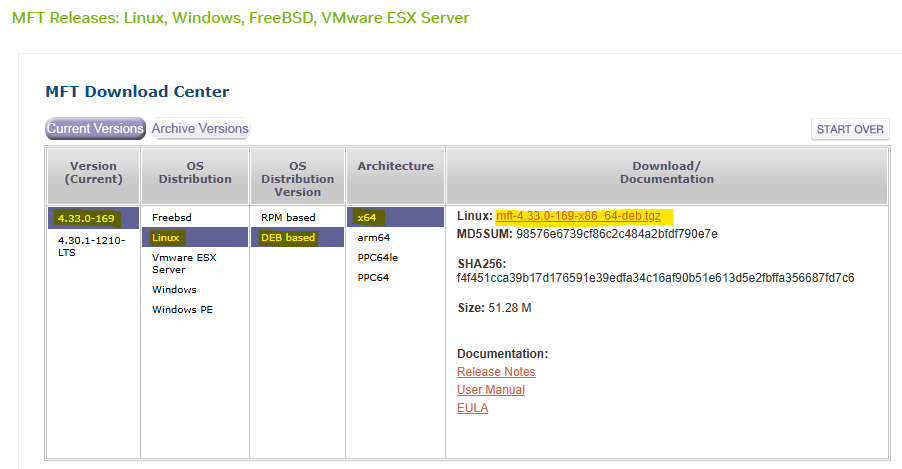

2. Select the Latest Version for your OS:


3. Transfer and Extract MFT Tools on the Worker 1 BareMetal Host.

   First Pod Console

   root@worker1:~# tar -xvzf /tmp/mft-4.33.0-169-x86_64-deb.tgz


4. Navigate into the Extracted Directory.

   First Pod Console

   root@worker1:~# cd mft-4.33.0-169-x86_64-deb/


5. Run following commands.

   First Pod Console

   root@worker1:~# apt-get install gcc make dkms
   root@worker1:~# ./install.sh


6. Start MST (Mellanox Software Tools) Service and Identify DPU Device Name.

   First Pod Console

   root@worker1:~# mst start

   Starting MST (Mellanox Software Tools) driver set
   Loading MST PCI module - Success
   Loading MST PCI configuration module - Success
   Create devices
   Unloading MST PCI module (unused) - Success

   root@worker1:~# mst status

   MST modules:
   ------------
       MST PCI module is not loaded
       MST PCI configuration module loaded

   MST devices:
   ------------
   /dev/mst/mt41692_pciconf0        - PCI configuration cycles access.
                                      domain:bus:dev.fn=0000:2b:00.0 addr.reg=88 data.reg=92 cr_bar.gw_offset=-1
                                      Chip revision is: 01



7. Perform Zero-Trust Checking.

   First Pod Console

   root@worker1:~# mlxprivhost -d 2b:00.0 q
   Host configurations
   -------------------
   level                         : RESTRICTED

   Port functions status:
   -----------------------
   disable_rshim                 : TRUE
   disable_tracer                : TRUE
   disable_port_owner            : TRUE
   disable_counter_rd            : TRUE

   #Expected Zero-Trust Output.


   This is the most definitive confirmation. level : RESTRICTED means the host is in Zero-Trust Mode, and the TRUE flags confirm individual security restrictions are active.


8. Check Firmware Access with mlxfwmanager:

   First Pod Console

   root@worker1:~# mlxfwmanager -d 2b:00.0 --query
   Querying Mellanox devices firmware ...

   Device #1:
   ----------

     Device Type:      BlueField3
     Part Number:      --
     Description:
     PSID:
     PCI Device Name:  2b:00.0
     Base MAC:         N/A
     Versions:         Current        Available
        FW             --

     Status:           Failed to open device


   "Failed to open device" indicates the host is blocked from accessing the DPU for firmware operations, a key aspect of Zero-Trust.


9. Check Device Configuration with mlxconfig:

   First Pod Console

   root@worker1:~# mlxconfig -d 2b:00.0 q

   Device #1:
   ----------

   Device type:        BlueField3
   Name:               900-9D3B6-00CV-A_Ax
   Description:        NVIDIA BlueField-3 B3220 P-Series FHHL DPU; 200GbE (default mode) / NDR200 IB; Dual-port QSFP112; PCIe Gen5.0 x16 with x16 PCIe extension option; 16 Arm cores; 32GB on-board DDR; integrated BMC; Crypto Enabled
   Device:             2b:00.0

   Configurations:                                          Next Boot
   ...
           ALLOW_RD_COUNTERS                           True(1)   # No RO, but restricted by mlxprivhost
   ...
           PORT_OWNER                                  True(1)   # No RO, but restricted by mlxprivhost
   ...
           TRACER_ENABLE                               True(1)   # No RO, but restricted by mlxprivhost


   Most configuration parameters will be prefixed with RO (Read-Only). Parameters related to direct host control, like PORT_OWNER, ALLOW_RD_COUNTERS, TRACER_ENABLE, even if shown as True(1) for the DPU's internal capability, will be unenforcible by the host due to the mlxprivhost restrictions. The widespread RO status shows that the host cannot modify these configurations, reinforcing the DPU's autonomous and secure state. The few parameters without RO are still overridden by the mlxprivhost security policy.


10. Check Low-Level Hardware Access with ethtool:

    First Pod Console

    root@worker1:~# ethtool -d ens1f0np0
    Cannot get register dump: Operation not supported


     This confirms the DPU is preventing deep, low-level hardware access from the host, aligning with Zero-Trust's isolation goals.

Conclusion

The command outputs of mlxprivhost, mlxfwmanager, mlxconfig (showing RO flags), and ethtool (showing "Operation not supported"), then your NVIDIA BlueField DPU is indeed operating in Zero-Trust Mode.
This means the host has significantly restricted privileges and cannot perform sensitive operations on the DPU, ensuring its security and isolation.

Infrastructure Bandwidth & Latency Validation

Verify the deployment and confirm that the DPU system achieves link-speed performance and low latency by running various tests:

1. Iperf TCP—for bandwidth measurements

2. RDMA—for bandwidth and latency measurements

3. Network isolation

Each test is described in detail. At the end of each test, the achieved performance is displayed.

Performance and Isolation Tests

Now that the test deployment is running, perform bandwidth and latency performance tests between two bare-metal workload servers.

1. Before running the tests, check the Gateway address on each HBN pod:

   Jump Node Console

   $ ki -n dpf-operator-system get pod -o wide | grep doca-hbn
   dpu-cplane-tenant1-doca-hbn-x92vr-ds-4h7rw              2/2     Running   0          72m   10.244.1.5     dpu-node-mt2402xz0f80-mt2402xz0f80   <none>           <none>
   dpu-cplane-tenant1-doca-hbn-x92vr-ds-8g5hc              2/2     Running   0          80m   10.244.0.8     dpu-node-mt2402xz0f7x-mt2402xz0f7x   <none>           <none>

   $ ki exec -it -n dpf-operator-system dpu-cplane-tenant1-doca-hbn-x92vr-ds-8g5hc -- bash
   Defaulted container "doca-hbn" out of: doca-hbn, hbn-init (init), hbn-sidecar (init)
   root@dpu-cplane-tenant1-doca-hbn-x92vr-ds-8g5hc:/tmp# ip a s

   ...
   9: vlan11@br_default: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 9216 qdisc noqueue master RED state UP group default qlen 1000
       link/ether 16:04:0f:6a:58:df brd ff:ff:ff:ff:ff:ff
       inet 10.0.121.2/29 scope global vlan11
          valid_lft forever preferred_lft forever
       inet6 fe80::1404:fff:fe6a:58df/64 scope link
          valid_lft forever preferred_lft forever

   ...


   # vtysh

   # show bgp summary

   IPv4 Unicast Summary (VRF default):
   BGP router identifier 11.0.0.0, local AS number 65101 vrf-id 0
   BGP table version 9
   RIB entries 8, using 1792 bytes of memory
   Peers 2, using 40 KiB of memory
   Peer groups 1, using 64 bytes of memory

   Neighbor           V         AS   MsgRcvd   MsgSent   TblVer  InQ OutQ  Up/Down State/PfxRcd   PfxSnt Desc
   clx-swx-056(p0_if) 4      65001       185       184        0    0    0 00:08:55            4        5 N/A
   clx-swx-056(p1_if) 4      65001       184       183        0    0    0 00:08:53            4        5 N/A

   Total number of neighbors 2

   L2VPN EVPN Summary (VRF default):
   BGP router identifier 11.0.0.0, local AS number 65101 vrf-id 0
   BGP table version 0
   RIB entries 3, using 672 bytes of memory
   Peers 2, using 40 KiB of memory
   Peer groups 1, using 64 bytes of memory

   Neighbor           V         AS   MsgRcvd   MsgSent   TblVer  InQ OutQ  Up/Down State/PfxRcd   PfxSnt Desc
   clx-swx-056(p0_if) 4      65001       185       184        0    0    0 00:08:55        NoNeg    NoNeg N/A
   clx-swx-056(p1_if) 4      65001       184       183        0    0    0 00:08:53        NoNeg    NoNeg N/A

   Total number of neighbors 2


   # show ip bgp
   BGP table version is 7, local router ID is 11.0.0.0, vrf id 0
   Default local pref 100, local AS 65101
   Status codes:  s suppressed, d damped, h history, u unsorted, * valid, > best, = multipath, + multipath nhg,
                  i internal, r RIB-failure, S Stale, R Removed
   Nexthop codes: @NNN nexthop's vrf id, < announce-nh-self
   Origin codes:  i - IGP, e - EGP, ? - incomplete
   RPKI validation codes: V valid, I invalid, N Not found

      Network          Next Hop            Metric LocPrf Weight Path
   *> 0.0.0.0/0        p0_if                    0             0 65001 i
   *=                  p1_if                    0             0 65001 i
   *> 10.0.120.0/29    0.0.0.0(dpu-cplane-tenant1-doca-hbn-j9p7q-ds-r8p66)
                                                0         32768 ?
   *> 10.0.120.8/29    p0_if                                  0 65001 65201 ?
   *=                  p1_if                                  0 65001 65201 ?
   *> 10.0.125.0/24    p0_if                    0             0 65001 i
   *=                  p1_if                    0             0 65001 i
   *> 11.0.0.0/32      0.0.0.0(dpu-cplane-tenant1-doca-hbn-j9p7q-ds-r8p66)
                                                0         32768 ?
   *> 11.0.0.1/32      p0_if                                  0 65001 65201 ?
   *=                  p1_if                                  0 65001 65201 ?
   *> 11.0.0.101/32    p0_if                    0             0 65001 i
   *=                  p1_if                    0             0 65001 i

   Displayed  7 routes and 12 total paths


   # exit

   $ exit





2. Connect to a first Workload Server console, install iperf, perftest, check DPU Hight Speed Interfaces, set route to ethernet and identify the relevant RDMA device:

   First Pod Console

   root@worker1:~# apt install iperf3
   root@worker1:~# apt install perftest
   root@worker1:~# ip a s
   ...
   6: ens1f0np0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 9000 qdisc mq state UP group default qlen 1000
       link/ether 58:a2:e1:73:69:e6 brd ff:ff:ff:ff:ff:ff
       altname enp43s0f0np0
       inet 10.0.120.2/29 metric 50 brd 10.0.120.7 scope global dynamic ens1f0np0
          valid_lft 25713sec preferred_lft 25713sec
       inet6 fe80::5aa2:e1ff:fe73:69e6/64 scope link
          valid_lft forever preferred_lft forever
   ...

   root@worker1:~# vim /etc/netplan/50-cloud-init.yaml
   network:
     version: 2
     ethernets:
       ens1f0np0:
         mtu: 9000
         dhcp4: true
         dhcp4-overrides:
           route-metric: 50
       ens10f0:
         addresses:
         - "10.0.110.21/24"
         nameservers:
           addresses:
           - 10.0.110.252
           search:
           - dpf.rdg.local.domain
         routes:
           - to: default
             via: 10.0.110.254
             metric: 100
         mtu: 9000

   depuser@worker1:~$ ping 8.8.8.8
   PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
   64 bytes from 8.8.8.8: icmp_seq=1 ttl=117 time=5.35 ms
   64 bytes from 8.8.8.8: icmp_seq=2 ttl=117 time=5.10 ms
   64 bytes from 8.8.8.8: icmp_seq=3 ttl=117 time=5.15 ms

   root@worker1:~#  rdma link | grep ens1f0np0
   link mlx5_2/1 state ACTIVE physical_state LINK_UP netdev ens1f0np0


3. Using another console window, reconnect to the jump node and connect to a second Workload Server.
   From within the servers, install iperf, perftest, check DPU Hight Speed Interfaces, set route to ethernet and identify the relevant RDMA device:

   Second Pod Console

   root@worker2:~# apt install iperf3
   root@worker2:~# apt install perftest
   root@worker2:~# ip a s
   ...
   6: ens1f0np0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 9000 qdisc mq state UP group default qlen 1000
       link/ether 58:a2:e1:73:6a:58 brd ff:ff:ff:ff:ff:ff
       altname enp43s0f0np0
       inet 10.0.120.10/29 metric 50 brd 10.0.120.15 scope global dynamic ens1f0np0
          valid_lft 25470sec preferred_lft 25470sec
       inet6 fe80::5aa2:e1ff:fe73:6a58/64 scope link
          valid_lft forever preferred_lft forever
   ...

   depuser@worker2:~$ ping 8.8.8.8
   PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
   64 bytes from 8.8.8.8: icmp_seq=1 ttl=117 time=5.35 ms
   64 bytes from 8.8.8.8: icmp_seq=2 ttl=117 time=5.10 ms
   64 bytes from 8.8.8.8: icmp_seq=3 ttl=117 time=5.15 ms


   root@worker2:~# rdma link | grep ens1f0np0
   link mlx5_2/1 state ACTIVE physical_state LINK_UP netdev ens1f0np0




Network Connection Test

Verify that the two servers running on same network - using virtual functions can communicate with each other.

Connect to the first workload server, and try to ping the PF0 on the second node.

1. Run the ping command:

   First BM Server Console

   root@worker1:~# ping -c 3 10.0.120.10
   PING 10.0.120.10 (10.0.120.10) 56(84) bytes of data.
   64 bytes from 10.0.120.10: icmp_seq=1 ttl=61 time=0.933 ms
   64 bytes from 10.0.120.10: icmp_seq=2 ttl=61 time=0.260 ms
   64 bytes from 10.0.120.10: icmp_seq=3 ttl=61 time=0.248 ms

   --- 10.0.120.10 ping statistics ---
   3 packets transmitted, 3 received, 0% packet loss, time 2059ms
   rtt min/avg/max/mdev = 0.248/0.480/0.933/0.320 ms


iPerf TCP Bandwidth Test

Move back to the first server console.

1. Start the iperf3 server side:

   First BM Server Console

   root@worker1:~# iperf3 -s
   ------------------------------------------------------------
   Server listening on TCP port 5001
   TCP window size:  128 KByte (default)
   ------------------------------------------------------------


2. Move to the second server console.
   Start the iperf client side:

   Second BM Server Console

   root@worker2:~#  iperf3 -c 10.0.120.2 -P 16
   ------------------------------------------------------------
   Connecting to host 10.0.120.2, port 5201
   [  5] local 10.0.120.10 port 59718 connected to 10.0.120.2 port 5201
   [  7] local 10.0.120.10 port 59726 connected to 10.0.120.2 port 5201
   [  9] local 10.0.120.10 port 59734 connected to 10.0.120.2 port 5201
   [ 11] local 10.0.120.10 port 59744 connected to 10.0.120.2 port 5201
   [ 13] local 10.0.120.10 port 59758 connected to 10.0.120.2 port 5201
   [ 15] local 10.0.120.10 port 59760 connected to 10.0.120.2 port 5201
   [ 17] local 10.0.120.10 port 59770 connected to 10.0.120.2 port 5201
   [ 19] local 10.0.120.10 port 59782 connected to 10.0.120.2 port 5201
   [ 21] local 10.0.120.10 port 59792 connected to 10.0.120.2 port 5201
   [ 23] local 10.0.120.10 port 59802 connected to 10.0.120.2 port 5201
   [ 25] local 10.0.120.10 port 59804 connected to 10.0.120.2 port 5201
   [ 27] local 10.0.120.10 port 59820 connected to 10.0.120.2 port 5201
   [ 29] local 10.0.120.10 port 59824 connected to 10.0.120.2 port 5201
   [ 31] local 10.0.120.10 port 59830 connected to 10.0.120.2 port 5201
   [ 33] local 10.0.120.10 port 59834 connected to 10.0.120.2 port 5201
   [ 35] local 10.0.120.10 port 59838 connected to 10.0.120.2 port 5201
   [ ID] Interval           Transfer     Bitrate         Retr  Cwnd
   [  5]   0.00-1.00   sec   914 MBytes  7.67 Gbits/sec  568    603 KBytes
   [  7]   0.00-1.00   sec  1.03 GBytes  8.84 Gbits/sec  438    620 KBytes
   [  9]   0.00-1.00   sec  1.14 GBytes  9.78 Gbits/sec  564   1.22 MBytes
   [ 11]   0.00-1.00   sec   850 MBytes  7.12 Gbits/sec  426    813 KBytes
   [ 13]   0.00-1.00   sec   982 MBytes  8.23 Gbits/sec  338    297 KBytes
   [ 15]   0.00-1.00   sec   989 MBytes  8.29 Gbits/sec  474    271 KBytes
   [ 17]   0.00-1.00   sec   736 MBytes  6.17 Gbits/sec  372    760 KBytes
   [ 19]   0.00-1.00   sec  1.63 GBytes  14.0 Gbits/sec  597   1.89 MBytes
   [ 21]   0.00-1.00   sec   774 MBytes  6.48 Gbits/sec  470    358 KBytes
   [ 23]   0.00-1.00   sec  1.01 GBytes  8.67 Gbits/sec  566    297 KBytes
   [ 25]   0.00-1.00   sec   896 MBytes  7.51 Gbits/sec  386    489 KBytes
   [ 27]   0.00-1.00   sec  1.09 GBytes  9.32 Gbits/sec  674    446 KBytes
   [ 29]   0.00-1.00   sec  1.20 GBytes  10.3 Gbits/sec  607    507 KBytes
   [ 31]   0.00-1.00   sec  1010 MBytes  8.46 Gbits/sec  528    769 KBytes
   [ 33]   0.00-1.00   sec   896 MBytes  7.51 Gbits/sec  452    350 KBytes
   [ 35]   0.00-1.00   sec  1.52 GBytes  13.0 Gbits/sec  531    472 KBytes
   [SUM]   0.00-1.00   sec  16.5 GBytes   141 Gbits/sec  7991
   - - - - - - - - - - - - - - - - - - - - - - - - -
   [  5]   1.00-2.00   sec  1.95 GBytes  16.7 Gbits/sec  832    585 KBytes
   [  7]   1.00-2.00   sec  1.19 GBytes  10.2 Gbits/sec  451    708 KBytes
   [  9]   1.00-2.00   sec  1.14 GBytes  9.76 Gbits/sec  784    245 KBytes
   [ 11]   1.00-2.00   sec  1.12 GBytes  9.66 Gbits/sec  596    358 KBytes
   [ 13]   1.00-2.00   sec  1.02 GBytes  8.80 Gbits/sec  433    821 KBytes
   [ 15]   1.00-2.00   sec  1.33 GBytes  11.5 Gbits/sec  730    280 KBytes
   [ 17]   1.00-2.00   sec   975 MBytes  8.18 Gbits/sec  591    227 KBytes
   [ 19]   1.00-2.00   sec  2.00 GBytes  17.1 Gbits/sec  922   1.11 MBytes
   [ 21]   1.00-2.00   sec   963 MBytes  8.08 Gbits/sec  766    271 KBytes
   [ 23]   1.00-2.00   sec  1.96 GBytes  16.8 Gbits/sec  1086    542 KBytes
   [ 25]   1.00-2.00   sec  1.13 GBytes  9.72 Gbits/sec  712    315 KBytes
   [ 27]   1.00-2.00   sec  1.50 GBytes  12.9 Gbits/sec  908   1.19 MBytes
   [ 29]   1.00-2.00   sec  1.15 GBytes  9.91 Gbits/sec  594    577 KBytes
   [ 31]   1.00-2.00   sec   998 MBytes  8.37 Gbits/sec  562    393 KBytes
   [ 33]   1.00-2.00   sec  1.77 GBytes  15.2 Gbits/sec  879    673 KBytes
   [ 35]   1.00-2.00   sec  1.43 GBytes  12.3 Gbits/sec  453    559 KBytes
   [SUM]   1.00-2.00   sec  21.6 GBytes   185 Gbits/sec  11299
   - - - - - - - - - - - - - - - - - - - - - - - - -
   [  5]   2.00-3.00   sec  1.79 GBytes  15.4 Gbits/sec  814    446 KBytes
   [  7]   2.00-3.00   sec  1.16 GBytes  9.97 Gbits/sec  348    629 KBytes
   [  9]   2.00-3.00   sec   855 MBytes  7.17 Gbits/sec  501    149 KBytes
   [ 11]   2.00-3.00   sec   968 MBytes  8.12 Gbits/sec  567    446 KBytes
   [ 13]   2.00-3.00   sec  1.26 GBytes  10.8 Gbits/sec  406    218 KBytes
   [ 15]   2.00-3.00   sec  1.67 GBytes  14.4 Gbits/sec  722    961 KBytes
   [ 17]   2.00-3.00   sec  1014 MBytes  8.50 Gbits/sec  623    542 KBytes
   [ 19]   2.00-3.00   sec  2.30 GBytes  19.8 Gbits/sec  779    830 KBytes
   [ 21]   2.00-3.00   sec  1.02 GBytes  8.74 Gbits/sec  530    542 KBytes
   [ 23]   2.00-3.00   sec  1.57 GBytes  13.5 Gbits/sec  669    367 KBytes
   [ 25]   2.00-3.00   sec  1.07 GBytes  9.21 Gbits/sec  637    454 KBytes
   [ 27]   2.00-3.00   sec  1.97 GBytes  16.9 Gbits/sec  922    839 KBytes
   [ 29]   2.00-3.00   sec  1.41 GBytes  12.1 Gbits/sec  695    253 KBytes
   [ 31]   2.00-3.00   sec  1.20 GBytes  10.3 Gbits/sec  577   78.6 KBytes
   [ 33]   2.00-3.00   sec  1.43 GBytes  12.3 Gbits/sec  725    227 KBytes
   [ 35]   2.00-3.00   sec  1.63 GBytes  14.0 Gbits/sec  453    280 KBytes
   [SUM]   2.00-3.00   sec  22.3 GBytes   191 Gbits/sec  9968
   - - - - - - - - - - - - - - - - - - - - - - - - -
   [  5]   3.00-4.00   sec  1.79 GBytes  15.4 Gbits/sec  900    848 KBytes
   [  7]   3.00-4.00   sec  1.36 GBytes  11.7 Gbits/sec  574    472 KBytes
   [  9]   3.00-4.00   sec   904 MBytes  7.58 Gbits/sec  629    472 KBytes
   [ 11]   3.00-4.00   sec  1.18 GBytes  10.2 Gbits/sec  721    481 KBytes
   [ 13]   3.00-4.00   sec  1.09 GBytes  9.33 Gbits/sec  455    376 KBytes
   [ 15]   3.00-4.00   sec  1.63 GBytes  14.0 Gbits/sec  956    489 KBytes
   [ 17]   3.00-4.00   sec  1.11 GBytes  9.52 Gbits/sec  674    489 KBytes
   [ 19]   3.00-4.00   sec  1.67 GBytes  14.3 Gbits/sec  673    996 KBytes
   [ 21]   3.00-4.00   sec   954 MBytes  8.00 Gbits/sec  657    585 KBytes
   [ 23]   3.00-4.00   sec  1.49 GBytes  12.8 Gbits/sec  804    446 KBytes
   [ 25]   3.00-4.00   sec  1.29 GBytes  11.1 Gbits/sec  762    682 KBytes
   [ 27]   3.00-4.00   sec  1.79 GBytes  15.4 Gbits/sec  846    551 KBytes
   [ 29]   3.00-4.00   sec  1.55 GBytes  13.3 Gbits/sec  814    865 KBytes
   [ 31]   3.00-4.00   sec  1.30 GBytes  11.2 Gbits/sec  705    402 KBytes
   [ 33]   3.00-4.00   sec  1.34 GBytes  11.5 Gbits/sec  825    760 KBytes
   [ 35]   3.00-4.00   sec  1.50 GBytes  12.9 Gbits/sec  607    883 KBytes
   [SUM]   3.00-4.00   sec  21.9 GBytes   188 Gbits/sec  11602
   - - - - - - - - - - - - - - - - - - - - - - - - -
   [  5]   4.00-5.00   sec  1.39 GBytes  11.9 Gbits/sec  712    428 KBytes
   [  7]   4.00-5.00   sec  1.33 GBytes  11.4 Gbits/sec  565    446 KBytes
   [  9]   4.00-5.00   sec  1.27 GBytes  11.0 Gbits/sec  813    341 KBytes
   [ 11]   4.00-5.00   sec  1.49 GBytes  12.8 Gbits/sec  757    760 KBytes
   [ 13]   4.00-5.00   sec  1.18 GBytes  10.1 Gbits/sec  460    472 KBytes
   [ 15]   4.00-5.00   sec  1.36 GBytes  11.7 Gbits/sec  859    524 KBytes
   [ 17]   4.00-5.00   sec  1.12 GBytes  9.59 Gbits/sec  500    559 KBytes
   [ 19]   4.00-5.00   sec  1.84 GBytes  15.8 Gbits/sec  957    245 KBytes
   [ 21]   4.00-5.00   sec  1.03 GBytes  8.86 Gbits/sec  641    699 KBytes
   [ 23]   4.00-5.00   sec  1.48 GBytes  12.7 Gbits/sec  803   1.06 MBytes
   [ 25]   4.00-5.00   sec  1.01 GBytes  8.69 Gbits/sec  638    358 KBytes
   [ 27]   4.00-5.00   sec  1.39 GBytes  11.9 Gbits/sec  842    350 KBytes
   [ 29]   4.00-5.00   sec  1.30 GBytes  11.2 Gbits/sec  673    402 KBytes
   [ 31]   4.00-5.00   sec  1.51 GBytes  12.9 Gbits/sec  780    227 KBytes
   [ 33]   4.00-5.00   sec  1.46 GBytes  12.6 Gbits/sec  818    944 KBytes
   [ 35]   4.00-5.00   sec  1.35 GBytes  11.6 Gbits/sec  531    315 KBytes
   [SUM]   4.00-5.00   sec  21.5 GBytes   185 Gbits/sec  11349
   - - - - - - - - - - - - - - - - - - - - - - - - -
   [  5]   5.00-6.00   sec  1.57 GBytes  13.5 Gbits/sec  730    288 KBytes
   [  7]   5.00-6.00   sec  1.21 GBytes  10.4 Gbits/sec  466    419 KBytes
   [  9]   5.00-6.00   sec   936 MBytes  7.85 Gbits/sec  501    393 KBytes
   [ 11]   5.00-6.00   sec  1.16 GBytes  10.0 Gbits/sec  705    350 KBytes
   [ 13]   5.00-6.00   sec  1.21 GBytes  10.4 Gbits/sec  410    393 KBytes
   [ 15]   5.00-6.00   sec  1.96 GBytes  16.9 Gbits/sec  1101   2.73 MBytes
   [ 17]   5.00-6.00   sec  1.01 GBytes  8.68 Gbits/sec  533   1.21 MBytes
   [ 19]   5.00-6.00   sec  1.80 GBytes  15.5 Gbits/sec  893    481 KBytes
   [ 21]   5.00-6.00   sec   978 MBytes  8.21 Gbits/sec  578    288 KBytes
   [ 23]   5.00-6.00   sec  1.37 GBytes  11.8 Gbits/sec  755    795 KBytes
   [ 25]   5.00-6.00   sec  1024 MBytes  8.59 Gbits/sec  588    323 KBytes
   [ 27]   5.00-6.00   sec  1.34 GBytes  11.5 Gbits/sec  627    620 KBytes
   [ 29]   5.00-6.00   sec  1.87 GBytes  16.1 Gbits/sec  1001    507 KBytes
   [ 31]   5.00-6.00   sec  1.39 GBytes  11.9 Gbits/sec  746    376 KBytes
   [ 33]   5.00-6.00   sec  1.27 GBytes  10.9 Gbits/sec  688    996 KBytes
   [ 35]   5.00-6.00   sec  1.51 GBytes  13.0 Gbits/sec  646    446 KBytes
   [SUM]   5.00-6.00   sec  21.5 GBytes   185 Gbits/sec  10968
   - - - - - - - - - - - - - - - - - - - - - - - - -
   [  5]   6.00-7.00   sec  1.69 GBytes  14.5 Gbits/sec  756    865 KBytes
   [  7]   6.00-7.00   sec  1.14 GBytes  9.75 Gbits/sec  376    551 KBytes
   [  9]   6.00-7.00   sec   967 MBytes  8.10 Gbits/sec  647    760 KBytes
   [ 11]   6.00-7.00   sec  1.13 GBytes  9.66 Gbits/sec  948    507 KBytes
   [ 13]   6.00-7.00   sec  1.15 GBytes  9.86 Gbits/sec  324   2.12 MBytes
   [ 15]   6.00-7.00   sec  2.21 GBytes  18.9 Gbits/sec  945    664 KBytes
   [ 17]   6.00-7.00   sec  1014 MBytes  8.50 Gbits/sec  687    192 KBytes
   [ 19]   6.00-7.00   sec  1.45 GBytes  12.5 Gbits/sec  724    384 KBytes
   [ 21]   6.00-7.00   sec   777 MBytes  6.51 Gbits/sec  440    393 KBytes
   [ 23]   6.00-7.00   sec  1.47 GBytes  12.6 Gbits/sec  817    673 KBytes
   [ 25]   6.00-7.00   sec  1.01 GBytes  8.70 Gbits/sec  549    446 KBytes
   [ 27]   6.00-7.00   sec  1.37 GBytes  11.7 Gbits/sec  715    856 KBytes
   [ 29]   6.00-7.00   sec  1.23 GBytes  10.6 Gbits/sec  718    682 KBytes
   [ 31]   6.00-7.00   sec  1.99 GBytes  17.0 Gbits/sec  975    498 KBytes
   [ 33]   6.00-7.00   sec  1.91 GBytes  16.4 Gbits/sec  908    603 KBytes
   [ 35]   6.00-7.00   sec  1.62 GBytes  13.9 Gbits/sec  658    166 KBytes
   [SUM]   6.00-7.00   sec  22.1 GBytes   189 Gbits/sec  11187
   - - - - - - - - - - - - - - - - - - - - - - - - -
   [  5]   7.00-8.00   sec  1.82 GBytes  15.7 Gbits/sec  806    821 KBytes
   [  7]   7.00-8.00   sec  1.25 GBytes  10.8 Gbits/sec  428    743 KBytes
   [  9]   7.00-8.00   sec   744 MBytes  6.24 Gbits/sec  485    551 KBytes
   [ 11]   7.00-8.00   sec   662 MBytes  5.55 Gbits/sec  487    419 KBytes
   [ 13]   7.00-8.00   sec  1.18 GBytes  10.1 Gbits/sec  452   1.26 MBytes
   [ 15]   7.00-8.00   sec  2.23 GBytes  19.2 Gbits/sec  709   1.19 MBytes
   [ 17]   7.00-8.00   sec  1.53 GBytes  13.1 Gbits/sec  793   1.79 MBytes
   [ 19]   7.00-8.00   sec  1.35 GBytes  11.6 Gbits/sec  784   1.14 MBytes
   [ 21]   7.00-8.00   sec   796 MBytes  6.68 Gbits/sec  501    149 KBytes
   [ 23]   7.00-8.00   sec  1.54 GBytes  13.3 Gbits/sec  724    952 KBytes
   [ 25]   7.00-8.00   sec  1.08 GBytes  9.26 Gbits/sec  634    542 KBytes
   [ 27]   7.00-8.00   sec  1.23 GBytes  10.5 Gbits/sec  577    192 KBytes
   [ 29]   7.00-8.00   sec   970 MBytes  8.15 Gbits/sec  716    315 KBytes
   [ 31]   7.00-8.00   sec  2.02 GBytes  17.4 Gbits/sec  898    996 KBytes
   [ 33]   7.00-8.00   sec  1.82 GBytes  15.7 Gbits/sec  918    769 KBytes
   [ 35]   7.00-8.00   sec  1.65 GBytes  14.2 Gbits/sec  706    786 KBytes
   [SUM]   7.00-8.00   sec  21.8 GBytes   187 Gbits/sec  10618
   - - - - - - - - - - - - - - - - - - - - - - - - -
   [  5]   8.00-9.00   sec  1.51 GBytes  12.9 Gbits/sec  863    428 KBytes
   [  7]   8.00-9.00   sec  1.03 GBytes  8.81 Gbits/sec  532    306 KBytes
   [  9]   8.00-9.00   sec   780 MBytes  6.54 Gbits/sec  584    647 KBytes
   [ 11]   8.00-9.00   sec  1.35 GBytes  11.6 Gbits/sec  937    498 KBytes
   [ 13]   8.00-9.00   sec  1.59 GBytes  13.7 Gbits/sec  714    900 KBytes
   [ 15]   8.00-9.00   sec  2.04 GBytes  17.6 Gbits/sec  1096    891 KBytes
   [ 17]   8.00-9.00   sec  1.00 GBytes  8.58 Gbits/sec  841    201 KBytes
   [ 19]   8.00-9.00   sec  1.29 GBytes  11.1 Gbits/sec  796    970 KBytes
   [ 21]   8.00-9.00   sec  1.01 GBytes  8.65 Gbits/sec  882    288 KBytes
   [ 23]   8.00-9.00   sec  1.40 GBytes  12.0 Gbits/sec  854    376 KBytes
   [ 25]   8.00-9.00   sec  1019 MBytes  8.54 Gbits/sec  760    472 KBytes
   [ 27]   8.00-9.00   sec  1.28 GBytes  11.0 Gbits/sec  849    725 KBytes
   [ 29]   8.00-9.00   sec  1.57 GBytes  13.5 Gbits/sec  941   1022 KBytes
   [ 31]   8.00-9.00   sec  1.56 GBytes  13.4 Gbits/sec  1028    411 KBytes
   [ 33]   8.00-9.00   sec  1.85 GBytes  15.9 Gbits/sec  1032    472 KBytes
   [ 35]   8.00-9.00   sec  1.48 GBytes  12.7 Gbits/sec  645    699 KBytes
   [SUM]   8.00-9.00   sec  21.7 GBytes   186 Gbits/sec  13354
   - - - - - - - - - - - - - - - - - - - - - - - - -
   [  5]   9.00-10.00  sec  1.78 GBytes  15.3 Gbits/sec  797    507 KBytes
   [  7]   9.00-10.00  sec  1.23 GBytes  10.5 Gbits/sec  496    699 KBytes
   [  9]   9.00-10.00  sec  1.11 GBytes  9.51 Gbits/sec  633    489 KBytes
   [ 11]   9.00-10.00  sec  1004 MBytes  8.41 Gbits/sec  571    769 KBytes
   [ 13]   9.00-10.00  sec  1.11 GBytes  9.48 Gbits/sec  435    463 KBytes
   [ 15]   9.00-10.00  sec  1.85 GBytes  15.9 Gbits/sec  776    848 KBytes
   [ 17]   9.00-10.00  sec  1.12 GBytes  9.64 Gbits/sec  568   1.40 MBytes
   [ 19]   9.00-10.00  sec  1.82 GBytes  15.6 Gbits/sec  763   1.14 MBytes
   [ 21]   9.00-10.00  sec   559 MBytes  4.68 Gbits/sec  393    428 KBytes
   [ 23]   9.00-10.00  sec  1.35 GBytes  11.6 Gbits/sec  744   1.11 MBytes
   [ 25]   9.00-10.00  sec  1.02 GBytes  8.74 Gbits/sec  508    734 KBytes
   [ 27]   9.00-10.00  sec  1.73 GBytes  14.8 Gbits/sec  748   1.37 MBytes
   [ 29]   9.00-10.00  sec  1.91 GBytes  16.4 Gbits/sec  1030    253 KBytes
   [ 31]   9.00-10.00  sec  1.76 GBytes  15.1 Gbits/sec  781   1.20 MBytes
   [ 33]   9.00-10.00  sec  1.52 GBytes  13.1 Gbits/sec  880    839 KBytes
   [ 35]   9.00-10.00  sec  1.45 GBytes  12.4 Gbits/sec  436    516 KBytes
   [SUM]   9.00-10.00  sec  22.3 GBytes   191 Gbits/sec  10559
   - - - - - - - - - - - - - - - - - - - - - - - - -
   [ ID] Interval           Transfer     Bitrate         Retr
   [  5]   0.00-10.00  sec  16.2 GBytes  13.9 Gbits/sec  7778             sender
   [  5]   0.00-10.00  sec  16.2 GBytes  13.9 Gbits/sec                  receiver
   [  7]   0.00-10.00  sec  11.9 GBytes  10.2 Gbits/sec  4674             sender
   [  7]   0.00-10.00  sec  11.9 GBytes  10.2 Gbits/sec                  receiver
   [  9]   0.00-10.00  sec  9.72 GBytes  8.35 Gbits/sec  6141             sender
   [  9]   0.00-10.00  sec  9.72 GBytes  8.35 Gbits/sec                  receiver
   [ 11]   0.00-10.00  sec  10.8 GBytes  9.31 Gbits/sec  6715             sender
   [ 11]   0.00-10.00  sec  10.8 GBytes  9.31 Gbits/sec                  receiver
   [ 13]   0.00-10.00  sec  11.7 GBytes  10.1 Gbits/sec  4427             sender
   [ 13]   0.00-10.00  sec  11.7 GBytes  10.1 Gbits/sec                  receiver
   [ 15]   0.00-10.00  sec  17.3 GBytes  14.8 Gbits/sec  8368             sender
   [ 15]   0.00-10.00  sec  17.3 GBytes  14.8 Gbits/sec                  receiver
   [ 17]   0.00-10.00  sec  10.5 GBytes  9.05 Gbits/sec  6182             sender
   [ 17]   0.00-10.00  sec  10.5 GBytes  9.05 Gbits/sec                  receiver
   [ 19]   0.00-10.00  sec  17.2 GBytes  14.7 Gbits/sec  7888             sender
   [ 19]   0.00-10.00  sec  17.2 GBytes  14.7 Gbits/sec                  receiver
   [ 21]   0.00-10.00  sec  8.72 GBytes  7.49 Gbits/sec  5858             sender
   [ 21]   0.00-10.00  sec  8.72 GBytes  7.49 Gbits/sec                  receiver
   [ 23]   0.00-10.00  sec  14.6 GBytes  12.6 Gbits/sec  7822             sender
   [ 23]   0.00-10.00  sec  14.6 GBytes  12.6 Gbits/sec                  receiver
   [ 25]   0.00-10.00  sec  10.5 GBytes  9.01 Gbits/sec  6174             sender
   [ 25]   0.00-10.00  sec  10.5 GBytes  9.00 Gbits/sec                  receiver
   [ 27]   0.00-10.00  sec  14.7 GBytes  12.6 Gbits/sec  7708             sender
   [ 27]   0.00-10.00  sec  14.7 GBytes  12.6 Gbits/sec                  receiver
   [ 29]   0.00-10.00  sec  14.1 GBytes  12.1 Gbits/sec  7789             sender
   [ 29]   0.00-10.00  sec  14.1 GBytes  12.1 Gbits/sec                  receiver
   [ 31]   0.00-10.00  sec  14.7 GBytes  12.6 Gbits/sec  7580             sender
   [ 31]   0.00-10.00  sec  14.7 GBytes  12.6 Gbits/sec                  receiver
   [ 33]   0.00-10.00  sec  15.2 GBytes  13.1 Gbits/sec  8125             sender
   [ 33]   0.00-10.00  sec  15.2 GBytes  13.1 Gbits/sec                  receiver
   [ 35]   0.00-10.00  sec  15.1 GBytes  13.0 Gbits/sec  5666             sender
   [ 35]   0.00-10.00  sec  15.1 GBytes  13.0 Gbits/sec                  receiver
   [SUM]   0.00-10.00  sec   213 GBytes   183 Gbits/sec  108895             sender
   [SUM]   0.00-10.00  sec   213 GBytes   183 Gbits/sec                  receiver

   iperf Done.


RoCE Latency Test

Return to the first server console.

1. Start the ib_read_lat server side:

   First BM Server Console

   root@worker1:~# ib_read_lat -F -n 20000 -d mlx5_2

   ************************************
   * Waiting for client to connect... *
   ************************************


2. Move to the second server console.
   Start the ib_read_lat client side:

Second BM Server Console

root@worker2:~# ib_read_lat -F -n 20000 -d mlx5_2 10.0.121.1

---------------------------------------------------------------------------------------
                    RDMA_Read Latency Test
 Dual-port       : OFF          Device         : mlx5_2
 Number of qps   : 1            Transport type : IB
 Connection type : RC           Using SRQ      : OFF
 PCIe relax order: ON
 ibv_wr* API     : ON
 TX depth        : 1
 Mtu             : 1024[B]
 Link type       : Ethernet
 GID index       : 3
 Outstand reads  : 16
 rdma_cm QPs     : OFF
 Data ex. method : Ethernet
---------------------------------------------------------------------------------------
 local address: LID 0000 QPN 0x0048 PSN 0x77ae88 OUT 0x10 RKey 0x186ded VAddr 0x005fe0b3e3a000
 GID: 00:00:00:00:00:00:00:00:00:00:255:255:10:00:121:09
 remote address: LID 0000 QPN 0x0048 PSN 0x51948d OUT 0x10 RKey 0x186ded VAddr 0x00577584a67000
 GID: 00:00:00:00:00:00:00:00:00:00:255:255:10:00:121:01
---------------------------------------------------------------------------------------
 #bytes #iterations    t_min[usec]    t_max[usec]  t_typical[usec]    t_avg[usec]    t_stdev[usec]   99% percentile[usec]   99.9% percentile[usec]
 2       20000          3.98           65.30        4.08               7.89             7.17            31.51                   36.33
---------------------------------------------------------------------------------------

RoCE Bandwidth Test

Return to the first server console.

1. Start the ib_write_bw server side:

   First BM Server Console

   root@worker1:~# ib_write_bw -s 1048576 -F -D 30 -q 64 -d mlx5_2

   ************************************
   * Waiting for client to connect... *
   ************************************


2. Move to the second server console.
   Start the ib_write_bw client side:

   Second BM Server Console

   root@worker2:~# ib_write_bw -d mlx5_2 -F -a -q 4 10.0.120.2 --report_gbits
   ---------------------------------------------------------------------------------------
                       RDMA_Write BW Test
    Dual-port       : OFF          Device         : mlx5_2
    Number of qps   : 4            Transport type : IB
    Connection type : RC           Using SRQ      : OFF
    PCIe relax order: ON
    ibv_wr* API     : ON
    TX depth        : 128
    CQ Moderation   : 100
    Mtu             : 4096[B]
    Link type       : Ethernet
    GID index       : 3
    Max inline data : 0[B]
    rdma_cm QPs     : OFF
    Data ex. method : Ethernet
   ---------------------------------------------------------------------------------------
    local address: LID 0000 QPN 0x0052 PSN 0x5b54f8 RKey 0x182e00 VAddr 0x0070e928a01000
    GID: 00:00:00:00:00:00:00:00:00:00:255:255:10:00:120:10
    local address: LID 0000 QPN 0x0053 PSN 0xa16782 RKey 0x182e00 VAddr 0x0070e929201000
    GID: 00:00:00:00:00:00:00:00:00:00:255:255:10:00:120:10
    local address: LID 0000 QPN 0x0054 PSN 0x15fa4 RKey 0x182e00 VAddr 0x0070e929a01000
    GID: 00:00:00:00:00:00:00:00:00:00:255:255:10:00:120:10
    local address: LID 0000 QPN 0x0055 PSN 0xd9b023 RKey 0x182e00 VAddr 0x0070e92a201000
    GID: 00:00:00:00:00:00:00:00:00:00:255:255:10:00:120:10
    remote address: LID 0000 QPN 0x0052 PSN 0xefbd15 RKey 0x182d00 VAddr 0x007ff2aa1d7000
    GID: 00:00:00:00:00:00:00:00:00:00:255:255:10:00:120:02
    remote address: LID 0000 QPN 0x0053 PSN 0x17c9db RKey 0x182d00 VAddr 0x007ff2aa9d7000
    GID: 00:00:00:00:00:00:00:00:00:00:255:255:10:00:120:02
    remote address: LID 0000 QPN 0x0054 PSN 0xd13589 RKey 0x182d00 VAddr 0x007ff2ab1d7000
    GID: 00:00:00:00:00:00:00:00:00:00:255:255:10:00:120:02
    remote address: LID 0000 QPN 0x0055 PSN 0x9f80a4 RKey 0x182d00 VAddr 0x007ff2ab9d7000
    GID: 00:00:00:00:00:00:00:00:00:00:255:255:10:00:120:02
   ---------------------------------------------------------------------------------------
    #bytes     #iterations    BW peak[Gb/sec]    BW average[Gb/sec]   MsgRate[Mpps]
    2          20000           0.022036            0.016848            1.053021
    4          20000            0.25               0.25               7.739084
    8          20000            0.50               0.49               7.721015
    16         20000            0.99               0.99               7.728775
    32         20000            1.98               1.97               7.692634
    64         20000            3.96               3.96               7.728619
    128        20000            7.90               7.86               7.675307
    256        20000            15.81              15.77              7.702318
    512        20000            31.51              31.39              7.663545
    1024       20000            62.18              61.98              7.565755
    2048       20000            121.66             121.25             7.400641
    4096       20000            212.90             212.79             6.493855
    8192       20000            228.04             164.11             2.504087
    16384      20000            228.21             228.10             1.740301
    32768      20000            229.78             229.36             0.874950
    65536      20000            230.35             229.53             0.437792
    131072     20000            230.52             229.68             0.219042
    262144     20000            230.90             230.89             0.110097
    524288     20000            186.92             186.91             0.044564
    1048576    20000            179.16             179.16             0.021358
    2097152    20000            182.22             182.22             0.010861
    4194304    20000            181.55             181.52             0.005410
    8388608    20000            181.72             181.72             0.002708
   ---------------------------------------------------------------------------------------


DTS and Blueman DPU Services Validation

Here's a step-by-step procedure to check the DTS and Blueman DPU Services were deployed on your NVIDIA BlueField DPU.
To be able to log into BlueMan and view the local DTS instance data in a convenient way, the management IP address of the DPU should be entered to a web browser located in the same network as the DPU. In this RDG, it will be demonstrated by using RDP to connect to the Jump node and opening a web browser in it (same as with MaaS, Firewall).

1. To find out the DPU management IP address in the 10.0.110.0/24 subnet, obtain the DPU names.

   Jump Node Console

   $ kubectl get dpus -n dpf-operator-system
   NAME                                 READY   PHASE   AGE
   dpu-node-mt2402xz0f7x-mt2402xz0f7x   True    Ready   150m
   dpu-node-mt2402xz0f80-mt2402xz0f80   True    Ready   150m
   dpu-node-mt2511600rc3-mt2511600rc3   True    Ready   70m
   dpu-node-mt2511600ruh-mt2511600ruh   True    Ready   70m





2. Obtain the DPU management IP:

   Jump Node Console

   $ $ kubectl get dpus -n dpf-operator-system -o json \
   | jq -r '
     .items[]
     | "\(.metadata.name)\t\(.status.addresses[].address)"
   '

   dpu-node-mt2402xz0f7x-mt2402xz0f7x      10.0.110.211
   dpu-node-mt2402xz0f7x-mt2402xz0f7x      dpu-node-mt2402xz0f7x-mt2402xz0f7x
   dpu-node-mt2402xz0f80-mt2402xz0f80      10.0.110.212
   dpu-node-mt2402xz0f80-mt2402xz0f80      dpu-node-mt2402xz0f80-mt2402xz0f80
   dpu-node-mt2511600rc3-mt2511600rc3      10.0.110.215
   dpu-node-mt2511600rc3-mt2511600rc3      dpu-node-mt2511600rc3-mt2511600rc3
   dpu-node-mt2511600ruh-mt2511600ruh      10.0.110.216
   dpu-node-mt2511600ruh-mt2511600ruh      dpu-node-mt2511600ruh-mt2511600ruh


3. In the RDP session, open a web browser and enter https://<DPU_INTERNAL_IP>. A warning of self-signed certificate should appear; click accept the risk and proceed.
   Afterwards it will open the login page:

   The login credentials to use are the same pair used for the SSH connection to the DPU (ubuntu/ubuntu). However, login straight away won't work and an additional certificate exception in the browser has to be made.


4. Open another tab in the browser and enter https://<DPU_INTERNAL_IP>:10000. It will again prompt a warning of self-signed certificate; click accept the risk to add it to your browser exception list. An error message similar to the following will be displayed, but it doesn't matter since it's an internal address to fetch resources from–in other words, he error message can be ignored.







5. Return to the BlueMan login page, enter the credentials, and you should be able to login.

Done.

Authors

NVIDIA, the NVIDIA logo, and BlueField are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries. Other company and product names may be trademarks of the respective companies with which they are associated.^™
2025 NVIDIA Corporation. All rights reserved.^©

Last updated: July 07, 2026
