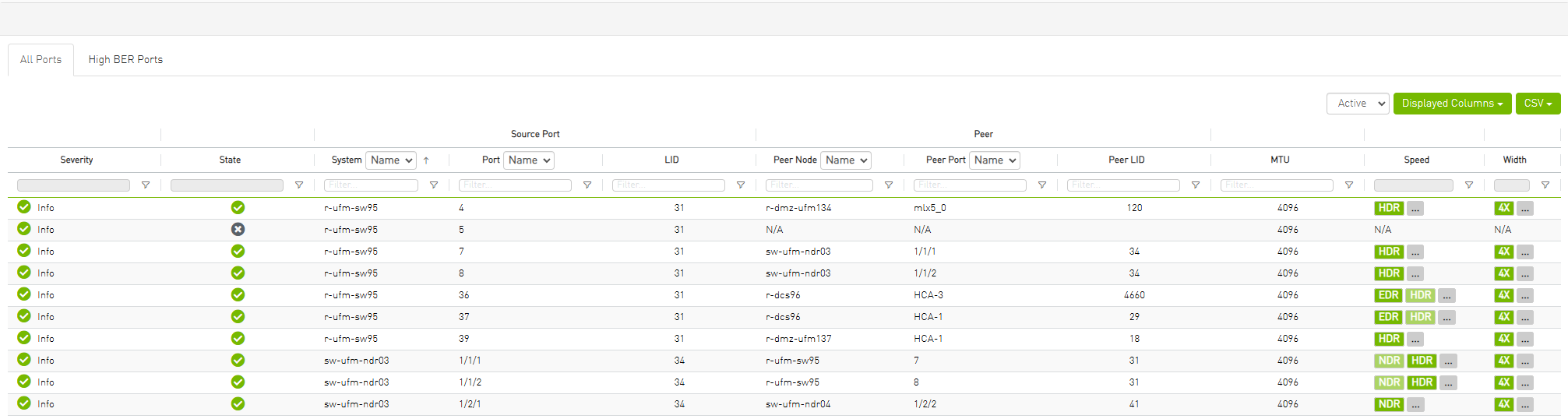

Provides a list of all ports in UFM.
Important: For InfiniBand network devices that support port labels (e.g., XDR, NDR switches, HCAs of type ConnectX-6 or later), the port dname will include port labels (e.g., "dname": "1/3/1"). For other types, only the port number will be displayed.

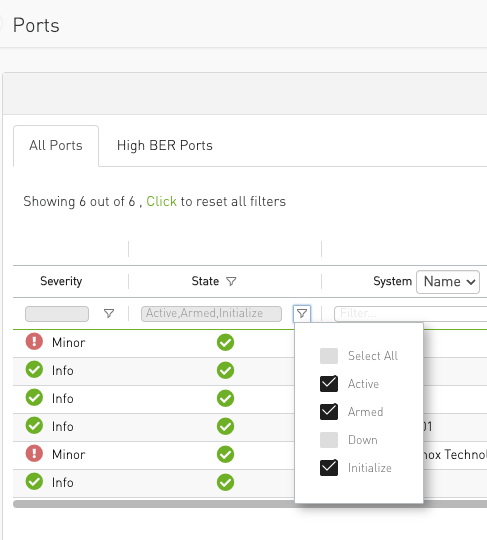

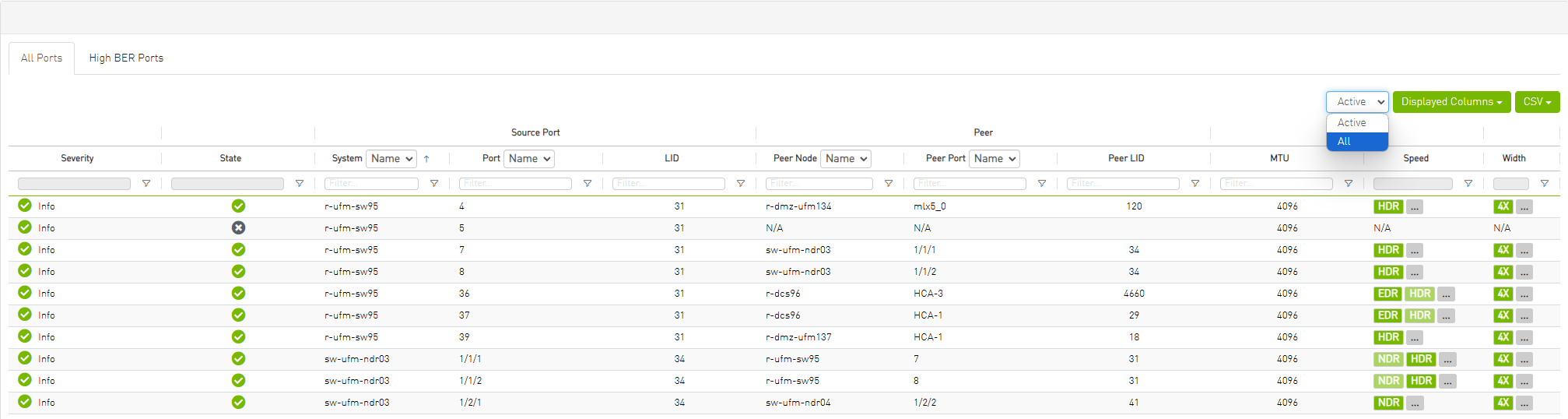

The table can be filtered by port state. The filter contains two options:
-
Active – only active ports
-
Active ports can be filtered by the following states: Active, Armed, and
Initialize
Ports.
-
-
All – all ports

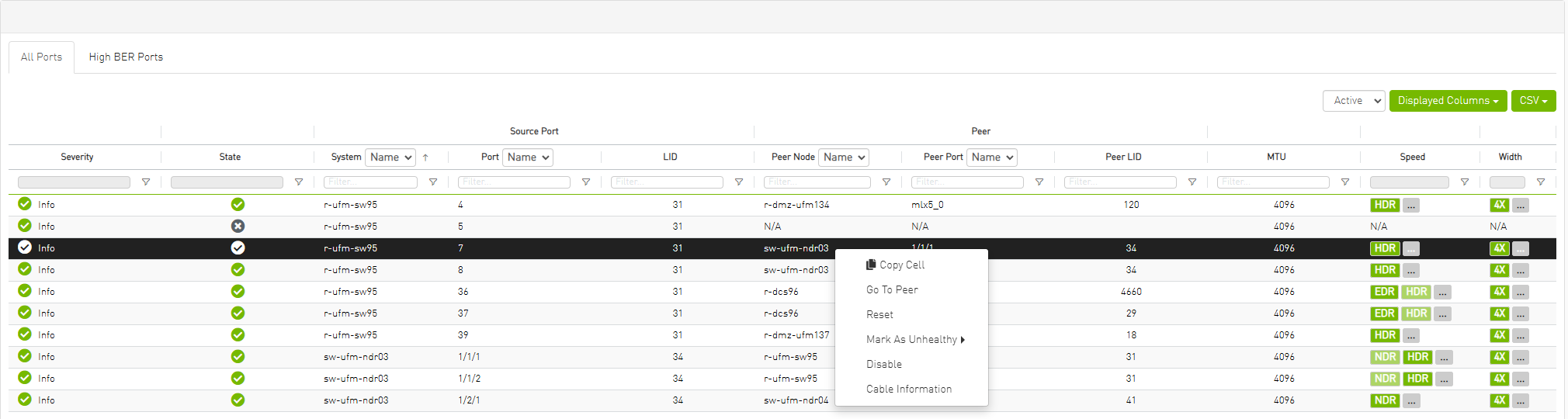

When right-clicking one of the available ports, the following actions appear:
All enable/disable actions on managed switches’ ports are persistent. Thus, if a managed switch port is disabled, the port remains disabled even when rebooting the switch.
Cable Information

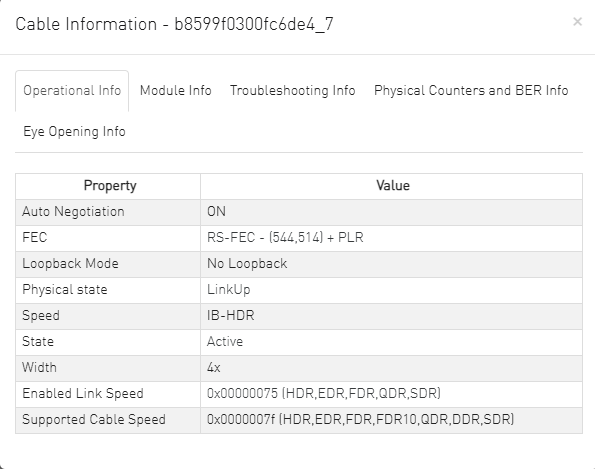

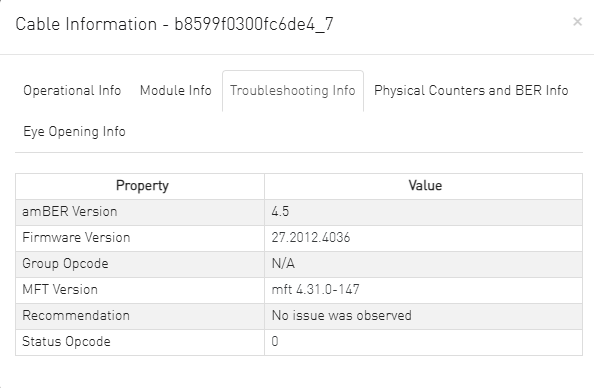

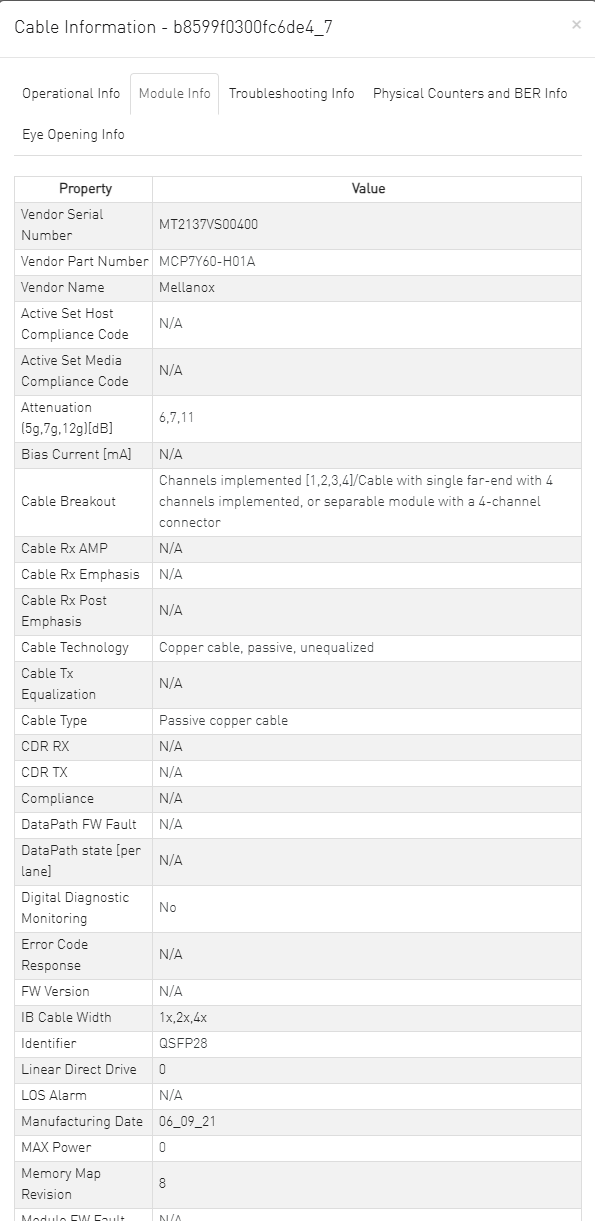

Clicking "Cable Information" opens up a window which provides data on operational, module, and troubleshooting information as shown in the following:
UFM supports showing extended cable information for XDR aggregated ports.
Physical Grade and Eye Opening Information
Eye opening information contains the following data:
-
Physical Grade: [Grade0, Grade1, Grade2, Grade3]
-
Height Eye Opening [mV]: [Height0, Height1, Height2, Height3]
-
Phase Eye Opening [psec]: [Phase0, Phase1, Phase2, Phase3]

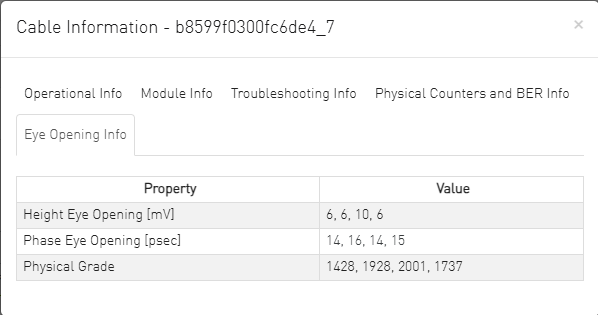

A new tab called Eye Information was added under cable information modal in ports table.
Auto-isolation of High-BER Ports

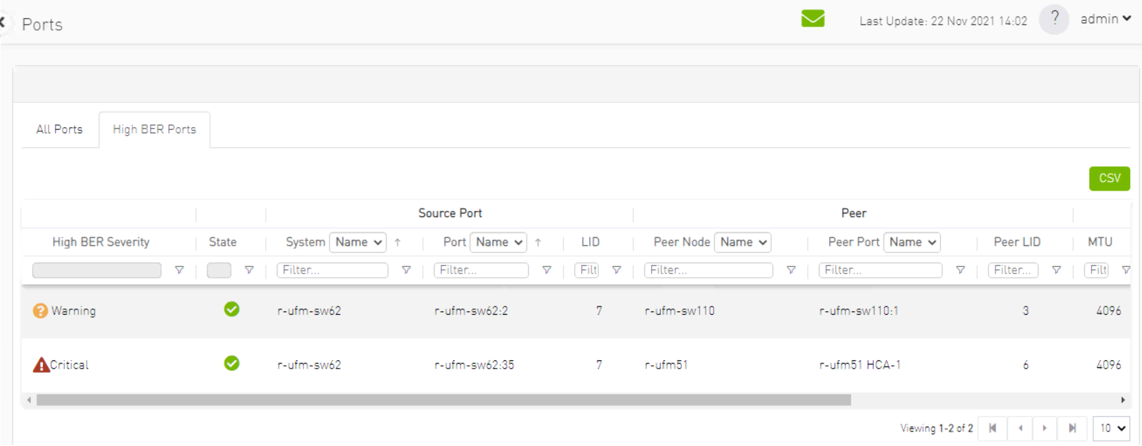

The High BER Ports tab lists all high-BER ports in the fabric.
The flags high_ber_ports_auto_isolation must be configured in the gv.cfg file to enable this feature.
For each port discovered as a high-BER port, a new event is triggered in the Events table.

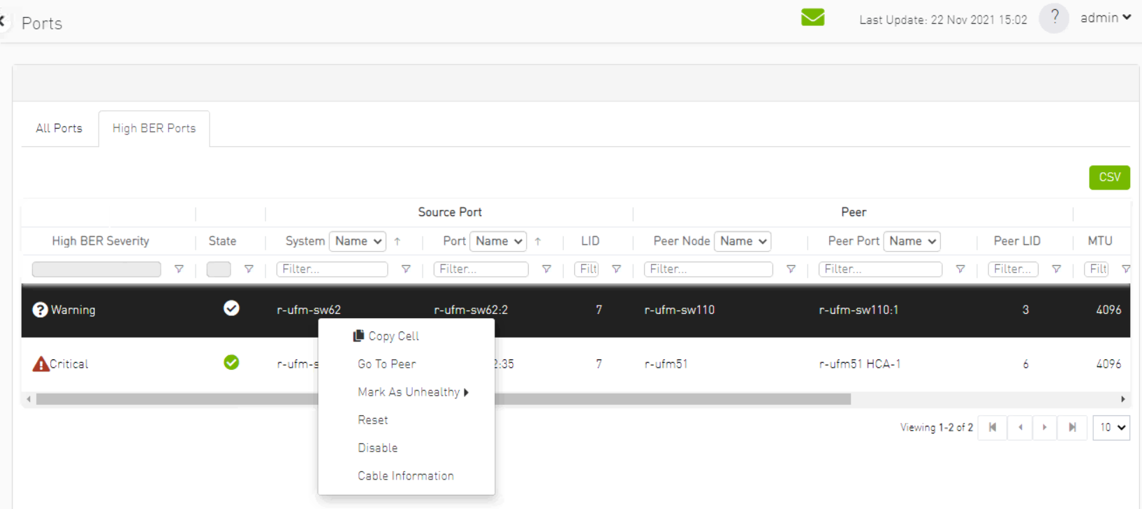

Marking the high-BER port as unhealthy suppresses all events and notifications related to the auto-isolated port.
