Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Electrical and Thermal Specifications document, which is available at NVOnline following login.
The BlueField-2 DPU is designed and validated for operation in data-center servers and other large environments that guarantee proper power supply and airflow conditions.
The DPU is not intended for installation on a desktop or a workstation. Moreover, installing the DPU in any system without proper power and airflow levels can impact the DPU's functionality and potentially damage it. Failure to meet the environmental requirements listed in this user manual may void the warranty.
Ensure your system supports the following system hardware and power supply requirements prior to installing your card.
|
HHHL DPUs |
75W or greater system power supply through the PCIe x8 interface |
|---|---|
|
FHHL DPUs |
E-Series DPUs: A maximum of 75W system power supply through the PCIe x16 interface. |
|
P-Series DPUs: A minimum of 75W or greater system power supply through the PCIe x16 interface, and an additional 75W through the supplementary 6-pin ATX power supply connector. |
MBF2H332A-AECOT / MBF2H332A-AEEOT / MBF2H332A-AENOT Specifications
|
BlueField-2 SoC |
BlueField-2 P-Series - 8 Cores - 500MHz/2500MHz |
||
|---|---|---|---|
|
|||
|
Physical |
Card Dimensions (HHHL): 2.71 in. x 6.6 in. (68.90mm x 167.65 mm)
|
||
|
Connector: Dual SFP56 (copper and optical) |
|||
|
Interfaces |
See Interfaces of MBF2H332A-AECOT, MBF2H332A-AEEOT, MBF2H332A-AENOT |
||
|
PCI Express Gen4.0: SERDES 16.0GT/s, 8 lanes (3.0, 2.0 and 1.1 compatible) |
|||
|
Protocol Support |
Data Rate: 25/10/1 Gb/s Ethernet |
||
|
Ethernet: 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
|||
|
On-board Memory |
Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 16GB @ 3200MT/s
|
||
|
DPU Power Consumption and Airflow |
Voltage: 12V |
||
|
Maximum power available through SFP56 port: 2W |
|||
|
Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Ca |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Regulatory |
Safety |
CB / cTUVus / CE |
|
|
EMC |
CE / FCC / VCCI / ICES / RCM |
||
|
RoHS |
RoHS compliant |
||
|
Notes:
|
|||
MBF2M355A-VECOT / MBF2M355A-VESOT Specifications
|
BlueField-2 SoC |
BlueField-2 E-Series - 8 Cores - 430MHz/2000MHz |
||
|---|---|---|---|
|
MBF2M355A-VECOT: Crypto Enabled, Secure Boot Enabled
|
|||
|
Physical |
Card Dimensions (HHHL): 2.71 in. x 6.6 in. (68.90mm x 167.65 mm)
|
||
|
Connector: Single QSFP56 (copper and optical) |
|||
|
Interfaces |
See Interfaces of MBF2M355A-VECOT, MBF2M355A-VESOT |
||
|
PCI Express Gen4.0: SERDES @ 16.0GT/s, 16 lanes (3.0, 2.0 and 1.1 compatible) |
|||
|
Protocol Support
|
Data Rate: 200/100/50/25/10/1 Gb/s Ethernet |
||
|
Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR, 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2 |
|||
|
On-board Memory |
Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 32GB @ 3200MT/s, 64GB eMMC memory |
||
|
Power Supply, Consumption and Airflow |
Voltage: 12V |
||
|
Maximum power available through QFP56 port: 6W |
|||
|
Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Ca |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Regulatory |
Safety |
CB / cTUVus / CE |
|
|
EMC |
CE / FCC / VCCI / ICES / RCM |
||
|
RoHS |
RoHS compliant |
||
|
Notes:
|
|||
MBF2H512C-AECOT / MBF2H512C-AESOT / MBF2H512C-AEUOT Specifications
|
BlueField-2 SoC |
BlueField-2 P-Series - 8 Cores - 500MHz/2500MHz |
||
|---|---|---|---|
|
|||
|
Physical |
Card Dimensions (FHHL): 4.53 in. x 6.6 in. (115.15 mm x 167.65 mm)
|
||
|
Connector: Dual SFP56 (copper and optical) |
|||
|
Interfaces |
See Interfaces of MBF2H512C-AECOT, MBF2H512C-AESOT, MBF2H512C-AEUOT |
||
|
PCI Express Gen 4.0: SERDES @ 8.0GT/s / 16.0GT/s, 8 lanes (3.0, 2.0 and 1.1 compatible) |
|||
|
Protocol Support
|
Data Rate: 25/10/1 Gb/s Ethernet |
||
|
Ethernet: 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
|||
|
On-board Memory |
Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 16GB @ 3200MT/s, 128GB eMMC memory |
||
|
Power Supply, Consumption and Airflow |
Voltage: 12V |
||
|
Maximum power available through SFP56 port: 1.5W (per port) |
|||
|
Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Ca |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Regulatory |
Safety |
CB / cTUVus / CE |
|
|
EMC |
CE / FCC / VCCI / ICES / RCM |
||
|
RoHS |
RoHS compliant |
||
|
Notes:
|
|||
MBF2H532C-AECOT / MBF2H532C-AESOT Specifications
|
BlueField-2 SoC |
BlueField-2 P-Series - 8 Cores - 500MHz/2500MHz |
||
|---|---|---|---|
|
|||
|
Physical |
Card Dimensions (FHHL): 4.53 in. x 6.6 in. (115.15 mm x 167.65 mm)
|
||
|
Connector: Dual SFP56 (copper and optical) |
|||
|
Interfaces |
See Interfaces of MBF2H532C-AECOT, MBF2H532C-AESOT |
||
|
PCI Express Gen 4.0: SERDES @ 8.0GT/s / 16.0GT/s, 8 lanes (3.0, 2.0 and 1.1 compatible) |
|||
|
Protocol Support
|
Data Rate: 25/10/1 Gb/s Ethernet |
||
|
Ethernet: 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
|||
|
On-board Memory |
Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 32GB @ 3200MT/s, 128GB eMMC memory |
||
|
DPU Power Supply, Consumption and Airflow |
Voltage: 12V |
||
|
Maximum power available through SFP56 port: 1.5W (per port) |
|||
|
Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Ca |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Regulatory |
Safety |
CB / cTUVus / CE |
|
|
EMC |
CE / FCC / VCCI / ICES / RCM |
||
|
RoHS |
RoHS compliant |
||
|
Notes:
|
|||
MBF2H516A-CEEOT / MBF2H516A-CENOT Specifications
To power-up these FHHL P-Series DPUs with x16 PCIe Gen 4.0 lanes, you need to connect a PCIe external power cable to the on-board 6-pin ATX connector. The PCIe external power cable should be supplied by the customer (usually available with the server). Refer to External Power Supply Connector pinouts for pin descriptions.
|
BlueField-2 SoC |
BlueField-2 P-Series - 8 Cores - 550MHz/2750MHz |
||
|---|---|---|---|
|
|||
|
Physical |
Card Dimensions (FHHL): 4.53 in. x 6.6 in. (115.15 mm x 167.65 mm)
|
||
|
Connector: Dual QSFP56 (copper and optical) |
|||
|
Interfaces |
See Interfaces of MBF2H516A-CEEOT, MBF2H516A-CENOT |
||
|
PCI Express Gen 4.0: SERDES @ 8.0GT/s / 16.0GT/s, 16 lanes (3.0, 2.0 and 1.1 compatible) |
|||
|
Protocol Support
|
Data Rate: 100/50/40/25//10/1 Gb/s Ethernet |
||
|
Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
|||
|
On-board Memory |
Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 16GB @ 3200MT/s, 64GB eMMC memory |
||
|
Capabilities |
|
||
|
DPU Power Supply, Consumption and Airflow |
Voltage: 12V |
||
|
Maximum power available through QSFP56 port: 2.5W (per port) |
|||
|
Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Ca |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Regulatory |
Safety |
CB / cTUVus / CE |
|
|
EMC |
CE / FCC / VCCI / ICES / RCM |
||
|
RoHS |
RoHS compliant |
||
|
Notes:
|
|||
MBF2M516A-CECOT / MBF2M516A-CEEOT / MBF2M516A-CENOT Specifications
|
BlueField-2 SoC |
BlueField®-2 E-Series - 8 Cores 430MHz/2000MHz |
||
|---|---|---|---|
|
MBF2M516A-CECOT(a): Crypto Enabled, Secure Boot Enabled
|
|||
|
Physical |
Card Dimensions (FHHL): 4.53 in. x 6.6 in. (115.15 mm x 167.65 mm)
|
||
|
Connector: Dual QSFP56 (copper and optical) |
|||
|
Interfaces |
See Interfaces of MBF2M516A-CECOT, MBF2M516A-CEEOT, MBF2M516A-CENOT |
||
|
PCI Express Gen4.0: SERDES @ 8.0GT/s / 16.0GT/s, 16 lanes (3.0, 2.0 and 1.1 compatible) |
|||
|
Protocol Support
|
Data Rate: 100/50/40/25//10/1 Gb/s Ethernet |
||
|
Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
|||
|
On-board Memory |
Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 16GB @ 3200MT/s 64GB eMMC memory |
||
|
Capabilities |
|
||
|
DPU Power Supply, Consumption and Airflow |
Voltage: 12V |
||
|
Maximum power available through QSFP56 port: 2.5W (per port) |
|||
|
Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°C(b) |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Regulatory |
Safety |
CB / cTUVus / CE |
|
|
EMC |
CE / FCC / VCCI / ICES / RCM |
||
|
RoHS |
RoHS compliant |
||
|
Notes:
Related Documents section for details on accessing the document.
|
|||
MBF2H516C-CECOT / MBF2H516C-CESOT / MBF2H516C-CEUOT / MBF2H536C-CECOT / MBF2H536C-CESOT / MBF2H536C-CEUOT Specifications
To power-up these FHHL P-Series DPUs with x16 PCIe Gen 4 lanes, you need to connect a PCIe external power cable to the onboard 6-pin ATX connector. The PCIe external power cable should be supplied by the customer (usually available with the server). Refer to External Power Supply Connector pinouts for pin descriptions.
|
BlueField-2 SoC |
BlueField-2 P-Series - 8 Cores - 550MHz/2750MHz |
||
|---|---|---|---|
|
MBF2H516C-CECOT(a): Crypto Enabled, Secure Boot Enabled
|
|||
|
Physical |
Card Dimensions (FHHL): 4.53 in. x 6.6 in. (115.15 mm x 167.65 mm)
|
||
|
Connector: Dual QSFP56 (copper and optical) |
|||
|
Interfaces |
See Interfaces of MBF2H516C-CECOT, MBF2H516C-CESOT, MBF2H516C-CEUOT, MBF2H536C-CECOT, MBF2H536C-CESOT, MBF2H536C-CEUOT |
||
|
PCI Express Gen 4.0: SERDES @ 8.0GT/s / 16.0GT/s, 16 lanes (3.0, 2.0 and 1.1 compatible) |
|||
|
Protocol Support
|
Data Rate: 100/50/40/25//10/1 Gb/s Ethernet |
||
|
Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
|||
|
Onboard Memory |
Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 16GB or 32GB @ 3200MT/s (16GB for MBF2H516C-CECOT, MBF2H516C-CESOT, MBF2H516C-CEUOT; 32GB for MBF2H536C-CECOT, MBF2H536C-CESOT) 128GB eMMC memory |
||
|
Capabilities |
|
||
|
DPU Power Supply, Consumption and Airflow |
Voltage: 12V |
||
|
Maximum power available through QSFP56 port: 2.5W (per port) |
|||
|
Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°C(b) |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Regulatory |
Safety |
CB / cTUVus / CE |
|
|
EMC |
CE / FCC / VCCI / ICES / RCM |
||
|
RoHS |
RoHS compliant |
||
|
Notes:
|
|||
MBF2M516C-CECOT / MBF2M516C-CESOT Specifications
|
BlueField-2 SoC |
BlueField-2 E-Series - 8 Cores - 430MHz/2000MHz |
||
|---|---|---|---|
|
MBF2M516C-CECOT(a): Crypto Enabled, Secure Boot Enabled
|
|||
|
Physical |
Card Dimensions (FHHL): 4.53 in. x 6.6 in. (115.15 mm x 167.65 mm)
|
||
|
Connector: Dual QSFP56 (copper and optical) |
|||
|
Interfaces |
See Interfaces of MBF2M516C-CECOT, MBF2M516C-CESOT |
||
|
PCI Express Gen 4.0: SERDES @ 8.0GT/s / 16.0GT/s, 16 lanes (3.0, 2.0 and 1.1 compatible) |
|||
|
Protocol Support
|
Data Rate: 100/50/40/25//10/1 Gb/s Ethernet |
||
|
Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
|||
|
On-board Memory |
Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 16GB @ 3200MT/s 128GB eMMC memory |
||
|
DPU Power Supply, Consumption and Airflow |
Voltage: 12V |
||
|
Maximum power available through QSFP56 port: 2.5 (per port) |
|||
|
Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Ca |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Regulatory |
Safety |
CB / cTUVus / CE |
|
|
EMC |
CE / FCC / VCCI / ICES / RCM |
||
|
RoHS |
RoHS compliant |
||
|
(a) If your target application for this crypto-enabled card will utilize 100Gb/s or higher bandwidth, where a substantial part of the bandwidth will be allocated for IPsec traffic, please refer to the NVIDIA BlueField-2 DPUs Product Release Notes document to learn about a potential bandwidth limitation. See Related Documents section for details on accessing the document.
|
|||
DPU Mechanical Drawing and Dimensions
All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.
The diagrams may differ for different cards and are provided here for illustration purposes only.
|

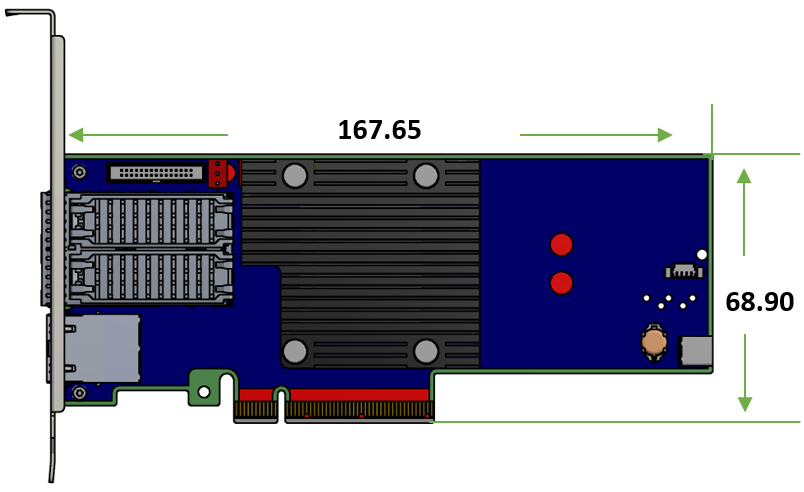

HHHL DPUs |

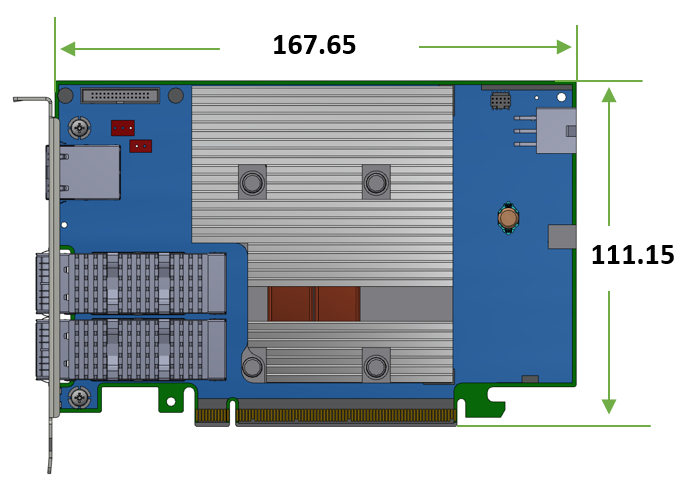

FHHL DPUs |
|---|---|
|
|
|
DPU Bracket Mechanical Drawing
All dimensions are in millimeters.
|
OPNs |
Bracket |
|---|---|
|
MBF2H332A-AECOT
|
|
|
MBF2H516C-CECOT
|
|
|
MBF2H512C-AECOT
|
|
|
MBF2H516A-CEEOT
|
|
|
MBF2M355A-VECOT
|
Tall bracket:
Short bracket: |
