Finding the MAC on the Adapter Card

Each NVIDIA adapter card has a different identifier printed on the label: serial number and the card MAC for the Ethernet protocol.

The product revisions indicated on the labels in the following figures do not necessarily represent the latest revisions of the cards.


The country of manufacturing indicated on the board labels is not exclusive; the products can be manufactured in other countries.

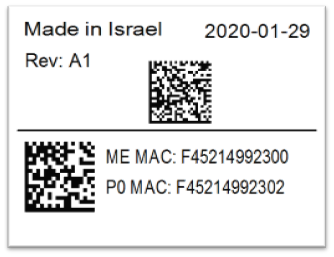

MCX4421A-XCQN Board Label (Example)


MCX4411A-ACAN Board Label (Example)


MCX4421A-ACAN Board Label (Example)

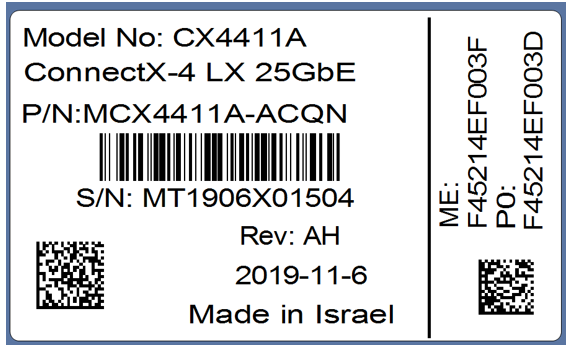

MCX4411A-ACQN Board Label (Example)


MCX4421A-ACQN Board Label (Example)

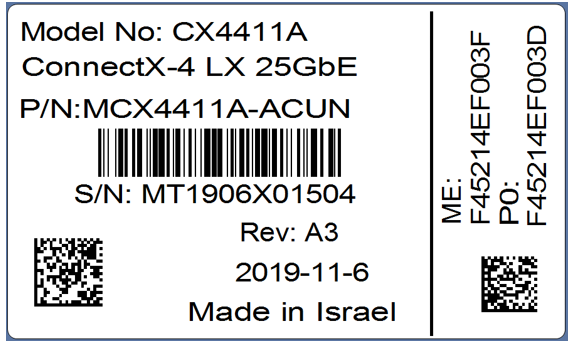

MCX4411A-ACUN Board Label (Example)


MCX4421A-ACUN Board Label (Example)


MCX4431A-GCAN Board Label (Example)


MCX4431M-GCAN Board Label (Example)


MCX4431A-GCUN Board Label (Example)

MCX4431A-GCUN
