MCX4421A-XCQN Specifications
|
Physical |
Size: 2.67 in. x 4.33 in. (68.00 mm x 110.05 mm) |
|||
|---|---|---|---|---|
|
Connector: Dual SFP28 (copper and optical) |
||||
|
Protocol Support |
Ethernet: 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, SGMII, 1000BASE-X |
|||
|
Data Rate: 1/10 Gb/s Ethernet |
||||
|
PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) |
||||
|
Power and Airflow
|
Voltage: 5V_AUX and 3.3V_AUX |
|||
|
Power |
Cable Type |
Active Mode |
Standby Mode |
|
|
Typical Power(a) |
Passive Cables |
9W |
– |
|
|
Maximum Power
|
Passive Cables |
10.63W |
5V_AUX: 3.4W
|
|
|
1.5W Active Cables |
13.63W |
– |
||
|
Maximum power available through SFP28 port: 1.5W |
||||
|
Airflow(b) (port-to-heatsink) |
Cable Type |
Active Mode |
Standby Mode |
|
|
Passive/Active Cables |
200LFM |
100LFM |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°C(c) |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety |
CB / cTUVus / CE |
||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
|||
|
RoHS |
RoHS compliant |
|||
Notes: a. Typical power for ATIS traffic load.
b. Simulated inside an air tunnel (15.2 mm high and 73 mm wide).
c. The non-operational storage temperature specifications apply to the product without its package.
MCX4411A-ACAN/MCX4411A-ACUN Specifications
|
Physical |
Size: 2.67 in. x 4.33 in. (68.00 mm x 110.05 mm) |
|||
|---|---|---|---|---|
|
Connector: Single SFP28 (copper and optical) |
||||
|
Protocol Support |
Ethernet: 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII |
|||
|
Data Rate: 1/10/25 Gb/s Ethernet |
||||
|
PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) |
||||
|
Power and Airflow
|
Voltage: 5V_AUX and 3.3V_AUX |
|||
|
Power |
Cable Type |
Active Mode |
Standby Mode |
|
|
Typical Power(a) |
Passive Cables |
8.41W |
TBD |
|
|
Maximum Power
|
Passive Cables |
10.05W |
TBD |
|
|
1.5W Active Cables |
11.55 |
TBD |
||
|
Maximum power available through SFP28 port: 1.5W |
||||
|
Airflow (port-to-heatsink)(b) |
Cable Type |
Active Mode |
Standby Mode |
|
|
Passive/Active Cables |
200LFM |
100LFM |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°C(c) |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety |
CB / cTUVus / CE |
||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
|||
|
RoHS |
RoHS compliant |
|||
Notes: a. Typical power for ATIS traffic load.
b. Simulated inside an air tunnel (15.2 mm high and 73 mm wide).
c. The non-operational storage temperature specifications apply to the product without its package.
MCX4421A-ACAN/MCX4421A-ACUN Specifications
|
Physical |
Size: 2.67 in. x 4.33 in. (68.00 mm x 110.05 mm) |
|||
|---|---|---|---|---|
|
Connector: Single SFP28 (copper and optical) |
||||
|
Protocol Support |
Ethernet: 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII |
|||
|
Data Rate: 1/10/25 Gb/s Ethernet |
||||
|
PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) |
||||
|
Power and Airflow
|
Voltage: 5V_AUX and 3.3V_AUX |
|||
|
Power |
Cable Type |
Active Mode |
Standby Mode |
|
|
Typical Power(a) |
Passive Cables |
9.01W |
TBD |
|
|
Maximum Power
|
Passive Cables |
10.83W |
TBD |
|
|
1.5W Active Cables |
13.83W |
TBD |
||
|
Maximum power available through SFP28 port: 1.5W |
||||
|
Airflow (port-to-heatsink)(b) |
Passive/Active Cables |
200LFM |
100LFM |
|
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°C(c) |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety |
CB / cTUVus / CE |
||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
|||
|
RoHS |
RoHS compliant |
|||
Notes: a. Typical power for ATIS traffic load.
b. Simulated inside an air tunnel (15.2 mm high and 73 mm wide).
c. The non-operational storage temperature specifications apply to the product without its package.
MCX4411A-ACQN Specifications
|
Physical |
Size: 2.67 in. x 4.33 in. (68.00 mm x 110.05 mm) |
|||
|---|---|---|---|---|
|
Connector: Single SFP28 (copper and optical) |
||||
|
Protocol Support |
Ethernet: 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII |
|||
|
Data Rate: 1/10/25 Gb/s Ethernet |
||||
|
PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) |
||||
|
Power and Airflow
|
Voltage: 5V_AUX and 3.3V_AUX |
|||
|
Power |
Cable Type |
Active Mode |
Standby Mode |
|
|
Typical Power(a) |
Passive Cables |
8.41W |
TBD |
|
|
Maximum Power
|
Passive Cables |
10.05W |
TBD |
|
|
1.5W Active Cables |
11.5W |
TBD |
||
|
Maximum power available through SFP28 port: 1.5W |
||||
|
Airflow (port-to-heatsink)(b) |
Cable Type |
Active Mode |
Standby Mode |
|
|
Passive/Active Cables |
200LFM |
100LFM |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°C(c) |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety |
CB / cTUVus / CE |
||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
|||
|
RoHS |
RoHS compliant |
|||
Notes: a. Typical power for ATIS traffic load.
b. Simulated inside an air tunnel (15.2 mm high and 73 mm wide). Airflow direction - port to heatsink.
c. The non-operational storage temperature specifications apply to the product without its package.
MCX4421A-ACQN Specifications
|
Physical |
Size: 2.67 in. x 4.33 in. (68.00 mm x 110.05 mm) |
|||
|---|---|---|---|---|
|
Connector: Dual SFP28 (copper and optical) |
||||
|
Protocol Support |
Ethernet: 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII |
|||
|
Data Rate: 1/10/25 Gb/s Ethernet |
||||
|
PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) |
||||
|
Power and Airflow
|
Voltage: 5V_AUX and 3.3V_AUX |
|||
|
Power |
Cable Type |
Active Mode |
Standby Mode |
|
|
Typical Power(a) |
Passive Cables |
9.01W |
TBD |
|
|
Maximum Power
|
Passive Cables |
10.83W |
TBD |
|
|
1.5W Active Cables |
13.83W |
TBD |
||
|
Maximum power available through SFP28 port: 1.5W |
||||
|
|
Cable Type |
Active Mode |
Standby Mode |
|
|
Passive/Active Cables |
200LFM |
100LFM |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°C(c) |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety |
CB / cTUVus / CE |
||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
|||
|
RoHS |
RoHS compliant |
|||
Notes: a. Typical power for ATIS traffic load.
b. Simulated inside an air tunnel (15.2 mm high and 73 mm wide). Airflow direction - port to heatsink.
c. The non-operational storage temperature specifications apply to the product without its package.
MCX4431A-GCAN/MCX4431A-GCUN Specifications
|
Physical |
Size: 2.67 in. x 4.33 in (68.00 mm x 110.05 mm) |
|||
|---|---|---|---|---|
|
Connector: Single QSFP28 (copper and optical) |
||||
|
Protocol Support |
Ethernet: 50GBASE-R4, 50G-R2 (EC), 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 25GBASE-CR/CR-S, 25GBASE-SR, 25GBASE-LR, 25G-R (EC), 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, SGMII / 1000BASE-X |
|||
|
Data Rate: 1/10/25/40/50 Gb/s Ethernet |
||||
|
PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) |
||||
|
Power and Airflow
|
Voltage: 5V_AUX, 3.3V_AUX |
|||
|
Power |
Cable Type |
Active Mode |
Standby Mode |
|
|
Typical Power(a) |
Passive Cables |
9.07W |
TBD |
|
|
Maximum Power
|
Passive Cables |
10.82W |
TBD |
|
|
1.5W Active Cables |
14.32W |
TBD |
||
|
Maximum power available through QSFP28 port: 3.5W |
||||
|
|
Cable Type |
Active Mode |
Standby Mode |
|
|
Passive/Active Cables |
250LFM |
100LFM |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°C(c) |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety |
CB / cTUVus / CE |
||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
|||
|
RoHS |
RoHS compliant |
|||
Notes: a. Typical power for ATIS traffic load.
b. Simulated inside an air tunnel (15.2 mm high and 73 mm wide).
c. The non-operational storage temperature specifications apply to the product without its package.
MCX4431M-GCAN Specifications
|
Physical |
Size: 3.07 in. x 4.33 in (78.00 mm x 110.05 mm) |
|||
|---|---|---|---|---|
|
Connector: Single QSFP28 (copper and optical) |
||||
|
Protocol Support |
Ethernet: 50GBASE-R4, 50G-R2 (EC), 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 25GBASE-CR/CR-S, 25GBASE-SR, 25GBASE-LR, 25G-R (EC), 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, SGMII / 1000BASE-X
|
|||
|
Data Rate: 1/10/25/40/50 Gb/s Ethernet |
||||
|
PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) |
||||
|
Power and Airflow
|
Voltage: 5V_AUX, 3.3V_AUX |
|||
|
Power |
Cable Type |
Active Mode |
Standby Mode |
|
|
Typical Power(a) |
Passive Cables |
11.2W |
TBD |
|
|
Maximum Power
|
Passive Cables |
13.08W |
TBD |
|
|
1.5W Active Cables |
16.58W |
TBD |
||
|
Maximum power available through QSFP28 port: 3.5W |
||||
|
Airflow(b) (port-to-heatsink) |
Cable Type |
Active Mode |
Standby Mode |
|
|
Passive/Active Cables |
300LFM |
100LFM |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°C(c) |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety |
CB / cTUVus / CE |
||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
|||
|
RoHS |
RoHS compliant |
|||
Notes: a. Typical power for ATIS traffic load.
b. Simulated inside an air tunnel (15.2 mm high and 73 mm wide). Airflow direction - port to heatsink.
c. The non-operational storage temperature specifications apply to the product without its package.
Board Mechanical Drawing and Dimensions
For the 3D Model of the card, please refer to 3D Models at http://www.nvidia.com/page/3d_models.
All dimensions are in millimeters. The PCB mechanical tolerances is +/- 0.13mm.
|

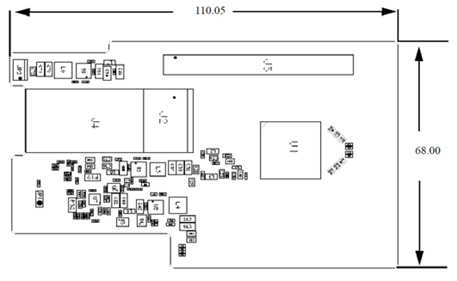

Single-port 10/25 Gb/s Cards |

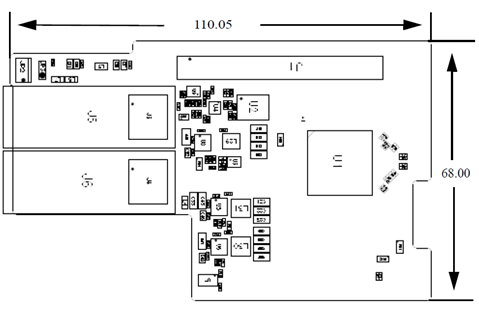

Dual-port 10/25 Gb/s Cards |
|---|---|
|
|
|
Single-port 50Gb/s Cards |

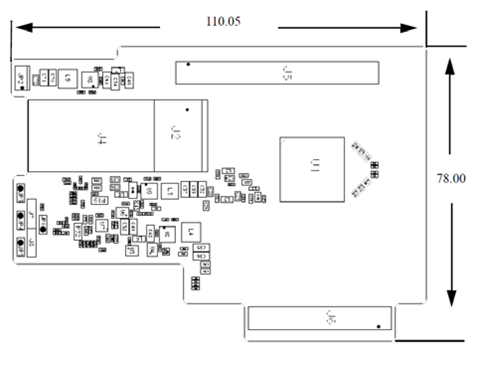

Multi-host Single-port 50Gb/s Cards |
|
|
