The ConnectX-7 adapter card is designed and validated for operation in data-center servers and other large environments that guarantee proper power supply and airflow conditions.
The adapter card is not intended for installation on a desktop or a workstation. Moreover, installing the adapter card in any system without proper power and airflow levels can impact the adapter card's functionality and potentially damage it. Failure to meet the environmental requirements listed in this user manual may void the warranty.
Please make sure to install the ConnectX-7 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
MCX75310AAC-NEAT / MCX75310AAS-NEAT Specifications
ConnectX-7 adapter cards with OSFP form factor support RHS (Riding Heatsink) cage only.
|
Physical |
Adapter Card Size: PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm) |
||
|---|---|---|---|
|
Interfaces |
See Supported Interfaces |
||
|
PCI Express Gen 4.0/5.0: SERDES @ 16/32GT/s, x16 lanes (Gen 3.0 compatible) |
|||
|
Networking Port: Single OSFP InfiniBand and Ethernet |
|||
|
Data Rate |
InfiniBand (Default) |
NDR/NDR200/HDR/HDR100/EDR/FDR/SDR |
|
|
Ethernet |
400/200/100/50/40/10/1 Gb/s Ethernet |
||
|
Protocol Support |
InfiniBand: IBTA v1.5a Auto-Negotiation: NDR (4 lanes x 100Gb/s per lane) port, NDR200 (2 lanes x 100Gb/s per lane) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane). |
||
|
Ethernet Protocols supported by the electrical interfaceb
|
|||
|
Capabilities |
MCX75310AAC-NEAT |
Secure Boot Enabled, Crypto Enabled |
|
|
MCX75310AAS-NEAT |
Secure Boot Enabled, Crypto Disabled |
||
|
Electrical and Thermal Specifications |
Voltage: 12V, 3.3VAUX
|
||
|
Typical power with passive cables in PCIe Gen 5.0 x16 |
MCX75310AAC-NEAT |
25.9W |
|
|
MCX75310AAS-NEAT |
24.9W |
||
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-7 Adapter Card Product Specifications" document. You can access the document either by logging into NVOnline or by contacting your NVIDIA representative. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Cc |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Altitude (Operational) |
3050m |
||
|
Regulatory
|
Safety: CB / cTUVus / CE |
||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
|||
|
RoHS: RoHS Compliant |
|||
|
Notes:
|
|||
MCX75310AAS-HEAT Specifications
ConnectX-7 adapter cards with OSFP form factor support RHS (Riding Heat Sink) cage only.
|
Physical |
Adapter Card Size: PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm) |
||
|---|---|---|---|
|
Interfaces |
See Supported Interfaces
|
||
|
PCI Express Interface: Gen 4.0/5.0: SERDES @ 16/32GT/s, x16 lanes (Gen 3.0 compatible) |
|||
|
Networking Port: Single OSFP InfiniBand and Ethernet |
|||
|
Data Rate |
InfiniBand (Default) |
NDR200/HDR/HDR100/EDR/FDR/SDR |
|
|
Ethernet |
200/100/50/40/10/1 Gb/s Ethernet |
||
|
Protocol Support |
InfiniBand: IBTA v1.5a Auto-Negotiation: NDR200 (2 lanes x 100Gb/s per lane) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane). |
||
|
Ethernet Protocols supported by the electrical interfaceb
200GAUI-2 C2M, 200GAUI-4 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GAUI-1 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2 , 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M , XLPPI, SFI |
|||
|
Capabilities |
MCX75310AAS-HEAT |
Secure Boot Enabled, Crypto Disabled |
|
|
Electrical and Thermal Specifications |
Voltage: 12V, 3.3VAUX
|
||
|
Typical power with passive cables in PCIe Gen 5.0 x16 |
16.7W |
||
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-7 Adapter Card Product Specifications" document. You can access the document either by logging into NVOnline or by contacting your NVIDIA representative. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Cc |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Altitude (Operational) |
3050m |
||
|
Regulatory
|
Safety: CB / cTUVus / CE |
||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
|||
|
RoHS: RoHS Compliant |
|||
|
Notes:
|
|||
MCX755106AC-HEAT / MCX755106AS-HEAT Specifications
The Socket-Direct ready cards kit does not include the PCIe passive auxiliary connection card and two Cabline SA-II Plus harnesses. For more information, please refer to PCIe Auxiliary Card Kit.
ConnectX-7 adapter cards with OSFP form factor support RHS (Riding Heat Sink) cage only.
|
Physical |
Adapter Card Size |
PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm) |
|
|---|---|---|---|
|

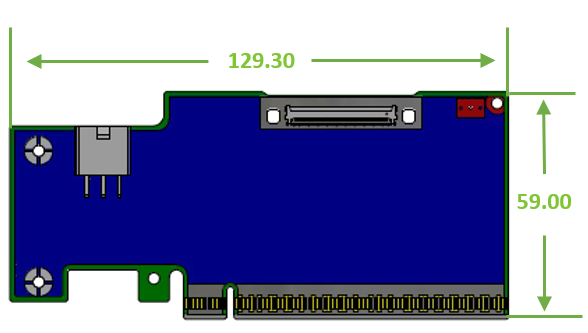

Auxiliary PCIe Connection Card Size |
5.09 in. x 2.32 in. (129.30mm x 59.00mm)
|
||
|
Interfaces |
See Supported Interfaces |
||
|
PCI Express Interface |
Gen 5.0/4.0: SERDES @ 16/32GT/s, x16 lanes (4.0 and 3.0 compatible) |
||
|
Optional: Additional PCIe x16 Gen 4.0 @ SERDES 18GT/s through the PCIe auxiliary passive card and Cabline SA-II Plus harnesses |
|||
|
Networking Ports |
Dual QSFP112 InfiniBand and Ethernet |
||
|
Data Rate |
InfiniBand |
NDR200/HDR/HDR100/EDR/FDR/SDR |
|
|
Ethernet (Default Mode) |
200/100/50/25/10 Gb/s |
||
|
Protocol Support |
InfiniBand: IBTA v1.5a Auto-Negotiation: NDR200 (2 lanes x 100Gb/s per lane) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane) |
||
|
Ethernet Protocols supported by the electrical interfaceb
|
200GAUI-2 C2M, 200GAUI-4 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GAUI-1 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2 , 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M , XLPPI, SFI |
||
|
Capabilities |
MCX755106AC-HEAT |
Secure Boot Enabled, Crypto Enabled |
|
|
MCX755106AS-HEAT |
Secure Boot Enabled, Crypto Disabled |
||
|
Electrical and Thermal Specifications |
Voltage: 12V, 3.3VAUX
|
||
|
Typical power with passive cables in PCIe Gen 5.0 x16 |
MCX755106AC-HEAT |
25.9W |
|
|
MCX755106AS-HEAT |
24.9W |
||
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-7 Adapter Card Product Specifications" document. You can access the document either by logging into NVOnline or by contacting your NVIDIA representative. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Cc |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Altitude (Operational) |
3050m |
||
|
Regulatory
|
Safety: CB / cTUVus / CE |
||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
|||
|
RoHS: RoHS Compliant |
|||
|
Notes:
|
|||
MCX715105AS-WEAT Specifications
The Socket-Direct ready cards kit does not include the PCIe passive auxiliary connection card and two Cabline SA-II Plus harnesses. For more information, please refer to PCIe Auxiliary Card Kit.
|
Physical |
Adapter Card Size |
PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm) |
|
|---|---|---|---|
|
Auxiliary PCIe Connection Card Size |
5.09 in. x 2.32 in. (129.30mm x 59.00mm)
|
||
|
Interfaces |
See Supported Interfaces |
||
|
PCI Express Interface |
Gen 5.0/4.0: SERDES @ 16/32GT/s, x16 lanes (4.0 and 3.0 compatible) |
||
|
Optional: Additional PCIe x16 Gen 4.0 @ SERDES 18GT/s through the PCIe auxiliary passive card and Cabline SA-II Plus harnesses |
|||
|
Networking Ports |
Single QSFP112 InfiniBand and Ethernet, port split capable |
||
|
Data Rate |
InfiniBand |
NDR/NDR200/HDR/HDR100/EDR/FDR/SDR |
|
|
Ethernet (Default Mode) |
400/200/100/50/25/10 Gb/s |
||
|
Protocol Support |
InfiniBand: IBTA v1.5a Auto-Negotiation: NDR (4 lanes x 100Gb/s per lane) port, NDR200 (2 lanes x 100Gb/s per lane) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane) |
||
|
Ethernet Protocols supported by the electrical interfaceb
|
400GBASE-CR8, 400GAUI-4 C2M, 400GBASE-CR4, 200GAUI-2 C2M, 200GAUI-4 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GAUI-1 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2 , 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M , XLPPI, SFI |
||
|
Capabilities |
Secure Boot Enabled, Crypto Disabled |
||
|
Electrical and Thermal Specifications |
Voltage: 12V, 3.3VAUX
|
||
|
Typical power with passive cables in PCIe Gen 5.0 x16 |
24.9W |
||
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-7 Adapter Card Product Specifications" document. You can access the document either by logging into NVOnline or by contacting your NVIDIA representative. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Cc |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Altitude (Operational) |
3050m |
||
|
Regulatory
|
Safety: CB / cTUVus / CE |
||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
|||
|
RoHS: RoHS Compliant |
|||
|
Notes:
|
|||
MCX75510AAS-HEAT Specifications
The Socket-Direct ready cards kit does not include the PCIe passive auxiliary connection card and two Cabline SA-II Plus harnesses. For more information, please refer to PCIe Auxiliary Card Kit.
|
Physical |
Adapter Card Size |
PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm) |
|
|---|---|---|---|
|
Auxiliary PCIe Connection Card Size |
5.09 in. x 2.32 in. (129.30mm x 59.00mm)
|
||
|
Interfaces |
See Supported Interfaces |
||
|
PCI Express Interface |
Gen 5.0/4.0: SERDES @ 16/32GT/s, x16 lanes (4.0 and 3.0 compatible) |
||
|
Optional: Additional PCIe x16 Gen 4.0 @ SERDES 16GT/s through the PCIe auxiliary passive card and Cabline SA-II Plus harnesses |
|||
|
Networking Ports |
Single OSFP InfiniBand |
||
|
Data Rate |
InfiniBand |
NDR200/HDR/HDR100/EDR/FDR/SDR |
|
|
Protocol Support |
InfiniBand: IBTA v1.5a Auto-Negotiation: NDR200 (2 lanes x 100Gb/s per lane) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane) |
||
|
Capabilities |
Secure Boot Enabled, Crypto Disabled |
||
|
Electrical and Thermal Specifications |
Voltage: 12V, 3.3VAUX
|
||
|
Typical power with passive cables in PCIe Gen 5.0 x16 |
19.6W |
||
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-7 Adapter Card Product Specifications" document. You can access the document either by logging into NVOnline or by contacting your NVIDIA representative. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Cb |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Altitude (Operational) |
3050m |
||
|
Regulatory
|
Safety: CB / cTUVus / CE |
||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
|||
|
RoHS: RoHS Compliant |
|||
|
Notes:
|
|||
MCX75510AAS-NEAT Specifications
The Socket-Direct ready cards kit does not include the PCIe passive auxiliary connection card and two Cabline SA-II Plus harnesses. For more information, please refer to PCIe Auxiliary Card Kit.
|
Physical |
Adapter Card Size |
PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm) |
|
|---|---|---|---|
|
Auxiliary PCIe Connection Card Size |
5.09 in. x 2.32 in. (129.30mm x 59.00mm)
|
||
|
Interfaces |
See Supported Interfaces |
||
|
PCI Express Interface |
Gen 5.0/4.0: SERDES @ 16/32GT/s, x16 lanes (4.0 and 3.0 compatible) |
||
|
Optional: Additional PCIe x16 Gen 4.0 @ SERDES 16GT/s through the PCIe auxiliary passive card and Cabline SA-II Plus harnesses |
|||
|
Networking Ports |
Single OSFP InfiniBand |
||
|
Data Rate |
InfiniBand |
NDR/NDR200/HDR/HDR100/EDR/FDR/SDR |
|
|
Protocol Support |
InfiniBand: IBTA v1.5a Auto-Negotiation: NDR (4 lanes x 100Gb/s per lane) port, NDR200 (2 lanes x 100Gb/s per lane) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane) |
||
|
Capabilities |
Secure Boot Enabled, Crypto Disabled |
||
|
Electrical and Thermal Specifications |
Voltage: 12V, 3.3VAUX
|
||
|
Typical power with passive cables in PCIe Gen 5.0 x16 |
24.9W |
||
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-7 Adapter Card Product Specifications" document. You can access the document either by logging into NVOnline or by contacting your NVIDIA representative. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Cb |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Altitude (Operational) |
3050m |
||
|
Regulatory
|
Safety: CB / cTUVus / CE |
||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
|||
|
RoHS: RoHS Compliant |
|||
|
Notes:
|
|||
MCX713106AC-CEAT and MCX713106AS-CEAT Specifications
|
Physical |
Adapter Card Size: PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm) |
||
|---|---|---|---|
|
Interfaces |
See Supported Interfaces |
||
|
PCI Express Gen 4.0/5.0: SERDES @ 16/32GT/s, x16 lanes (4.0 and 3.0 compatible) |
|||
|
Networking Ports: Dual-port QSFP112 Ethernet (copper and optical) |
|||
|
Capabilities |
MCX713106AC-CEAT |
Secure Boot Enabled, Crypto Enabled |
|
|
MCX713106AS-CEAT |
Secure Boot Enabled, Crypto Disabled |
||
|
Protocol Support
|
Data Rate |
Ethernet |
100/50/40/25/10/1GbE |
|
Ethernet Protocols supported by the electrical interfaceb
|
|||
|
Electrical and Thermal Specifications |
Voltage: 12V, 3.3VAUX
|
||
|
Typical power with passive cables in PCIe Gen 5.0 x16 |
MCX713106AC-CEAT |
17.5W |
|
|
MCX713106AS-CEAT |
16.8W |
||
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-7 Adapter Card Product Specifications" document. You can access the document either by logging into NVOnline or by contacting your NVIDIA representative. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Cb |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Altitude (Operational) |
3050m |
||
|
Regulatory
|
Safety: CB / cTUVus / CE |
||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
|||
|
RoHS: RoHS Compliant |
|||
|
Notes:
|
|||
MCX713106AC-VEAT and MCX713106AS-VEAT Specifications
|
Physical |
Adapter Card Size: PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm) |
||
|---|---|---|---|
|
Interfaces |
See Supported Interfaces |
||
|
Gen5.0: SERDES @ 16.0GT/s/32GT/s, x16 lanes (4.0, 3.0, 2.0 and 1.1 compatible) |
|||
|
Networking Ports: Dual-port QSFP112 Ethernet (copper and optical) |
|||
|
Protocol Support
|
Data Rate |
Ethernet |
200/100/50/40/25/10/1 GbE |
|
Ethernet Protocols supported by the electrical interfaceb
|
|||
|
Capabilities |
MCX713106AC-CEAT |
Secure Boot Enabled, Crypto Enabled |
|
|
MCX713106AS-CEAT |
Secure Boot Enabled, Crypto Disabled |
||
|
Electrical and Thermal Specifications |
Voltage: 12V, 3.3VAUX
|
||
|
Maximum power available through QSFP112 cage |
11W per port (Not thermally supported), 5.1W per port (Thermally supported) |
||
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-7 Adapter Card Product Specifications" document. You can access the document either by logging into NVOnline or by contacting your NVIDIA representative. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Cc |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Altitude (Operational) |
3050m |
||
|
Regulatory
|
Safety: CB / cTUVus / CE |
||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
|||
|
RoHS: RoHS Compliant |
|||
|
Notes:
|
|||
MCX713104AC-ADAT and MCX713104AS-ADAT Specifications
The physical board dimensions are compliant with PCI Express Card Electromechanical Specification Revision 4.0 except for minor differences with the edge finger alignment, bracket mounting scheme, and low-profile bracket opening. These differ slightly from the PCI CEM specification due to the mechanical constraint of the single quad-port SFP56 cage. It is recommended to use the 3D stp file. Please contact your NVIDIA sales representative to get the mechanical simulation.
|
Physical |
PCIe Half Height, Half Length 2.71 in. x 5.64 in. (68.90mm x 143.50 mm) |
||
|---|---|---|---|
|
Interfaces |
See Supported Interfaces |
||
|
PCI Express Gen 4.0: SERDES @ 16GT/s, x16 lanes (4.0 and 3.0 compatible) |
|||
|
Networking Port: Quad-port SFP56 Ethernet (copper and optical) |
|||
|
Protocol Support
|
Data Rate |
Ethernet |
50/25GbE |
|
Ethernet Protocols supported by the electrical interfaceb
|
|||
|
Capabilities |
MCX713104AC-ADAT: Secure Boot Enabled, Crypto Enabled
|
||
|
Electrical and Thermal Specifications |
Voltage: 12V, 3.3VAUX
|
||
|
Typical power with passive cables in PCIe Gen 4.0 x16 |
MCX713104AC-ADAT |
15.8W |
|
|
MCX713104AS-ADAT |
15.1W |
||
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-7 Adapter Card Product Specifications" document. You can access the document either by logging into NVOnline or by contacting your NVIDIA representative. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Cc |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Altitude (Operational) |
3050m |
||
|
Regulatory
|
Safety: CB / cTUVus / CE |
||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
|||
|
RoHS: RoHS Compliant |
|||
|
Notes:
|
|||
MCX713114TC-GEAT Specifications
|
Physical |
Adapter Card Size: PCIe Full Height, Half Length 4.37 in. x 6.6 in. (111.15mm x 167.65 mm) |
||
|---|---|---|---|
|
Interfaces |
See Supported Interfaces |
||
|
PCI Express Gen 4.0: SERDES @ 16GT/s, x16 lanes (4.0 and 3.0 compatible) |
|||
|
Networking Port: Quad-port SFP56 Ethernet (copper and optical) |
|||
|
Protocol Support |
Data Rate |
Ethernet |
50/25 GbE |
|
Ethernet Protocols supported by the electrical interfaceb
|
|||
|
Capabilities |
MCX713114TC-GEAT |
Enhanced-SyncE & PTP, PPS In/Out, Secure Boot, Crypto Enabled |
|
|
Electrical and Thermal Specifications |
Voltage: 12V, 3.3VAUX
|
||
|
Typical power with passive cables in PCIe Gen 4.0 x16 |
15.8W |
||
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-7 Adapter Card Product Specifications" document. You can access the document either by logging into NVOnline or by contacting your NVIDIA representative. |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°Cc |
||
|
Humidity |
Operational |
10% to 85% relative humidity |
|
|
Non-operational |
10% to 90% relative humidity |
||
|
Altitude (Operational) |
3050m |
||
|
Regulatory
|
Safety: CB / cTUVus / CE |
||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
|||
|
RoHS: RoHS Compliant |
|||
|
Notes: a. This table lists the electrical protocols. A wide range of optical protocols are delivered through the C2M interfaces listed in this table and optical modules. Examples are 100GBASE-SR4 and 400GBASE-DR4.
|
|||
Cards Mechanical Drawings and Dimensions
All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.
|

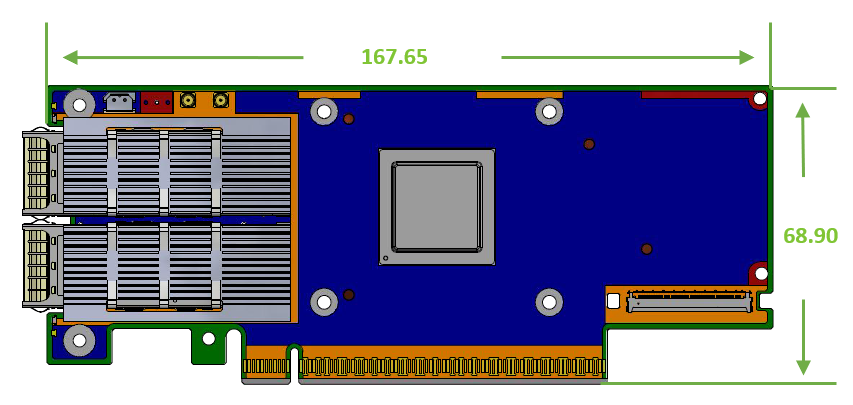

Dual-port x16 QSFP112 Adapter Card |

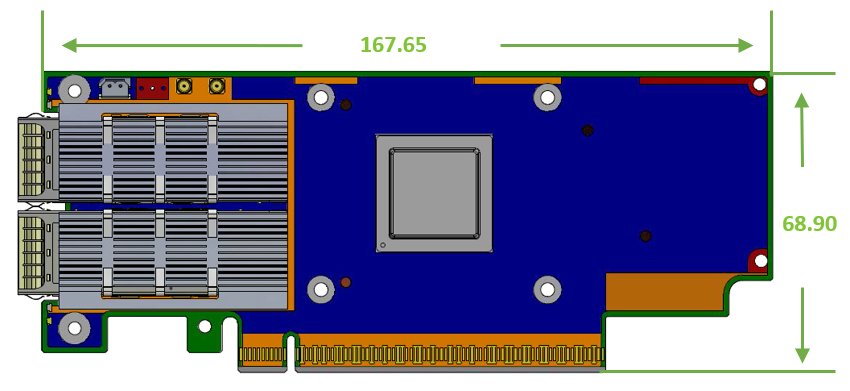

Dual-port x16 QSFP112 Socket-Direct Ready Adapter Card |
|---|---|
|
|
|
|

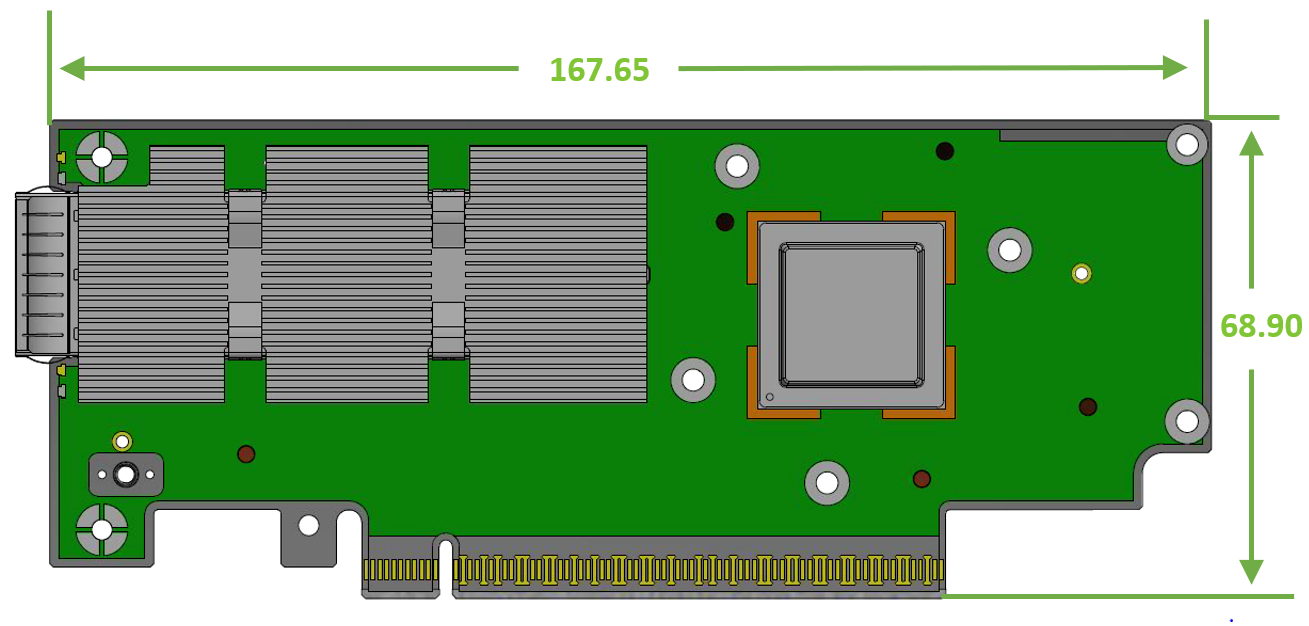

Single-port x16 QSFP112 Adapter Card |

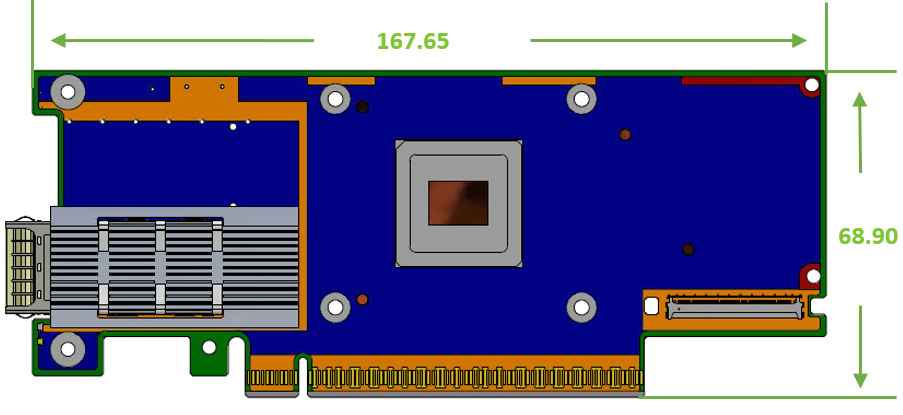

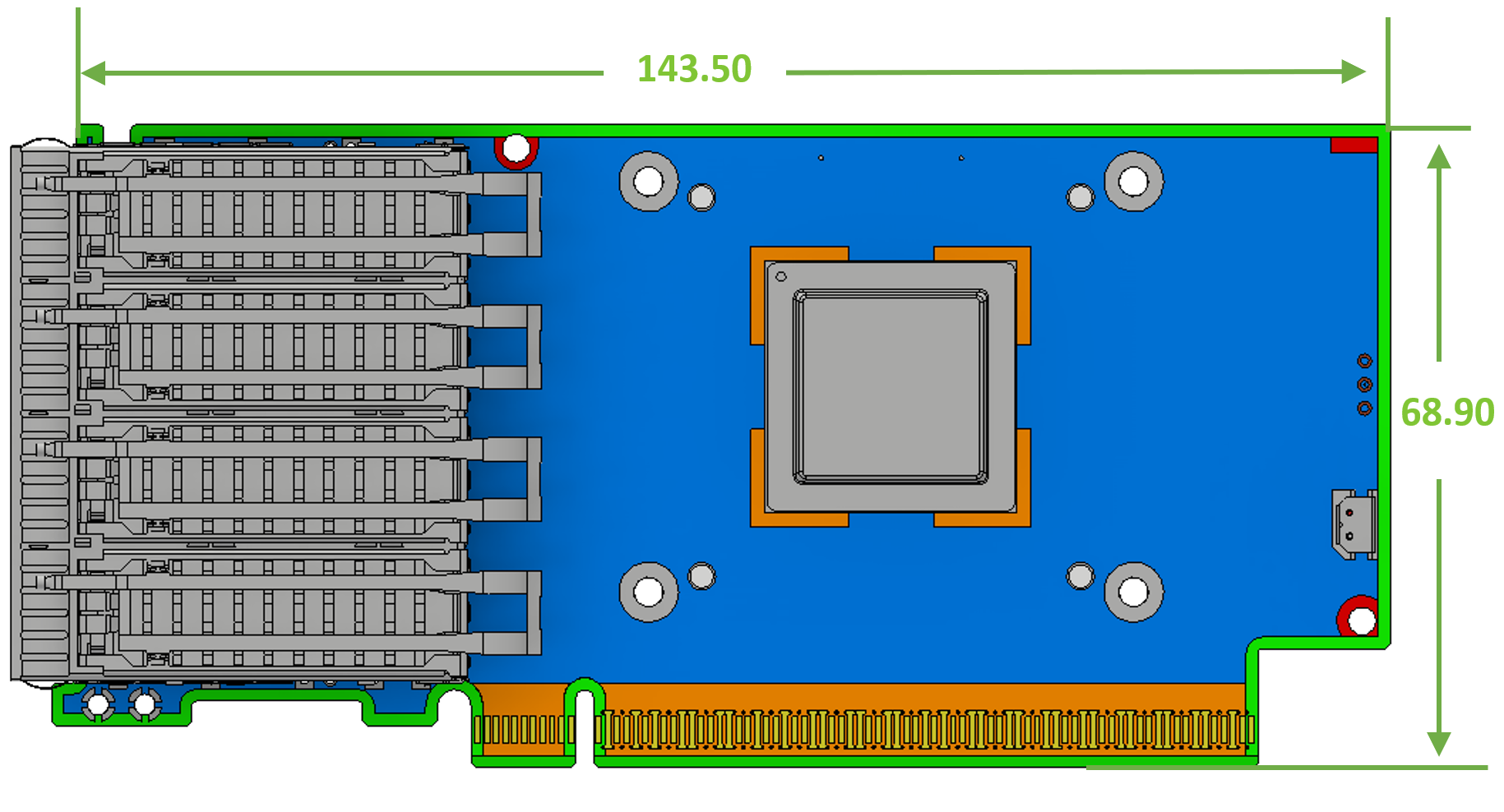

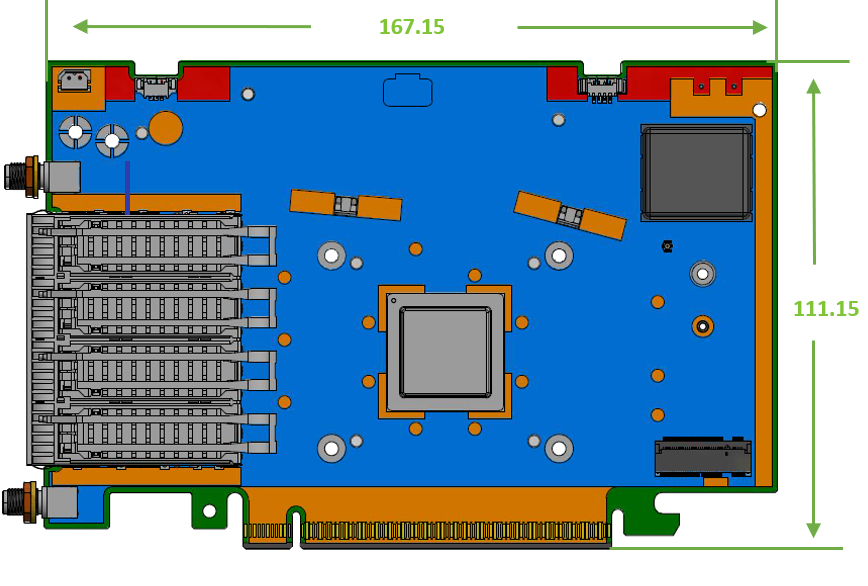

HHHL Quad-port SFP56 Adapter Card |
|
|
|
|
HHHL Quad-port SFP56 with PPS IN/OUT Adapter Card |
|
|
|
|
|
Single-port x16 OSFP Adapter Card |
Auxiliary PCIe Connection Card |
|
|
|

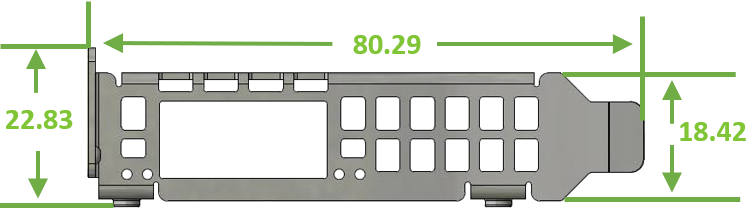

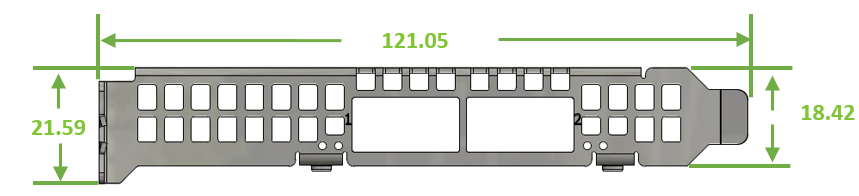

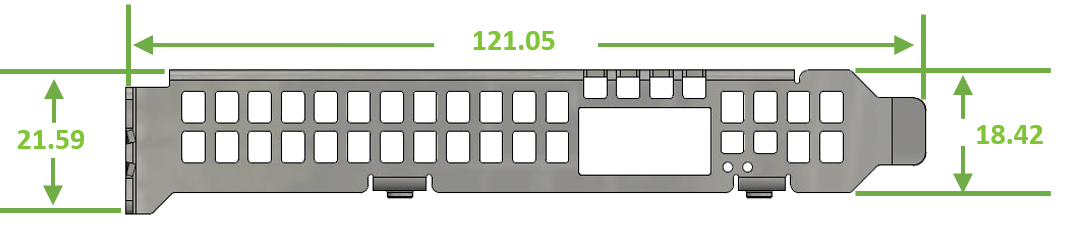

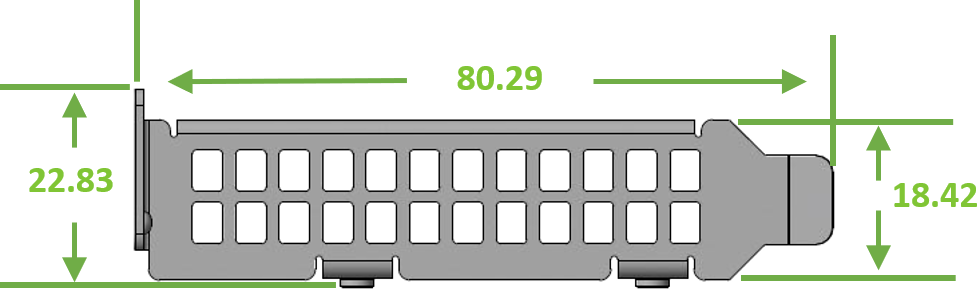

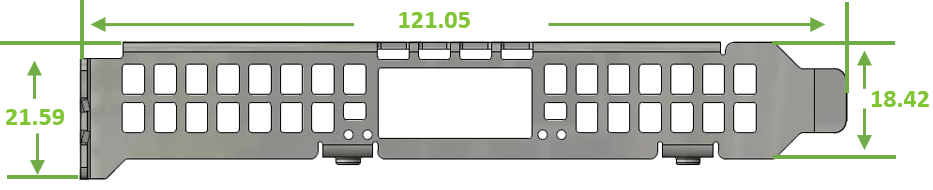

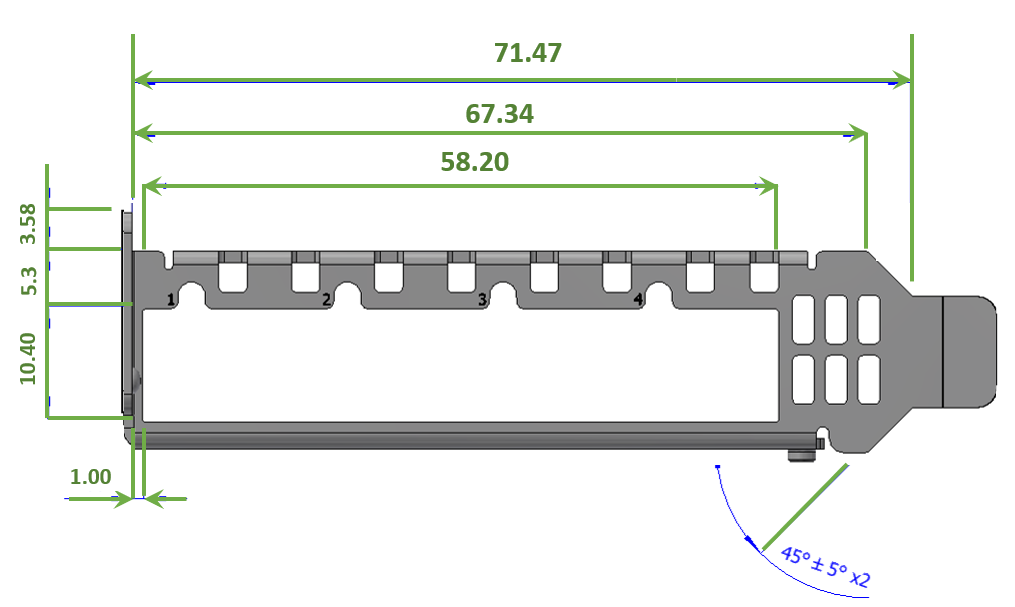

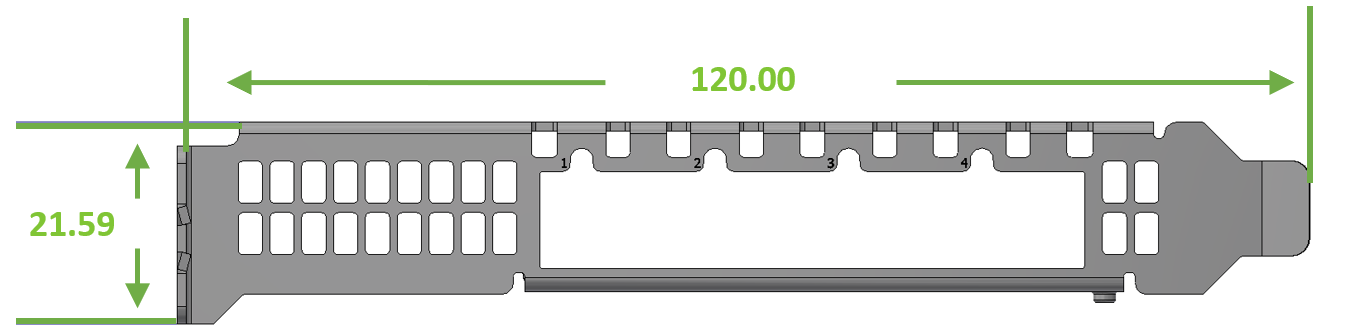

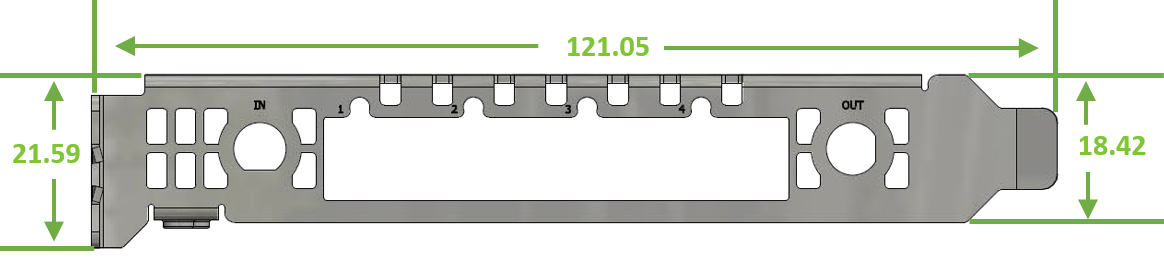

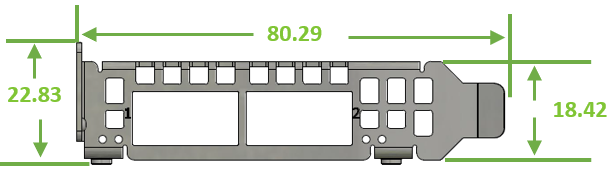

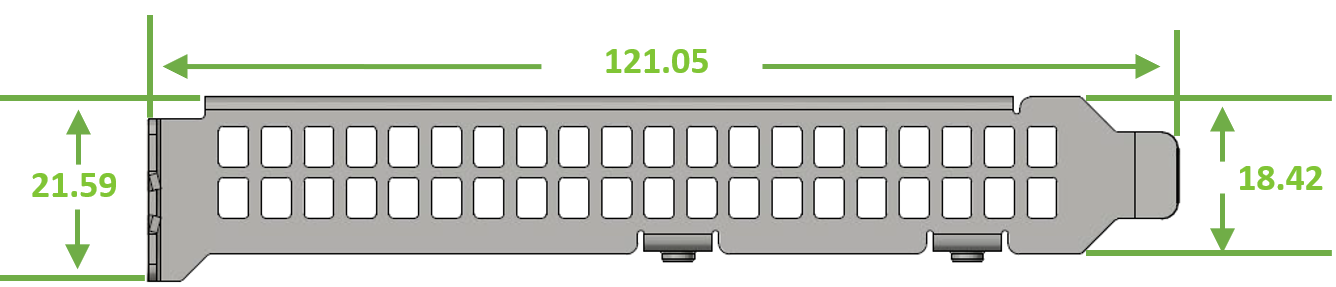

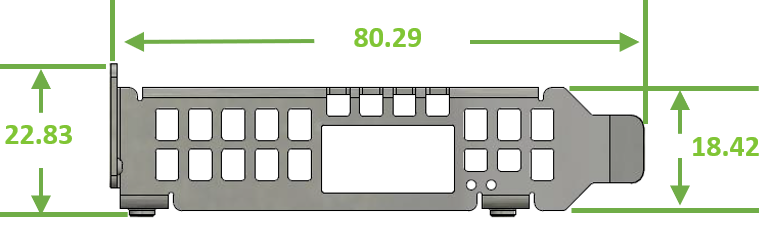

Brackets Mechanical Drawings and Dimensions
Applicable to MCX713114TC-GEAT, MCX713114GC-GEAT, MCX713104AC-ADAT and MCX713104AS-ADAT only:
The physical board dimensions are compliant with PCI Express Card Electromechanical Specification Revision 4.0 except for minor differences with the edge finger alignment, bracket mounting scheme, and low-profile bracket opening. These differ slightly from the PCI CEM specification due to the mechanical constraint of the single quad-port SFP56 cage. It is recommended to use the associated 3D step file. Please contact your NVIDIA sales representative to get the mechanical simulation.
All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.
|
OPNs |
Tall Bracket |
Short Bracket |
|---|---|---|
|
Single-port QSFP112 MCX715105AS-WEAT
|
|
|
|
Dual-port QSFP112 MCX755106AS-HEAT, MCX755106AC-HEAT,
|
|
|
|
Single-port OSFP
|
|
|
|
Quad-port SFP56 MCX713104AC-ADAT, MCX713104AS-ADAT |
|
|
|
Quad-port SFP56 with PPS IN/OUT
MCX713114TC-GEAT
|
|
N/A |
|
Auxiliary PCIe Connection Card |
|
|
Last updated:
