DPUDeployment

This document describes how a user can work with the DPUDeployment Custom Resource. A DPUDeployment describes a set of DPUServices and a DPUServiceChain that run on a set of DPUs with a given BFB and DPUFlavor.


Throughout this document, there are examples for the required Custom Resources that end up building a valid DPUDeployment Custom Resource. These examples contain comments related to fields that are set for more context. The theoretical example is about 3 services, one of them producing work, another one executing work (producer-consumer problem) and the last one observing the state.

Capabilities

  • Validates dependencies to ensure that they are configured correctly and reports errors in the DPUDeployment status conditions accordingly.

  • Validates that requested DPUService resources fit the DPUs they are targeting and report errors in the DPUDeployment status conditions accordingly.

  • Validates that the version requirements of the DPUService fit the versions found in the given BFB and reports errors in the DPUDeployment status conditions accordingly.

  • Gracefully handles synchronized disruptive and non-disruptive updates of the underlying objects.

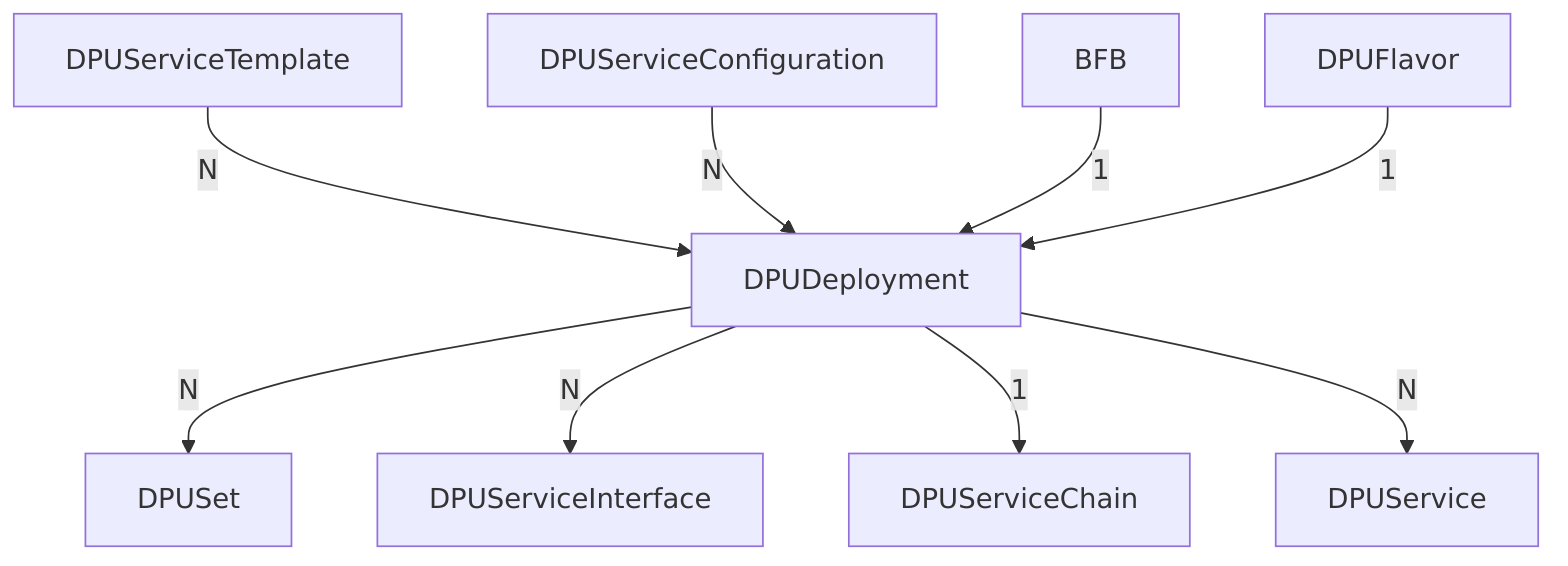

Created Child Custom Resources

When applying a valid DPUDeployment that has all of its dependencies set correctly and available, there will be a couple of objects that are going to be created automatically:

  • DPUSet: Deploys a given BFB with configuration provided by the given DPUFlavor to the target DPUs. A DPUDeployment may create multiple such objects, depending on what is specified in its spec.

  • DPUServiceInterface: Used to construct a Service Chain on the DPU. A DPUDeployment may create multiple such objects, depending on what is specified in the DPUServiceConfiguration.

  • DPUServiceChain: Used to define a Service Chain on the DPU that references the interfaces created above. A DPUDeployment creates a single DPUServiceChain.

  • DPUService: Deploys a service as Pod in each DPU or in the nodes part of the Host cluster. Standard DPUServices are deployed on the DPUs, while in-cluster DPUServices are deployed on the Host cluster nodes. A DPUDeployment may create multiple such objects, depending on what is specified in its spec.

Prerequisite Custom Resources With Examples

There are several Custom Resources that are required in order to make use of the DPUDeployment. These are:

DPUServiceTemplate

A DPUServiceTemplate contains configuration options related to resources required by the DPUService to be deployed. This Custom Resource is usually provided by NVIDIA for the supported DPUServices that are published. It helps generate the underlying DPUService. It is the base configuration for the DPUService that is getting merged with configuration provided by the DPUServiceConfiguration. If there is a conflict, settings in DPUServiceConfiguration take precedence.

A user must create as many DPUServiceTemplate Custom Resources as the number of services they aim to deploy using a DPUDeployment. In this example, we will need to create 3 of those since we have 3 DPUServices.

YAML
---
apiVersion: svc.dpu.nvidia.com/v1alpha1
kind: DPUServiceTemplate
metadata:
  name: producer
  namespace: customer-namespace
spec:
  deploymentServiceName: "producer" # Must match the key in the `dpudeployment.spec.services`
  helmChart:
    source:
      repoURL: https://example.com/charts
      path: producer
      version: v0.0.1
    # The `DPUServiceTemplate` owner should specify requests and limits for the actual containers. The
    # `DPUServiceTemplate` owner is responsible to ensure that those resources are not exceeding the specified
    # `resourceRequirements` field. Notice that setting resources on containers may be different per Helm Chart
    # implementation.
    values:
      container1:
        resources:
          requests:
            cpu: 0.2
            memory: 0.2Gi
            nvidia.com/sf: 1
          limits:
            cpu: 0.4
            memory: 0.4Gi
            nvidia.com/sf: 1
      container2:
        resources:
          limits:
            cpu: 0.6
            memory: 0.6Gi
  # resourceRequirements contains the overall resources required by this particular service to run on a single node
  # This is the field that is considered when scheduling a `DPUDeployment`.
  resourceRequirements:
    cpu: 1
    memory: 1Gi
    nvidia.com/sf: 1
---
apiVersion: svc.dpu.nvidia.com/v1alpha1
kind: DPUServiceTemplate
metadata:
  name: consumer
  namespace: customer-namespace
spec:
  deploymentServiceName: "consumer"
  helmChart:
    source:
      repoURL: https://example.com/charts
      path: consumer
      version: v0.0.1
    values:
      worker:
        parallelization: 5
        resources:
          requests:
            cpu: 1
            memory: 1Gi
            nvidia.com/sf: 1
          limits:
            cpu: 1
            memory: 2Gi
            nvidia.com/sf: 1
  resourceRequirements:
    cpu: 2
    memory: 4Gi
    nvidia.com/sf: 1
---
apiVersion: svc.dpu.nvidia.com/v1alpha1
kind: DPUServiceTemplate
metadata:
  name: observer
  namespace: customer-namespace
spec:
  deploymentServiceName: "observer"
  helmChart:
    source:
      repoURL: https://example.com/charts
      path: observer
      version: v0.0.1
    values:
      observer:
        resources:
          requests:
            cpu: 0.5
            memory: 0.5Gi
          limits:
            cpu: 0.5
            memory: 1Gi

DPUServiceConfiguration

A DPUServiceConfiguration contains all configuration options from the user to be provided to the DPUService via the Helm values. This Custom Resource is usually crafted by the user according to their environment and intended use of the DPUService. It helps generate the underlying DPUService. It is a layer on top of the configuration defined in the DPUServiceTemplate. This configuration is getting merged with configuration provided by the DPUServiceTemplate. If there is a conflict, settings in DPUServiceConfiguration take precedence.

A user must create as many DPUServiceConfiguration Custom Resources as the number of services they aim to deploy using a DPUDeployment. In this example, we will need to create 3 of those since we have 3 DPUServices.

YAML
---
apiVersion: svc.dpu.nvidia.com/v1alpha1
kind: DPUServiceConfiguration
metadata:
  name: producer
  namespace: customer-namespace
spec:
  deploymentServiceName: "producer" # Must match the key in the `dpudeployment.spec.services`
  serviceConfiguration:
    serviceDaemonSet:
      labels:
        sre.nvidia.com/service-tier: "t1"
      annotations:
        sre.nvidia.com/page: "false"
  interfaces:
  - name: app-iface
    network: mynad
---
apiVersion: svc.dpu.nvidia.com/v1alpha1
kind: DPUServiceConfiguration
metadata:
  name: consumer
  namespace: customer-namespace
spec:
  deploymentServiceName: "consumer"
  serviceConfiguration:
    # The `DPUServiceConfiguration` owner may choose to override some of the settings defined by the
    # `DPUServiceTemplate` or add new. It is not recommended to change container resources in this resource but rather
    # in DPUServiceTemplate.
    helmChart:
      values:
        worker:
          parallelization: 10
    serviceDaemonSet:
      labels:
        sre.nvidia.com/service-tier: "t1"
      annotations:
        sre.nvidia.com/page: "true"
  # interfaces describes the network each interface of this application needs to be attached to so that it can function
  # and be available for use in the Service Chain framework.
  interfaces:
  - name: app-iface
    network: mynad
---
apiVersion: svc.dpu.nvidia.com/v1alpha1
kind: DPUServiceConfiguration
metadata:
  name: observer
  namespace: customer-namespace
spec:
  deploymentServiceName: "observer"
  serviceConfiguration:
    deployInCluster: true # Indicates that the service should be deployed on the host cluster instead of the DPUCluster
    serviceDaemonSet:
      labels:
        sre.nvidia.com/service-tier: "t2"
      annotations:
        sre.nvidia.com/page: "false"

spec.deploymentServiceName must match the key in the spec.services field of the DPUDeployment.

spec.Interfaces is a list of interfaces that the DPUService should have. They can be referenced in the spec.serviceChains of the DPUDeployment.

spec.serviceConfiguration.deployInCluster is a boolean that indicates whether the service should be deployed in the Host cluster (where the DPF operator is running) rather than on the DPUs. When set to true, the service is deployed in the Host cluster.

spec.upgradePolicy.applyNodeEffect is a boolean that indicates whether the service update should be disruptive or not. The default is true, which means that a new version of the service is created for every new version of the DPUServiceConfiguration and the node effect defined in the dpuset is triggered for the relevant nodes for the update to happen. If set to false, the service is updated non-disruptively.

DPUFlavor

A DPUFlavor describes the configuration to be applied on the DPU during the provisioning. This is a very minimal DPUFlavor as the purpose of this document is to demonstrate the capabilities of the DPUDeployment. Given that, there are 2 fields set that are related to the DPUDeployment.

YAML
apiVersion: provisioning.dpu.nvidia.com/v1alpha1
kind: DPUFlavor
metadata:
  name: producer-consumer
  namespace: customer-namespace
spec:
  # dpuResources indicates the minimum amount of resources needed for a BFB with that flavor to be installed on a
  # DPU. Using this field, the controller can understand if that flavor can be installed on a particular DPU. It
  # should be set to the total amount of resources the system needs + the resources that should be made available for
  # DPUServices to consume.
  dpuResources:
    cpu: 16
    memory: 16Gi
    nvidia.com/sf: 20
  # systemReservedResources indicates the resources that are consumed by the system (OS, OVS, DPF system etc) and are
  # not made available for DPUServices to consume. DPUServices can consume the difference between DPUResources and
  # SystemReservedResources. This field must not be specified if dpuResources are not specified.
  systemReservedResources:
    cpu: 4
    memory: 4Gi
    nvidia.com/sf: 4

The above configuration translates to the following resources being available for the DPUServices deployed by the DPUDeployment.

YAML
allocatableResources:
  cpu: 12
  memory: 12Gi
  nvidia.com/sf: 16

BFB

A BFB describes the BFB to be flashed on the DPU during the provisioning.

YAML
apiVersion: provisioning.dpu.nvidia.com/v1alpha1
kind: BFB
metadata:
  name: bfb-2.9
  namespace: customer-namespace
spec:
  fileName: "bfb-2.9.0.bfb"
  url: "http://internal-nfs/bf-bundle-2.9.0-33_24.04_ubuntu-22.04_unsigned.bfb"

DPUDeployment Example

The following DPUDeployment example is based on the Custom Resources found above. It describes a DPUDeployment which targets 2 sets of DPUs, provisioned with a specific DPUFlavor and BFB, and all of them running 3 DPUServices.

YAML
apiVersion: svc.dpu.nvidia.com/v1alpha1
kind: DPUDeployment
metadata:
  name: producer-consumer
  namespace: customer-namespace
spec:
  dpus:
    # bfb references the `BFB` object
    bfb: "bfb-2.9"
    # flavor references the `DPUFlavor` Custom Resource
    flavor: "producer-consumer"
    # dpuSets enables the user to select the DPUs this `DPUDeployment` should deploy to. It's a list so that the user
    # can be as flexible as possible. In this example, we theoretical target Hosts in 2 different racks, and we target
    # the DPUs that have the specified PCI address.
    dpuSets:
    - nameSuffix: "dpuset1"
      nodeSelector:
        matchLabels:
          datacenter.nvidia.com/rack: "b-100"
      dpuSelector:
        provisioning.dpu.nvidia.com/dpudevice-pciAddress: "0000:0e:00.0"
    - nameSuffix: "dpuset2"
      nodeSelector:
        matchLabels:
          datacenter.nvidia.com/rack: "b-101"
      dpuSelector:
        provisioning.dpu.nvidia.com/dpudevice-pciAddress: "0000:1a:00.0"
  # services reflects the `DPUServices` that should be deployed on those DPUs. For in-cluster `DPUServices` like the
  # observer, the pods will be deployed on the host cluster and target the nodes that the DPUSet nodeSelectors target.
  # The key of this map is the service name and the value is referencing the respective `DPUServiceTemplate` and
  # `DPUServiceConfiguration` for each service.
  services:
    producer:
      serviceTemplate: "producer"
      serviceConfiguration: "producer"
    consumer:
      serviceTemplate: "consumer"
      serviceConfiguration: "consumer"
    observer:
      serviceTemplate: "observer"
      serviceConfiguration: "observer"
  # serviceChains defines the `DPUServiceChain` that should be created as part of this `DPUDeployment`.
  serviceChains:
    switches:
    - ports:
      - service:
          name: producer # The value must match the key in the `spec.services`
          interface: app-iface # The value must match the `dpuserviceconfiguration.spec.interfaces[].name`
      - service:
          name: consumer
          interface: app-iface
     #  Notice that the user can also reference other DPUServiceInterfaces that may already exist or are created manually
     #  by the user by specifying an entry like the one that follows:
     # - serviceInterface:
     #     matchLabels:
     #       svc.dpu.nvidia.com/interface: p0

As mentioned in the Created Child Custom Resources section, after applying this manifest, the following objects are created:

Bash
$ kubectl get dpuset -A
NAMESPACE            NAME                      AGE
customer-namespace   producer-consumer-dpuset1   36m
customer-namespace   producer-consumer-dpuset2   36m

$ kubectl get dpuset -n customer-namespace
NAME                      AGE
producer-consumer-dpuset1   36m
producer-consumer-dpuset2  36m

$ kubectl get dpuserviceinterface -n customer-namespace
NAME                       READY   PHASE     IFTYPE     IFNAME      AGE
consumer-app-iface-w6tgf   True    Success   service    app-iface   36m
producer-app-iface-vqvs4   True    Success   service    app-iface   36m

$ kubectl get dpuservicechain -n customer-namespace
NAME                      READY   PHASE     AGE
producer-consumer-vpn7w   True    Success   36m

$ kubectl get dpuservice -n customer-namespace
NAME            READY   PHASE     AGE
consumer-fjfh8  True    Success   36m
observer-xk9p2  True    Success   36m
producer-ln2kk  True    Success   36m

Writing a DPUDeployment Spec

DPUs Configuration

The spec.dpus contains the configuration for the DPUs that the DPUDeployment should target.

YAML
spec:
  dpus:
    bfb: "bfb-2.9"
    flavor: "producer-consumer"
    dpuSets:
    - nameSuffix: "dpuset1"
      nodeSelector:
        matchLabels:
          datacenter.nvidia.com/rack: "b-100"
      dpuSelector:
        provisioning.dpu.nvidia.com/dpudevice-pciAddress: "0000:0e:00.0"
    - nameSuffix: "dpuset2"
      nodeSelector:
        matchLabels:
          datacenter.nvidia.com/rack: "b-101"
      dpuSelector:
        provisioning.dpu.nvidia.com/dpudevice-pciAddress: "0000:1a:00.0"
    nodeEffect:
      taint:
        key: "dpu"
        value: "provisioning"
        effect: NoSchedule

In the above example, the DPUDeployment targets 2 sets of DPUs. The first set targets the DPUs in rack b-100 with the PCI address 0000:0e:00.0. The second set targets the DPUs in rack b-101 with the PCI address 0000:1a:00.0.

The following fields are available in the spec.dpus:

  • bfb: The BFB object to be flashed on the DPUs. It must exist in the same namespace as the DPUDeployment.

  • flavor: The DPUFlavor object that describes the configuration to be applied on the DPU during the provisioning. It must exist in the same namespace as the DPUDeployment.

  • dpuSets: A list of DPUSet configurations that describe the DPUs to be targeted by the DPUDeployment.nameSuffix: A suffix to be added to the DPUSet name. This is a required field, as the DPUSet name must be unique and identifiable.nodeSelector: The selector of the DPUNodes to which the DPUs are attached to. See more in DPU Selection. Note that this field maps to the DPUSet field dpuNodeSelector.dpuSelector: The selector of the DPUDevices that are to be targeted. In this example, the DPUs are selected based on their PCI address. See more in DPU Selection.dpuAnnotations: The annotation to be applied on the DPU objects that are created by the DPUDeployment.

  • nodeEffect: The effect to be applied on the nodes to which the DPUs are attached. In this example, a NoSchedule taint is applied to the nodes.

See the Prerequisite Custom Resources With Examples section for examples of the DPUFlavor and BFB Custom Resources.

See the DPUSets document for more information on the DPUSet Custom Resource.

Services Configuration

The spec.services contains the configuration for the services that the DPUDeployment should deploy.

YAML
spec:
  services:
    producer:
      serviceTemplate: "producer"
      serviceConfiguration: "producer"
    consumer:
      serviceTemplate: "consumer"
      serviceConfiguration: "consumer"
    observer:
      serviceTemplate: "observer"
      serviceConfiguration: "observer"

The following fields are available in the spec.services:

  • serviceTemplate: The DPUServiceTemplate object that describes the configuration for the service to be deployed.

  • serviceConfiguration: The DPUServiceConfiguration object that describes the configuration for the service to be deployed.

Both serviceTemplate and serviceConfiguration must be provided for each service that the DPUDeployment should deploy and must exist in the same namespace as the DPUDeployment.

See the Prerequisite Custom Resources With Examples section for examples of the DPUServiceTemplate and DPUServiceConfiguration Custom Resources.

Dependencies configuration

The spec.services.dependsOn field is used to specify the dependencies between the DPUServices. The reconciler will enforce the dependency order during the deployment of the DPUServices. The LocalObjectDependency object contains the following fields:

  • name: The name of the dependency. This field is required and must match the name of the DPUService that is being depended on, i.e. it must exist in spec.services.

YAML
spec:
  services:
    producer:
      serviceTemplate: "producer"
      serviceConfiguration: "producer"
    consumer:
      serviceTemplate: "consumer"
      serviceConfiguration: "consumer"
      dependsOn:
      - name: producer
    observer:
      serviceTemplate: "observer"
      serviceConfiguration: "observer"
      dependsOn:
      - name: producer
      - name: consumer

In the above example, the consumer service depends on the producer service, and the observer service depends on both producer and consumer services. The services will not be deployed until their dependencies are deployed.

Templating

The DPUServiceConfiguration supports Go templating, allowing you to create dynamic configurations that can be customized based on provided parameters.

Here's a basic example of using templating in a DPUServiceConfiguration:

YAML
apiVersion: svc.dpu.nvidia.com/v1alpha1
kind: DPUServiceConfiguration
metadata:
  name: consumer
  namespace: customer-namespace
spec:
  deploymentServiceName: "consumer"
  serviceConfiguration:
    helmChart:
      values:
        other-service:
          name: {{ .Services.producer.Name }}

When accessing values in the template, you can use the {{ .Services.ServiceName.Field }} syntax, where ServiceName is the name of the service as defined in spec.services and Field is a field of the DPUService object.

It is not possible to access a field with a dash in its name, e.g. {{ .Services.ServiceName.Field-With-Dash }} the same way. This is due to the limitations of Go templating. Instead the index function can be used to access such fields, e.g. {{ (index .Services "firefly-dpu").Name }}.

Available Template Variables

The following variables are available in your templates:

  • .Services: A map of services in the DPUDeployment. In order for a service to be available in the template, it must be referenced as a dependency in the spec.services.dependsOn field. A service can then be referenced using the following syntax: {{ .Services.ServiceName.Field }}, where ServiceName is the name of the service as defined in spec.services and Field is a field of the DPUService object.

At the moment, the following fields are available:

  • .Name: The name of the DPUService generated by the DPUDeployment controller.

Template Delimiters

By default, the system uses the standard Go template delimiters {{ and }}. However, you can customize these delimiters using the svc.dpu.nvidia.com/template-delimiter annotation on your DPUServiceConfiguration:

YAML
apiVersion: svc.dpu.nvidia.com/v1alpha1
kind: DPUServiceConfiguration
metadata:
  name: consumer
  namespace: customer-namespace
  annotations:
    svc.dpu.nvidia.com/template-delimiter: "{{,}}"  # Default delimiters
    # OR
    svc.dpu.nvidia.com/template-delimiter: "[[,]]"  # Custom delimiters

Service Chains Configuration

The spec.serviceChains contains the configuration for the DPUServiceChain that the DPUDeployment should create.

YAML
spec:
  serviceChains:
    switches:
      - ports:
        - service:
            name: producer
            interface: app-iface
        - serviceInterface:
            matchLabels:
              svc.dpu.nvidia.com/interface: p0

The following fields are available in the spec.serviceChains:

  • upgradePolicy.applyNodeEffect: A boolean that indicates whether the service chain update should be disruptive or not. The default is true, which means that a new version of the service chain is created for every new version of the DPUService and the node effect defined in the dpuset is triggered for the relevant nodes for the update to happen. If set to false, the service chain is updated non-disruptively. The disruptive operation applies the node effect defined for the DPUSet on the nodes.

  • switches: A list of switches that are part of the service chain.ports: A list of ports that are part of the switch.service: Holds the configuration for an interface. The service referenced by this field must be defined in the corresponding DPUServiceConfiguration. See the Prerequisite Custom Resources With Examples section for examples of the DPUServiceConfiguration Custom Resource.name: The name of the service. This field must match the service name defined as key spec.services.interface: The name of the interface. This interface is injected by the cni plugin when the pod is scheduled.ipam: The IPAM configuration for the interface. This field is optional and can be used to specify the IPAM configuration for the interface. serviceInterface: Holds the configuration for an existing interface.matchLabels: The labels to be used to select the interface. This field is required and must match the labels of the DPUServiceInterface.ipam: The IPAM configuration for the interface. This field is optional and can be used to specify the IPAM configuration for the interface.

The DPUDeployment controller creates a single DPUServiceChain based on the configuration provided in the spec.serviceChains. The DPUServiceChain is created in the same namespace as the DPUDeployment.

See DPUServiceChain for more information on the DPUServiceChain Custom Resource.

Working with DPUDeployment

Waiting for Ready

When a DPUDeployment is created, it may take some time for all the underlying objects to be created and for the DPUs to be provisioned.

It is possible to wait for a DPUDeployment to be ready by using the kubectl wait

Bash
$ kubectl wait --for=condition=Ready dpudeployment/<dpudeployment-name> -n <namespace>

DPUDeployment Updates

A DPUDeployment can be updated by modifying .spec of the custom resource or by changing a referenced object like DPUServiceTemplate and DPUServiceConfiguration. The update of the underlying objects is specific to each kind:

  • DPUSet can be updated by modifying .spec.dpus. The underlying dpus can be reprovisioned if the referenced bfb or DPUFlavor change.

  • DPUServices can be updated by modifying spec.Services. Changing the referenced DPUServiceTemplate or DPUServiceConfiguration will update the selected DPUService. A differentiation is made for "disruptive DPUServices" which have an impact on the cluster nodes and "non-disruptive" ones that do not.

  • DPUServiceInterface can be updated by modifying the referenced DPUServiceConfiguration spec.Interfaces.

  • DPUServiceChain can be updated by modifying spec.ServiceChains.

Note: Users should avoid manually modifying an object owned by a DPUDeployment, as doing so can lead to unforeseen consequences that may disrupt the entire setup. The controller does not recognize these manual changes and may or may not overwrite them to reach the desired state.

Non-disruptive DPUService Update

1. Retrieve the reference DPUServiceConfiguration or DPUServiceTemplate:

Bash
$ kubectl get dpuserviceconfiguration -n customer-namespace
NAME       AGE
producer   36m

2. We should get a valid DPUServiceConfiguration:

Bash
$ kubectl get dpuserviceconfiguration producer -n customer-namespace -o yaml
apiVersion: svc.dpu.nvidia.com/v1alpha1
kind: DPUServiceConfiguration
metadata:
  name: producer
  namespace: customer-namespace
spec:
  deploymentServiceName: "producer" # Must match the key in the `dpudeployment.spec.services`
  serviceConfiguration:
    serviceDaemonSet:
      labels:
        sre.nvidia.com/service-tier: "t1"
      annotations:
        sre.nvidia.com/page: "false"
  interfaces:
  - name: app-iface
    network: mynad

3. As an example let's update the requested interface name. In this case a new DPUServiceInterface is expected as this field is part of the DPUServiceInterface name. This is the only case where a new DPUServiceInterface is expected, otherwise the existing one will be updated:

Bash
$ kubectl patch dpuserviceconfiguration producer \
  -n customer-namespace \
  --type='json' \
  -p='[{"op": "replace", "path": "/spec/interfaces/0/name", "value":"app-iface2"}]'

4. The DPUService should be updated by the DPUDeployment controller:

Bash
apiVersion: svc.dpu.nvidia.com/v1alpha1
kind: DPUService
metadata:
  annotations:
    svc.dpu.nvidia.com/dpuservice-version: f4295be911
  finalizers:
  - dpu.nvidia.com/dpuservice
  labels:
    svc.dpu.nvidia.com/owned-by-dpudeployment: producer-consumer-dpudeployment
  name: producer-consumer-producer-2444q
  namespace: customer-namespace
spec:
...
  serviceID: dpudeployment_producer-consumer-dpudeployment_producer-consumer-producer
  interfaces:
  - producer-app-iface2-748qf # Notice that this field is updated to match the new DPUServiceInterface

5. A new DPUServiceInterface is created by the DPUDeployment controller:

Bash
$ kubectl get dpuserviceinterface -n customer-namespace
NAME                        READY   PHASE     IFTYPE    IFNAME      AGE
producer-app-iface2-748qf   True    Success   service   app-iface   5m

Disruptive DPUService Update

Updating "disruptive DPUServices" involves creating a new instance for every new version. Both standard DPUServices (deployed on DPUs) and in-cluster DPUServices (deployed on Host cluster nodes) are supported. For in-cluster services, the DPUDeployment controller manages the lifecycle of labels on the Host cluster nodes to enable proper scheduling and targeting.

In addition, DPUServiceInterfaces are created for the new DPUService instances. Up to revisionHistoryLimit instances can exist at a given time, e.g. when changes are made to the DPUServiceConfiguration or DPUServiceTemplate while no instance has reached a ready state yet.

1. Retrieve the reference DPUServiceConfiguration or DPUServiceTemplate:

Bash
$ kubectl get dpuserviceconfiguration -n customer-namespace
NAME       AGE
producer   36m

2. We should get a valid DPUServiceConfiguration:

Bash
$ kubectl get dpuserviceconfiguration producer -n customer-namespace -o yaml
apiVersion: svc.dpu.nvidia.com/v1alpha1
kind: DPUServiceConfiguration
metadata:
  name: producer
  namespace: customer-namespace
spec:
  deploymentServiceName: "producer" # Must match the key in the `dpudeployment.spec.services`
  serviceConfiguration:
    serviceDaemonSet:
      labels:
        sre.nvidia.com/service-tier: "t1"
      annotations:
        sre.nvidia.com/page: "false"
  interfaces:
  - name: app-iface
    network: mynad

3. Make the DPUService disruptive by changing the upgradePolicy.applyNodeEffect:

Bash
$ kubectl patch dpuserviceconfiguration producer \
  -n customer-namespace \
  --type='json' \
  -p='[{"op": "add", "path": "/spec/upgradePolicy/applyNodeEffect", "value": true }]'

4. As an example let's update the requested interface name:

Bash
$ kubectl patch dpuserviceconfiguration producer  \
  -n customer-namespace \
  --type='json' \
  -p='[{"op": "replace", "path": "/spec/interfaces/0/name", "value":"app-iface2"}]'

5. The DPUService should be updated by the DPUDeployment controller by adding a new version. In addition, a new DPUServiceInterface is created for the new DPUService.

Bash
$ kubectl get dpuservices -n customer-namespace
NAME                    READY   PHASE     AGE
producer-consumer-2444q True    Success   27m
producer-consumer-rr45f False   Pending   1m
Bash
$ kubectl get dpuserviceinterface -n customer-namespace
NAME                        READY   PHASE     IFTYPE    IFNAME      AGE
producer-app-iface-vqvs4    True    Success   service   app-iface   27m
producer-app-iface2-s6tb7   True    Success   service   app-iface   1m

Once the new version is ready, the DPUDeployment controller garbage collect the previous versions. In addition, it removes the stale DPUServiceInterfaces associated with the old previous versions

Bash
$ kubectl get dpuservices -n customer-namespace
NAME                    READY   PHASE     AGE
producer-consumer-rr45f True   Success   5m

Non-disruptive DPUServiceChain Update

1. Retrieve the DPUDeployment:

Bash
$ kubectl get dpudeployment producer-consumer -n customer-namespace
NAME                READY   PHASE     AGE
producer-consumer   True    Success   36m

2. As an example let's update the first Switch port interface:

Bash
$ kubectl patch dpudeployment producer-consumer \
  -n customer-namespace \
  --type='json' \
  -p='[{"op": "replace", "path": "/spec/serviceChains/switches/0/ports/1/service/interface", "value":"app-iface2"}]'

3. The DPUServiceChain should be updated by the DPUDeployment controller:

Bash
apiVersion: svc.dpu.nvidia.com/v1alpha1
kind: DPUServiceChain
metadata:
  annotations:
    svc.dpu.nvidia.com/dpuservicechain-version: e4b5c6d5e1
  finalizers:
  - dpu.nvidia.com/dpuservicechain
  labels:
    svc.dpu.nvidia.com/owned-by-dpudeployment: producer-consumer-dpudeployment
  name: producer-consumer-vpn7w
  namespace: customer-namespace
spec:
...
template:
  spec:
    template:
      spec:
        switches:
          - ports:
            - serviceInterface:
                matchLabels:
                  svc.dpu.nvidia.com/service: producer
                  svc.dpu.nvidia.com/interface: app-iface
            - serviceInterface:
                matchLabels:
                  svc.dpu.nvidia.com/service: consumer
                  svc.dpu.nvidia.com/interface: app-iface2
...

Disruptive DPUServiceChain Update

Updating "disruptive DPUServiceChains" involves creating a new instance for every new version. Up to revisionHistoryLimit instances can exist at a given time, e.g. when changes are made to the DPUDeployment.spec.serviceChains while no instance has reached a ready state yet.

1. Retrieve the DPUDeployment:

Bash
$ kubectl get dpudeployment producer-consumer -n customer-namespace
NAME                READY   PHASE     AGE
producer-consumer   True    Success   36m

2. Make the DPUServiceChain disruptive by changing the upgradePolicy.applyNodeEffect:

Bash
$ kubectl patch dpudeployment producer-consumer \
  -n customer-namespace \
  --type='json' \
  -p='[{"op": "replace", "path": "/spec/serviceChains/upgradePolicy/applyNodeEffect", "value": true }]'

3. As an example let's update the first Switch port interface:

Bash
$ kubectl patch dpudeployment producer-consumer \
  -n customer-namespace \
  --type='json' \
  -p='[{"op": "replace", "path": "/spec/serviceChains/switches/0/ports/1/service/interface", "value":"app-iface2"}]'

4. The DPUServiceChain should be updated by the DPUDeployment controller by adding a new version:

Bash
$ kubectl get dpuservicechains -n customer-namespace
NAME                    READY   PHASE     AGE
producer-consumer-vpn7w True    Success   25m
producer-consumer-rwe67 False   Pending   1m

Once the new version is ready, the DPUDeployment controller garbage collect the previous versions.

Bash
$ kubectl get dpuservicechains -n customer-namespace
NAME                    READY   PHASE     AGE
producer-consumer-rwe67 True   Success   5m

DPUService and BFB version matching

DPUDeployment has the capability of checking if the version constraints defined by the DPUService resources are satisfied against the BFB. A relevant condition in the DPUDeployment reflects whether the user provided BFB and DPUServices is a valid combination that can work. Below is an example of the condition when a mismatched combination is configured:

Bash
- lastTransitionTime: "2025-02-10T07:59:58Z"
  message: 'Error occurred: version constraint for ''dpu.nvidia.com/doca-version''
    found in DPUServiceTemplate ''producer'' is not satisfied by the version
    ''2.9.1'' found in the given BFB'
  observedGeneration: 1
  reason: Error
  status: "False"
  type: VersionMatchingReady

Debugging DPUDeployments

General guideline

There are several ways to debug DPUDeployments in DPF. The recommended way is to use the dpfctl command line tool to describe the DPUDeployment and its underlying objects. The dpfctl tool provides a detailed description of the DPUDeployment and its underlying objects, including the status of the objects.

Bash
$ dpfctl describe dpudeployments
NAME                                   NAMESPACE            STATUS       REASON    SINCE  MESSAGE
DPFOperatorConfig/dpfoperatorconfig    dpf-operator-system  Ready: True  Success   28h
└─DPUDeployments
  └─DPUDeployment/vpc-ovn              dpf-operator-system  Ready: True  Success   28h
    ├─DPUServiceChains
    │ └─DPUServiceChain/vpc-ovn-trsq6  dpf-operator-system  Ready: True  Success   28h
    ├─DPUSets
    │ └─DPUSet/vpc-ovn-dpuset1         dpf-operator-system
    │   ├─BFB/bf-bundle                dpf-operator-system  Ready: True  Ready     3d23h  File: bf-bundle-3.2.1-34_25.11_ubuntu-24.04_64k_prod.bfb, DOCA: 3.2.1
    │   └─DPUs
    │     └─4 DPUs...                  dpf-operator-system  Ready: True  DPUReady  3d22h  See dpu-node-mt2310xz03lr-mt2310xz03lr, dpu-node-mt2310xz03m2-mt2310xz03m2,
    │                                                                                     dpu-node-mt2425601x13-mt2425601x13, dpu-node-mt2425601xqy-mt2425601xqy
    └─Services
      ├─DPUServiceTemplates
      │ └─4 DPUServiceTemplates...     dpf-operator-system  Ready: True  Success   3d23h  See ovn-central, ovn-controller, vpc-ovn-controller, vpc-ovn-node
      └─DPUServices
        └─4 DPUServices...             dpf-operator-system  Ready: True  Success   3d7h   See ovn-central-9558p, ovn-controller-v5bkr, vpc-ovn-controller-7sbp6, vpc-ovn-node-r84zn

Debugging disruptive upgrades

DPUDeployment is not ready because DPUs are stuck in Node Effect Removal

When DPUs are stuck in the Node Effect Removal phase, it indicates that the system is waiting for certain prerequisites to be met before proceeding with the upgrade. This typically means:

  • DPUService Pods in the DPUCluster are not ready yet: Verify that the Pod deployed by the DPUService in the DPUCluster for the DPU that is stuck is scheduled and running.

  • ServiceChain object in the DPUCluster is not ready yet: Verify that the ServiceChain object deployed by the DPUServiceChain in the DPUCluster for the DPU that is stuck is ready.

in-cluster DPUService does not create pod on relevant node

When an in-cluster DPUService fails to create a pod on the expected host node, the most common cause is a node labeling mismatch:

  • Verify node labels: The node should have labels that match the spec.serviceDaemonSet.nodeSelector specified in the generated DPUService object.

  • Check DPUService controller logs: If the aforementioned node labels are not present on the nodes, check the logs of the dpuservice-controller-manager pod for detailed error messages and insights into why those labels are not applied.

Last updated:
