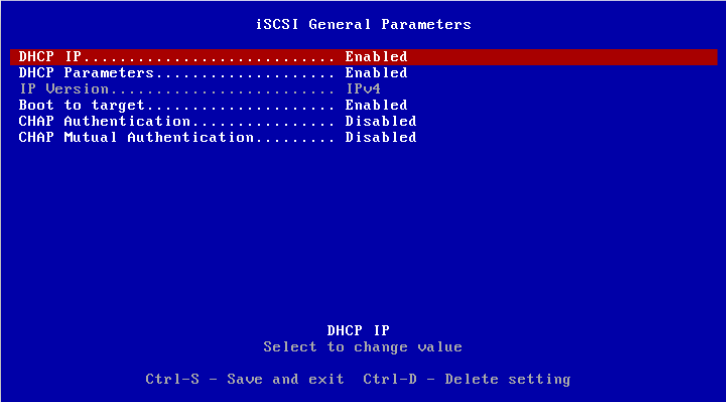

In the following menu, you can set the following options:
DHCP IP
|
Location: |
System setup/Port main configurations/iSCSI Configuration/iSCSI General Parameters |
|---|---|
|
Description: |
When the DHCP IP is enabled, the initiator and target's IP, netmask, gateway and DNS will be taken from DHCP instead of from the menu. |
|
Configurable: |
Yes |
DHCP Parameters
|
Location: |
System setup/Port main configurations/iSCSI Configuration/iSCSI General Parameters |
|---|---|
|
Description: |
When the DHCP IP and DHCP Parameters are enabled, all the initiator and target parameters are taken from DHCP instead of from the menu. |
|
Configurable: |
Yes |
IP Version
|
Location: |
System setup/Port main configurations/iSCSI Configuration/iSCSI General Parameters |
|---|---|
|
Description: |
Specifies whether IPv4 or IPv6 network addressing will be used for iSCSI initiator and targets |
|
Configurable: |
No |
CHAP Authentication
|
Location: |
System setup/Port main configurations/iSCSI Configuration/iSCSI General Parameters |
|---|---|
|
Description: |
Enables CHAP Authentication for iSCSI initiator. |
|
Configurable |
Yes |
CHAP Mutual Authentication
|
Location: |
System setup/Port main configurations/iSCSI Configuration/iSCSI General Parameters |
|---|---|
|
Description: |
Enables mutual CHAP authentication between the iSCSI initiator and target |
|
Configurable: |
Yes |
Boot to target
|
Location: |
System setup/Port main configurations/iSCSI Configuration/iSCSI General Parameters |
|---|---|
|
Description: |
Controls booting to ISCSI target after connection. |
|
Configurable: |
Yes |
|
Available options: |
1 - Enable 2 - Disable 3 - One time disabled |
