MGA400-XS2 Specifications
|
Physical |
Dimensions (W x H x D): 438.4 x 88 x 900 (17.25" x 3.46" x 35.43") |
||
|---|---|---|---|
|
Weight: 39.2kg |
|||
|
Mounting: MGX |
|||
|
Protocol Support |
InfiniBand: IBTA v1.3a Auto-Negotiation: SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), HDR (50Gb/s per lane) port |
||
|
Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 25GBASE-R |
|||
|
Data Rate |
InfiniBand |
SDR/EDR/HDR100/HDR/NDR |
|
|
Ethernet |
25/50/100/200/400 Gb/s |
||
|
Gen3: SERDES @ 8.0GT/s, x16 lanes (2.0 and 1.1 compatible) |
|||
|
Power |
Voltage: Monitors for CPU Cores, +3.3 V, +5 V, +12 V, +5 V Standby, VBAT |
||
|
80 PLUS Platinum 2+1 redundant power supply
|
|||
|
Detailed Power Consumption Per Interface |
|||
|
Interface |
Power Consumption Per Interface |
Total Power Consumption Per Interface |
|
|
2x CPU |
2x185W |
370W |
|
|
16x DDR5 32G |
16x10W |
160W |
|
|
1x SSD NVME 1.92TB |
1x25W |
25W |
|
|
6x fans |
6x73W |
438W |
|
|
8x ConnectX-8 Network Cards |
8x60W |
480W |
|
|
1x BMC |
1x2W |
2W |
|
|
2x USB |
2.5W |
5W |
|
|
Other server components |
3W |
||
|
Maximum Power Consumption of the entire server |
~1652W |
||
|
Environmental |
Temperature |
Operating |
10 to 35° C |
|
Non-operating |
-30 to 60° C |
||
|
Humidity |
Operating relative humidity |
8~80% @ 40° C (non-condensing) |
|
|
Non-operating relative humidity |
8~90% @ 40° C (non-condensing) |
||
|
Vibration (5 ~ 500 Hz) |
0.21 GRMs |
||
|
Shock |
5G (with 10ms duration, half sine wave) |
||
|
|
Airflow |
30 CFM |
|
|
Maximum heat dissipation |
5153 BTU/hour |
||

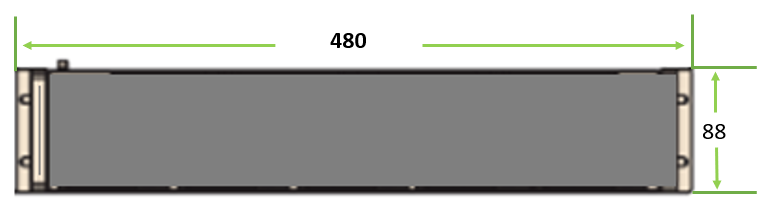

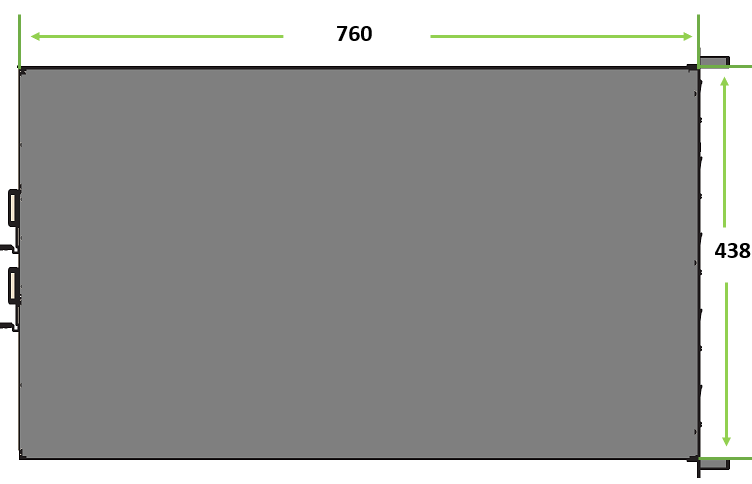

System Dimensions
All dimensions are in millimeters. All the mechanical tolerances are +/- 0.1mm.
