Kit Part Number |
Description |
|---|---|
|
ACC-KIT001265 |
Installation kit for standard\short depth 2U switches (19" DGX mountable) |
The following instructions have been prepared and provided with permission from King Slide.

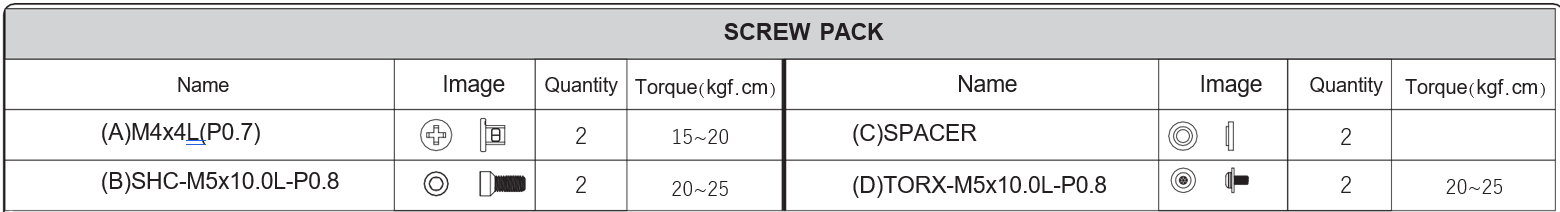

Package Contents

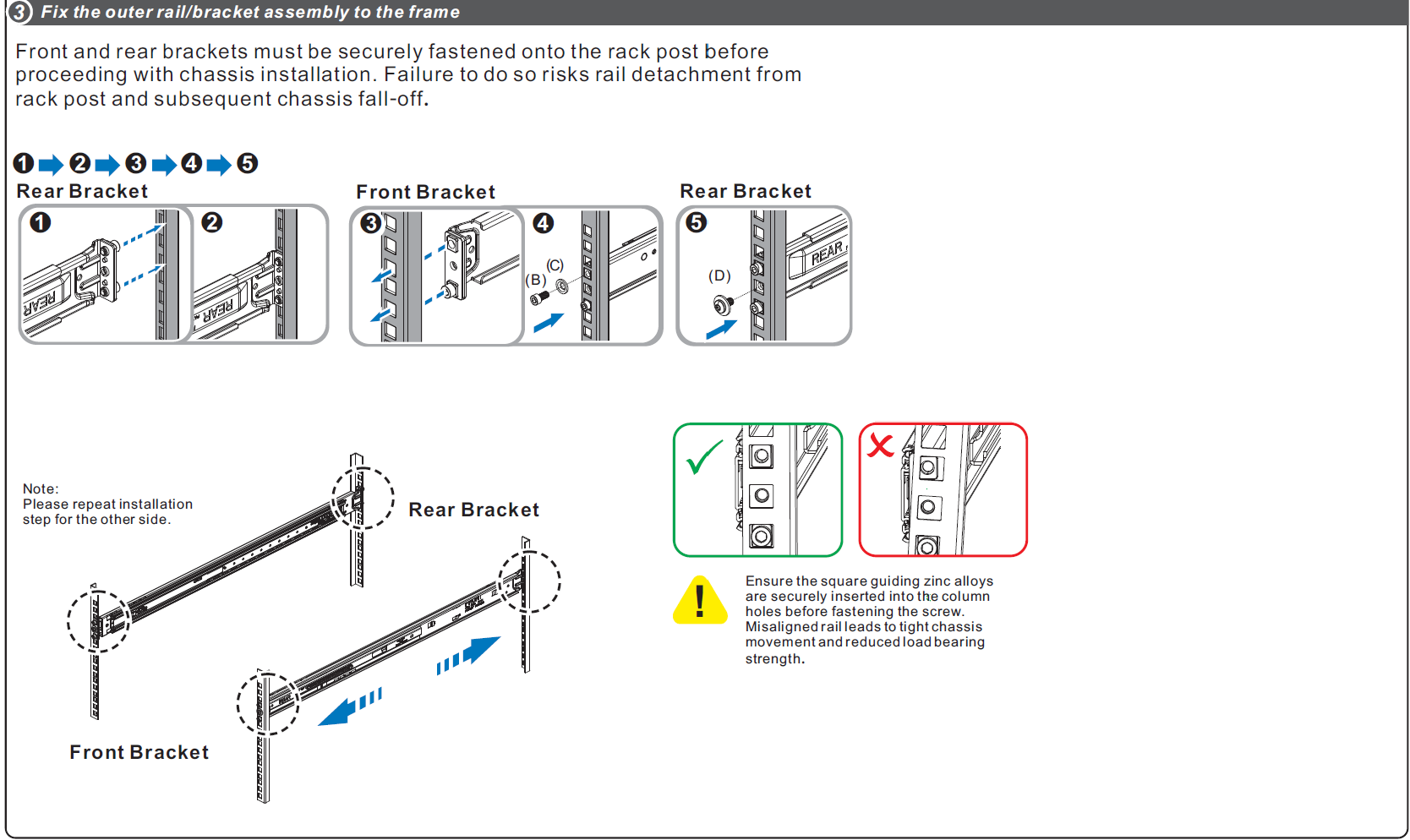

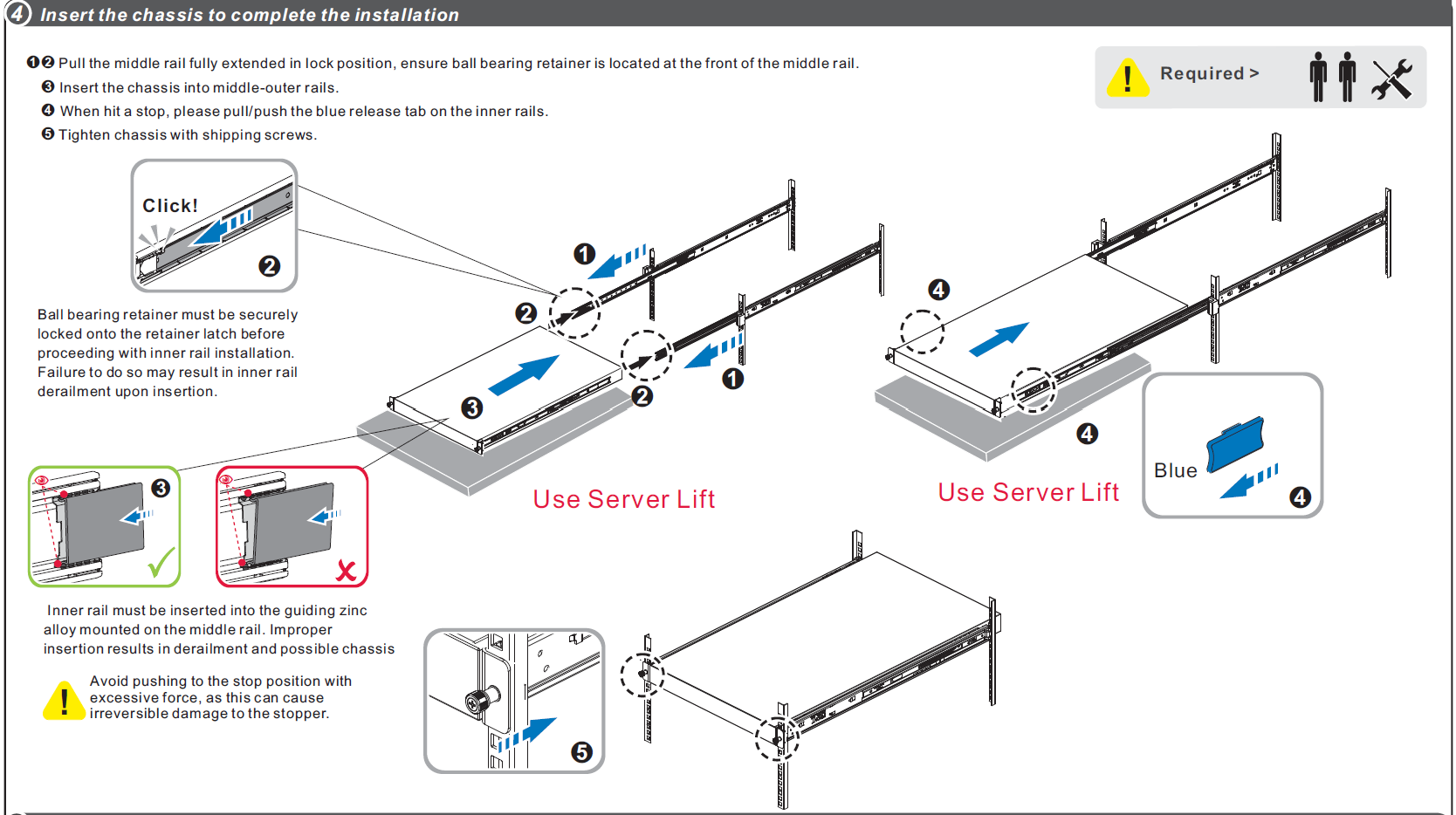

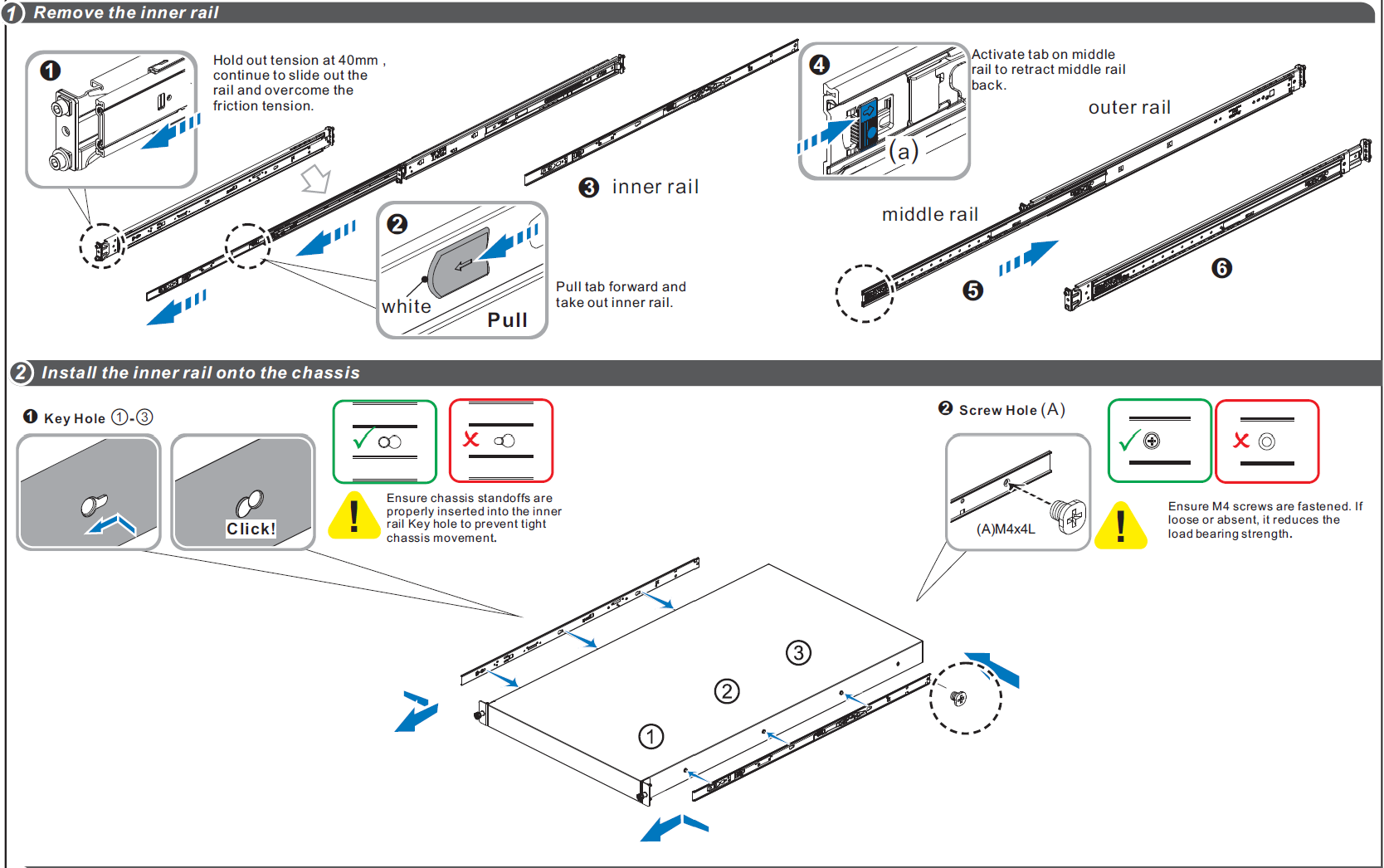

Installation Instructions
CRITICAL ORIENTATION REQUIREMENT
The switch must be mounted in an upright position. Verify the correct orientation before inserting the unit into the rack rails.

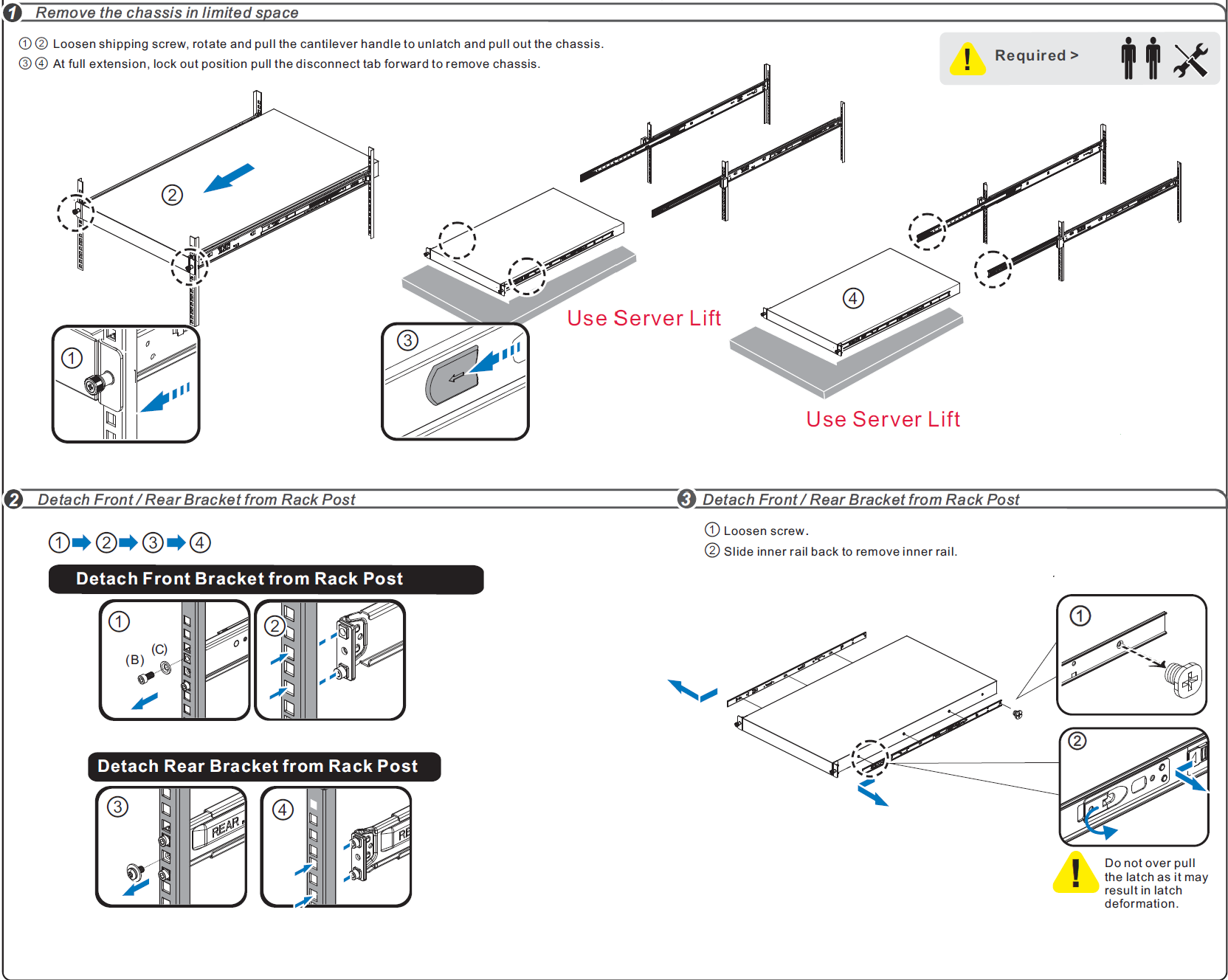

Disassembly Instructions

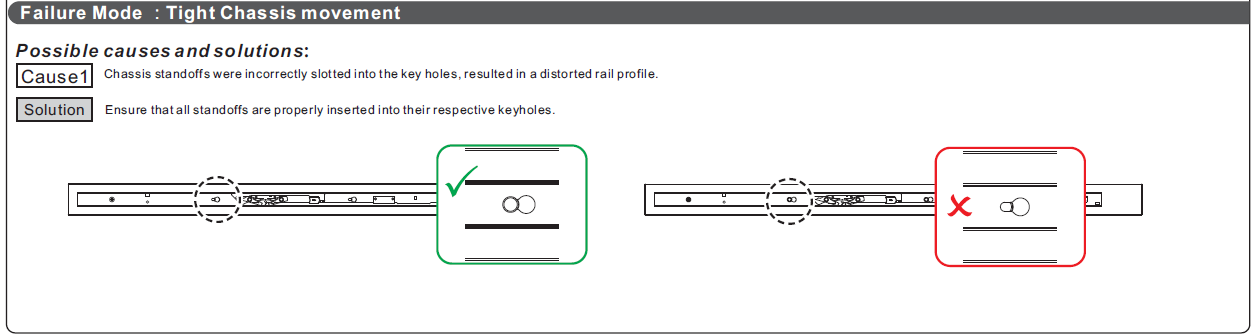

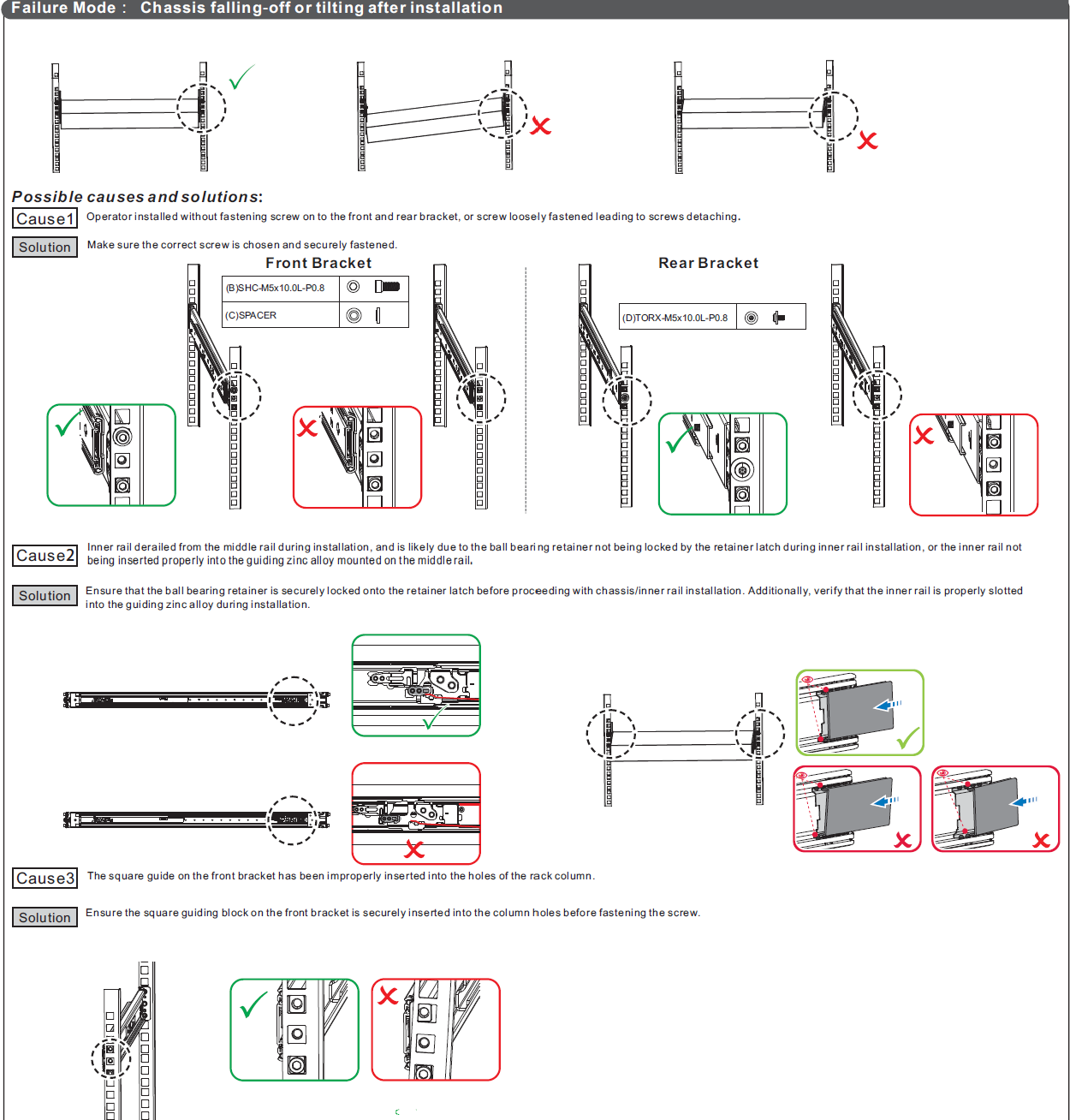

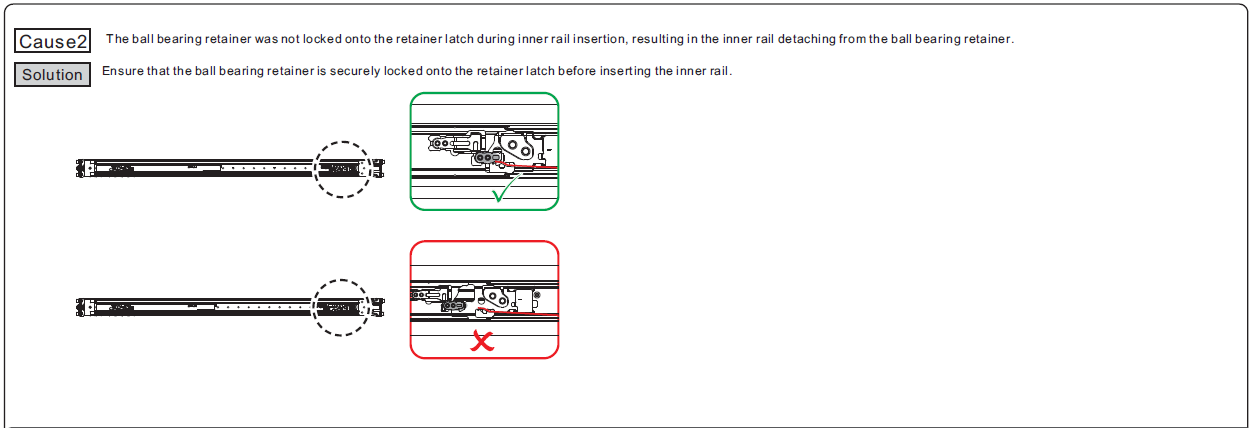

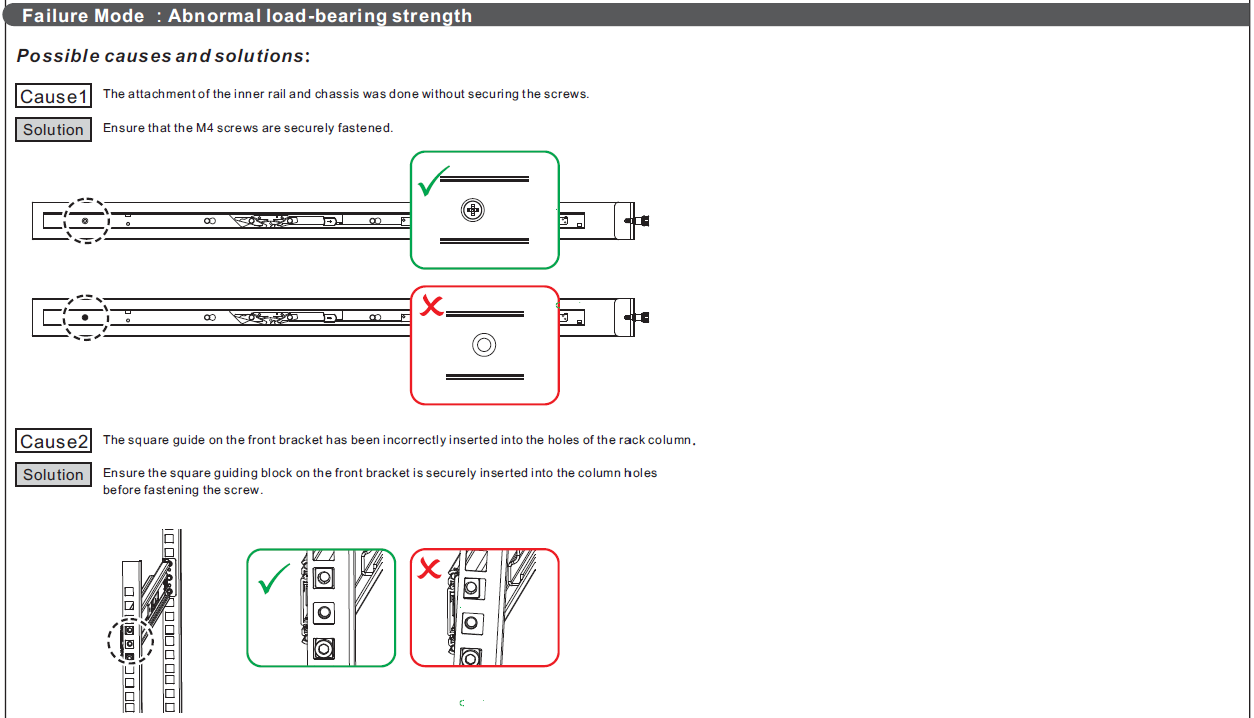

Troubleshooting
