Small Form Factors Specifications
NVIDIA switch systems come in a flexible range of form factors, including SFP/QSFP, SFP28/QSFP28, SFP56/QSFP56, SFP-DD/QSFP-DD, and OSFP.
All form factor specification documents are available from the Storage Networking Industry Association (SNIA).
USB Standard Specifications
For USB specification documents, refer to the USB Document Library.

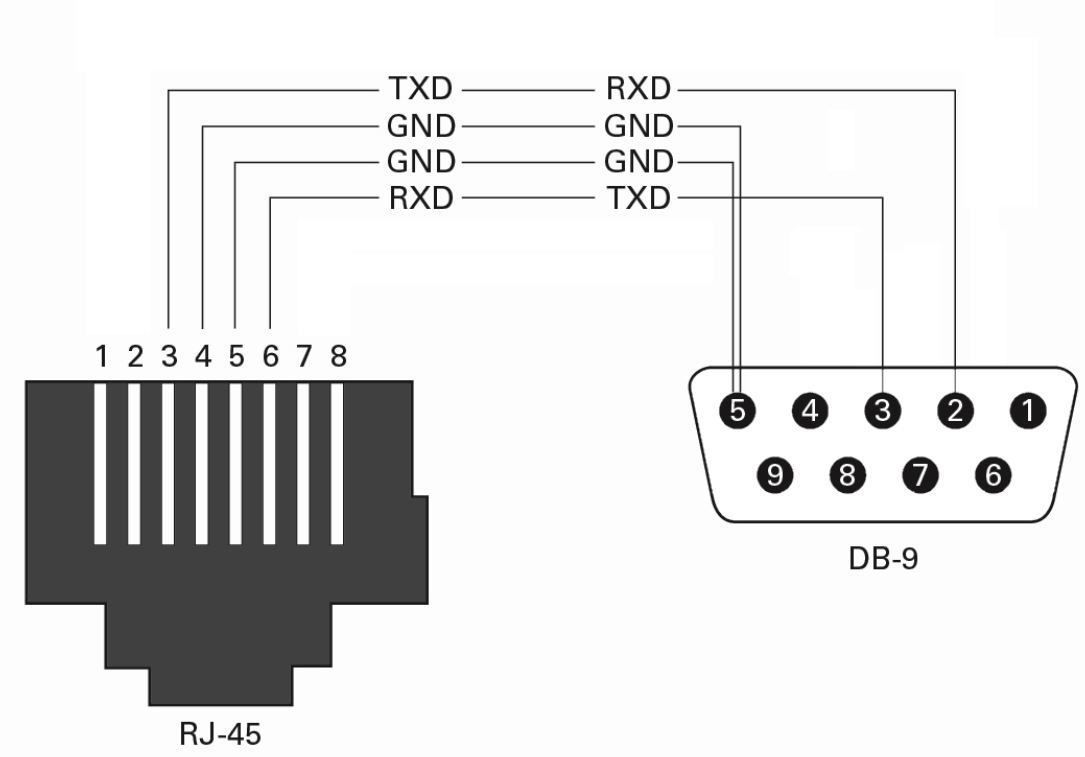

RJ-45 to DB-9 Harness Pinout
NVIDIA supplies an RS232 harness cable (DB-9 to RJ-45) to connect a host PC to the console RJ-45 system port.
The RS-232 default baud rate is 115200 bps with an 8N1 configuration.
