DOCA DevEmu PCI

Introduction

DOCA DevEmu PCI is part of the DOCA Device Emulation subsystem. It provides low-level software APIs that allow management of an emulated PCIe device using the emulation capability of NVIDIA® BlueField® networking platforms.

It is a common layer for all PCIe emulation modules, such as DOCA DevEmu PCIe Generic Emulation, and DOCA DevEmu Virtio subsystem emulation.

Prerequisites

This library follows the architecture of a DOCA Core Context. It is recommended read the following sections beforehand:

• DOCA Core Execution Model

• DOCA Core Device

• DOCA Core Memory Subsystem

Generic device emulation is part of DOCA device emulation. It is recommended to read the following guides beforehand:

• DOCA Device Emulation

Environment

DOCA DevEmu PCI Emulation is supported only on the BlueField target. The BlueField must meet the following requirements

• DOCA version 2.7.0 or greater

• BlueField-3 firmware 32.41.1000 or higher

The library must be run with root privileges.

Perform the following:

1. Configure the BlueField to work in DPU mode as described in BlueField Modes of Operation.

2. Enable the PCIe switch emulation capability needed for hot plugging emulated PCIe devices. This can be done by running the following command on the host or BlueField:

   Bash

   host/bf> sudo mlxconfig -d /dev/mst/mt41692_pciconf0 s PCI_SWITCH_EMULATION_ENABLE=1


3. Perform a BlueField system-level reset for the mlxconfig settings to take effect.

To support hot-plug feature, the host must have the following boot parameters:

• Intel CPU:

  intel_iommu=on iommu=pt pci=realloc


• AMD CPU:

  iommu=pt pci=realloc


This can be done using the following steps:

1. Add the boot parameters:

   Bash

   host> sudo nano /etc/default/grub
   Find the variable
   GRUB_CMDLINE_LINUX_DEFAULT="<existing-params>"
   Add the params at the end
   GRUB_CMDLINE_LINUX_DEFAULT="<existing-params> intel_iommu=on iommu=pt pci=realloc"


2. Update configuration.

   • For Ubuntu:

     Bash

     host> update-grub


   • For RHEL:

     Bash

     host> grub2-mkconfig -o /boot/grub2/grub.cfg


3. Perform warm boot.

4. Confirm that the parameters are in effect:

   Bash

   host> cat /proc/cmdline
   <existing-params> intel_iommu=on iommu=pt pci=realloc


Architecture

The DOCA DevEmu PCI library provides two main software abstractions:

• The PCIe type

• The PCIe endpoint

The PCIe type represents the configurations of the emulated device, while the PCIe endpoint represents an instance of an emulated device. Furthermore, any PCIe endpoint instance must be associated with a single PCIe type, while a PCIe type can be associated with many PCIe endpoints.

The DOCA DevEmu PCI endpoint serves as a base structure for all DOCA DevEmu library devices (such as the DOCA DevEmu PCI Device for generic emulation and the DOCA DevEmu PCI TLP Device for TLP emulation). The endpoint can be retrieved using the doca_devemu_pci_*dev_as_ep API.

The rest of this document mostly describes the features and characteristics of the DOCA DevEmu PCI Device object (generic emulation). Only the following sections apply to all objects:

• Pre-defined PCI Type vs. Generic/TLP PCI Type

• PCIe Type Name

• Create Emulated Device

• Emulated Device Discovery

• Objects Lifecycle and Persistency

• SR-IOV

• Device Support

Pre-defined PCI Type vs. Generic/TLP PCI Type

A PCIe type object can be acquired in 2 different ways:

• Acquire a pre-defined type, using emulation libraries of existing protocols such as DOCA DevEmu Virtio FS library

• Create from scratch using the DOCA DevEmu PCI Generic library or the DOCA DevEmu PCI TLP library

In case of pre-defined type, the configurability of the type is limited.

PCIe Type Name

As part of the DOCA PCIe emulation, every type has a name assigned to it. This property is not part of the PCIe specification, but rather a mechanism in DOCA that uniquely identifies the PCIe type.

There cannot be 2 different PCIe types with the same name, even across different processes, unless the type in the second process is configured in identical manner to the first one. Furthermore, attempting to configure the second type with same name but with slight configuration difference will fail.

Create Emulated Device

After configuring the desired DOCA DevEmu PCIe type, it is possible to create an emulated device based on the configured type using doca_devemu_pci_type_create_rep. This sequential process ensures that the DOCA DevEmu PCIe endpoint is created with the specified parameters and configuration defined by the PCIe type object. Furthermore, it is possible to destroy the emulated device using doca_devemu_pci_type_destroy_rep.

Specifically when the device is a DOCA DevEmu PCI Device, the created device representor starts in "power_off" state and is not visible to the host until hot-plug sequence is issued by the user, see Hot-plug Emulated Device. The device can then be destroyed only while in "power_off" state.

Extension

The emulated device can be created with extended configurations, such as setting an Expansion ROM BAR and configuring an SR-IOV PF, using doca_devemu_pci_type_create_rep_ex.

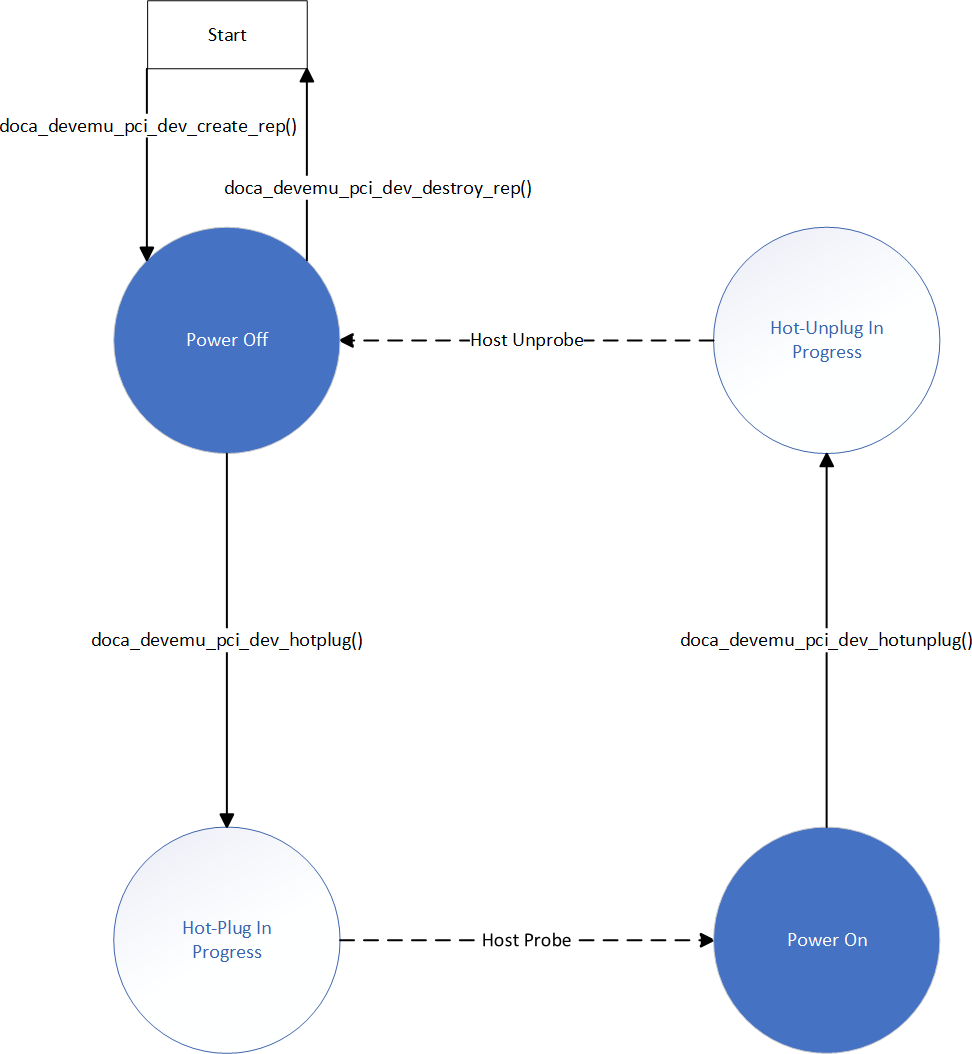

Hot-plug Emulated Device

Hot-plugging refers to the process of emulating the physical attachment of a PCIe device to the host PCIe subsystem after the system has been powered on and initialized. Note that some operating systems require additional settings to enable the process of hot-plugging a PCIe device. For supported systems, this feature proves particularly advantageous for systems that need to remain operational at all times while expanding their hardware resources, such as additional storage and networking capabilities. DOCA DevEmu PCI provides software APIs that allow users to emulate this process in an asynchronous manner.

When creating a PCIe device object, if it starts in "power off" state, then the device is not yet visible to the host. It is possible then, from the BlueField, to hot-plug the device. This starts an async process of the device getting hot-plugged towards the host. Once the process completes, the emulated device transitions to "power on" and becomes visible to the host. Usually at this stage, the emulated device receives its BDF address. The hot-unplug process works in similar async manner.

Using DOCA API, the BlueField Arm can register to any changes to the hot-plug state of each emulated device using doca_devemu_pci_dev_event_hotplug_state_change_register.

Emulated Device Discovery

The emulated device is represented as a doca_devinfo_rep. It is possible to iterate through all the emulated devices as explained in DOCA Core Representor Discovery.

There are 2 ways of filtering the list of emulated devices:

• Get all emulated devices – use DOCA_DEVINFO_REP_FILTER_EMULATED as the filter argument in doca_devinfo_rep_create_list

• Get all emulated devices that belong to a certain type – doca_devemu_pci_type_create_rep_list

Objects Lifecycle and Persistency

This section creates distinction between firmware resources and software resources:

• Firmware resources persist until the next power cycle, and can be accessible from different processes on the BlueField Arm. Such resources are not cleared once the application exits.

• Software resources are representations of firmware resources, and are only relevant for the same process.

Using this terminology, it is possible to describe the objects as follows:

• The PCIe type object doca_devemu_pci_type represents a PCIe type firmware resource. The resource persists if any of the following apply:

  • There is at least 1 process holding reference to the PCIe type

  • There is at least 1 PCIe device firmware resource belonging to this type

• The emulated device representor, doca_devinfo_rep, represents an emulated PCIe function firmware resource:

  • doca_devemu_pci_type_create_rep can be used to create such firmware resource

  • To destroy the firmware resource, doca_devemu_pci_type_destroy_rep can be used

  • For static functions, the representor resource persists until configured otherwise in NVCONFIG

  • To find existing PCIe device firmware resources, use doca_devemu_pci_type_create_rep_list

Function-level Reset

The created emulated devices support PCIe function level reset (FLR).

Using DOCA API, the BlueField Arm can register to FLR event using doca_devemu_pci_dev_event_flr_register. Once the driver requests FLR, this event is triggered, calling the user provided callback.

Once FLR is detected, it is expected for the BlueField Arm to do the following:

• Destroy all resources related to the PCIe device. For information on such resources, refer to the guide of concrete PCIe type (generic/virtiofs).

• Stop the PCIe device

• Start the PCIe device again

PCIe Resources

It is possible to query the number of available PCIe emulation resources. The resources that can be queried are:

• Number of doorbells

• Number of MSI-X

These resources are globally shared across the system between all emulated devices that are created using the same doca_dev.

SR-IOV

The library allows exposing an emulated Physical Function (PF) that carries an SR-IOV Extended Capability, allowing the host to enable a number of Virtual Functions (VFs) on top of the PF. SR-IOV support is a per-type capability and is queried using doca_devemu_pci_*cap_type_is_dynamic_sriov_supported.

Creating an SR-IOV PF

An SR-IOV PF is created by configuring a set of SR-IOV attributes on a doca_devemu_pci_rep_init_attr object and then creating the PF representor with doca_devemu_pci_type_create_rep_ex. Configuring any of these attributes requires doca_devemu_pci_*cap_type_is_dynamic_sriov_supported to return 1. The available attributes are:

• TotalVFs – doca_devemu_pci_rep_init_attr_set_total_vfs – the number of VFs the PF can support, reflected in its SR-IOV TotalVFs field. Bounded by doca_devemu_pci_cap_get_max_total_vfs. All attributes below are valid only when TotalVFs > 0.

• VF stride – doca_devemu_pci_rep_init_attr_set_vf_stride – bounded by doca_devemu_pci_cap_get_max_vf_stride.

• First VF offset – doca_devemu_pci_rep_init_attr_set_first_vf_offset – bounded by doca_devemu_pci_cap_get_max_first_vf_offset.

• First dynamic VF index – doca_devemu_pci_rep_init_attr_set_first_dynamic_vf_idx – the starting index of the PF’s contiguous range within the global dynamic VF pool (see below). The PF is assigned the VF indices [first_dynamic_vf_idx, first_dynamic_vf_idx + TotalVFs - 1].

• MSI-X vectors per VF – doca_devemu_pci_rep_init_attr_set_vf_num_msix – the initial number of MSI-X vectors allocated to each VF. bounded by doca_devemu_pci_cap_type_get_max_num_msix.

• Doorbells per VF – doca_devemu_pci_rep_init_attr_set_vf_num_db – the initial number of doorbells allocated to each VF. bounded by doca_devemu_pci_cap_type_get_max_num_db.

Dynamic VF Pool

VFs are drawn from a global dynamic VF pool of indices [0, pool_size - 1] that is shared across all PF representors. The pool size is queried with doca_devemu_pci_cap_get_dynamic_vf_pool_size. Each PF is assigned a contiguous sub-range of this pool via its first dynamic VF index and TotalVFs, and the same VF index cannot be assigned to more than one PF at the same time.

The MSI-X vectors and doorbells assigned to VFs are taken from the globally shared PCIe emulation resources (see PCIe Resources). The total number of MSI-X vectors and doorbells available on the device can be obtained by acquiring a doca_devemu_pci_resources object with doca_devemu_pci_get_available_resources and reading doca_devemu_pci_resources_get_num_msix and doca_devemu_pci_resources_get_num_db.

Dedicated Operations

Once an SR-IOV PF endpoint is started, the following operations are available on it:

• doca_devemu_pci_ep_get_total_vfs – the PF’s TotalVFs value (0 indicates the endpoint is not an SR-IOV PF).

• doca_devemu_pci_ep_get_num_vfs – the current NumVFs value as last written by the host, i.e., how many VFs are currently enabled.

• doca_devemu_pci_ep_get_num_free_dynamic_vf_msix – the number of MSI-X vectors the PF can still assign to its VFs.

• doca_devemu_pci_ep_get_num_free_dynamic_vf_db – the number of doorbells the PF can still assign to its VFs.

• doca_devemu_pci_ep_reset_msix_resources – reset the MSI-X resources of the PF’s VFs. Requires SR-IOV to be disabled and all associated VF endpoints to be stopped.

• doca_devemu_pci_ep_reset_db_resources – reset the doorbell resources of the PF’s VFs, under the same preconditions.

Device Support

DOCA PCIe Device emulation requires a device to operate. For picking a device, see DOCA Core Device Discovery.

The device emulation library is supported only on BlueField-3 and later.

As device capabilities may change in the future (see Capability Checking), it is recommended that users choose a device using the following method:

• doca_devemu_*_cap_is_*hotplug_supported – for create and hot-plug support

• doca_devemu_*_cap_is_*type_supported – for device discovery only

PCIe Device

Configuration Phase

To start using the DOCA DevEmu PCI Device, users must first go through a configuration phase as described in DOCA Core Context Configuration Phase.

This section describes how to configure and start the context to allow retrieval of events.

Configurations

The context can be configured to match the application use case.

To find if a configuration is supported or what its min/max value is, refer to Device Support.

Mandatory Configurations

All mandatory configurations are provided during the creation of the PCIe device.

These configurations are as follows:

• A DOCA DevEmu PCIe type object

• A DOCA Device Representor, representing an emulated function with the same type as the provided PCIe object type

• A DOCA Progress Engine object

Optional Configurations

These configurations are optional. If not set, then a default value is used:

• Registering to events as described in the "Events" section. By default, the user does not receive events

• The PCIe device ID. By default, it is derived from the PCIe type.

• The PCIe vendor ID. By default, it is derived from the PCIe type.

• The PCIe subsystem ID. By default, it is derived from the PCIe type.

• The PCIe subsystem vendor ID. By default, it is derived from the PCIe type.

• The PCIe revision ID. By default, it is derived from the PCIe type.

• The PCIe class code. By default, it is derived from the PCIe type.

• The number of MSI-X vectors for MSI-X capability. By default, it is derived from the PCIe type.

Execution Phase

This section describes execution on CPU using DOCA Core Progress Engine.

Events

The DOCA DevEmu PCI device exposes asynchronous events to notify about sudden changes according to DOCA Core architecture.

Common events are described in DOCA Core Event.

Hotplug State Change

The hotplug state change event allows users to receive notifications whenever the hotplug state of the emulated device changes. See section "Hot-plug Emulated Device".

Event Configuration

Event Trigger Condition

The event is triggered anytime an asynchronous transition happens as follows:

• DOCA_DEVEMU_PCI_HP_STATE_PLUG_IN_PROGRESS → DOCA_DEVEMU_PCI_HP_STATE_POWER_ON

• DOCA_DEVEMU_PCI_HP_STATE_UNPLUG_IN_PROGRESS → DOCA_DEVEMU_PCI_HP_STATE_POWER_OFF

• DOCA_DEVEMU_PCI_HP_STATE_POWER_ON → DOCA_DEVEMU_PCI_HP_STATE_UNPLUG_IN_PROGRESS (when initiated by the host)

Any transition initiated by user is not triggered (e.g., calling hotplug to transition from POWER_OFF to PLUG_IN_PROGRESS).

The following APIs can be used to initiate hotplug or hot-unplug transition processes:

• doca_devemu_pci_dev_hotplug

• doca_devemu_pci_dev_hotunplug

Event Output

Common output as described in DOCA Core Event.

Additionally, the internal cached hotplug state is updated and can be fetched using doca_devemu_pci_dev_get_hotplug_state.

Event Handling

Once the event is triggered, it means that the hotplug state has changed. The application is expected to do the following:

• Retrieve the new hotplug state using doca_devemu_pci_dev_get_hotplug_state

Function-level Reset

The FLR event allows users to receive notifications whenever the host initiates an FLR flow. See section "Function Level Reset".

Event Configuration

Event Trigger Condition

The event is triggered anytime the host driver initiates an FLR flow. See section "Function Level Reset".

Event Output

Common output as described in DOCA Core Event.

Additionally, the internal cached FLR indicator is updated and can be fetched using doca_devemu_pci_dev_is_flr.

Event Handling

Once the event is triggered, it means that the host driver has initiated the FLR flow.

The user must handle the FLR flow by doing the following:

1. Flush all the outstanding requests back to the associated resource

2. Release all the PCIe device resources dynamically created after device start

3. Stop the PCIe device – doca_ctx_stop

4. Start the PCIe device again – doca_ctx_start

   • Call doca_pe_progress repeatedly until the PCIe device transitions to "running" state

For more information on starting the PCIe device again, refer to section "State Machine".

SR-IOV

The SR-IOV event allows users to receive notifications whenever the host enables or disables SR-IOV on the PF by writing the NumVFs register. See section "SR-IOV".

Event Configuration

Event Trigger Condition

The event is triggered whenever the host writes the SR-IOV NumVFs register – when enabling SR-IOV (writing a non-zero number of VFs) or disabling it (writing 0).

Event Output

Common output as described in DOCA Core Event.

Additionally, the handler receives the previous and current values of the NumVFs register. The current value can also be fetched using doca_devemu_pci_ep_get_num_vfs.

Event Handling

Once the event is triggered, the number of VFs visible on the PCIe bus has changed. Based on the previous and current NumVFs values, the application should bring up the resources for the newly enabled VFs, or tear down the resources of VFs that were disabled.

State Machine

The DOCA DevEmu PCI device object follows the context state machine as described in DOCA Core Context State Machine.

The following section describes how to transition to any state and what is allowed in each state.

Idle

In this state, it is expected that application either:

• Destroys the context

• Starts the context

Allowed operations:

• Configuring the context according to section "Configurations"

• Starting the context

It is possible to reach this state as follows:

Starting

In this state, it is expected that application:

• Calls progress to allow transition to next state

• Keeps context in this state until FLR flow is complete

It is possible to reach this state as follows:

Running

In this state, it is expected that application:

• Calls progress to receive events

• Creates/destroys PCIe device resources

It is possible to reach this state as follows:

Stopping

In this state, it is expected that application:

• Destroys all emulated device resources as described in section "Function Level Reset".

Allowed operations:

• Destroying PCIe device resources

It is possible to reach this state as follows:
