UFM Telemetry Fluentd Streaming (TFS) Plugin

Plugin Release Notes

Changes and New Features

Plugin Version

Feature

1.3.1-4

  • Add a bulk_batch_size config option

1.2.1-1

  • TFS Size reduction

  • TFS ARM support

1.1.1-1

N/A

Bug Fixes

Plugin Version

Bug Fix

1.3.1-4

  • Fixed telemetry_request_timeout config value is ignored, always uses 60s

1.2.1-1

N/A

1.1.1-1

N/A

Overview

The TFS plugin is designed to extract UFM Telemetry counters from specified telemetry HTTP endpoints and stream them to the designated Fluentd collector destination.

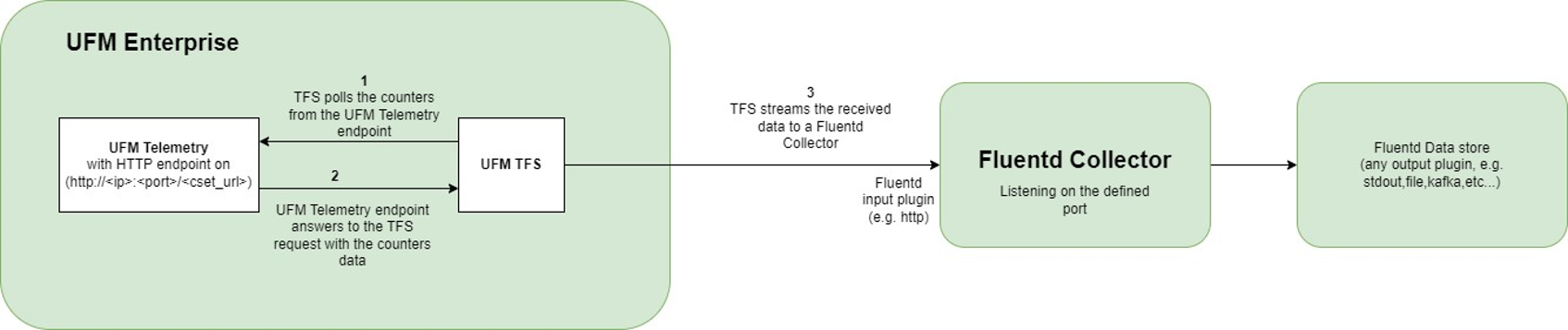

The diagram below illustrates the plugin's stream flow:

TFS Architecture.png

Deployment

The following are the possible ways the TFS plugin can be deployed:

  1. On UFM Appliance

  2. On UFM Software

For complete instructions on deploying the TFS plugin, refer to UFM Telemetry endpoint stream To Fluentd endpoint (TFS).

Authentication

The following authentication types are supported:

  • basic (/ufmRest)

  • client (/ufmRestV2)

  • token (/ufmRestV3)

Rest API

The following REST APIs are supported:

  • POST /plugin/tfs/conf

  • GET /plugin/tfs/conf

  • POST /plugin/tfs/conf/attributes

  • GET /plugin/tfs/conf/attributes

For detailed information on interacting with TFS plugin, refer to the NVIDIA UFM Enterprise > Rest API > TFS Plugin REST API.
