Q3401-RD Rail Kit

Kit Part Number

Rack Size and Rack Depth Range

930-9SKIT-00L0-00C

Rail kit for NVIDIA Quantum-3 2U switch

600-800mm

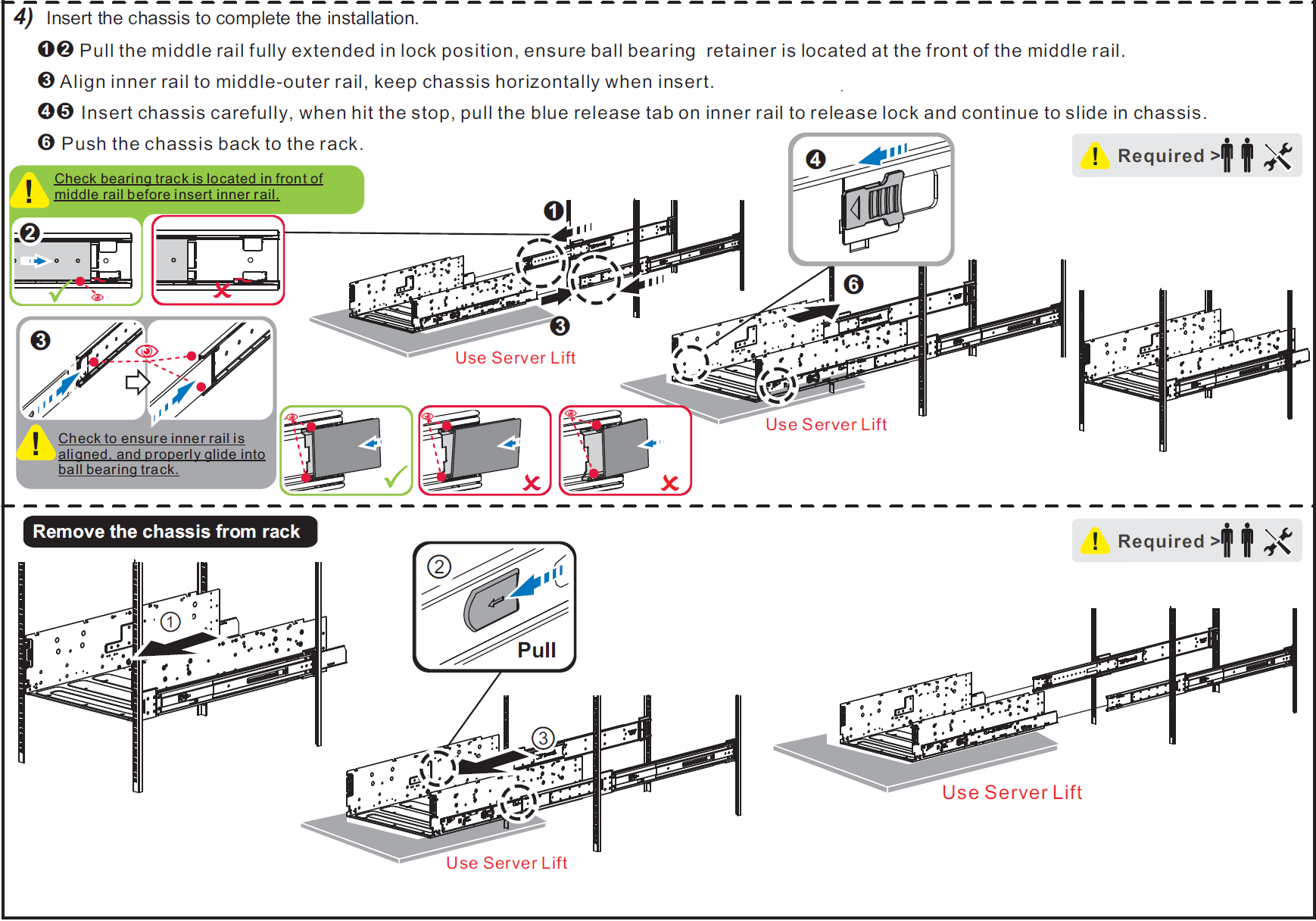

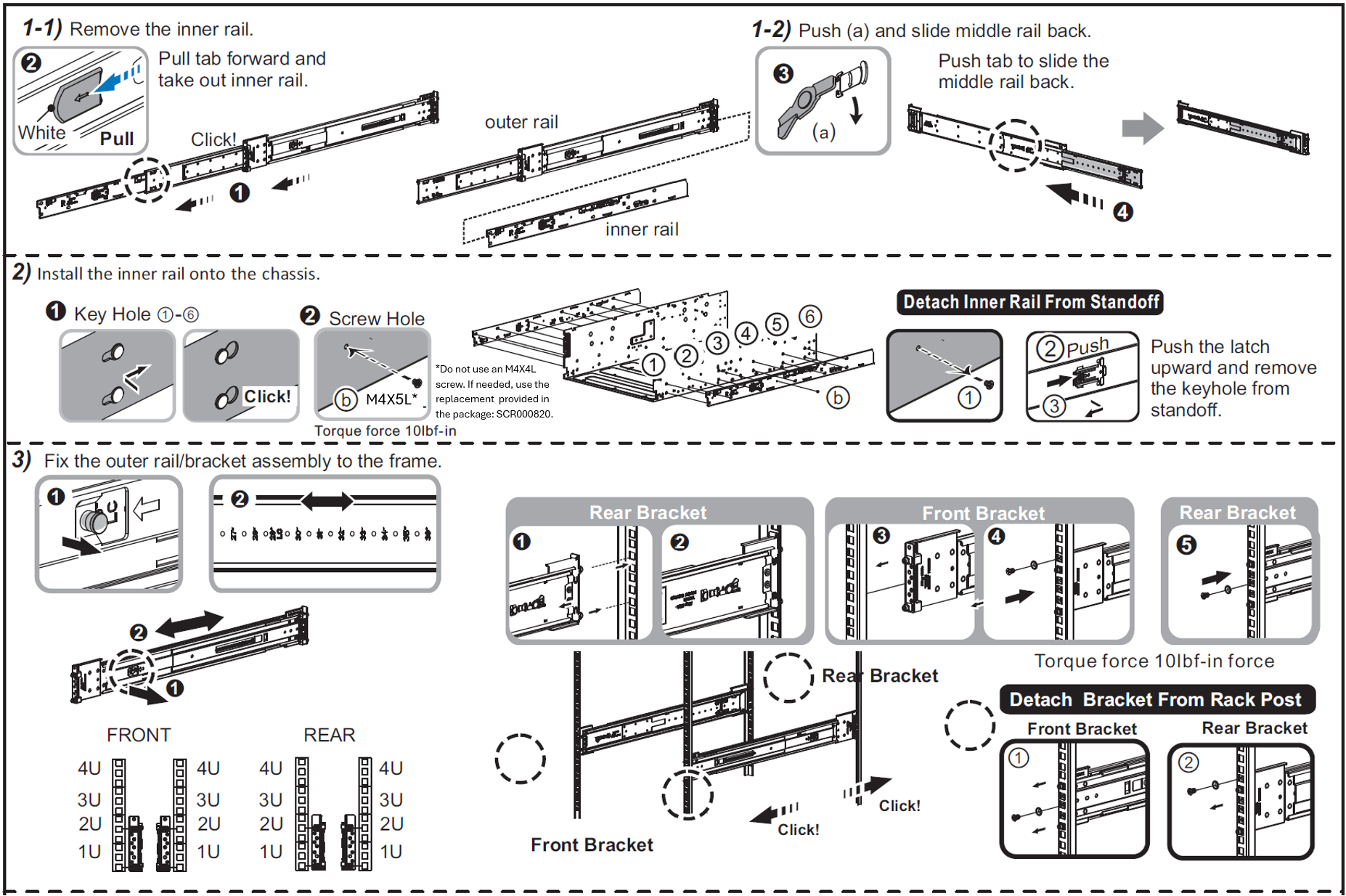

Installation Instructions

The following instructions have been prepared and provided with permission from King Slide.


3a. Optional: Brackets Cover Panels Installation

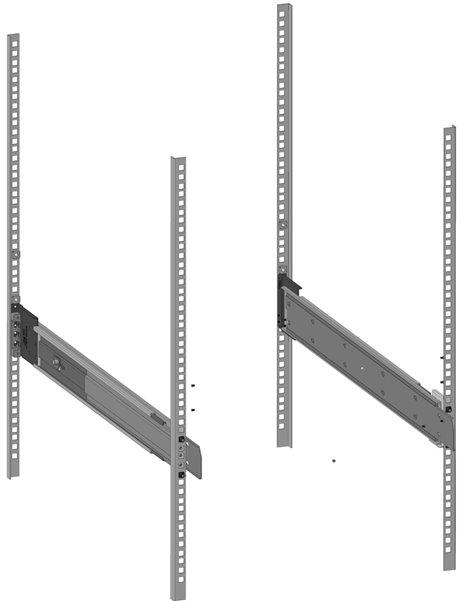

  1. Install 8 cage nuts in the designated holes on the front and rear sides of the rack.

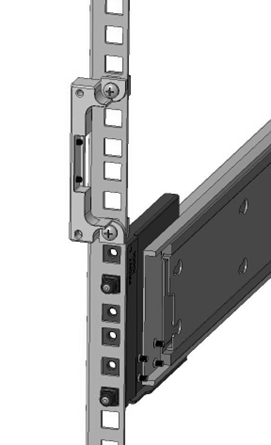

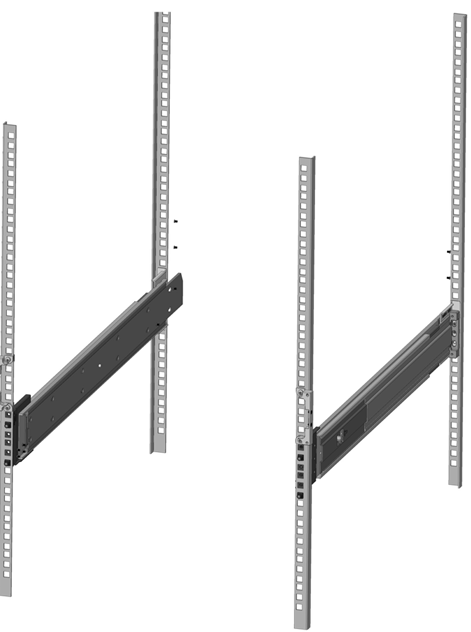

  2. Attach the two snap brackets to the rack, ensuring a firm and stable connection.

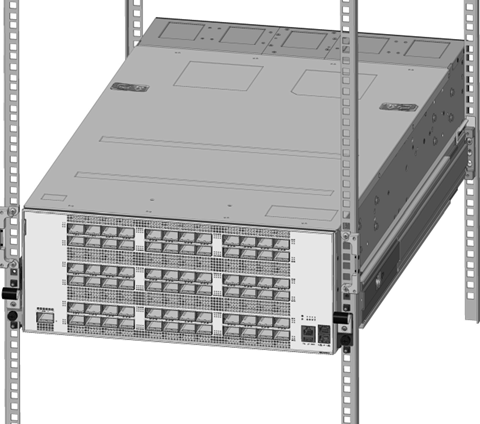

3. Mount the switch system: position the system in the rack, and fasten it to the rail-kit with two thumb screws, applying a torque of 1.8 Nm.

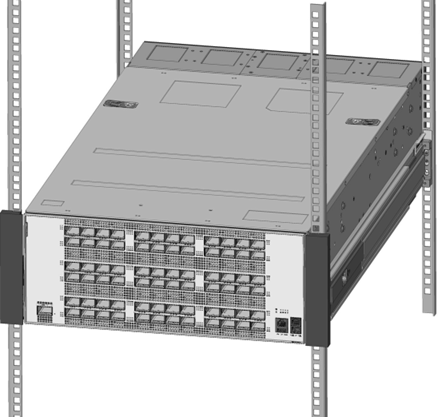

4. Cover the snap brackets with the two designated panels. Secure the panels by snapping them onto the snap brackets.
