Physical |
PCIe Auxiliary Card Size: 5.09 in. x 2.32 in. (129.30mm x 59.00mm)
|
|||
|---|---|---|---|---|
|
Power Consumption |
Voltage: 12V, 3.3V_AUX
|
|||
|
PCIe Connectivity |
930-9DAX5-0015-000 |
PCI Express Gen 5.0/4.0: SERDES @ 16/32 GT/s, x16 lanes (Gen 3.0 compatible) |
||
|
930-9DAX4-0035-000 |
PCI Express Gen 4.0: SERDES @ 16GT/s, x16 lanes (Gen 3.0 compatible) |
|||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°C |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||

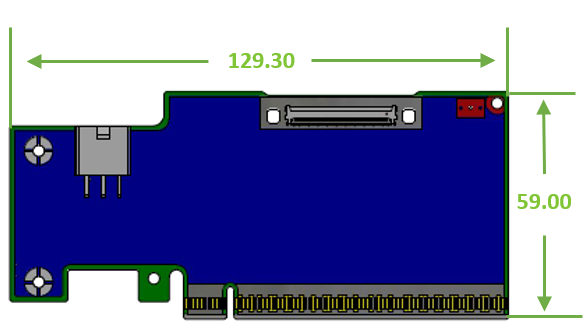

PCIe Auxiliary Card Mechanical Drawings and Dimensions
All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.
Bracket Mechanical Drawings and Dimensions
|

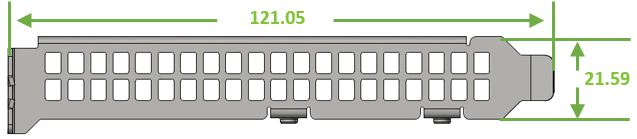

Auxiliary PCIe Connection Card Tall Bracket |

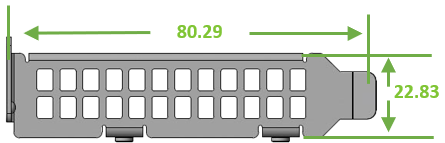

Auxiliary PCIe Connection Card Short Bracket |
|---|---|
|
|
|

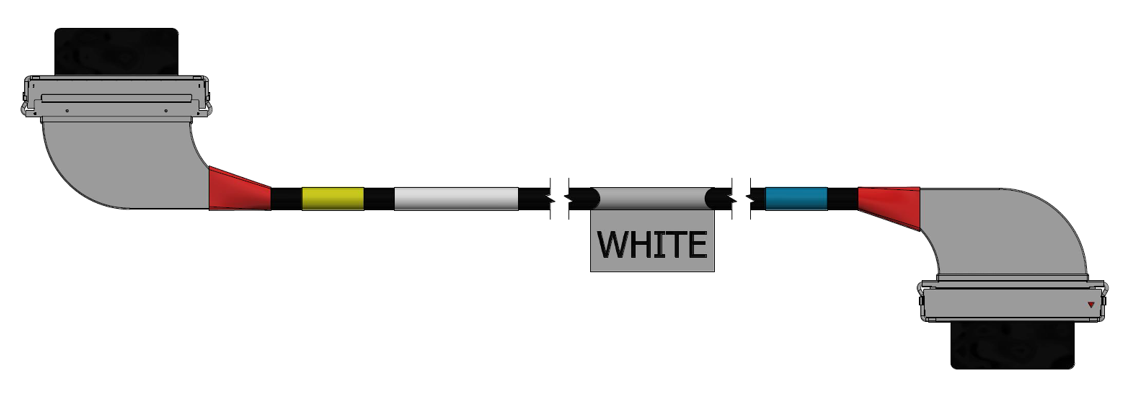

Cabline CA-II Plus Harnesses Mechanical Drawing
