DOCA Storage Target RDMA Application Guide

Introduction

The doca_storage_target_rdma application provides a simple volatile memory solution.

System Design

The doca_storage_target_rdma application perform the following key functions:

• Provide a storage region for the storage use-case user to interact with.

• Perform read and write of memory using doca_RDMA.

To accomplish these tasks, the application establishes a TCP server and listens for an incomming connection form a storage service.

Application architecture

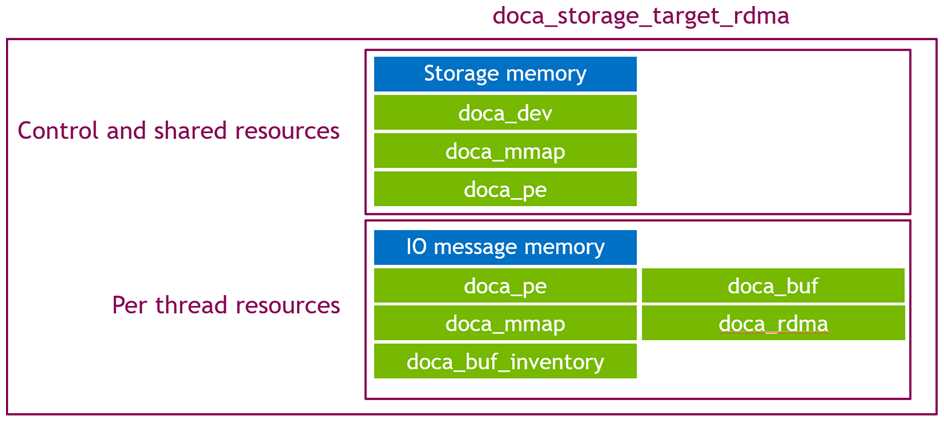

The doca_storage_target_rdma application is divided into two main functional areas:

• Control-time and shared resources

• Per-thread data path resources

The application execution follows two primary phases:

• Control phase

• Data path phase

Control Phase

This phase begins once a storage service connects via TCP.The application then waits for specific control commands:

• Query storage

  • Report on the storage dimmensions

• Init storage

  • Validate requested core count

  • Prepare local memory

  • Import remote memory

  • Create worker objects

• Wait for RDMA connection requests

  • Wait for a number of RDMA connections based on the specified core count from init storage

• Start storage

  • Wait until all connections are ready to process tasks

  • Submit initial tasks

  • Launch threads

Issuing the start storage command initiates the data path phase. While the data threads begin execution, the main thread continues to wait for final control commands to complete the application's lifecycle:

• Stop storage

• Shutdown

Data Path Phase

This phase is executed per thread and involves each thread performing I/O operations requested by the client:

1. Receive IO request

2. Perform RDMA read / write

3. Send IO response

DOCA Libraries

This application leverages the following DOCA libraries:

• DOCA RDMA

Compiling the Application

This application is compiled as part of the set of storage applications. For compilation instructions, refer to the DOCA Storage Applications page.

Running the Application

Application Execution

• Application usage instructions:

  Usage: doca_storage_target_rdma [DOCA Flags] [Program Flags]

  DOCA Flags:
    -h, --help                        Print a help synopsis
    -v, --version                     Print program version information
    -l, --log-level                   Set the (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>
    --sdk-log-level                   Set the SDK (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>
    -j, --json <path>                 Parse all command flags from an input json file

  Program Flags:
    -d, --device                      Device identifier
    --cpu                             CPU core to which the process affinity can be set
    --listen-port                     TCP listen port number
    --binary-content                  Path to binary .sbc file containing the initial content to be represented by this storage instance
    --block-count                     Number of available storage blocks. (Ignored when using content binary file) Default: 128
    --block-size                      Block size used by the storage. (Ignored when using content binary file) Default: 4096


  This usage printout can be printed to the command line using the -h (or --help) options:

  ./doca_storage_target_rdma -h


  For additional information, refer to section "DOCA Storage Target RDMA Application Guide | id (3.0.0)DOCAStorageTargetRDMAApplicationGuide Command lineFlags".

• CLI example for running the application:

  ./doca_storage_target_rdma -d 3b:00.0 --listen-port 12345 --block-size 4096 --block-count 64 --cpu 0


  The user DOCA device PCIe address (3b:00.0) should match the addresses of the desired PCIe device.

• The application also supports a JSON-based deployment mode in which all command-line arguments are provided through a JSON file:

  ./doca_storage_target_rdma --json [json_file]


  For example:

  ./doca_storage_target_rdma --json doca_storage_target_rdma_params.json


  Before execution, ensure that the JSON file contains valid configuration parameters, particularly the correct PCIe device addresses required for deployment.

Command-line Flags

"log-level": 60

"sdk-log-level": 40

"device": "03:00.0"

"cpu": 6

"listen-port": 12345

"binary-content": "data_1.sbc"

"block-count": 64

"block-size": 4096

Troubleshooting

Refer to the NVIDIA BlueField Platform Software Troubleshooting Guide for any issue encountered with the installation or execution of the DOCA applications.

Application Code Flow

Control Phase

1. target_rdma_app app{parse_target_rdma_app_cli_args(argc, argv)};

   Parse CLI arguments, apply default values, and create the application instance.

2. C

   app.wait_for_client_connection();


   Wait for a storage service app to connect via TCP.

3. C

   app.wait_for_and_process_query_storage();


   Wait for the storage service to send a query storage control message, then:

   • Send a query storage response with the dimmensions of this storage instance

4. C

   app.wait_for_and_process_init_storage();


   Wait for the storage service to send an init storage control message, then:

   • Verify that the requested core count does not exceed the available cores

   • Create local storage doca_mmap

   • Import remote memory doca_mmap

   • Create data path resources:

     • Worker objects

     • IO message memory regions

     • doca_pe objects

     • doca_rdma objects

   • Send an init storage response

5. C

   app.wait_for_and_process_create_rdma_connections();


   Wait for the storage service to send a number of create rdma connection control messages Processing each by:

   • Create a connection by creating an exported connection details using doca_rdma context specified in the command

   • Starting the connection using the provided remote connection details

6. C

   app.wait_for_and_process_start_storage();


   Wait for the storage service to send a start storage control message, then:

   • Wait until all doca_rdma contexts are ready to execute tasks (both sides have started their respective connections)

   • Allocate task objects

   • Submit receive tasks

   • Create and start worker threads

7. C

   app.wait_for_and_process_stop_storage();


   Wait for the storage service to send a stop storage control message (test complete), then:

   • Signal worker threads to stop

   • Join worker threads

8. C

   app.wait_for_and_process_shutdown();


   Wait for the storage service to send a shutdown control message, then:

   • Collect and store run statistics

   • Destroy data path objects

   • Send a shutdown response

9. C

   app.display_stats();


   Display collected statistics and destroy all control path objects.

References

• /opt/mellanox/doca/applications/storage/

Last updated: April 18, 2025
