This section is displayed only on BlueField-2 and BlueField-3 devices.

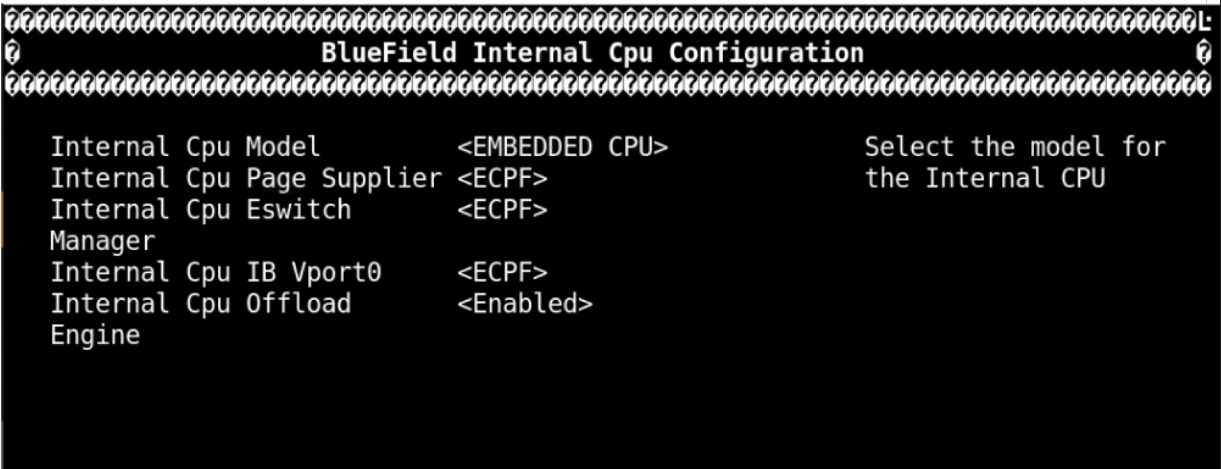

In this menu you can set the following options:
Internal CPU Model
|
Location: |
BlueFiled Internal CPU Configuration |
|---|---|
|
Description: |
Select the model for the Internal CPU |
|
Configurable: |
Yes - A built-in option |
|
Persistency: |
Persistent through AC cycle |
|
Reboot required: |
Yes - A reboot is needed for this change to apply |
|
Available options: |
EMBEDDED CPU/SPERATED HOST |
|
Default Value: |
EMPEDDED CPU |
Internal CPU Page Supplier
|
Location: |
BlueFiled Internal CPU Configuration |
|---|---|
|
Description: |
Defines the owner of providing ICM pages to the external host functions |
|
Configurable: |
Yes - A built-in option |
|
Persistency: |
Persistent through AC cycle |
|
Reboot required: |
Yes - A reboot is needed for this change to apply |
|
Available options: |
ECPF/External PF |
|
Default Value: |
ECPF |
Internal CPU Eswitch Manager
|
Location: |
BlueFiled Internal CPU Configuration |
|---|---|
|
Description: |
Defines the owner of Eth embedded switch responsibilities |
|
Configurable: |
Yes - A built-in option |
|
Persistency: |
Persistent through AC cycle |
|
Reboot required: |
Yes - A reboot is needed for this change to apply |
|
Available options: |
ECPF/External PF |
|
Default Value: |
ECPF |
Internal CPU IB Vport0
|
Location: |
BlueFiled Internal CPU Configuration |
|---|---|
|
Description: |
Defines the owner of the IB Vport0 responsibilities |
|
Configurable: |
Yes - A built-in option |
|
Persistency: |
Persistent through AC cycle |
|
Reboot required: |
Yes - A reboot is needed for this change to apply |
|
Available options: |
ECPF/External PF |
|
Default Value: |
ECPF |
Internal CPU Offload Engine
|
Location: |
BlueFiled Internal CPU Configuration |
|---|---|
|
Description: |
Defines whether the Internal CPU is used as an offload engine |
|
Configurable: |
Yes - A built-in option |
|
Persistency: |
Persistent through AC cycle |
|
Reboot required: |
Yes - A reboot is needed for this change to apply |
|
Available options: |
Enabled/Disabled |
|
Default Value: |
Enabled |
