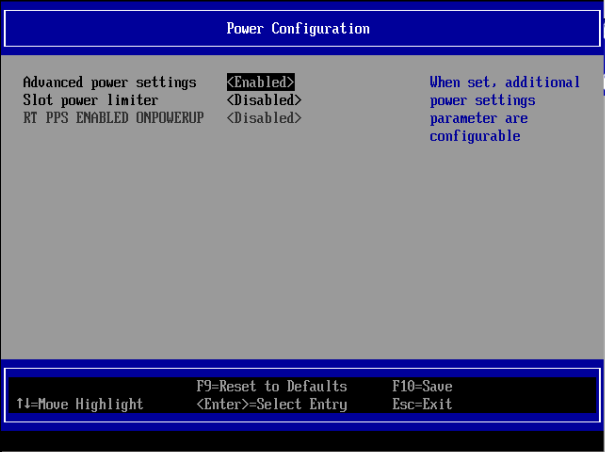

[ConnectX-5 Only] In the following menu, you can set the following options:
Advanced Power Settings
|
Location: |
Power Configuration |
|---|---|
|
Description: |
When set to Enabled, additional power settings parameter are configurable. |
|
Configurable: |
Yes |
|
Available options: |
1 - Enabled 2 - Disabled |
Slot Power Limiter
|
Location: |
Power Configuration |
|---|---|
|
Description: |
When set to disable, the device can consume more than 25W from the PCIe power rails. |
|
Configurable: |
Yes |
|
Available options: |
1 - Enabled 2 - Disabled |
RT PPS ENABLED ONPOWERUP
|
Location: |
Power Configuration |
|---|---|
|
Description: |
When set to TRUE the PPS_OUT will be activated on power up. |
|
Configurable: |
Yes when |
|
Available options: |
1 - Enabled 2 - Disabled |
