Liquid Cooling Specifications
|
Parameter |
SN6600-LD |
SN6810-LD |
SN6800-LD |
|---|---|---|---|
|
Liquid coolant |
Recochem PG-25% |
Recochem PG-25% |
Recochem PG-25% |
|
Propylene-glycol based heat transfer fluid. |
Propylene-glycol based heat transfer fluid. |
Propylene-glycol based heat transfer fluid. |
|
|
Working pressure |
5 [Bar] |
5 [Bar] |
5 [Bar] |
|
Outburst pressure |
15 [Bar] |
15 [Bar] |
15 [Bar] |
|
Universal Quick Disconnects |
UQD8 v2 |
UQD8 v2 |
UQD8 v2 |
|
Design |
Open-loop design |
Open-loop design |
Open-loop design |
|
UQD Couplers |
1 Cold + 1 Hot per switch |
2 Cold + 2 Hot per switch |
5 Cold + 5 Hot per switch |
|

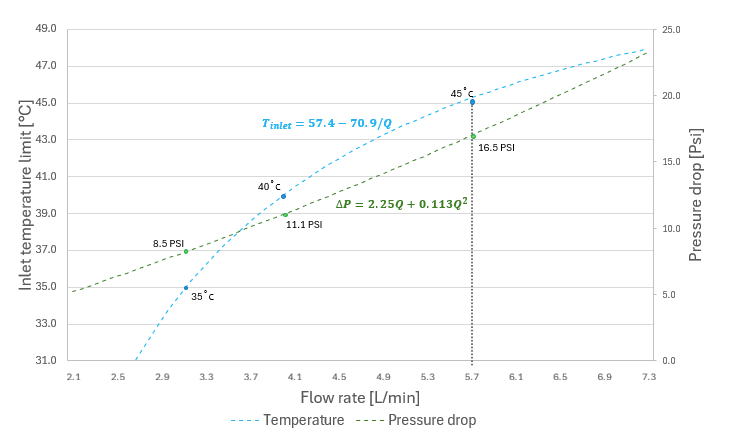

Liquid Flow rate per system |
5.7 [lpm] |
3.4 [lpm] |
13.4 [lpm] |
|
Pressure drop |
16.5 [PSI] |
16.5 [PSI] |
16.5 [PSI] |
|
Max liquid supply temperature |
+45°C |
+45°C |
+45°C |
|
Min liquid supply temperature |
+17°C |
+17°C |
+17°C |
The Liquid Flow Rate should be multiplied according to the number of switches per rack.
Pressure drop remains invariant across all rack elevations.
