Kit Part Number |
Description |
|---|---|
|
930-9SKIT-00L0-00G |
NVIDIA Rail-Kit for SN6600 |
The following instructions have been prepared and provided with permission from King Slide.

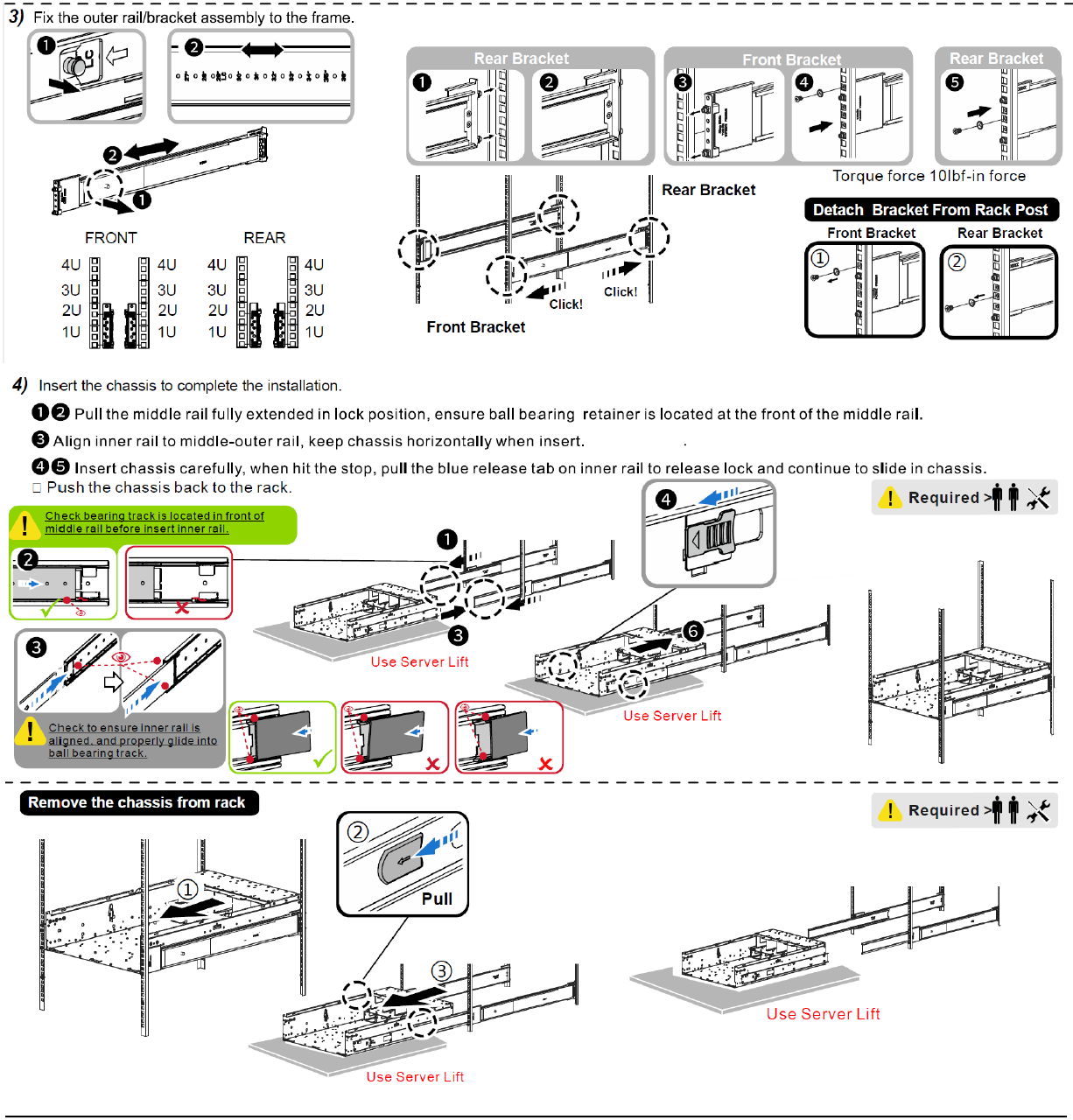

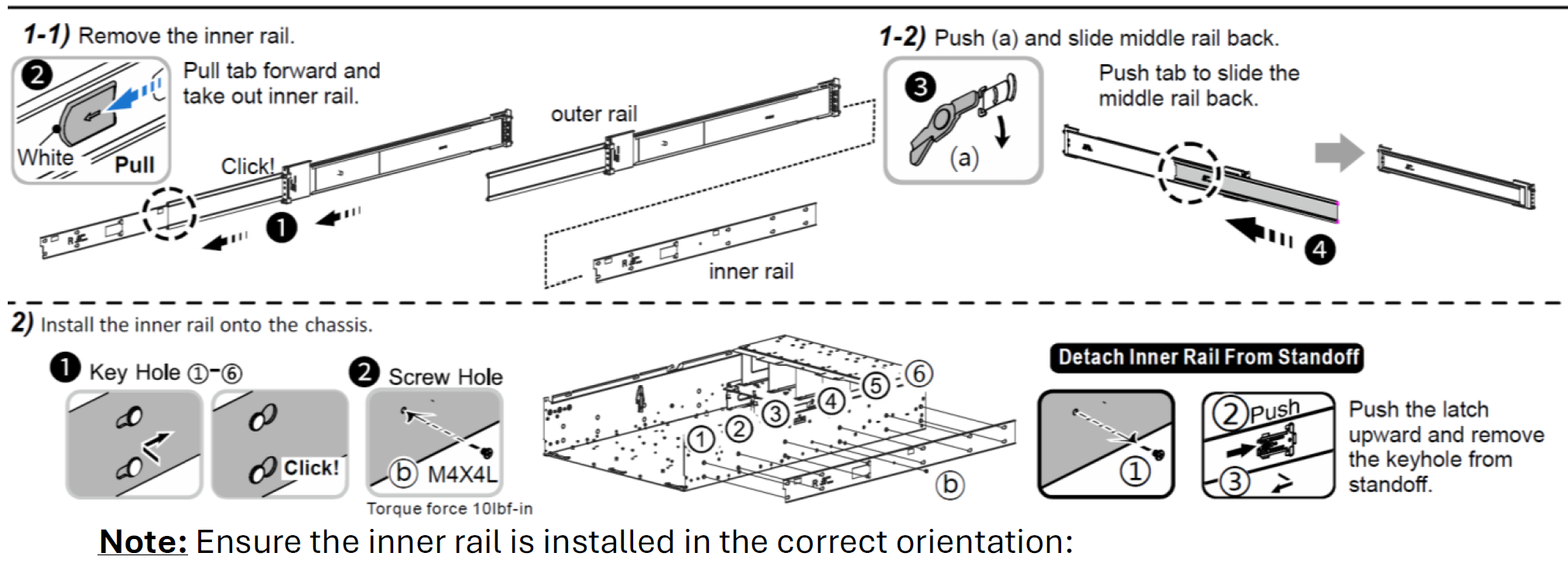

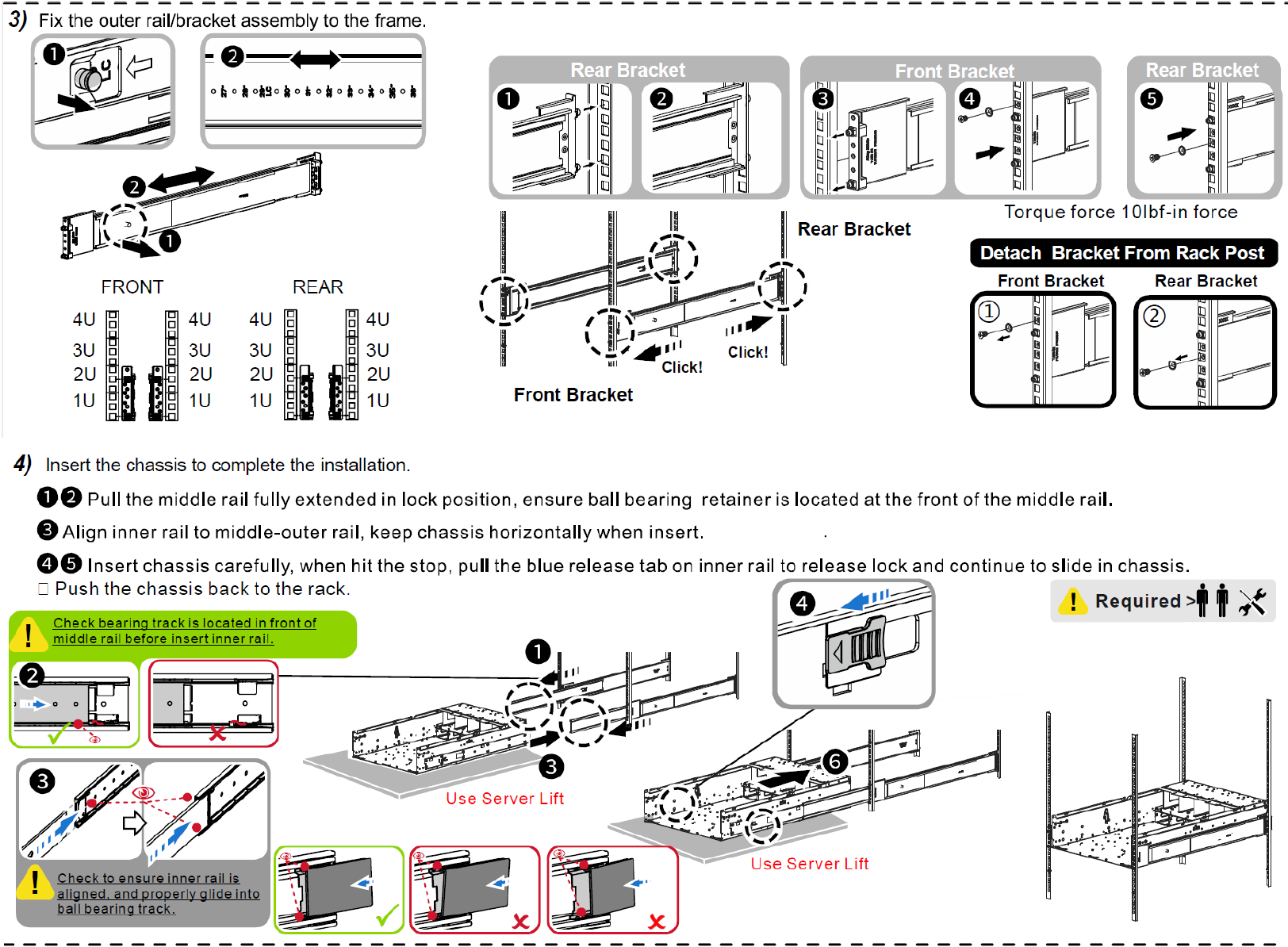

Installation Instructions

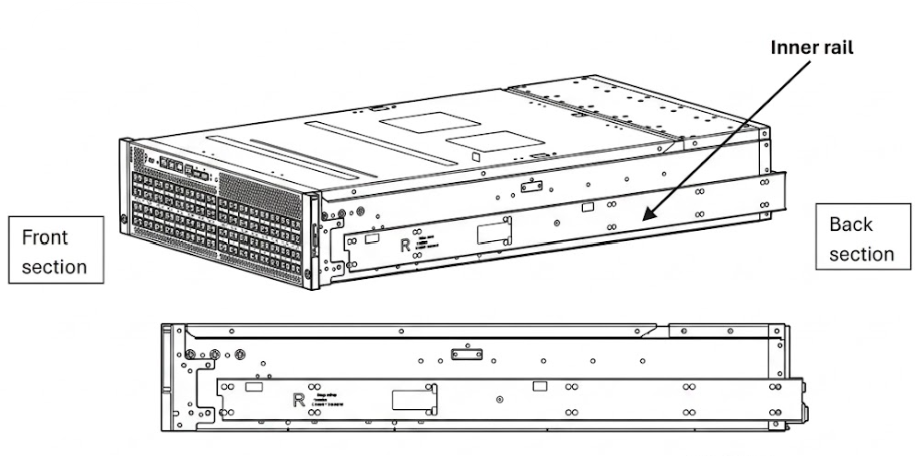

CRITICAL ORIENTATION REQUIREMENT
The switch must be mounted in an upright position. Verify the correct orientation before inserting the unit into the rack rails.
|

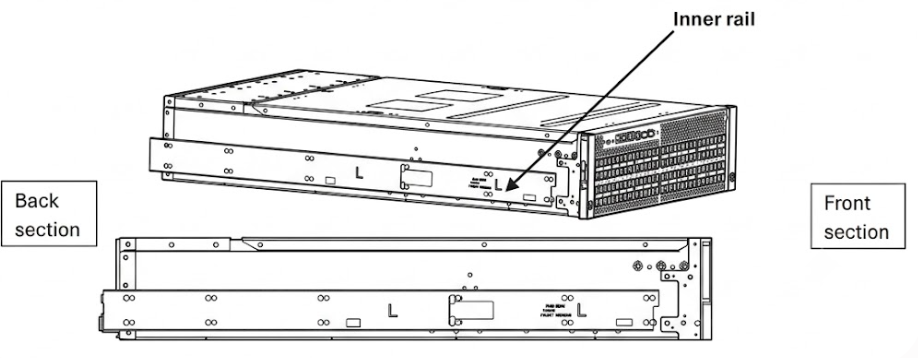

Left
|
Right
|

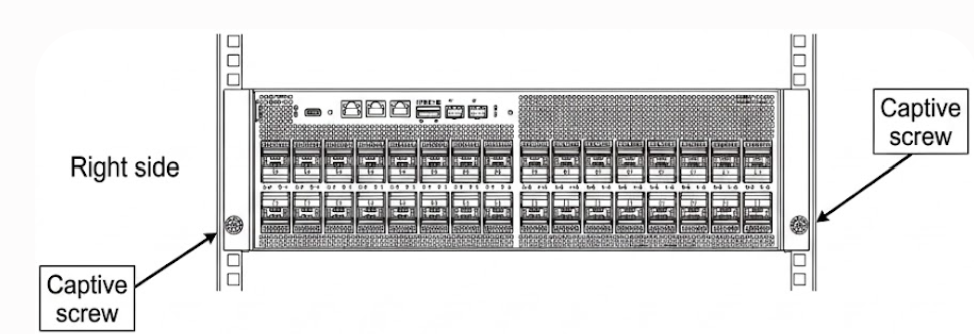

After sliding the system into the rack, tighten the captive screws on both sides to further secure the system to the rack posts.

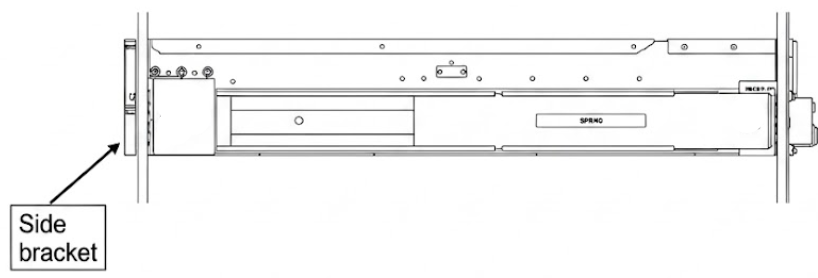

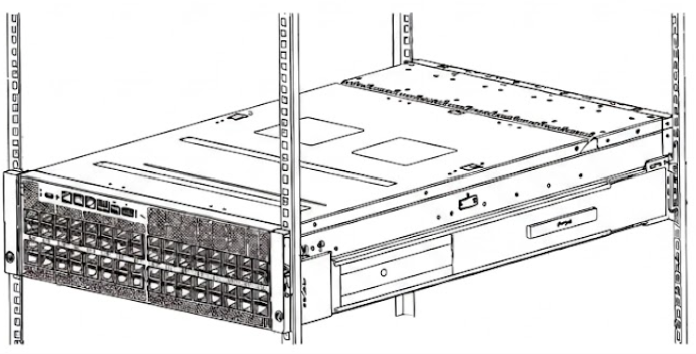

Upon completion of the installation, the side brackets should be attached to the rail as shown below.
|
